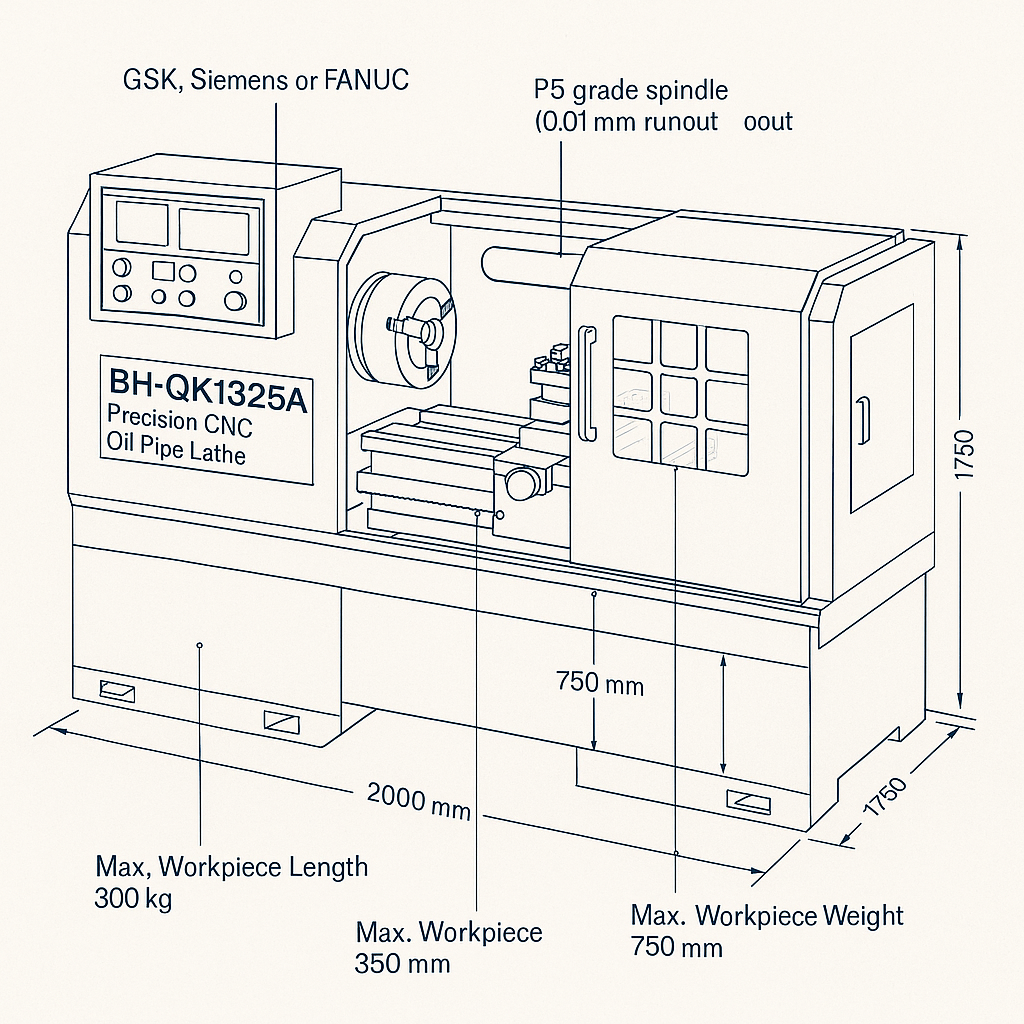

BH-QK1325A Precision CNC Oil Pipe Lathe
P5-grade spindle precision with 0.01mm runout for medium-duty pipe machining
The BH-QK1325A is a horizontal CNC oil pipe lathe built for accurate, repeatable metal pipe cutting. It features a P5-grade spindle with 0.01mm runout and a choice of GSK, SIEMENS, or FANUC control systems.
P5-Grade Spindle
0.01mm Runout
1-Year Warranty
Free Replacement Parts
Guide Price
R 2 924 204.85
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
750 mm
Max. Workpiece Length
300 kg
Max. Workpiece Weight
200–2000 r/min
Spindle Speed
±0.01 mm
Positioning Accuracy
GSK (SIEMENS, FANUC optional)
CNC Control
52 mm
Spindle Bore
Business Solution Overview
Precision That Reduces Rework: With 0.01mm positioning accuracy and repeatability, plus IT6 machining precision and Ra0.8 surface roughness, the BH-QK1325A helps minimise scrap and secondary finishing operations.
Built for Medium-Duty Production: A 300 kg workpiece capacity and 750 mm maximum turning length allow the lathe to handle a wide range of oil pipe sizes without compromising stability or throughput.
Flexible Control Platform: Choose GSK as standard or specify SIEMENS or FANUC to match your existing programming environment and operator familiarity, reducing training and integration time.
Warranty and Parts Support: Each machine is backed by a one-year warranty and free replacement parts, lowering the risk of unexpected downtime and protecting your investment.
Compact Footprint, Serious Capability: At 2200 × 1200 × 1520 mm and 1800 kg, the lathe fits into most workshop layouts while still delivering the rigidity needed for accurate pipe machining.
Why Choose BH-QK1325A Precision CNC Oil Pipe Lathe?
P5-Grade Spindle Precision
The P5-grade spindle keeps runout at just 0.01mm, delivering smooth, exact cuts and consistent surface finishes across every workpiece.
High Repeatability
Positioning accuracy of ±0.01mm and repeatability of ±0.01mm on X/Y/Z axes ensure dependable results from the first part to the last.
Choice of CNC Control
GSK control is standard, with SIEMENS or FANUC available as options so you can match the machine to your preferred programming platform.
4-Station Horizontal Turret
A horizontal 4-position turret accepts 25 × 25 mm tools, enabling quick tool changes and efficient medium-duty machining cycles.
Generous Work Envelope
With 235 mm X-axis travel, 800 mm Z-axis travel, and a 300 mm bed width, the lathe handles workpieces up to 750 mm long and 300 kg.
Warranty and Parts Support
A one-year warranty with free replacement parts provides peace of mind and helps keep your production running.
Technical Specifications
Type
Horizontal
Max. Length of Workpiece
750 mm
Max. Weight of Workpiece
300 kgs
Positioning Accuracy
±0.01 mm
Repeatability (X/Y/Z)
±0.01 mm
Repetitive Position Precision
0.005 mm
Number of Axes
2
CNC Control System
GSK (SIEMENS, FANUC optional)
No. of Spindles
Single Spindle
Spindle Bore
52 mm
Range of Spindle Speed
200–2000 r/min
Tool Post Stations
4
Tool-Post Working Position
Horizontal 4-Position Turret
Tool Dimension
25 × 25 mm
Travel (X Axis)
235 mm
Travel (Z Axis)
800 mm
Width of Bed
300 mm
Machining Capacity
Medium Duty
Cutting Torque
7.5
Workplaces Precision
IT6
Workplaces Roughness
Ra0.8
Work Frequency
50/60 Hz
Voltage
220V / 380V
Dimension (L×W×H)
2200 × 1200 × 1520 mm
Weight
1800 kg
Brand Name
BH
Optional Modules
SIEMENS CNC Control System
FANUC CNC Control System
Industries Served
Oil & Gas
Metalworking & Machining
Industrial Manufacturing
Pipe & Tube Fabrication
What's Included
BH-QK1325A Precision CNC Oil Pipe Lathe
GSK CNC control system (standard)
One-year warranty
Free replacement parts
