Product Description

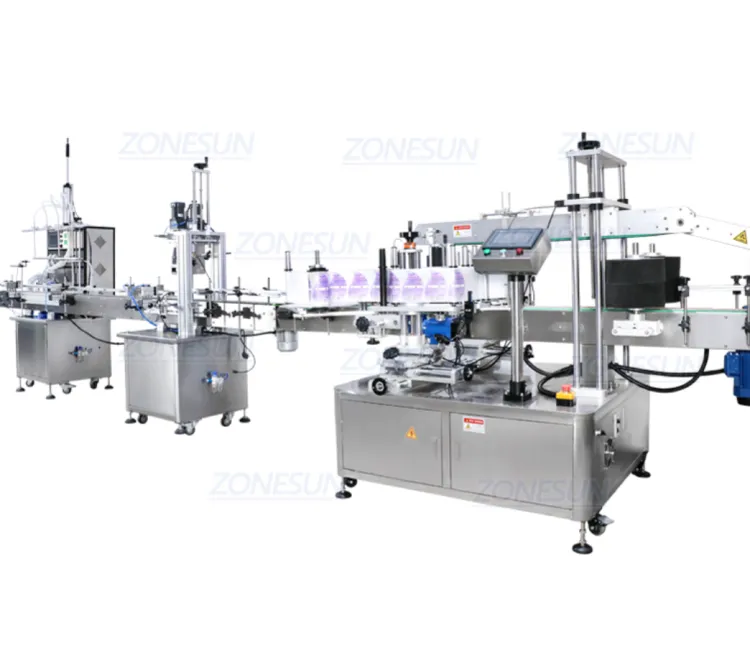

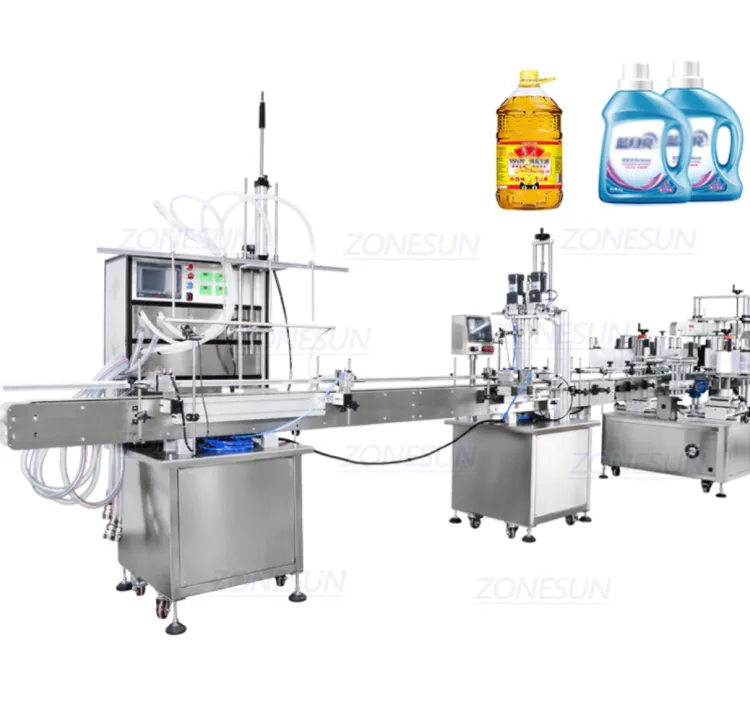

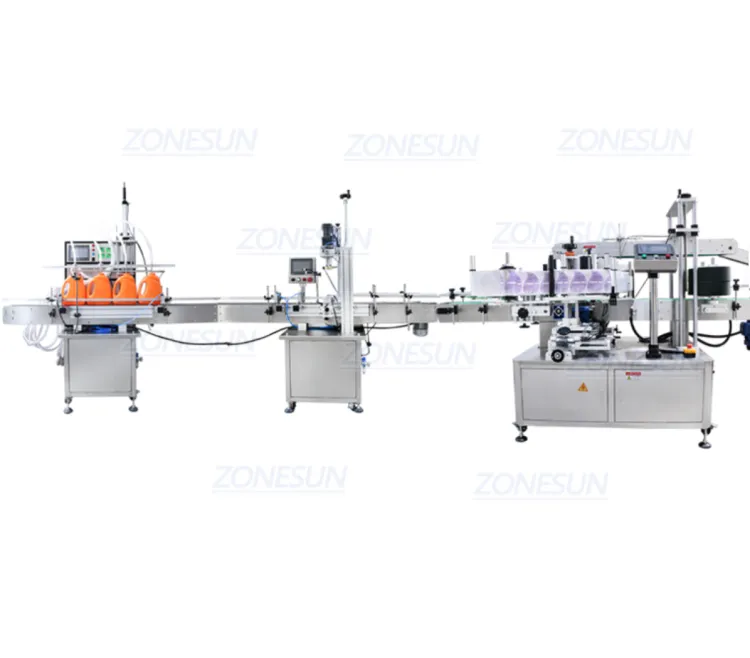

This production line can fill liquid,cap bottle lids and label stickers automatically,it is the ideal choice for producing drinks,cosmetics products or skin care products.The automated production can help you to reduce production cost and error,improve working efficiency and production quality.
| Machine model | ZS-VTDP40 | |||
| Power supply | 220V-50HZ/110V-60HZ | |||
| The whole machine power | 1500W | |||
| Max flow rate | 50ML—40L/MIN | |||
| Material of pump | Diaphragm Pump | |||
| Filling accuracy | ≤100ml deviations≤±1ml > 100ml deviation≤+1% ( based on water) | |||
| Filling speed | 30-45bottles/min(depending on botles and filling liquid) | |||
| Packing weight | About 218kg | |||
| Packing size | About 2020*815*1980mm | |||
| Size of air compressor connector | OD8mm |
| Model | ZS-XG16 | |||
| Bottle height | 30-300mm | |||
| Bottle diameter | 18-70mm | |||
| Working speed | 20-60 bottles / minute (depending on bottle and cap size and shape) | |||
| Working voltage | AC220V/110V 50-60HZ | |||
| Working pressure | 0.4-0.6 MPa | |||
| Dimension | About 1930*740*1600mm | |||
| Package size | About 2000*820*1760mm | |||
| Net weight/Gross weight | About 113kg/192.5kg | |||
| Size of air compressor connector | OD 8mm |
| Machine Model | ZS-TB300A | ZS-TB300B | ||
| Labeling Capacity(pcs/min) | 60-350PCS /min(depends on bottle size） | |||
| Labeling Material Thickness | 20-120mm | |||
| Labeling Material Height | 30-350mm | |||
| Label Size | (L)25-300mm*(H)15- 200mm | |||
| Round Bottle | Single Side | Single & Double Side | ||
| Flat Bottle | Double Side | |||
| Roll Inside | φ76mm | |||
| Roll Outside Diameter | φ350mm | |||
| Power supply | AC220V 50Hz/60Hz 1500W | |||
| Machine Szie | About 2120*940*1500mm | |||
| Packing Size | About 2850*1300*1900mm | |||
| Net weight/Gross weight | About 450kg/650kg |
Operation Panel
Inelligent operation panel and is with English version,can control filling time and other working data.

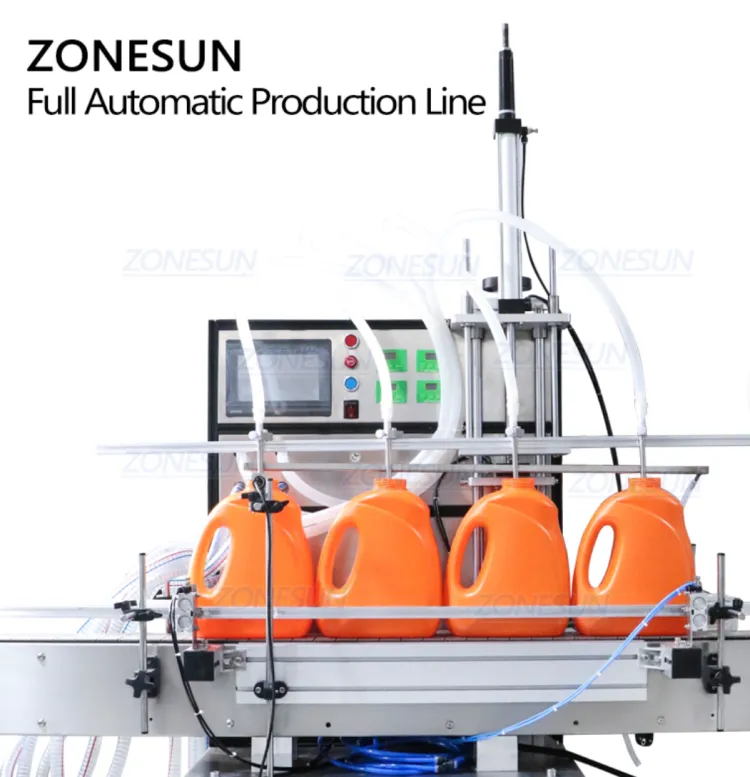

Filling nozzles
Larger filling nozzles and longer bracket,make this machine suitable for thicker liquid like gel,engine oil,shampoo The lifting nozzle is controlled by the air cylinder,each one of them can be controlled separately.
Capping Chuck
Suitable for different kinds of bottle caps.The capping time,pressing time can be adjusted by operation panel.
Bottle Electric Eye
Can detect the bottle once you the bottle pass through,save a lot of time and help you improve working effciency.The sensitivity of the electric eye can be adjusted.
Double Side Labeling
Scroll to label stickers,this machine is designed for double side labeling.Can be used for label laundry detergent.

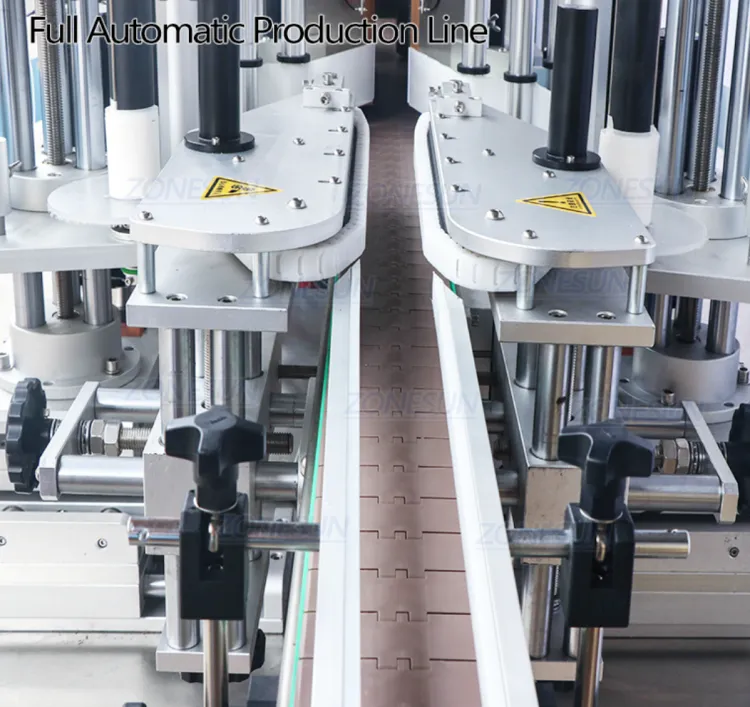

Conveyor
The suitable transfer speed is set previously,but customer can adjust it if they need to do this.What you need to do is just placing bottle on conveyor.
Specification details are not available in this product description. Contact our team for more information.
The ZS-FAL180P7 machine can fill liquids for drinks, cosmetic products, and skin care products.
The maximum flow rate of the ZS-FAL180P7 is between 50ML to 40L per minute.
The filling accuracy for volumes less than or equal to 100ml is ±1ml, while for volumes greater than 100ml, it is ±1% based on water.
The machine can accommodate bottles with a height of 30-300mm and a diameter of 18-70mm.
The filling speed ranges from 30 to 45 bottles per minute, depending on the bottle and filling liquid.
The total power consumption for the machine is 1500W.
The packing weight of the ZS-FAL180P7 is about 218kg, while the net weight is approximately 113kg and the gross weight is about 192.5kg.
The ZS-FAL180P7 operates on AC220V or 110V at 50-60Hz.
Yes, the capping chuck is suitable for various kinds of bottle caps, and both capping time and pressing time can be adjusted via the operation panel.
The labeling capacity can reach between 60 to 350 pieces per minute, depending on the size of the bottles.
Yes, the intelligent operation panel is in English and allows you to control the filling time and other working data easily.
Yes, the ZS-FAL180P7 is designed for double side labeling, making it suitable for products like laundry detergent.
The machine features larger filling nozzles and longer brackets, making it suitable for thicker liquids, such as gels and oils.
The conveyor speed is set by default but can be adjusted by the customer as needed.
The packing size of the ZS-FAL180P7 is approximately 2020*815*1980mm.
