ZDY1250 Full Hydraulic Tunnel Drilling Machine Coal Mine Geological Exploration Hydraulic Tunnel Drill

SKU: 1600491189762
Category: Drilling Rigs

The ZDY1250 Full Hydraulic Tunnel Drilling Machine is designed for coal mine geological exploration. It is a powerful and portable drilling rig that makes drilling easy and efficient. With its advanced hydraulic system, this machine can reach depths of up to 200 meters....

R138,092

Quantity

Contact Support

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options

Section:: Machinery
Category:: Drilling Rigs
SKU:: 1600491189762

Sold by Afrimart Online

Afrimart Online

Welcome to Afrimart Online, the premier destination offering an extensive range of products and streamlined services tailored to optimize your cross-border import procurement process. Our comprehensive platform serves as...

B21, China Town Mall, Midrand

011 805 0386

View Store

Delivery & Shipping

Estimated delivery

21 Dec, 2026

Delivery timing is confirmed with your order.

Learn more about our Shipping Policy

Shop with Confidence

Shipping
Information Returns
Policy Product
Support

Product Description

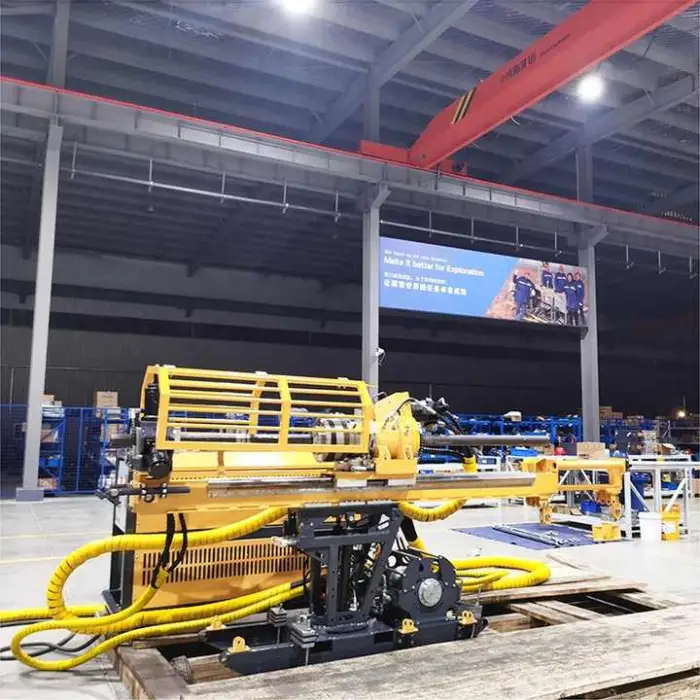

ZDY1250 Full Hydraulic Tunnel Drilling Machine

Specifications

Attribute	Details
Type	Rotary Drilling Rig
Power Type	Gasoline
Voltage	220V/380V
Drilling Diameter	75mm, 100mm
Max. Drilling Depth	200m
Weight	1200KG
Rated Torque	650N.m
Drilling Angle	±90°
Rated Rotating Speed	50-300r/min
Pushing Ability	27kN
Pulling Ability	40kN
Push/Pull Stroke	650mm
Min. Working Height	1000mm
Max. Working Height	2100mm

Key Features

Easy to operate with intuitive controls.
Portable design for easy transport.
Robust hydraulic system for reliable performance.
Versatile drilling capabilities with adjustable angles.
High torque and speed for efficient drilling.

Applications

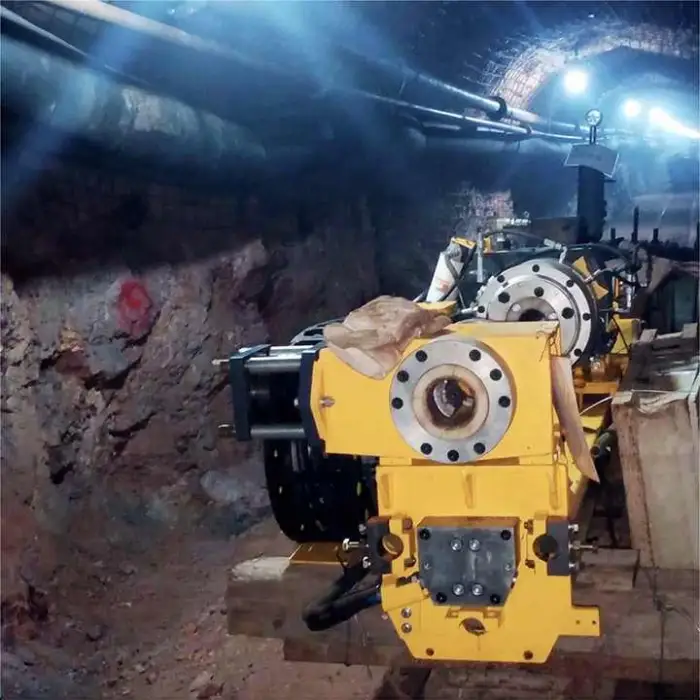

Coal mine geological exploration.
Tunnel construction and maintenance.
Environmental studies and assessments.
Soil testing and analysis.
Mining operations and resource extraction.

Product Info Gallery

Frequently Asked Questions

What type of drilling does the ZDY1250 perform?

The ZDY1250 is a rotary drilling rig designed for coal mine geological exploration and other tunnel drilling applications.

What is the maximum drilling depth of the ZDY1250?

The ZDY1250 can reach a maximum drilling depth of 200 meters.

What are the available drilling diameters for this machine?

The ZDY1250 can drill holes with diameters of 75mm and 100mm.

What power type does the ZDY1250 use?

The ZDY1250 operates on gasoline.

What is the weight of the ZDY1250 Full Hydraulic Tunnel Drilling Machine?

The machine weighs 1200KG.

What is the rated torque of the ZDY1250?

The rated torque is 650N.m.

What is the rated rotating speed of the ZDY1250?

The rated rotating speed ranges from 50 to 300 revolutions per minute (r/min).

Can the drilling angle be adjusted on the ZDY1250?

Yes, the drilling angle can be adjusted up to ±90°.

What is the pushing ability of the ZDY1250?

The pushing ability of the ZDY1250 is 27kN.

What is the pulling ability of the ZDY1250?

The pulling ability of the ZDY1250 is 40kN.

What are the minimum and maximum working heights of the ZDY1250?

The minimum working height is 1000mm, and the maximum working height is 2100mm.

Is the ZDY1250 easy to operate?

Yes, the ZDY1250 features intuitive controls that make it easy to operate.

Is the ZDY1250 portable?

Yes, the ZDY1250 has a portable design for easy transport to different job sites.

What applications is the ZDY1250 suitable for?

The ZDY1250 is suitable for coal mine geological exploration, tunnel construction and maintenance, environmental studies, soil testing, and mining operations.

What kind of hydraulic system does the ZDY1250 have?

The ZDY1250 is equipped with a robust hydraulic system that ensures reliable performance during drilling operations.
