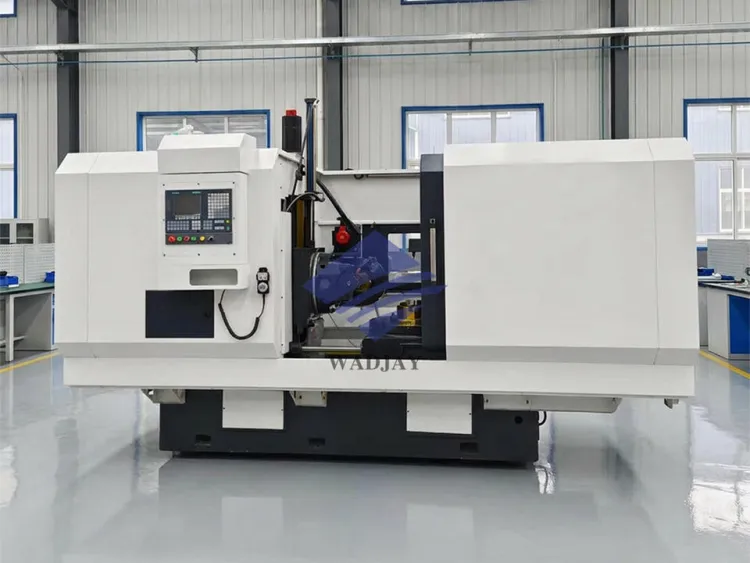

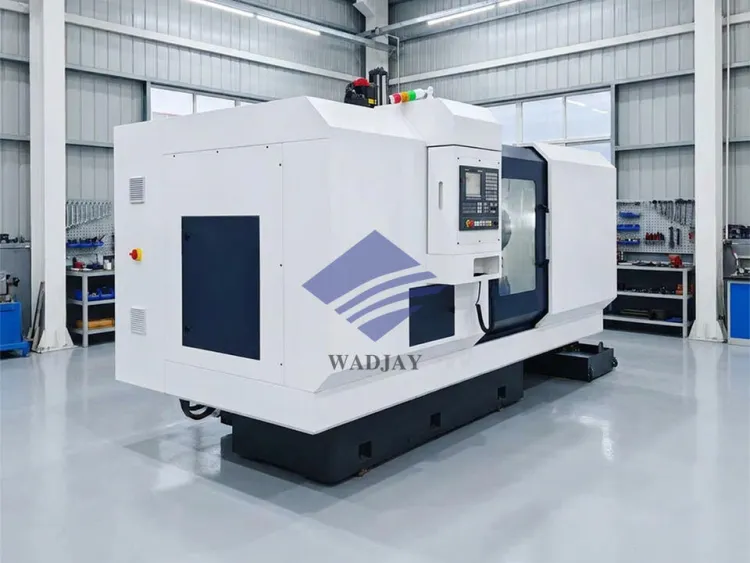

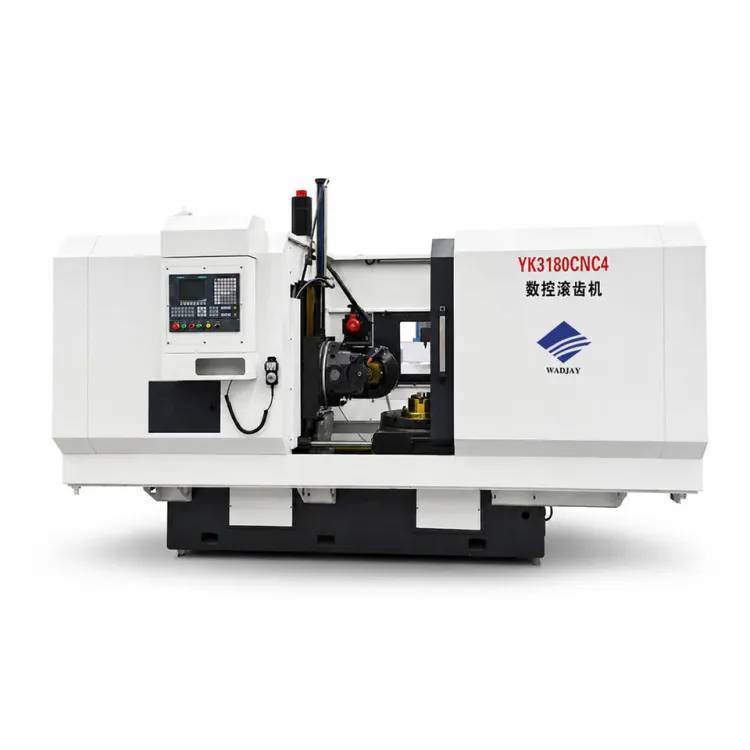

YK3180 CNC Gear Hobbing Machine - Siemens Control, 15 kW Spindle, 5800 kg, Max Ø800 mm Gears

SKU: 1601798307800
Category: Road Machinery

The YK3180 CNC Gear Hobbing Machine is a heavy-duty precision gear-cutting machine designed for the efficient production of spur gears, helical gears and other cylindrical gear components. It combines a rigid machine structure with CNC control and servo-driven axes to p...

Price per item

R1,587,000.00

Quantity

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options

Book a consultation

Section:: Machinery
Category:: Road Machinery
SKU:: 1601798307800

Sold by Afrimart Online

Afrimart Online

Welcome to Afrimart Online, the premier destination offering an extensive range of products and streamlined services tailored to optimize your cross-border import procurement process. Our comprehensive platform serves as...

B21, China Town Mall, Midrand

011 805 0386

View Store

Plan your purchase

Delivery & Shipping

Estimated delivery

03 Jan, 2027

Delivery timing is confirmed with your order.

1-year warranty

Included with this product

View Shipping Policy

Shop with Confidence

Shipping
Information Returns
Policy Product
Support

Product Description

YK3180 CNC Gear Hobbing Machine - Siemens Control, 15 kW Spindle, 5800 kg, Max Ø800 mm Gears

The YK3180 CNC Gear Hobbing Machine is a heavy-duty precision gear-cutting machine designed for the efficient production of spur gears, helical gears and other cylindrical gear components. It combines a rigid machine structure with CNC control and servo-driven axes to provide accurate and repeatable gear machining for industrial manufacturing applications.

The machine is equipped with a Siemens CNC control system, servo motors for the X, Z and hob C-axis movements, and a variable-speed hob spindle. It can accommodate workpieces with a maximum spur-gear outside diameter of 800 mm, while supporting helical gear machining according to the specified diameter and helix-angle limits.

With a maximum cutting module of 10 mm for steel and 12 mm for cast iron, the YK3180 is suitable for a wide range of medium- and heavy-duty gear manufacturing requirements. The machine also features automatic lubrication and coolant systems and is supplied with standard accessories including a 3-jaw chuck, hand crank, levelling wedges, hob mandrels and tie rods.

Specifications

Specification	Details
Model	YK3180
Machine Type	CNC Gear Hobbing Machine
Overall Dimensions (L × W × H)	3,200 × 1,800 × 2,200 mm
Net/Gross Weight	5,800 kg
CNC Control System	Siemens
Maximum Cutting Module – Steel	10 mm
Maximum Cutting Module – Cast Iron	12 mm
Maximum Outside Diameter – Spur Gear (Solid Blank)	800 mm
Maximum Outside Diameter – Helical Gear, 30° (LH & RH)	Ø370 mm
Maximum Outside Diameter – Helical Gear, 45° (LH & RH)	Ø250 mm
Maximum Cutting Travel – Helical Gear, 30°	160 mm
Maximum Cutting Travel – Helical Gear, 60°	240 mm
Maximum Cutting Travel – Helical Gear, 45° (RH)	55 mm
Maximum Cutting Travel – Helical Gear, 45° (LH)	105 mm
Maximum Vertical Travel of Hob Head Slide	250 mm (optional 440 mm)
Maximum Travel of Worktable	250 mm
Horizontal Distance: Hob Centre to Worktable Centre	850 / 50 mm
Vertical Distance: Hob Centre to Worktable Surface	585 / 235 mm
Distance from Top of Rear Column to Worktable Surface	1100 / 585 mm
Maximum Cutting Helix Angle	45°
Hob Spindle Taper	Morse No. 5
Replaceable Hob Mandrel Diameters	27, 32, 40 mm
Maximum Allowable Hob Diameter	180 mm
Maximum Allowable Hob Length	180 mm
Maximum Axial Travel of Hob	100 mm
Worktable Surface Diameter	550 mm
Maximum Worktable Speed	80 r/min
Radial Rapid Traverse of Worktable	30 mm/min (optional 60 mm/min)
Hob Spindle Speed	Infinitely variable, 6–625 r/min
Radial Feed Rate	2–1000 mm/min
Axial Feed Rate	2–1000 mm/min
X-Axis Servo Motor Torque	10 N·m
Z-Axis Servo Motor Torque	22 N·m
Hob Spindle Motor Power	15 kW
Coolant Pump Motor Power	0.1 kW
Hydraulic Pump Motor Power	0.75 kW
Hob C-Axis Servo Motor Torque	32 N·m
Hob Y-Axis Servo Motor Torque	15 N·m
Lubrication Oil Pump	1.2 L
Coolant Oil Pump	90 W
Main Electrical Components	Delixi

Machine Configuration

Component	Specification
CNC Control	Siemens
X & Z Axis Servo Motor	10 N·m
Hob C-Axis Servo Motor	32 N·m
Hob Y-Axis Servo Motor	15 N·m
Hob Spindle Motor	15 kW
Coolant Pump	0.1 kW / 90 W
Hydraulic Pump	0.75 kW
Main Electrical Components	Delixi

Standard Accessories

No.	Accessory	Specification
1	Open-End Wrench	17/19 mm
2	3-Jaw Chuck with Base	160 mm
3	Hand Crank	Standard
4	Levelling Wedge / Adjustment Shim	200 mm
5	Hob Mandrel	Ø27, Ø32, Ø40 mm
6	Tie Rod	M12

Key Features

Siemens CNC control system for precise and repeatable machining.
Designed for spur and helical gear cutting.
Maximum spur gear outside diameter of 800 mm.
Supports cutting modules up to 10 mm in steel and 12 mm in cast iron.
Helical gear machining capability up to 45° helix angle.
15 kW hob spindle motor for demanding gear-cutting operations.
Infinitely variable hob spindle speed from 6–625 r/min.
Servo-driven X, Z, hob C and Y axes for controlled machining.
Maximum hob diameter of 180 mm.
Replaceable hob mandrels in 27, 32 and 40 mm sizes.
Automatic lubrication and coolant systems.
Heavy-duty construction with a machine weight of approximately 5.8 tonnes.
Standard 160 mm 3-jaw chuck supplied.
Suitable for both general gear manufacturing and specialised industrial gear production.

Applications

The YK3180 can be used in:

Industrial Gear Manufacturing
Spur Gear Production
Helical Gear Production
Transmission Gear Manufacturing
Automotive Component Manufacturing
Mining Equipment Manufacturing
Construction Machinery
Agricultural Machinery
Industrial Gearboxes
Power Transmission Equipment
Heavy Engineering
Mechanical Component Manufacturing
Repair and Replacement Gear Production
General Machine Shops
