The YK3150 CNC Gear Hobbing Machine is a precision CNC-controlled gear-cutting machine designed for the efficient and repeatable machining of spur gears and helical gears. Equipped with a Siemens CNC control system and servo-driven axes, the machine provides accurate co...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

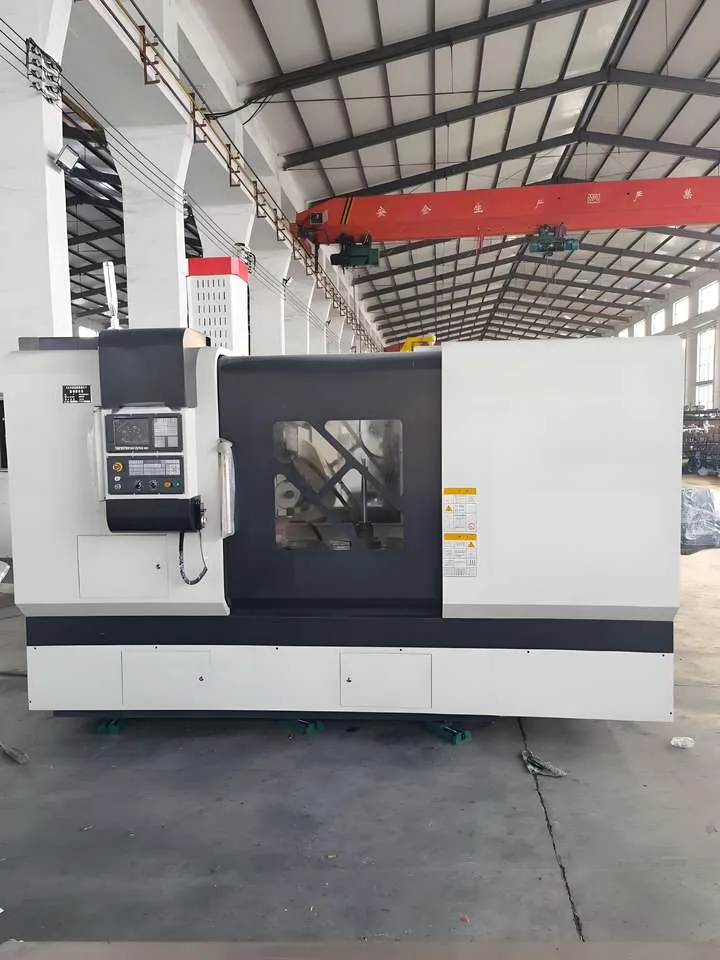

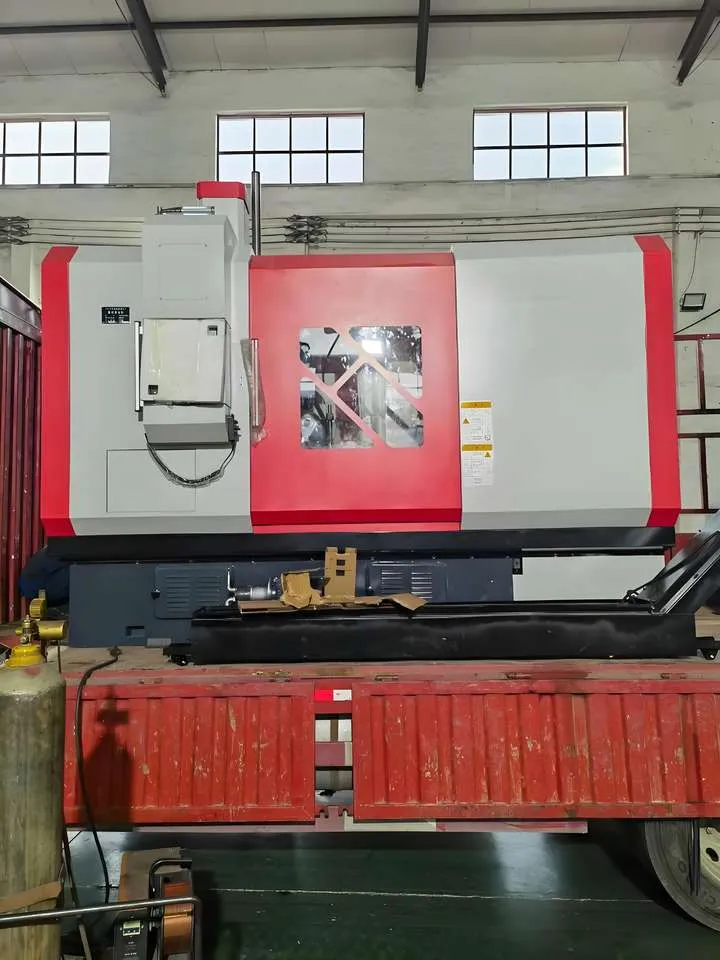

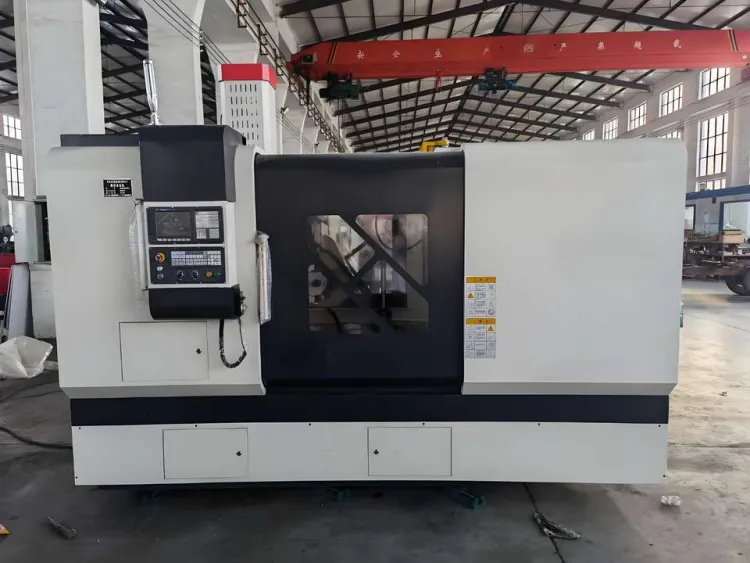

The YK3150 CNC Gear Hobbing Machine is a precision CNC-controlled gear-cutting machine designed for the efficient and repeatable machining of spur gears and helical gears. Equipped with a Siemens CNC control system and servo-driven axes, the machine provides accurate control over the hob and workpiece during the gear-cutting process.
With a maximum workpiece diameter of Ø500 mm for spur gears and Ø370 mm for helical gears, the YK3150 is suitable for a wide range of industrial gear-manufacturing applications. Its integrated lubrication and coolant systems help support reliable operation during continuous machining.
The machine features servo-driven X, Z, Hob C and Hob Y axes, allowing coordinated CNC control for precision gear production. It is supplied with standard accessories including a 160 mm 3-jaw chuck, hob mandrels, hand crank, tie rod and levelling equipment.
| Specification | Details |
|---|---|
| Model | YK3150 |
| Machine Type | CNC Gear Hobbing Machine |
| Control System | Siemens CNC |
| Gear Types | Spur Gears & Helical Gears |
| Cutting Module – Steel | Module 5 |
| Cutting Module – Cast Iron | Module 6 |
| Maximum Spur Gear Diameter – With Small Pillars | Ø350 mm |
| Maximum Spur Gear Diameter – Without Small Pillars | Ø500 mm |
| Maximum Helical Gear Diameter | Ø370 mm |
| Maximum Helix Angle | 45° |
| Specified Helix Angle Range | 30° Left / Right |
| Hob Slide Travel | 65 / 105 mm* |
| Maximum Blade Holder Skate Travel | 240 mm |
| Maximum Workbench Travel | 250 mm |
| Maximum Hob Mandrel to Worktable Centre Distance | 310 mm |
| Minimum Hob Mandrel to Worktable Centre Distance | 20 mm |
| Spindle Taper | Morse No. 4 |
| Replaceable Hob Arbor Diameter | Ø22 / Ø32 mm |
| Maximum Hob Diameter | Ø120 mm |
| Worktable Bore Diameter | Ø60 mm |
| Worktable Arbor Diameter | Ø50 mm |
| Hob Spindle Speed | 0–570 r/min |
| Radial Feed Rate | 0–2,000 r/min* |
| Axial Feed Rate | 0–2,000 r/min* |
| X & Z Axis Servo Motor Torque | 6 N·m |
| Hob C Axis Servo Motor Torque | 23 N·m |
| Hob Y Axis Servo Motor Torque | 10 N·m |
| Lubrication/Coolant Pump Motor Power | 0.9 kW |
| Hydraulic Pump Motor Power | 1.1 kW |
| Overall Dimensions (L × W × H) | 2,500 × 1,400 × 2,000 mm |
| Machine Weight | 3,500 kg |
| Accessory | Specification |
|---|---|
| Open-End Wrench | 17/19 mm |
| 3-Jaw Chuck with Base | Ø160 mm |
| Hand Crank | Included |
| Levelling Wedge / Adjustment Shim | 200 mm |
| Hob Mandrel | Ø27 mm |
| Hob Mandrel | Ø32 mm |
| Hob Mandrel | Ø40 mm |
| Tie Rod | M12 |
The YK3150 CNC Gear Hobbing Machine can be used in:
| Model | YK3150 |
|---|---|
| Machine Type | CNC Gear Hobbing Machine |
| Control System | Siemens CNC |
| Gear Types | Spur Gears & Helical Gears |
| Cutting Module – Steel | Module 5 |
| Cutting Module – Cast Iron | Module 6 |
| Maximum Spur Gear Diameter – With Small Pillars | Ø350 mm |
| Maximum Spur Gear Diameter – Without Small Pillars | Ø500 mm |
| Maximum Helical Gear Diameter | Ø370 mm |
| Maximum Helix Angle | 45° |
| Specified Helix Angle Range | 30° Left / Right |
| Hob Slide Travel | 65 / 105 mm* |
| Maximum Blade Holder Skate Travel | 240 mm |
| Maximum Workbench Travel | 250 mm |
| Maximum Hob Mandrel to Worktable Centre Distance | 310 mm |
| Minimum Hob Mandrel to Worktable Centre Distance | 20 mm |
| Spindle Taper | Morse No. 4 |
| Replaceable Hob Arbor Diameter | Ø22 / Ø32 mm |
| Maximum Hob Diameter | Ø120 mm |
| Worktable Bore Diameter | Ø60 mm |
| Worktable Arbor Diameter | Ø50 mm |
| Hob Spindle Speed | 0–570 r/min |
| Radial Feed Rate | 0–2,000 r/min* |
| Axial Feed Rate | 0–2,000 r/min* |
| X & Z Axis Servo Motor Torque | 6 N·m |
| Hob C Axis Servo Motor Torque | 23 N·m |
| Hob Y Axis Servo Motor Torque | 10 N·m |
| Lubrication/Coolant Pump Motor Power | 0.9 kW |
| Hydraulic Pump Motor Power | 1.1 kW |
| Overall Dimensions (L × W × H) | 2,500 × 1,400 × 2,000 mm |
| Machine Weight | 3,500 kg |
| Accessory | Specification |
| Open-End Wrench | 17/19 mm |
| 3-Jaw Chuck with Base | Ø160 mm |
| Hand Crank | Included |
| Levelling Wedge / Adjustment Shim | 200 mm |
| Tie Rod | M12 |
| Siemens CNC control system | for precise and programmable gear machining |
| 160 mm 3-jaw chuck with base | included |
