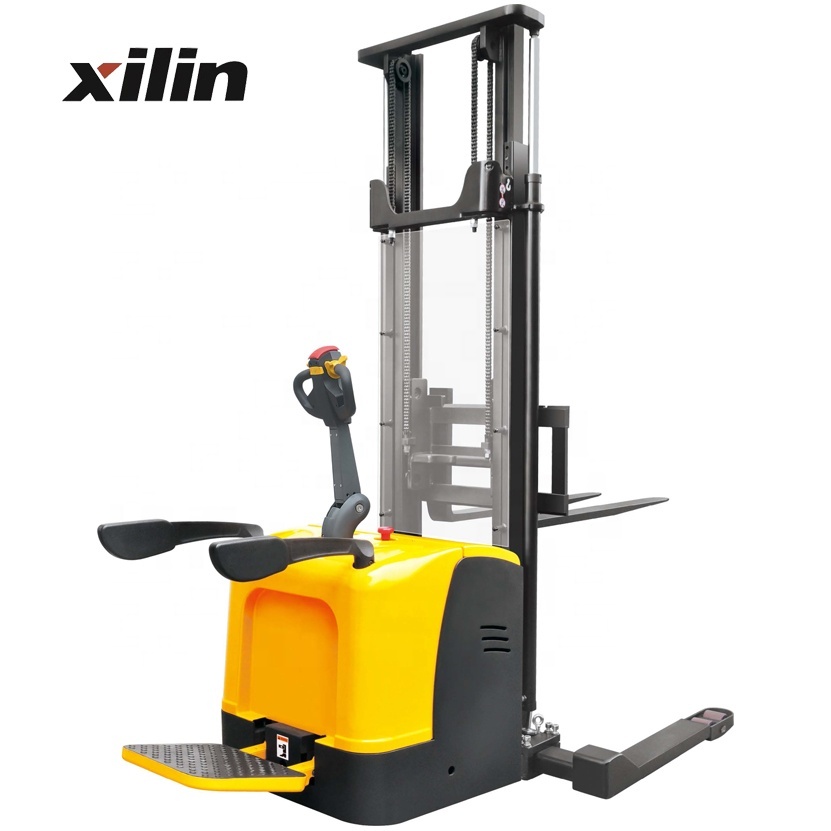

Electric Rider Straddle Stacker
The Xilin Electric Rider Straddle Stacker is a versatile and efficient material handling equipment, designed for stacking and transporting loads in tight spaces. With a range of load capacities from 1 ton to 1.5 tons, this electric rider stacker provides powerful, low-maintenance performance with advanced safety features. The straddle legs and adjustable forks make it adaptable for various applications, including warehousing, logistics, and manufacturing.
Key Features & Benefits:
Safety and Productivity:
- AC Motor Technology: Eliminates the need for carbon brush replacements, reducing maintenance costs and downtime.
- Multi-function Display: Features a Battery Discharge Indicator (BDI) and hour meter for easy monitoring of operational status.
- Low-Noise Operation: Equipped with a damping cushion to reduce noise during operation, ensuring a quieter working environment.
- Auto Deceleration: Ensures smooth and safe stopping, especially when moving at high speeds or on inclines.
- Overload Protection: Built-in pressure relief valve protects the stacker from overloads, ensuring greater reliability and safety.
- Braking System: Effective braking when the handle is in both upright and horizontal positions, enhancing safety.
- Turtle Mode: Low-speed switch for safer handling in confined spaces.
- Stepless Speed Control: Allows for precise speed adjustment based on operational needs.
Optimum Structural Design:
- Low Center of Gravity: Ensures stable operation, reducing the risk of tipping during use.
- Vertical Driving Wheel: Provides convenient maintenance access and a small turning radius for maneuverability in tight spaces.
- Durable Motor Structure: Water-proof and dust-proof design extends the life of the motor and brake system, reducing wear and tear.
- Interchangeable Mast and Frame: The mast and frame are designed to be separable and interchangeable, enhancing serviceability.
Technical Specifications:
| Specification | CTDK10-III | CTDK12-III | CTDK15-III |
|---|---|---|---|
| Load Capacity (kg) | 1000 | 1200 | 1500 |
| Load Centre Distance (mm) | 600 | 600 | 600 |
| Fork Height (Lowered) (mm) | 70 | 70 | 70 |
| Front Tyre Size (mm) | Φ250x70 | Φ250x70 | Φ250x70 |
| Rear Tyre Size (mm) | Φ98x82 | Φ98x82 | Φ98x82 |
| Height, Mast Closed (mm) | 2145/1895 | 2145/1895 | 2145/1895 |
| Free Lift (mm) | ~ | ~ | ~ |
| Max. Lift Height (mm) | 1600/2500 | 2500/3000 | 3000/3300 |
| Height, Mast Extended (mm) | 2145/3145 | 3145/3645 | 3645/3995 |
| Overall Length (mm) | 1975 | 1975 | 2055 |
| Overall Width (mm) | 1182-1582 | 1182-1582 | 1182-1582 |
| Fork Dimensions (mm) | 35x100x1070 | 35x100x1070 | 35x100x1070 |
| Width Overall Forks (mm) | 200-800 | 200-800 | 200-800 |
| Aisle Width for Pallets 800x1200 (mm) | 2490 | 2490 | 2570 |
| Turning Radius (mm) | 1625 | 1625 | 1705 |
| Travel Speed (laden/unladen) (km/h) | 7/7.1 | 7/7.1 | 7/7.1 |
| Lift Speed (laden/unladen) (m/s) | 0.11/0.17 | 0.1/0.16 | 0.09/0.16 |
| Lower Speed (laden/unladen) (m/s) | 0.15/0.16 | 0.15/0.16 | 0.15/0.16 |
| Battery Voltage/Capacity (V/Ah) | 24/120 | 24/120 | 24/200 |
| Battery Weight (kg) | 90 | 90 | 160 |
| Battery Dimensions (mm) | 753x178x240 | 753x178x240 | 800x254x320 |
| Weight (with battery) (kg) | 650/700/730/750 | 660/710/740/760 | 780/830/840/850 |
Advantages:
- Efficient and Reliable: The AC motor and overload protection provide long-term reliability with minimal maintenance.
- Space-Saving Design: The small turning radius and compact design allow for effective operation in narrow aisles, maximizing space utilization.
- High Productivity: With its stepless speed control and turtle mode, the stacker offers optimal performance in various environments, from large warehouses to tight spaces.
- Durable and Low Maintenance: Water-proof and dust-proof components ensure the stacker withstands harsh environments and provides long-term service.
