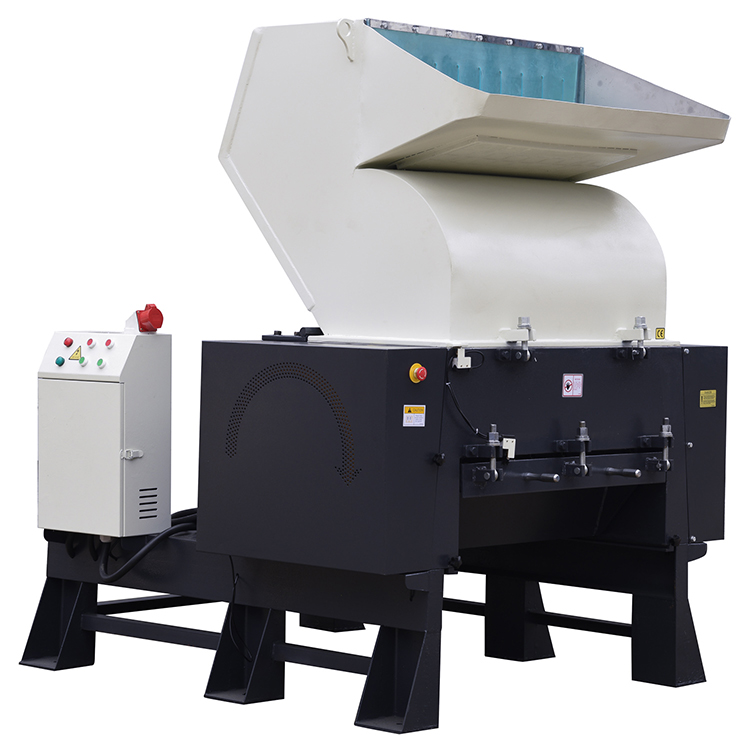

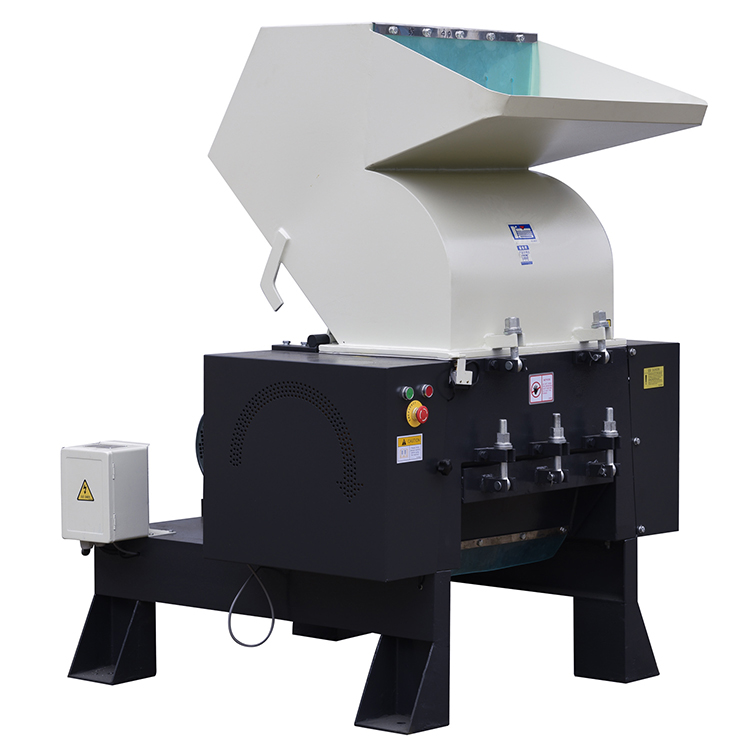

XFS 180 Waste Plastic Crusher

The XFS-180 is rated at approximately 180 kg/hour for typical PET/PP/PE/HDPE materials under normal operating conditions.

It is suitable for a wide range of soft and hard plastics including PET, PP, PE, HDPE, and common defectives, wastes and offcuts in block, ball or bar shapes.

The dual-shaft shredding design produces an output of about 15–20 mm. Output size can be influenced by screen selection and knife clearance adjustments.

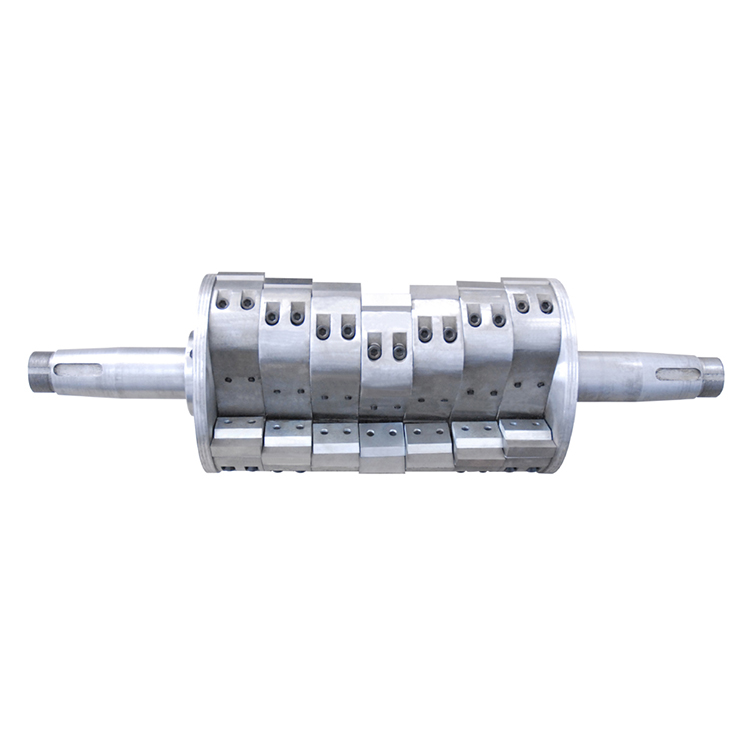

Blades are hardened alloy cutters made from imported special tool steel. They are designed for long life (20,000+ hours under normal conditions) and are adjustable and replaceable when blunt.

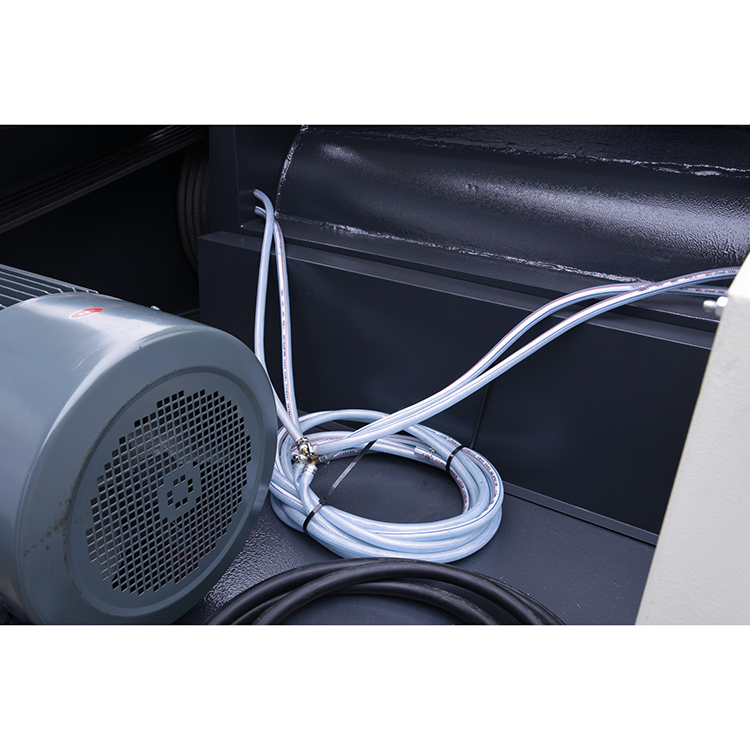

The machine requires a 5.5 kW motor and a 380 V three-phase power supply. The motor includes overload protection and a power-source interlock.

The crushing chamber and walls are treated with sound-proofing and the machine operates at under 75 dB in typical conditions.

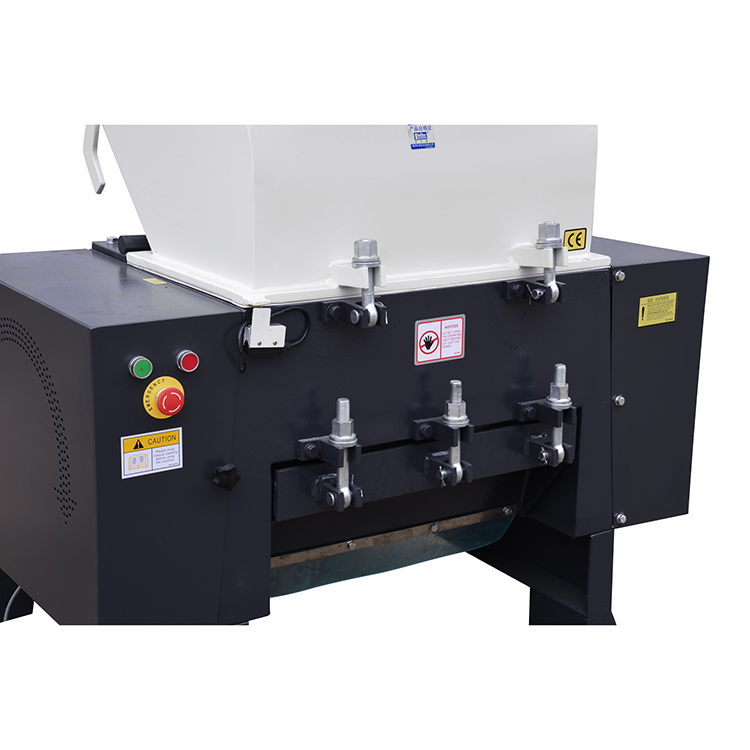

Safety features include a CE-compliant safety lock system, power-source interlock protection, motor overload protection and double-safety protection for operators and the motor.

Routine maintenance should include regular inspection of knives, fasteners and the crushing chamber, and cleaning of the hopper, main body and screen. Frequency depends on usage; check before daily operation and perform more thorough inspections according to your operating intensity or supplier recommendations.

Knives are designed to be removable and adjustable. They are fastened with high-intensity steel screws for strong bearing capacity. Replacement or re-sharpening is straightforward but should be performed by trained personnel or authorized service technicians.

Overall dimensions are 1000 x 800 x 1200 mm and the machine weight is approximately 350 kg. Allow additional clearance for maintenance and feeding.

Provide a level, load-bearing floor, access to a 380 V three-phase supply, adequate ventilation and sufficient clearance around the machine for maintenance and feeding. Use proper lifting equipment for placement and secure electrical connections via a qualified electrician.

Yes—excessive moisture or non-plastic contaminants (metal, stones, heavy dirt) can reduce efficiency, increase wear and potentially damage blades. Pre-sorting and drying contaminated material is recommended.

Throughput varies with material type, feed size, contamination level, moisture content and operator feeding rate. The 180 kg/h rating is for typical PET/PP/PE/HDPE under normal conditions—perform on-site trials for precise planning.

Spare parts such as knives, screens and fasteners are typically available through the manufacturer or authorized distributors. Contact your supplier for parts, technical support and service options.

The machine includes CE-compliant safety features. Warranty terms and length vary by seller and region—please contact the supplier or distributor directly for specific warranty coverage and certification documentation.
