Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The XD-HDSX DC/AC Pure Sine Wave Inverter is a powerful and efficient solution for converting power seamlessly in a variety of settings. With its advanced design, this inverter is ideal for use in industrial, commercial, and home environments, offering reliable and stable energy output.
| Specification | |||||
| Model: HDSX/HDSX-T | 323192 | 403192 | 483384 | 643384 | |
| Rated Power | 40KVA/32KW | 50KVA/40KW | 60KVA/48KW | 80KVA/64KW | |
| Peak Power(20ms) | 96KVA | 120KVA | 144KVA | 192KVA | |
| Start Motor | 15HP | 20HP | 25HP | 30HP | |
| Battery Voltage | 192VDC | 384VDC | |||
| Size(L*W*Hmm) | 720*575*1275 | ||||
| Packing Size(L*W*Hmm) | 785*640*1400 | ||||
| N.W.(kg) | 240 | 260 | 290 | 308 | |
| G.W.(kg)(Wooden Packing) | 273 | 293 | 323 | 341 | |
| Installation Method | Tower | ||||
| Parameter | |||||
| Input | DC Input Voltage Range | 10.5VDC-15VDC(Single battery voltage) | |||
| AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||
| AC Input Frequency Range | 45Hz-55Hz(50Hz)/ 55Hz-65Hz(60Hz) | ||||
| Max AC charging current | 0-45A(Depending on the model) | ||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||
| Phase | 3/N/PE | ||||
| Output | Efficiency(Battery Mode) | ≥85% | |||
| Output Voltage(Battery Mode) | 380Vac/400Vac±2%(customized 190Vac/200Vac) | ||||
| Output Frequency(Battery Mode) | 50/60Hz ±1% | ||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||
| Output waveform distortion | Linear load≤3% | ||||
| Efficiency(AC Mode) | >99% | ||||
| Output Voltage(AC Mode) | Conforming to AC input | ||||
| Output Frequency(AC Mode) | Conforming to AC input | ||||
| No load loss(Battery Mode) | ≤1% rated power | ||||
| No load loss(AC Mode) | ≤2%rated power( charger does not work in AC mode) | ||||
| No load loss(Energy saving Mode) | ≤10W | ||||
| Phase | 3/N/PE | ||||
| Battery Type | VRLA Battery | Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage) | |||
| Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) | ||||
| Protection | Battery undervoltage alarm | 11V(Single battery voltage) | |||
| Battery undervoltage protection | 10.5V(Single battery voltage) | ||||
| Battery overvoltage alarm | 15V(Single battery voltage) | ||||
| Battery overvoltage protection | 17V(Single battery voltage) | ||||
| Battery overvoltage recovery voltage | 14.5V(Single battery voltage) | ||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||
| Temperature protection | >90°C(Shut down output) | ||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||
| Inside Solar controller (Optional) | Charging Mode | MPPT or PWM | |||
| Charging current | PWM: 100A-200A(192V&384V System) / MPPT: 50A/100A(192V&384V System) | ||||
| PV Input Voltage Range | PWM: 240V-352V(192V System); 480V-704V(384V System) / MPPT: 240V-360V(192V System); 480V-640V(384V System) | ||||
| Max PV Input Voltage(Voc) (At the lowest temperature) | PWM: 400V(192V System); 750V(384V System) / MPPT: 450V(192V System); 800V(384V System) | ||||
| PV Array Maximum Power | 192V System: (PWM:22.4KW(100A)/16.8KW*2(150A)/22.4KW*2(200A)) / (MPPT: 11.2KW(50A)/11.2KW*2(100A)); 384V System: (44.8KW(100A)/33.6KW*2(150A)/44.8KW*2(200A)) / (MPPT: 22.4KW(50A)/22.4KW*2(100A)) | ||||
| Standby loss | ≤3W | ||||
| Maximum conversion efficiency | >95% | ||||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||
| Transfer Time | ≤4ms | ||||

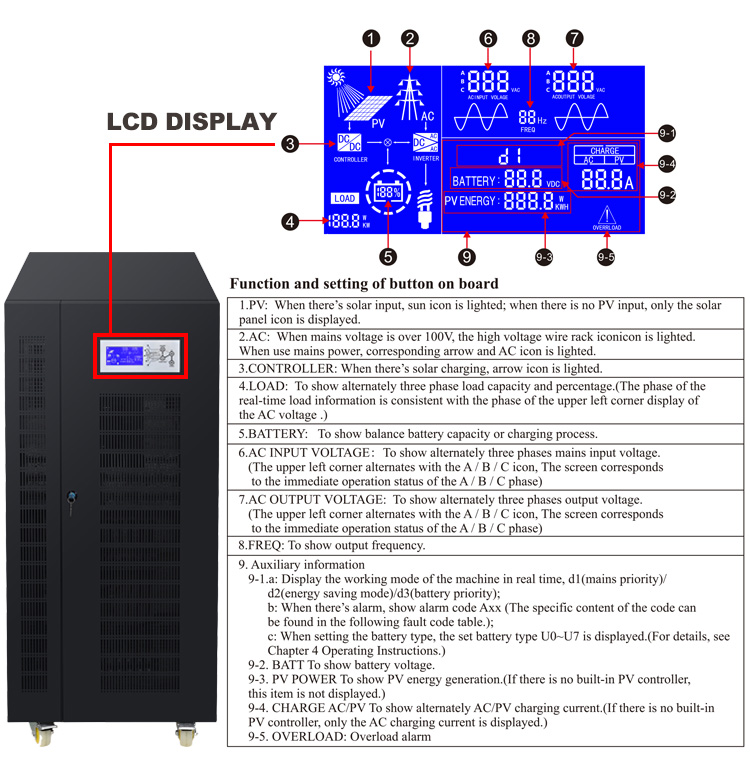

| Display | LCD | ||||
| Thermal method | Forced air cooling | ||||
| Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring) | ||||
| Environment | Operating temperature | -10℃~40℃ | |||
| Storage temperature | -15℃~60℃ | ||||
| Noise | 2000m(More than derating) | ||||
| Elevation | ≤65dB | ||||
| Humidity | 0%~95% ,No condensation | ||||
The XD-HDSX DC/AC Pure Sine Wave Inverter provides dependable power conversion with advanced features for versatile applications. Its durable build and customizable options make it a great choice for those seeking reliability and efficiency.

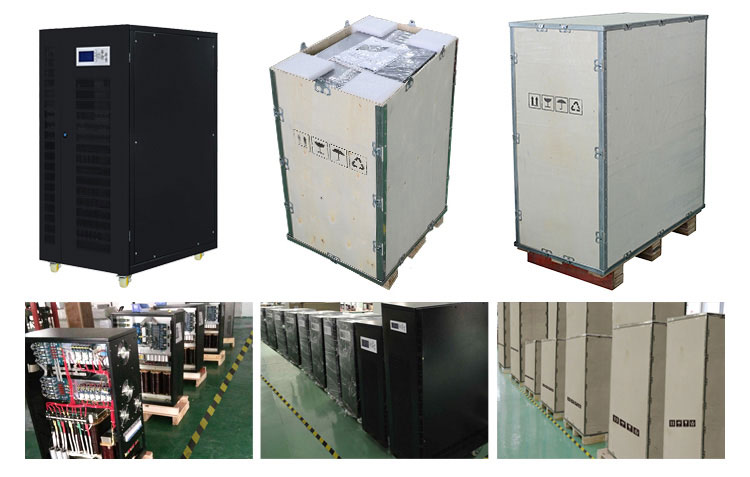

Packaging & Shipping
| Battery type | VRLA Battery Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage) |
|---|---|
| Output waveform | Pure Sine Wave |
The XD-HDSX DC/AC Wave Inverter features a triple-phase pure sine wave output for stable and efficient energy conversion.
The inverter offers DC voltage options of 192V and 384V for flexible energy management.
Yes, the output frequency can be adjusted between 50Hz and 60Hz to meet varying needs.
The rated power options for the XD-HDSX inverter include 40KVA/32KW, 50KVA/40KW, 60KVA/48KW, and 80KVA/64KW.
The XD-HDSX inverter is equipped with an LCD display for real-time monitoring of its performance.
The inverter weighs approximately 307kg and its dimensions are 715mm x 575mm x 1275mm.
Yes, the XD-HDSX inverter is designed to efficiently manage larger loads, making it suitable for industrial and heavy-duty use.
The XD-HDSX inverter supports VRLA batteries and allows customization of charging and discharging parameters according to user requirements.
The inverter includes several protections such as battery undervoltage and overvoltage protection, overload power protection, and inverter output short circuit protection.
Yes, the XD-HDSX inverter supports OEM services and buyer label customization, as well as design modifications to suit specific requirements.
The XD-HDSX inverter boasts a maximum conversion efficiency of over 95%.
The inverter includes temperature protection that shuts down the output if the temperature exceeds 90°C.
The operating temperature range is -10℃ to 40℃, while the storage temperature range is -15℃ to 60℃.
The XD-HDSX inverter features energy saving mode with a no-load loss of less than 10W.
Yes, it offers optional communication features such as RS485 and APP for WiFi or GPRS monitoring.
