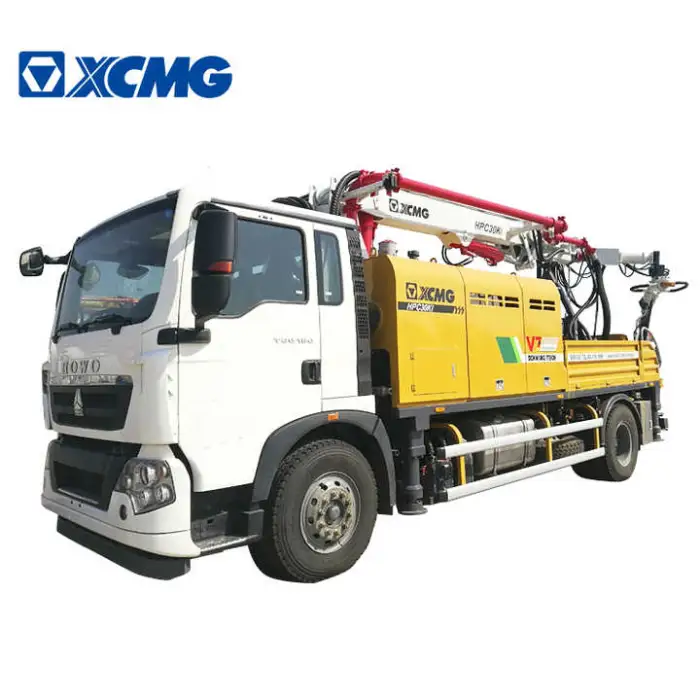

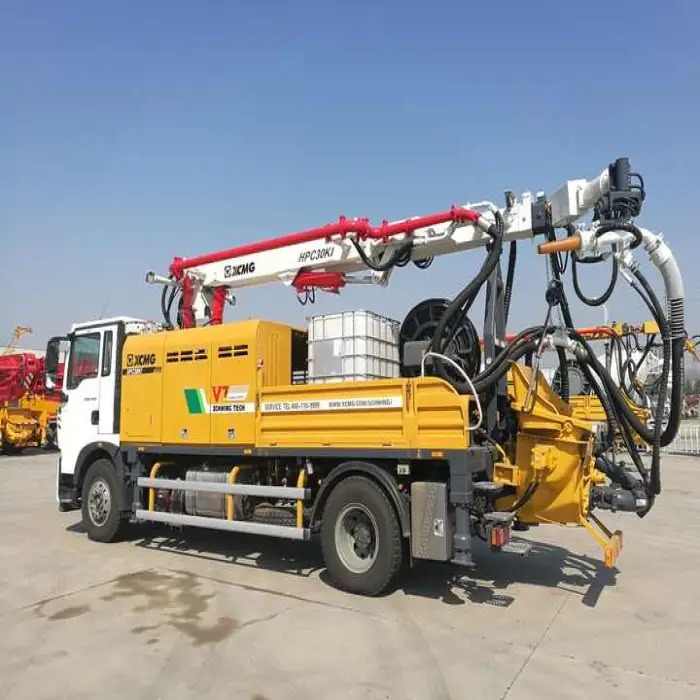

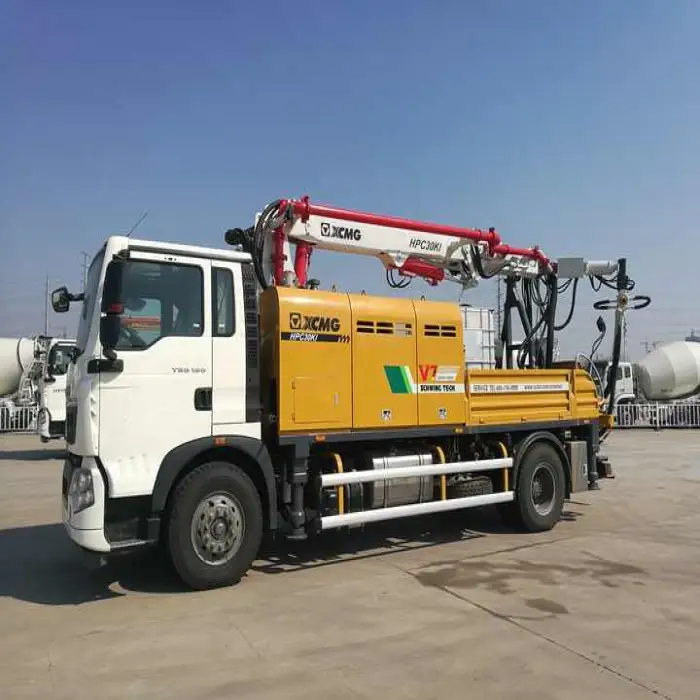

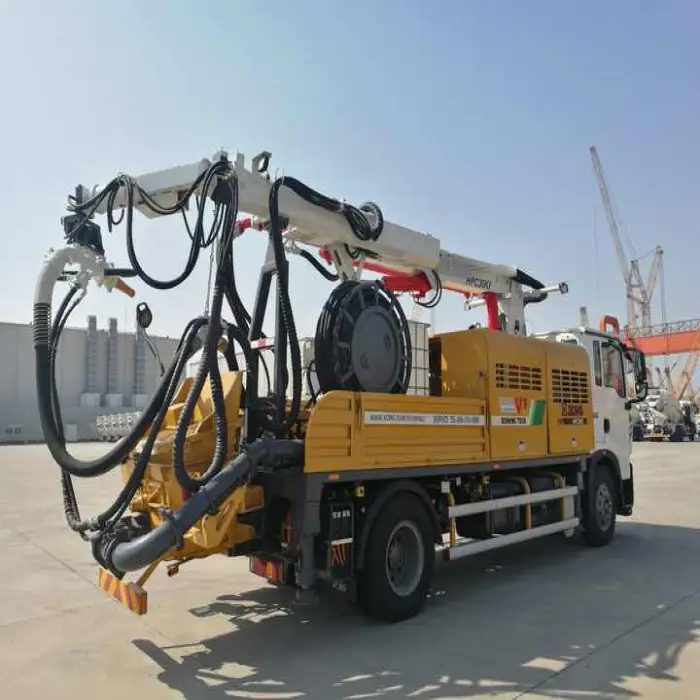

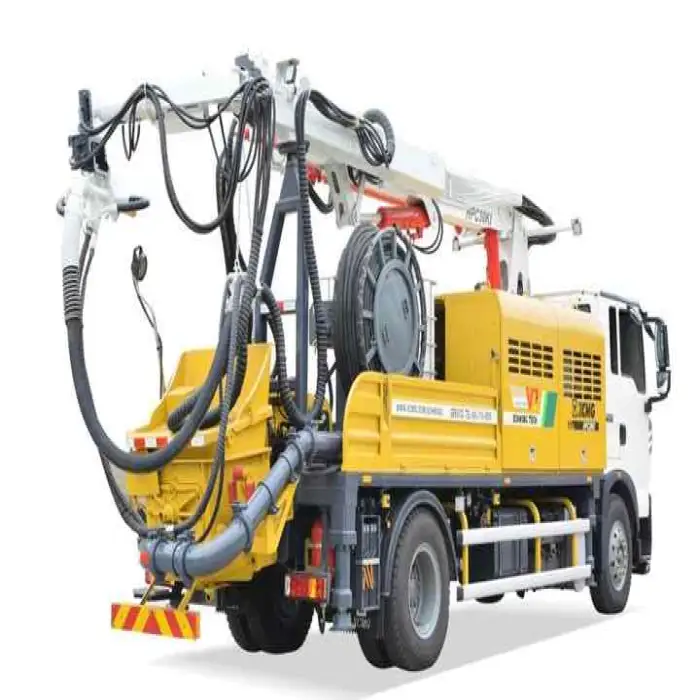

XCMG HPC30KI Truck Mounted Concrete Spraying Machine Shotcrete Machine

The XCMG HPC30KI is a truck-mounted shotcrete (concrete spraying) machine designed for efficient placement of concrete and mortar on construction, mining and underground projects. It combines a spraying unit mounted on a truck chassis for mobility, with advanced controls and durable components for continuous on-site operation.

Key specs include: max conveying distance 14.8 m; listed material delivery rate 60–600 l/h (as provided); hose inner diameter 1000 mm (per spec sheet — confirm with supplier); air consumption 10–13 m3/min; power 132 kW; machine weight 16,000 kg; max road speed 90 km/h; max spraying height 18 m; max spraying width 29.6 m; max front spraying distance 15 m; max operation depth 7 m; nozzle seat axial rotation 360°.

It is intended for shotcrete applications — wet or dry sprayed concrete, cementitious mortar, and similar mixes used in tunnel, mine and repair works. For exact permissible aggregate sizes and mix designs consult the manufacturer or the machine's operation manual (the spec sheet lists a material delivery rate of 60–600 l/h).

According to the specification, the machine's maximum conveying distance is 14.8 m. Maximum front spraying distance is 15 m, maximum spraying height is 18 m, and maximum spraying width is 29.6 m. Actual achievable distances depend on mix properties, hose layout, and operating conditions.

The machine is rated at 132 kW of power. Air consumption is specified at 10–13 m3/min. Ensure your on-site power supply and compressed-air system meet or exceed these requirements for stable operation.

Yes — it is truck-mounted with a listed maximum speed of 90 km/h and a tight turning radius of 9.5 m, providing good maneuverability on and between sites. Note that transport weight is about 16,000 kg; local road rules, permits and axle-load restrictions must be observed.

Follow standard shotcrete safety practices: use appropriate PPE (respiratory protection, eye/face, hearing, gloves), maintain emergency-stop accessibility, ground equipment when required, and observe lockout/tagout procedures for maintenance. Check the machine's manual for built-in safety devices and alarms, and train operators on emergency procedures.

The HPC30KI incorporates advanced control systems designed for straightforward operation. Operators should still receive manufacturer or dealer-provided training to learn control interfaces, setting spray parameters, troubleshooting, and routine maintenance to ensure safe and efficient use.

Routine maintenance typically includes daily inspection and cleaning of hoses and nozzles, lubrication of moving parts, checking hydraulic and fuel systems, filter replacement, and periodic inspection of wear parts (impellers, liners, seals). Follow the manufacturer’s maintenance schedule for intervals and specific procedures.

Common consumables and wear parts include nozzle tips, hose sections, seals, gaskets, impeller/pump wear rings, filters, and lubricant. Stock items recommended by XCMG for your work volume to minimize downtime. Contact your dealer for a suggested parts list.

Before operation check fuel and fluid levels, inspect hoses and connections for wear or leaks, confirm compressor and air supply, verify control system and emergency stops, ensure proper nozzle installation, and validate mix consistency and slump per project requirements.

Yes — the machine is suitable for underground construction and mining shotcrete applications. When operating in confined spaces, ensure proper ventilation, safe exhaust handling, and adherence to confined-space safety protocols. Evaluate access and setup constraints due to the vehicle size and turning radius.

Common options include different nozzle types, additional hose lengths, boom/chute attachments, remote-control panels, dust suppression systems, and specialized wear-resistant components. Contact XCMG or your dealer for the exact options and compatibility with the HPC30KI.

XCMG provides comprehensive after-sales support, including spare parts supply, technical assistance and service networks. Warranty terms and coverage vary by region and dealer — confirm warranty duration, included services and available service contracts with your local XCMG representative.

Performance depends on mix design, aggregate, pump settings, hose layout, and operator skill. Use the listed delivery range (60–600 l/h) and conveying distances as a starting point, then conduct a site trial with your mix to measure actual output and consumption. Your XCMG dealer can assist with setup optimization and productivity estimation.
