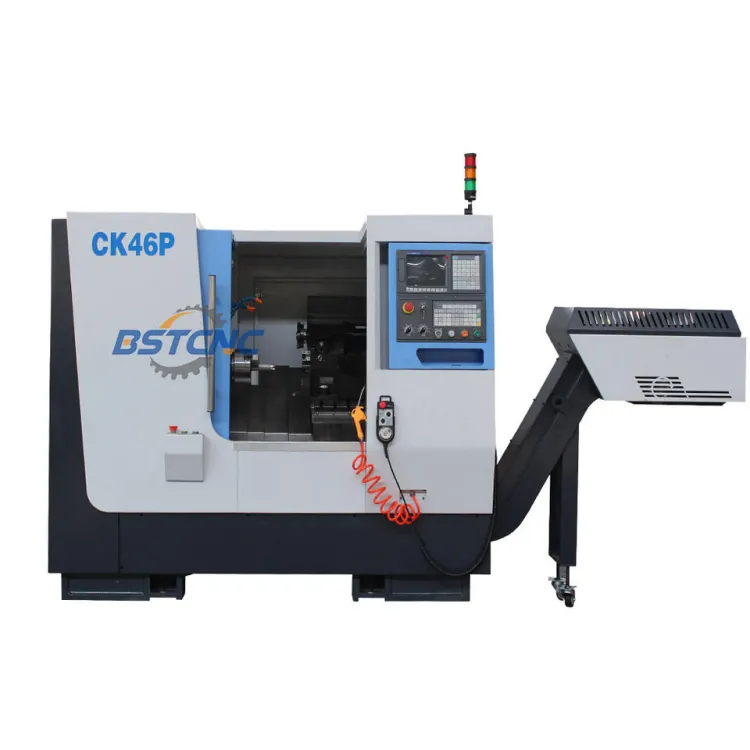

Well-sold CK46P/CK46H/CK46D Horizontal Metal CNC Turning Tapping Turning Cutting Turret Lathe
The Well-sold CK46P/CK46H/CK46D Horizontal Metal CNC Turning Tapping Turning Cutting Turret Lathe is a strong and smart machine. It helps you make metal parts fast and with great care. This CNC lathe is built for medium duty work. It can drill, turn, and tap with high precision. The CK46P model is simple to use, yet very powerful. It is a great choice for small shops or big factories. This machine saves time and gives smooth results every time.

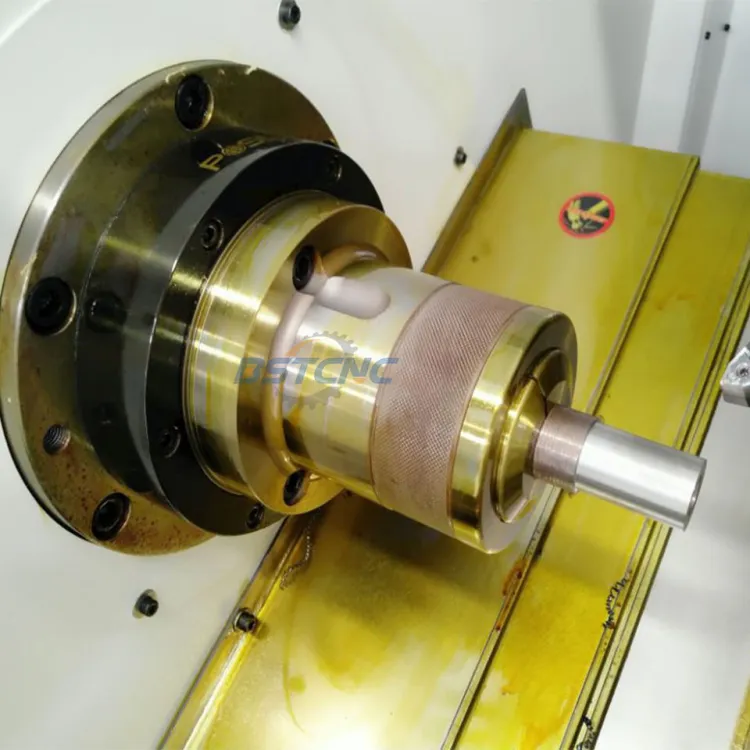

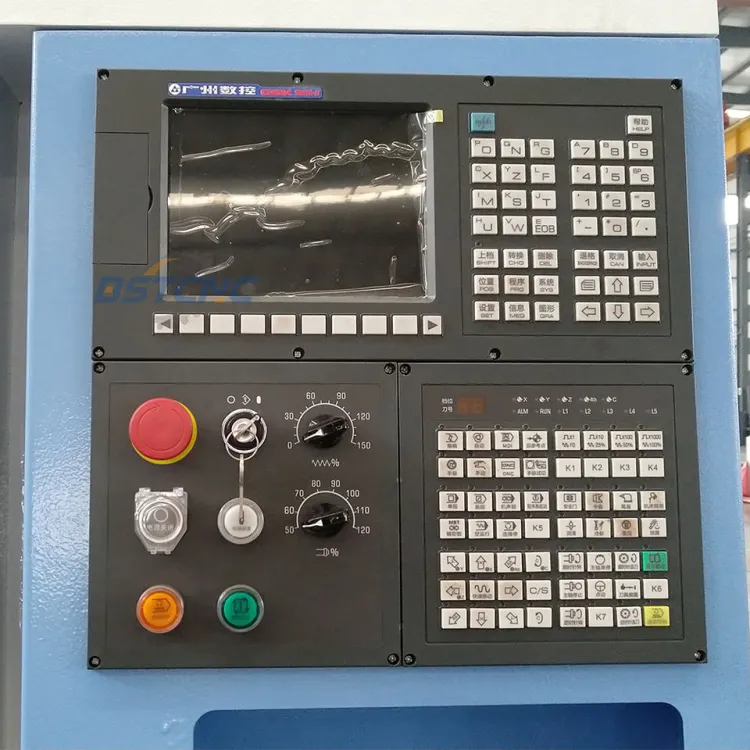

This lathe has a 30-degree slant bed. That design makes chips fall away easily. It also keeps the machine stable during tough jobs. The CK46P uses a hydraulic collet chuck. This holds the metal piece tight so it does not move. The spindle speed can go from 50 to 5000 r.p.m. That means you can work on soft or hard metals. The control system options include Siemens, Fanuc, Syntec, or Mitsubishi. You pick the one that fits your team best. The CK46P is a reliable tool that lasts a long time.
Specifications
| Attribute | Details |
|---|---|
| Type | Horizontal |
| Max. length of workpiece | 330 mm |
| Positioning accuracy | 0.006 mm |
| Repeatability (x/y/z) | 0.003 mm |
| Number of axes | 2 |
| CNC control system | GSK (or Siemens, Fanuc, Syntec, Mitsubishi) |
| Spindle nose | A2-5 |
| Spindle bore | 56 mm |
| Hole through spindle | 46 mm |
| Lathe bed structure | 30° Integral inclined lathe |
| Chuck size | Hydraulic collets |

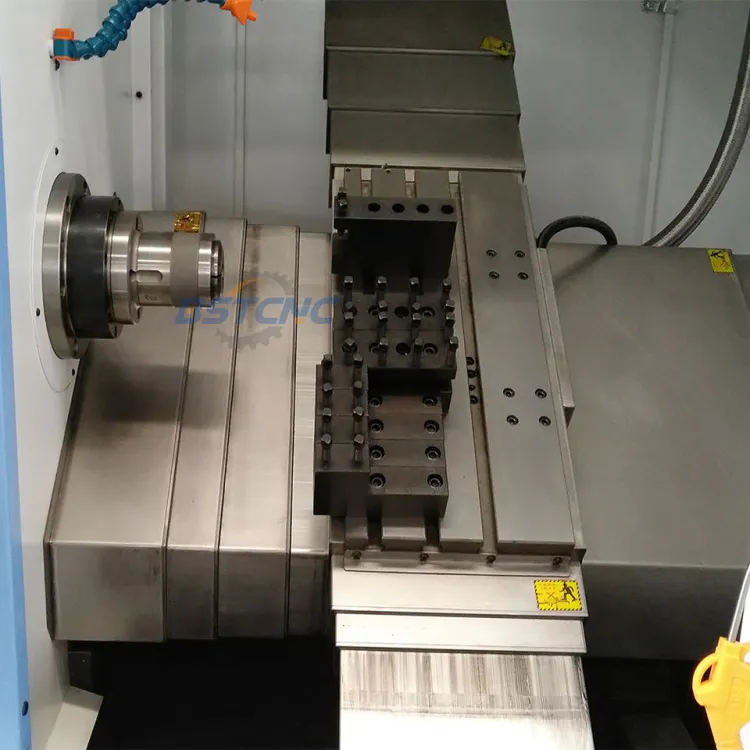

| Tool post stations | Gang type tool post |
| Travel (X axis) | 410 mm |
| Travel (Z axis) | 330 mm |
| Range of spindle speed | 50 - 5000 r.p.m |
| Cutting torque | 0 |
| Machining capacity | Medium Duty |
| Voltage | 380V / 220V |
| Weight | 3000 kg |
| Dimensions (L*W*H) | 2600 x 1700 x 1600 mm |
| Warranty | 1 Year |
| Machinery test report | Provided |
