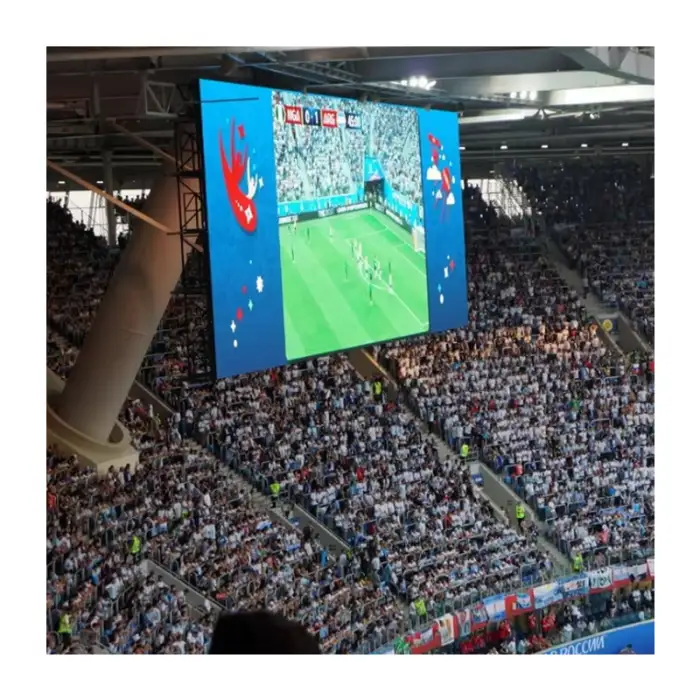

Waterproof Sport Events LED Display P6 Giant Advertising Board Stadium Portable LED Screen size: 5.76x2.88m

The standard screen size is 5.76 x 2.88 meters (width x height).

Multiple pixel-pitch options are available: P4, P5, P6 and P10. Typical resolutions for the 5.76×2.88 m screen are: P4 = 1440 × 720 (1,036,800 pixels); P5 = 1152 × 576 (663,552 pixels); P6 = 960 × 480 (460,800 pixels); P10 = 576 × 288 (165,888 pixels).

The product supports multiple pixel pitches; pixel density depends on the chosen pitch. A density of 10,000 dots/m² corresponds to P10. If you choose P6 (6mm) the pixel density is higher. Please confirm which pixel pitch you want when ordering.

Maximum brightness is 5,000 cd/m², which is suitable for daytime outdoor events and clear visibility in bright conditions.

The LEDs have an expected life span of approximately 100,000 hours under normal operating conditions.

The screen is designed to be sturdy and waterproof for outdoor events. For exact ingress protection (IP) rating and installation recommendations in extreme weather, please consult the full datasheet or contact the vendor.

Maximum power consumption is 650 W for the full screen. Actual power draw will vary with brightness and content. Use a stable power source and surge protection; for site-specific calculations, please request a power profile from the supplier.

The modules use Kinglight LED chips and are manufactured under the SRYLED brand (model SRY-O-P10 is one configuration).

The product is certified to CE, RoHS and FCC standards.

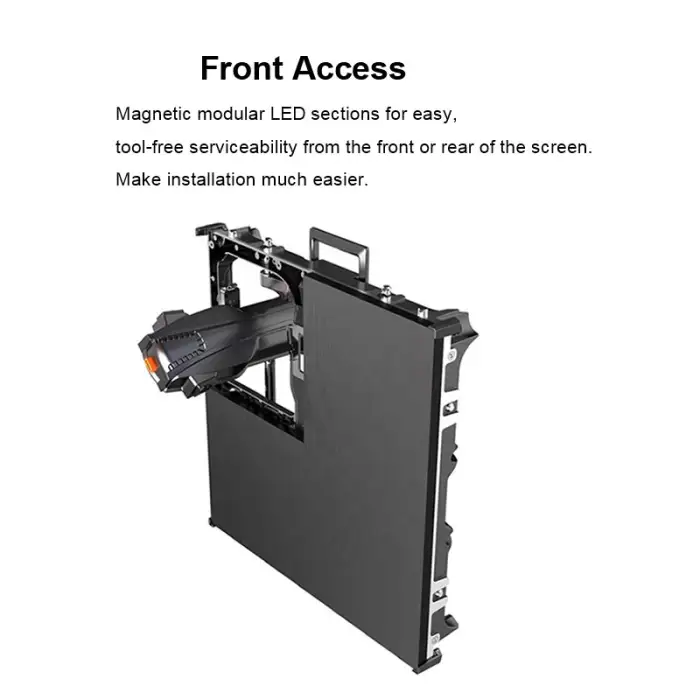

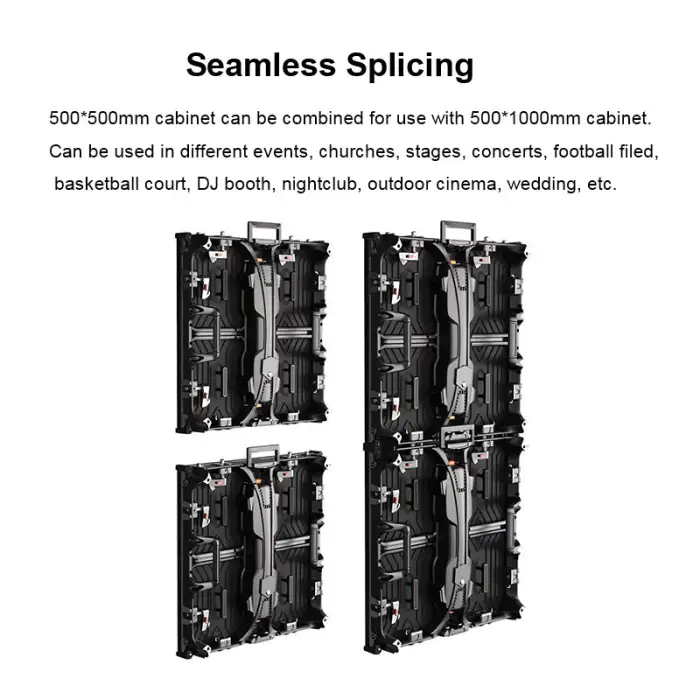

The display is designed as a portable, modular board for easy transport and setup. Actual setup time depends on chosen mounting (ground stand, truss, or frame) and crew experience; a typical small crew (2–4 people) can assemble modular cabinets quickly. Ask the vendor for the recommended rigging and time estimates for your configuration.

The screen is compatible with common LED control systems and media players. Typical inputs used with LED sending boxes include HDMI, DVI and network (Ethernet) for sending cards. Exact controller model and supported input ports should be confirmed with the supplier or your AV integrator.

Recommended minimum viewing distances (approximate): P4 ≈ 4 meters, P5 ≈ 5 meters, P6 ≈ 6 meters, P10 ≈ 10 meters. Choose a pitch based on how close the audience will be to the screen.

Regularly power down before cleaning. Remove dust with a soft brush or compressed air; clean front surfaces with a soft, damp cloth and mild detergent if needed. Inspect seams, power/data connections and protective seals routinely. Avoid high-pressure water jets and harsh chemicals. For component-level service, contact authorized service personnel.

Common options include ground stands, truss mounting kits, flight cases for transport, protective covers and rigging hardware. Custom mounting solutions can be provided depending on event requirements. Ask your supplier for accessory packages.

Warranty terms and after-sales support vary by supplier and region. Please contact the vendor or reseller for specific warranty length, coverage details and service options (onsite support, spare parts, extended warranty).
