Veterinary Monitor (Model: CMS8000VET)

Veterinary Monitor (Model: CMS8000VET)

The CMS8000VET Veterinary Monitor by CONTEC is a high-performance device designed to monitor key parameters of animals in veterinary clinics and hospitals. This multi-parameter monitor offers essential functions such as ECG, SPO2, NIBP, PR, RESP, and TEMP, ensuring comprehensive monitoring of animal health during examinations and therapy.

Key Features:

• Material: Durable plastic construction for lasting use in various environments.
• Instrument Classification: Class II, suitable for veterinary use.
• Safety Standard: None specified.
• Power Source: Electric, ensuring constant and reliable power during use.
• Shelf Life: 1 year for product effectiveness.
• Quality Certification: CE certified for compliance with safety and quality standards.
• Type: Examination therapy equipment, designed specifically for veterinary applications.
• Product Type: Veterinary monitor for comprehensive animal health monitoring.
• Parameters Monitored: ECG, SPO2, NIBP, PR, RESP, and TEMP for multi-parameter monitoring.

Specifications:

• Product Name: Veterinary Monitor.
• Model Number: CMS8000VET.
• Brand Name: CONTEC.
• Power Source: Electric.
• Shelf Life: 1 year.
• Quality Certification: CE.
• Instrument Classification: Class II.
• Material: Plastic.
• Parameters Monitored: ECG, SPO2, NIBP, PR, RESP, TEMP.

The CMS8000VET Veterinary Monitor is an essential tool for animal healthcare professionals, providing accurate and real-time monitoring of vital parameters to ensure the best care for animals.

Functions:
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
1)ECG Heart rate (HR)

ECG waveform
Arrhythmia and ST-segment analysis
2)RESP Respiration rate(RR)
Respiration waveform
3)SpO2 Oxygen saturation(SpO2)
Plethysmogram(PLETH) waveform
Pulse rate(PR)
Bar graph
4)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
5)TEMP T1, T2, TD
It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking
and drug concentration calculation, etc

Performance:
ECG
Lead mode: 3-lead or 5-lead
Lead selection: I, II, III, aVR, aVL, aVF, V
Waveform: 5-lead, 2-channel
3-lead, 1-channel
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s
HR:
Measurement and alarm range: 15~350bpm
Accuracy: ±1% or ±1bpm, whichever is greater
Alarm accuracy: ± 2 bpm
Resolution: 1 bpm
ST-segment monitoring:
Measurement and alarm range: -2.0mV~+2.0mV
Accuracy: -0.8mv~+0.8mv ±0.04mv or ±10%, whichever is greater
Other range: unspecified
Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,
PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
Pacemaker: yes
RESPIRATION
Method: R-F(RA-LL) Impedance
Respiration rate:
Measurement and alarm range: 0~150rpm
Resolution: 1 rpm
Measurement accuracy: ±2 rpm
Alarm accuracy: ±3 rpm
Apnea alarm: 10~40s
Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s
NIBP
Method: Oscillometry
Mode: Manual/AUTO/STAT
Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes
Measurement period in STAT mode: 5 minutes
Measurement and alarm range: 10 ~ 270 mmHg
Resolution: 1 mmHg
Cuff pressure accuracy: ±3 mmHg
Measurement accuracy:
Maximal mean error: ±5 mmHg
Maximal standard deviation: 8mmHg
Over-pressure protection:
Other mode: 297±3 mmHg
Dog mode: 240±3 mmHg
Cat mode: 147±3 mmHg
SpO2
Measurement and alarm range: 0 ~ 100%
Resolution: 1%
Measurement accuracy: 70%~100%: ±2%;
0%~69%: unspecified
PR
Measurement and alarm range: 30 ~ 250 bpm
Measurement accuracy: ±2 bpm or ±2%, whichever is greater
TEMP
Channel: dual-channel
Measurement and alarm range: 0 ~ 50℃
Resolution: 0.1 ℃
Accuracy: ±0.1 ℃
Power supply: 100-240V~,50/60Hz
Safety classification: Class I, type CF defibrillation-proof applied part

Accessories
1)Digital BD7 veterinary tongue-clip SpO2 sensor (1M)

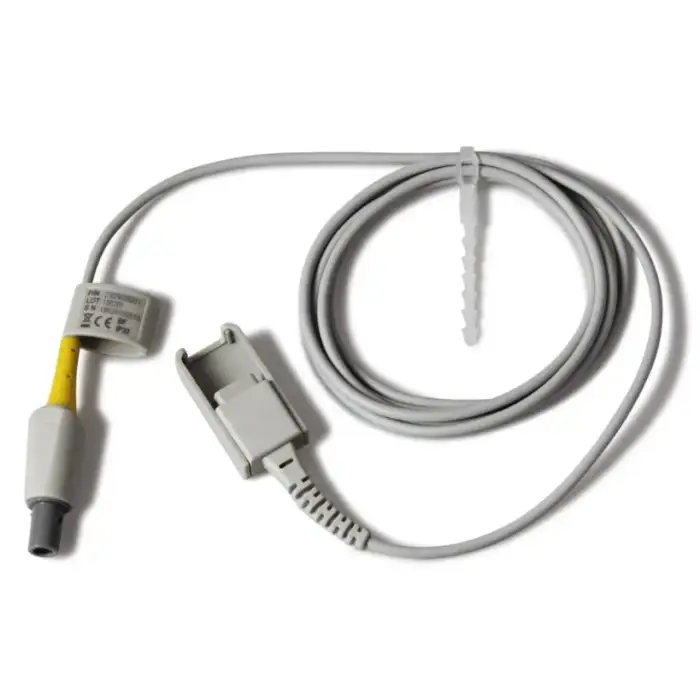

2)General digital SpO2 sensor extension cable (2M)
3)Neonatal capsule single tube repeatable cuff (6-11cm)
4)NIBP extension tube
5)5-lead ECG lead cable (American-Standard)

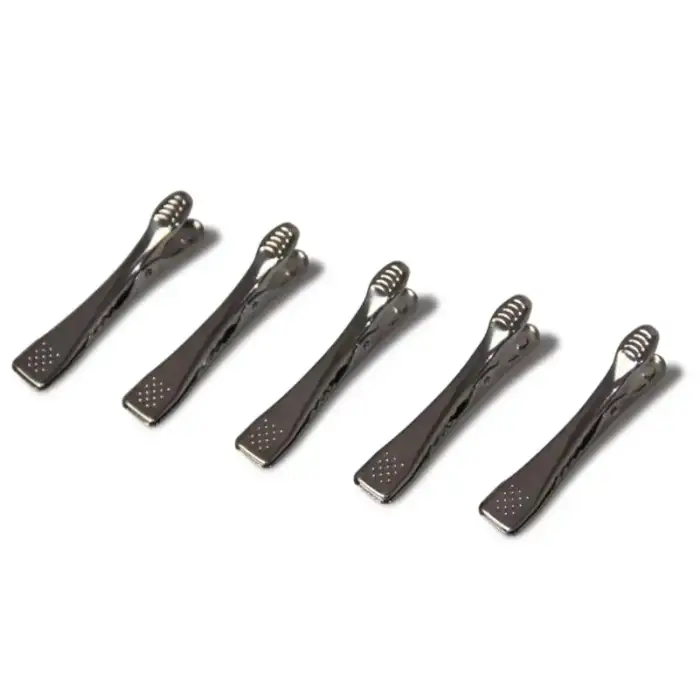

6)ECG veterinary clip (*5)
7)Transvaginal TEMP probe

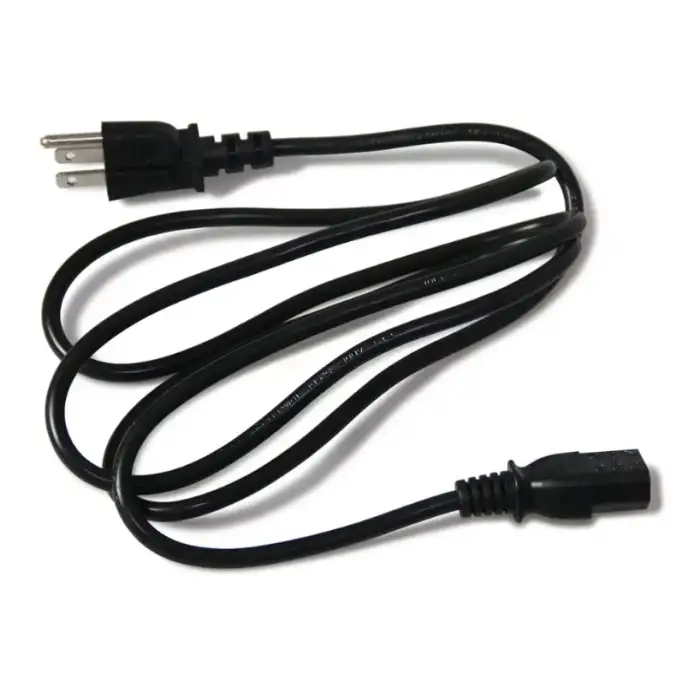

8)Power cord
9)User Manual

Physical characteristic
Dimension: 314mm(L)×145mm(W)×264mm(H)
