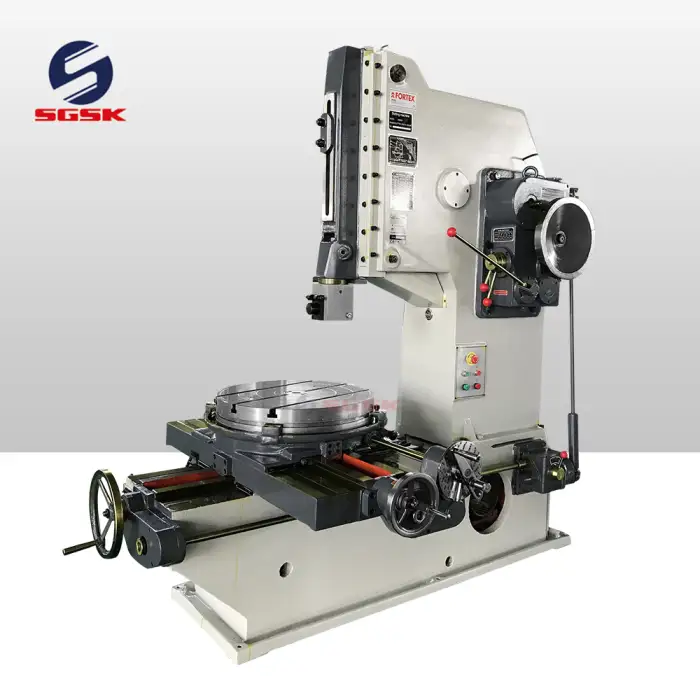

The Vertical Key Way Slotting Machine B5032 B5032D is a powerful and efficient tool designed for precise keyway slotting. This machine is perfect for metal shaping tasks, making it an essential addition to any workshop. With its reliable performance and user-friendly fe...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

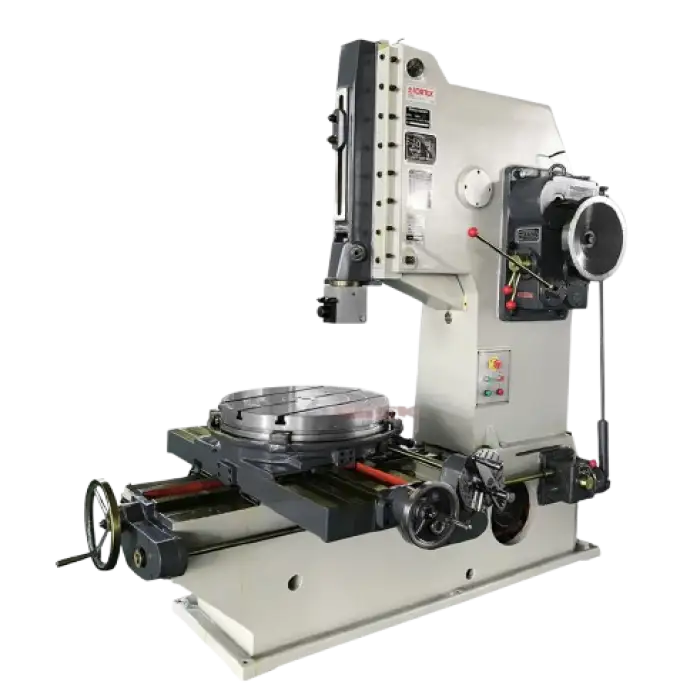

The Vertical Key Way Slotting Machine B5032 B5032D is a powerful and efficient tool designed for precise keyway slotting. This machine is perfect for metal shaping tasks, making it an essential addition to any workshop. With its reliable performance and user-friendly features, it helps you achieve high-quality results with ease.
| Attribute | Details |
|---|---|
| Model | B5032 B5032D |
| Max Stroke of RAM | 340/320mm |
| Motor Speed | 960/1430 r/min |
| Ram Maximum Slotting Length | 320/200mm |
| Ram Motion Frequency | 20.32.50.80/32.50.80.125 times/min |
| Ram Vertical Adjustment Distance | 315/230mm |
| Table Diameter | 630/500mm |
| Table Maximum Rotation Angle | 360 degrees |
| Power | 4 kW |
| Weight | 3000 kg |
| Dimensions (L*W*H) | 2261*1495*2245mm |
| Specification | Unit | B5032 | B5020 |
| Max. stroke of RAM | mm | 340 | 220 |
| Ram maximum slotting length | mm | 320 | 200 |
| Ram motion frequency | times/min | 20.32.50.80 | 32.50.80.125 |
| Ram tilt angle | ° | 0-8 | 0-8 |
| Ram vertical adjustment distance | mm | 315 | 230 |
| Cutter head bearing surface to the distance between the forearm bed | mm | 600 | 485 |
| Table Diameter | mm | 630 | 500 |
| The distance between the lower end of the sliding frame to work table | mm | 490 | 320 |
| Max. longitudinal moving distance of working table | mm | 630 | 500 |
| Max. transverse moving distance of working table | mm | 560 | 500 |

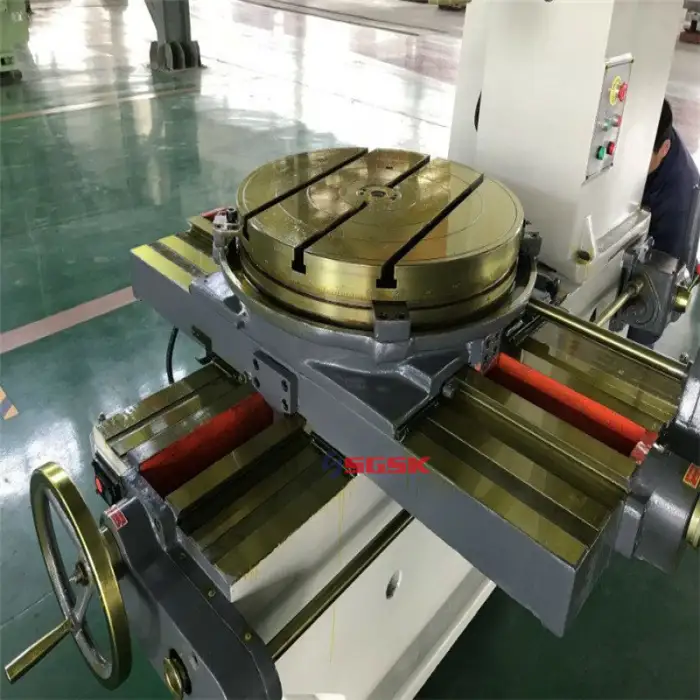

| Table maximum rotation angle | ° | 360 | 360 |
| Vertical and horizontal table power feed range | mm | 0.08-1.21 | 0.08-1.21 |
| Table rotary feed range | mm | 0.052-0.783 | 0.052-0.783 |
| Motor power | kw | 4 | 3 |
| Motor speed | r/min | 960 | 1430 |
| Machine weight | kg | 3000 | 2200 |

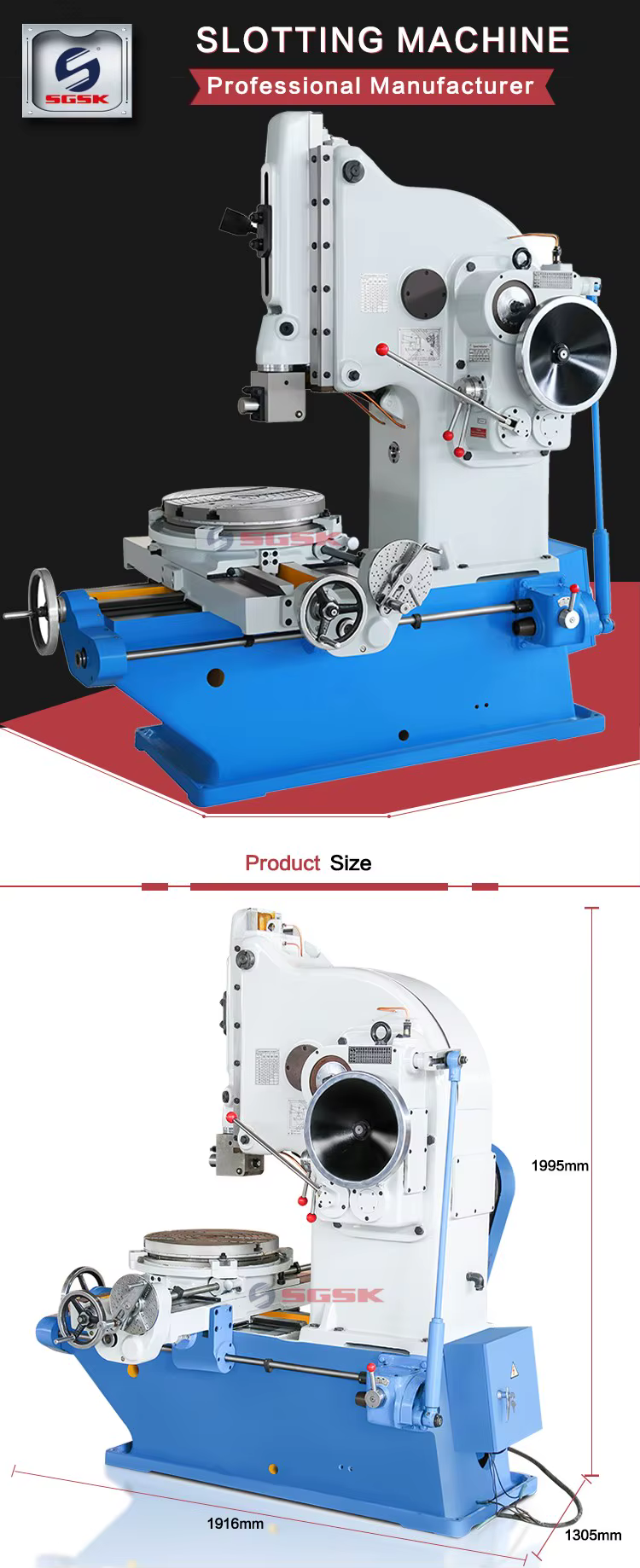

| Outline dimension | mm | 2261*1495*2245 | 1916*1305*1995 |
| Model | B5032 B5032D |
|---|---|
| Max Stroke of RAM | 340/320mm |
| Motor Speed | 960/1430 r/min |
| Ram Maximum Slotting Length | 320/200mm |
| Ram Motion Frequency | 20.32.50.80/32.50.80.125 times/min |
| Ram Vertical Adjustment Distance | 315/230mm |
| Table Diameter | 630/500mm |
| Table Maximum Rotation Angle | 360 degrees |
| Power | 4 kW |
| Weight | 3000 kg |
| Dimensions (L*W*H) | 2261*1495*2245mm |
The maximum stroke of the ram for the B5032 model is 340 mm.
The motor speed of the B5032D model is 1430 r/min.
Yes, the table can rotate up to 360 degrees.
The power rating of the Vertical Key Way Slotting Machine is 4 kW.
The B5032 machine weighs 3000 kg.
The machine is designed for shaping metal parts, making it suitable for various metalworking tasks.
Warranty details may vary, so please check with the manufacturer or retailer for specific warranty information.
The machine is suitable for manufacturing keyways in metal parts, shaping components for machinery, fabricating parts in the automotive industry, and repairing industrial equipment.
The vertical adjustment distance of the ram is 315 mm for the B5032 model and 230 mm for the B5032D model.
The maximum slotting length of the ram is 320 mm for the B5032 model and 200 mm for the B5032D model.
Yes, the Vertical Key Way Slotting Machine is ideal for producing custom metal shapes.
The machine is ISO CE certified for quality assurance.
The maximum longitudinal moving distance of the working table is 630 mm for the B5032 model and 500 mm for the B5032D model.
Yes, the machine features user-friendly aspects that make it accessible for beginners.
The table diameter of the B5032 model is 630 mm.
