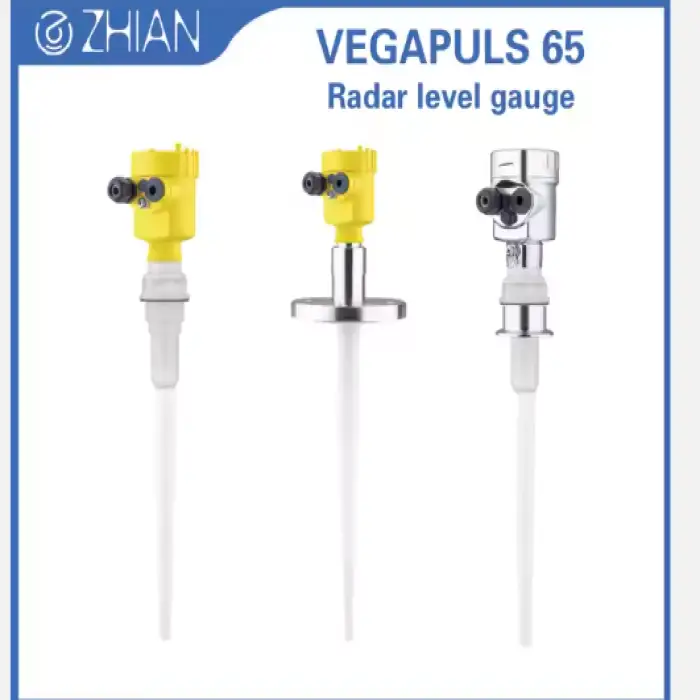

VEGAPULS65 Radar Level Meter for Continuous Level Measurement

VEGAPULS65 Radar Level Meter for Continuous Level Measurement

The VEGAPULS65 Radar Level Meter is an industrial-grade sensor designed for continuous level measurement in a variety of applications. With advanced radar technology, it provides accurate and reliable measurements even in the harshest environments.

Key Features:

• High Precision: The VEGAPULS65 offers exceptional accuracy of ±8 mm, ensuring precise level measurements.
• Wide Measuring Range: Capable of measuring distances up to 35 meters (115 feet), it is ideal for large tanks and silos.
• Radar Technology: Based on the radar level measurement principle, it ensures non-contact measurement, reducing wear and tear and improving reliability.
• Durable Construction: Made of high-quality 316 stainless steel, it is built to withstand extreme conditions.
• Broad Temperature Range: The sensor can operate in temperatures ranging from -40°C to 150°C (-40°F to 302°F), making it suitable for both high and low-temperature environments.
• High Process Pressure Resistance: It can handle process pressures from -1 to 16 bar (14.5 psi to 232 psi), ensuring reliable operation under demanding conditions.
• Emission Angle: The sensor features an emission angle of ≥ 24°, optimizing its measurement capabilities across a wide range of applications.

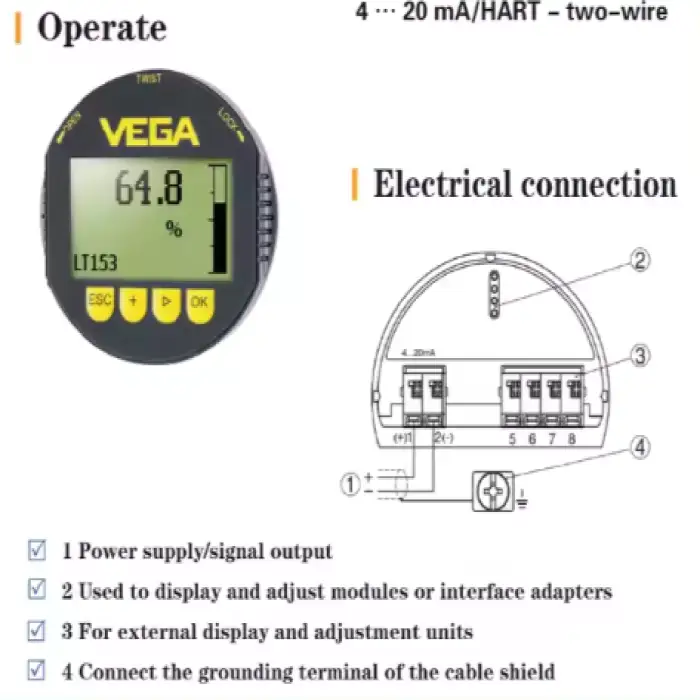

• Communication Options: Supports 4-20mA/HART communication, compatible with two-wire and four-wire systems, making integration easy into existing setups.
• Versatile Applications: Ideal for industries such as chemical, food processing, oil & gas, and environmental monitoring.

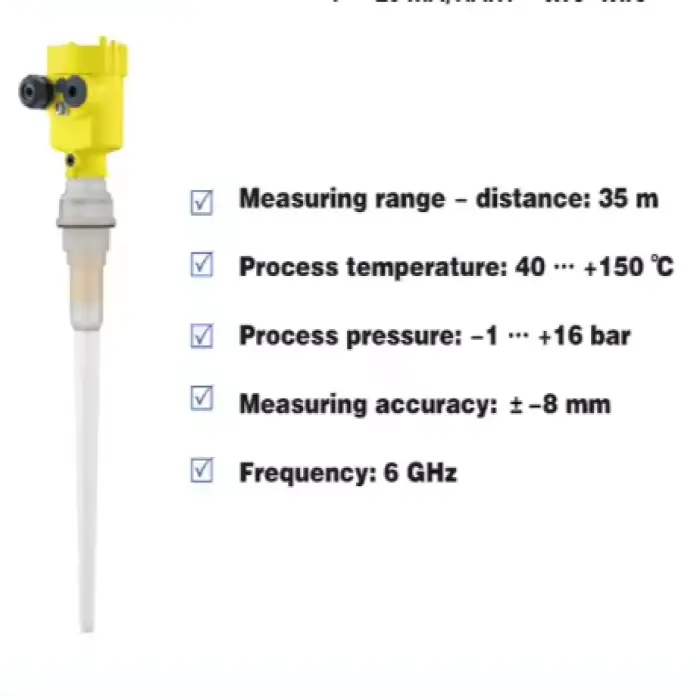

VEGAPULS65 technical parameters

The VEGAPULS65 Radar Level Meter offers a robust and reliable solution for continuous level measurement, providing accurate data for inventory management and process control in various industrial applications.

Product Info Gallery

AdvantageEquipment availability is extremely high, no loss and no maintenance.Maintenance-free non-contact measurementThe measurement accuracy is high and is not affected by process conditions.

 Application

Because of the slender rod antenna, it can be installed in the opening of small container.VEGAPULS 65 radar sensor is used for continuous level measurement of liquid under general process conditions. It is suitable for level measurement with small working interface under general process conditions. The narrow rod antenna can be installed at the opening of a smaller container.


Liquid level detection, even if there is foam-suitable for small-scale process connection.

The level sensor VEGAPULS 65 is suitable for detecting the level of liquid medium in small and medium-sized containers (1 inch) with small connection size. The low-frequency C- band can be accurately and reliably measured under the condition of forming bubbles and bubbles.
