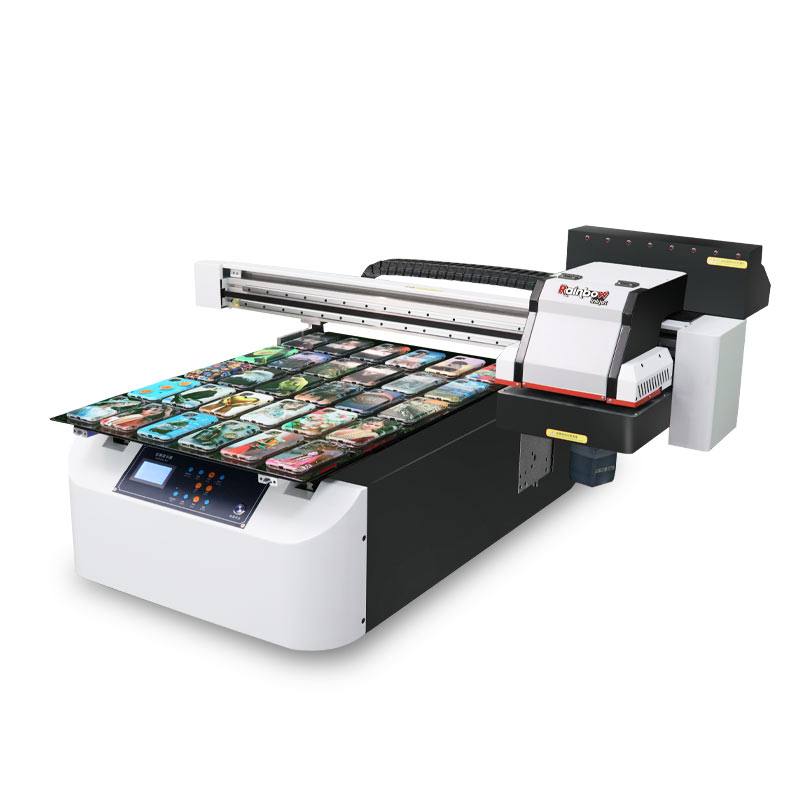

UV DTF Film Printer Flatbed Inkjet 6090 AV Printer A1 Size

Product Description

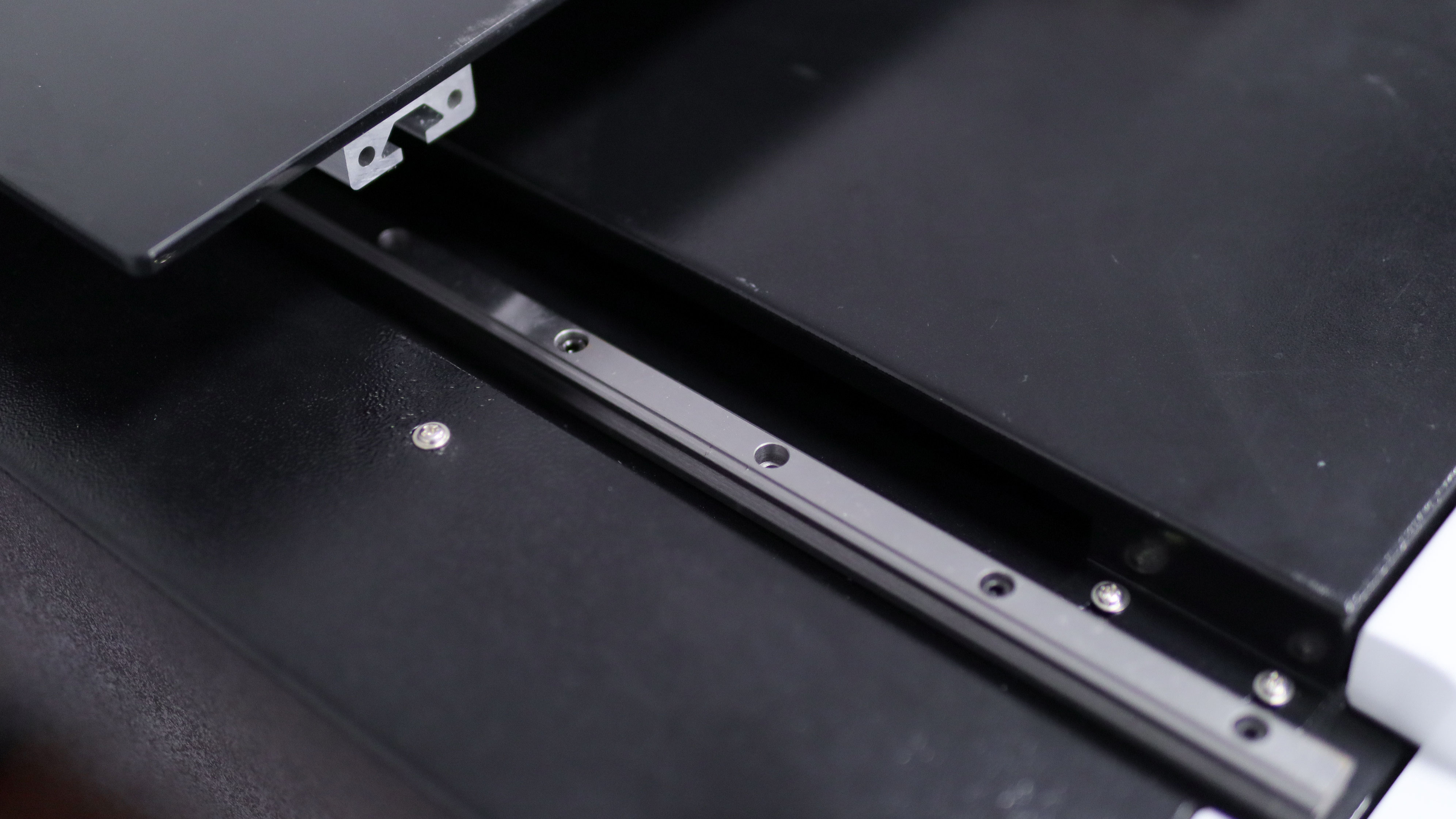

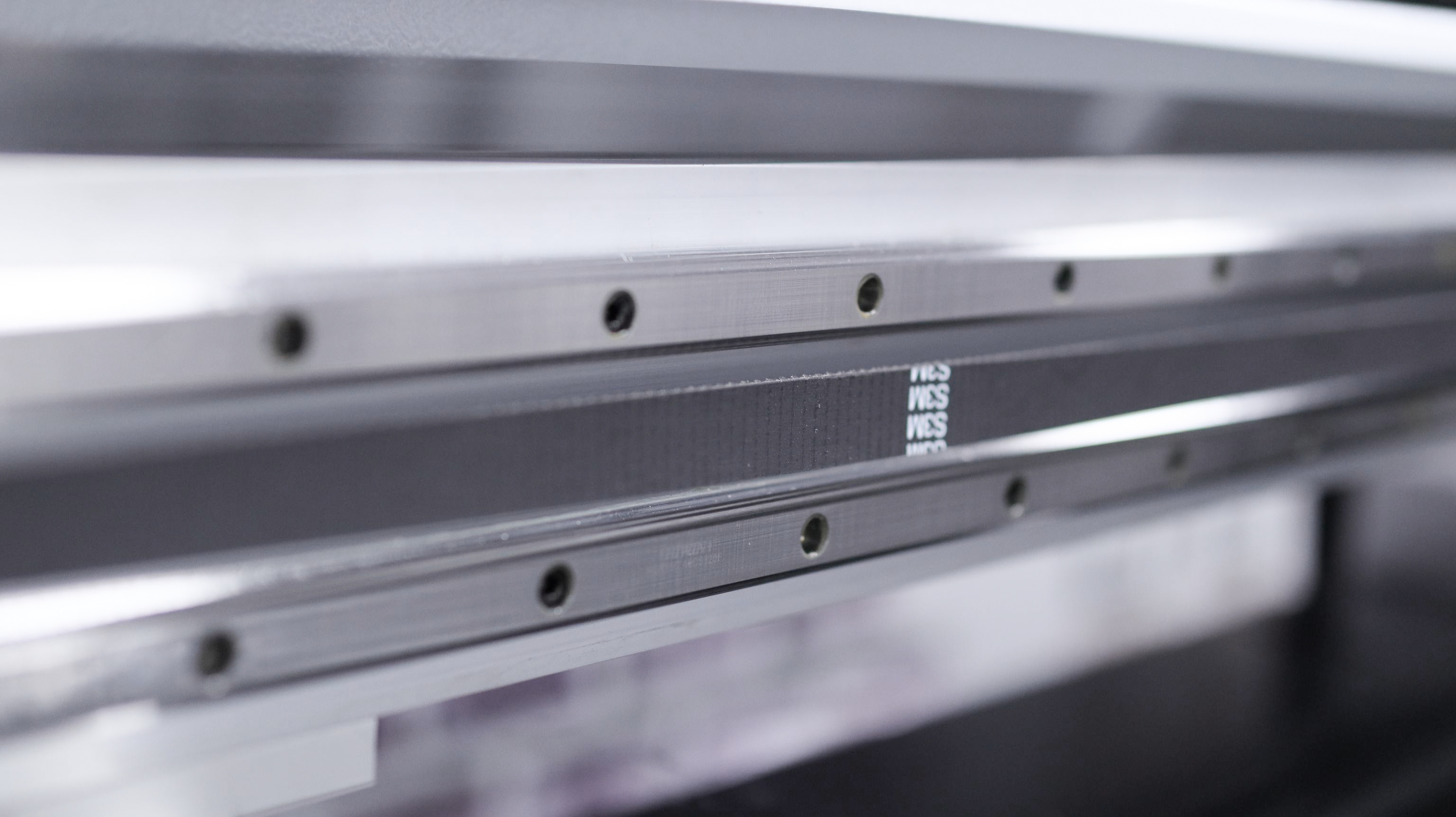

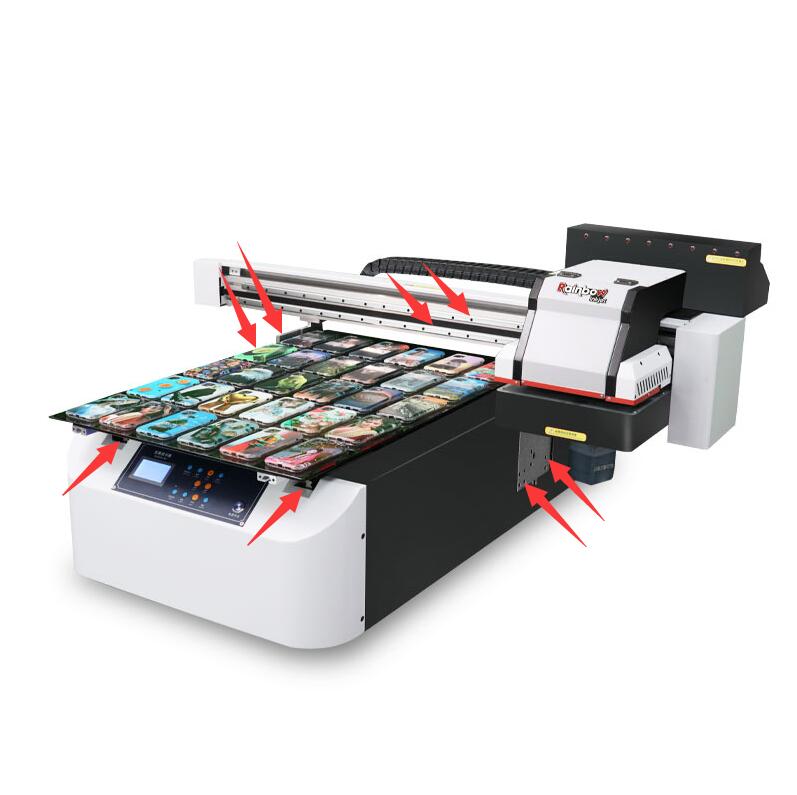

1. Double Hiwin linear guideways

Nano 9 has 2pcs of Hiwin linear guideways on its X-axis, 2pcs on Y-axis, and 4pcs on Z-axis, makes it a total of 8pcs of linear guideways.

In comparison, most other A1 uv printers has only 3-7pcs of guideways in total, and not necessarily linear ones.

This brings better stability in printer running, thus better printing accuracy, and longer machine lifespan.

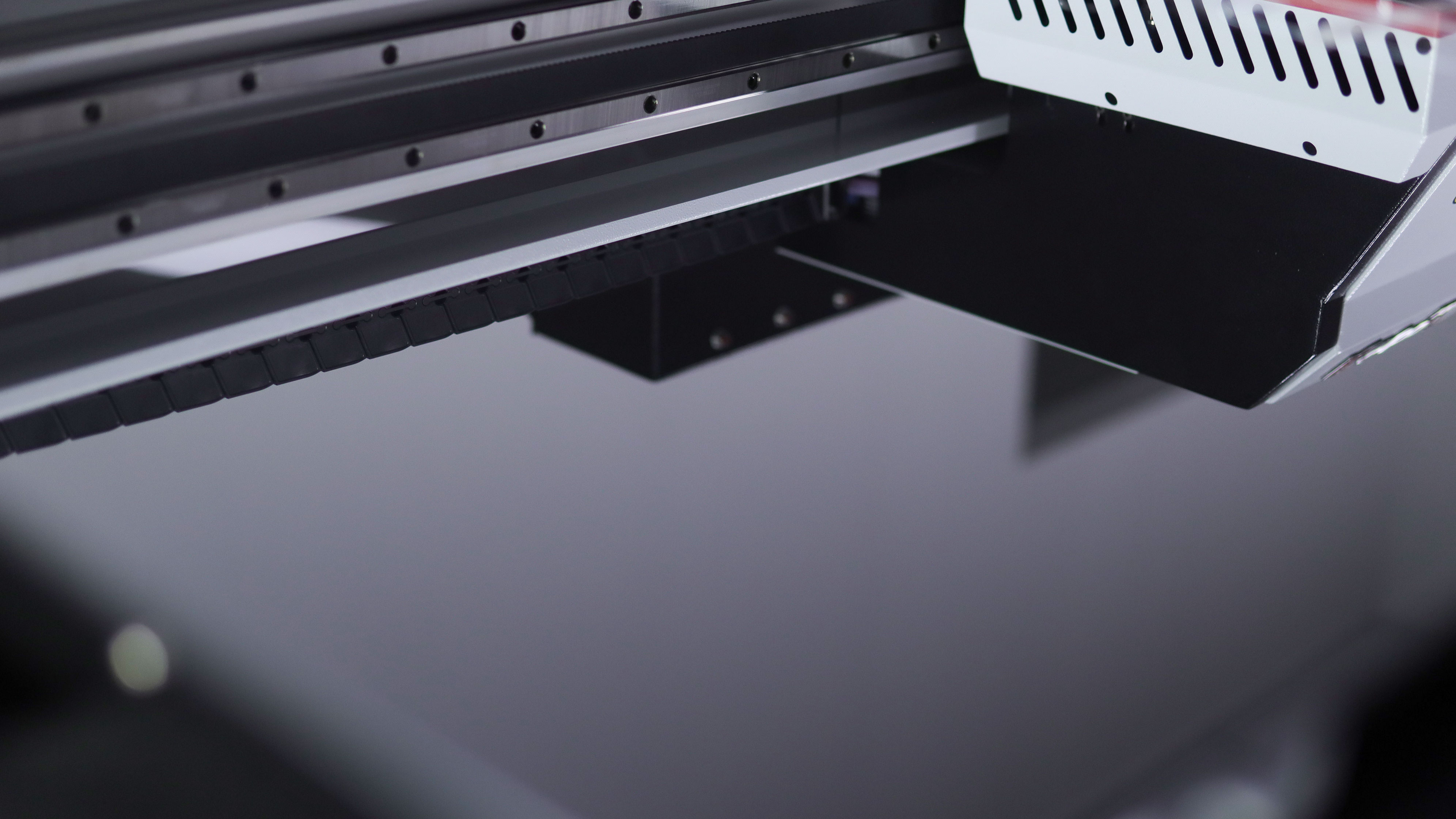

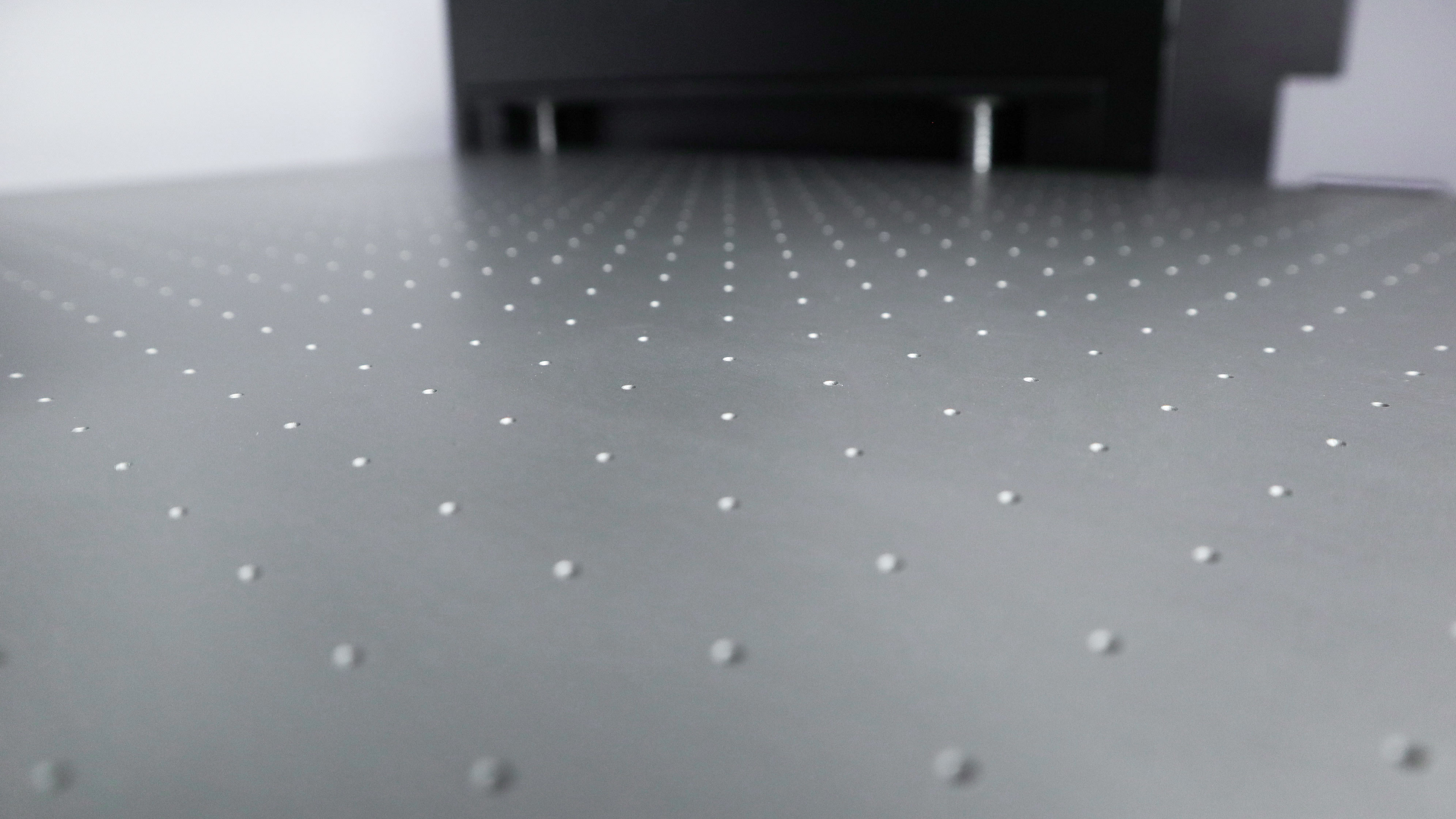

2. Thick glass/aluminum vacuum table

The standard Nano 9 is with thick glass table, anti-scratch and anti-corrosion. You can print test bar, or guide lines on it without the worry that it might not be easy to clean.

It also supports full aluminum suction platform which goes with strong air fans, the surface of the aluminum is specially treated to be anti-corrosion and anti-scratch.

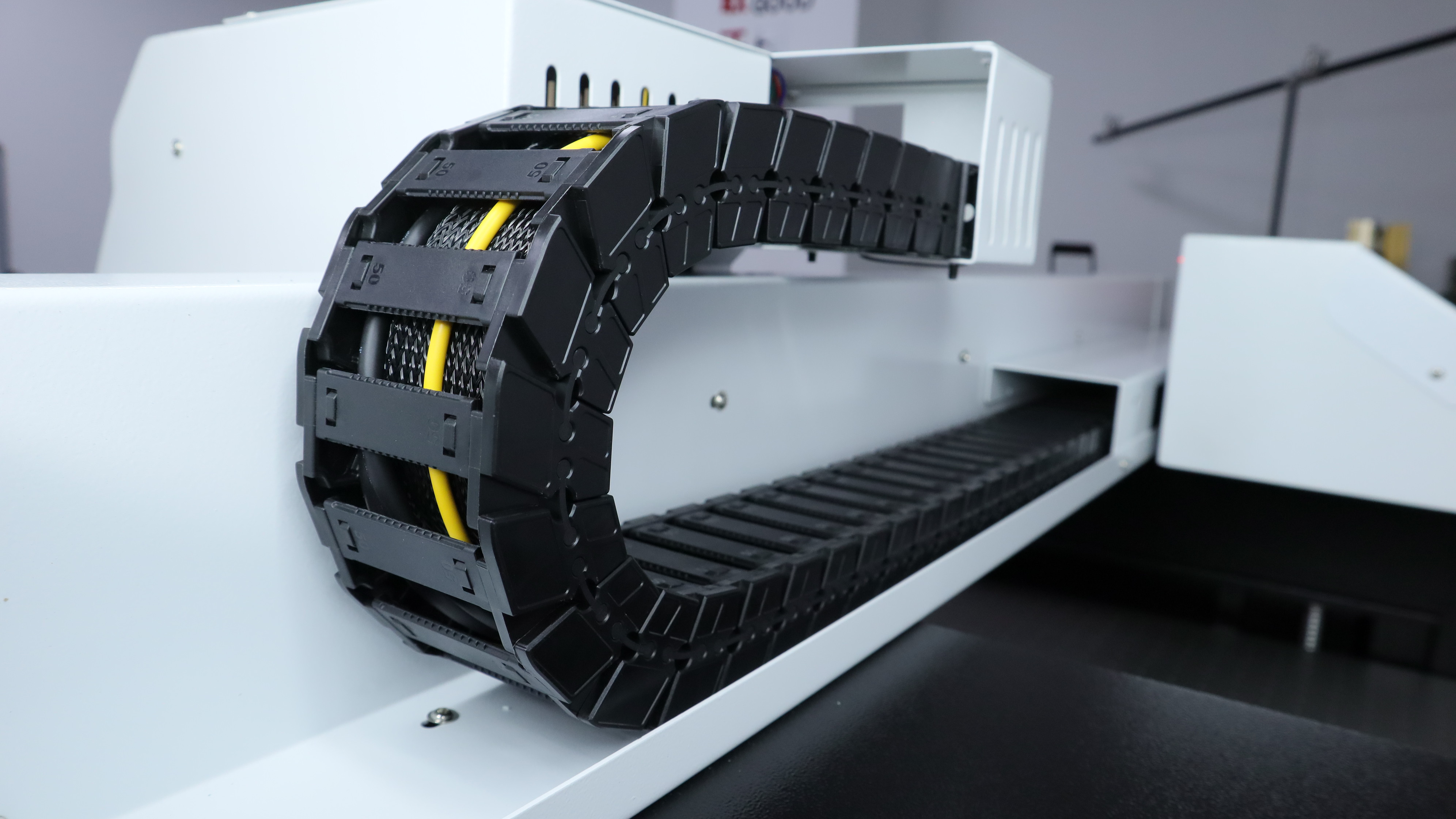

3. German Igus cable carrier

Imported from German, the cable carrier runs smoothly and quietly, it protects the ink tubes and cables during the printer carriage movement, and it has long lifespan.

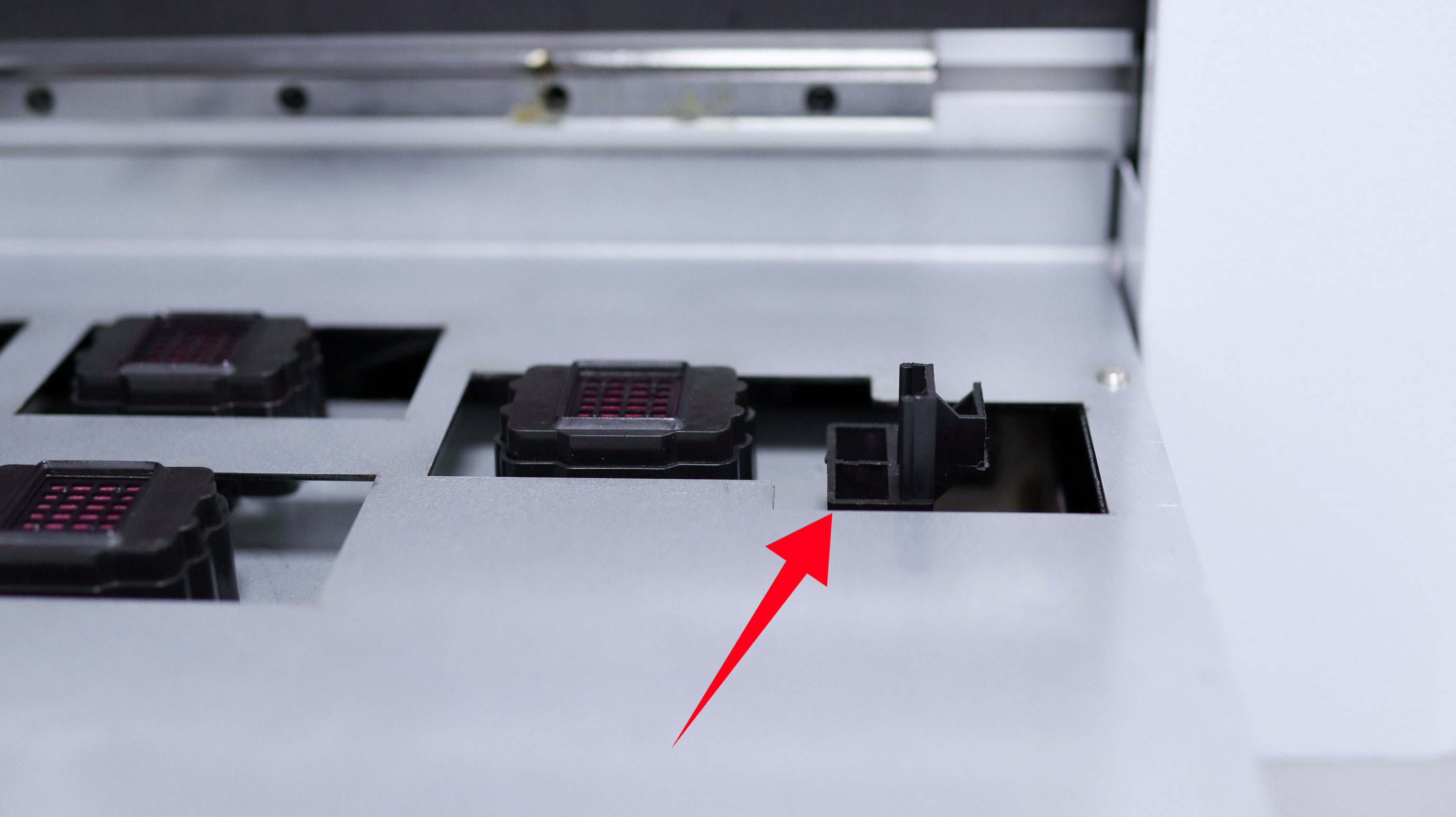

4. Printhead lock sliding lever

The newly invented device is a mechanical structure for locking the printheads and sealing them tightly from drying and clogging.

When the carriage returns to the cap station, it hits the lever which pulls up the printhead caps. By the time the carriage brings the lever to the right limit, the printheads will also be fully sealed by the caps.

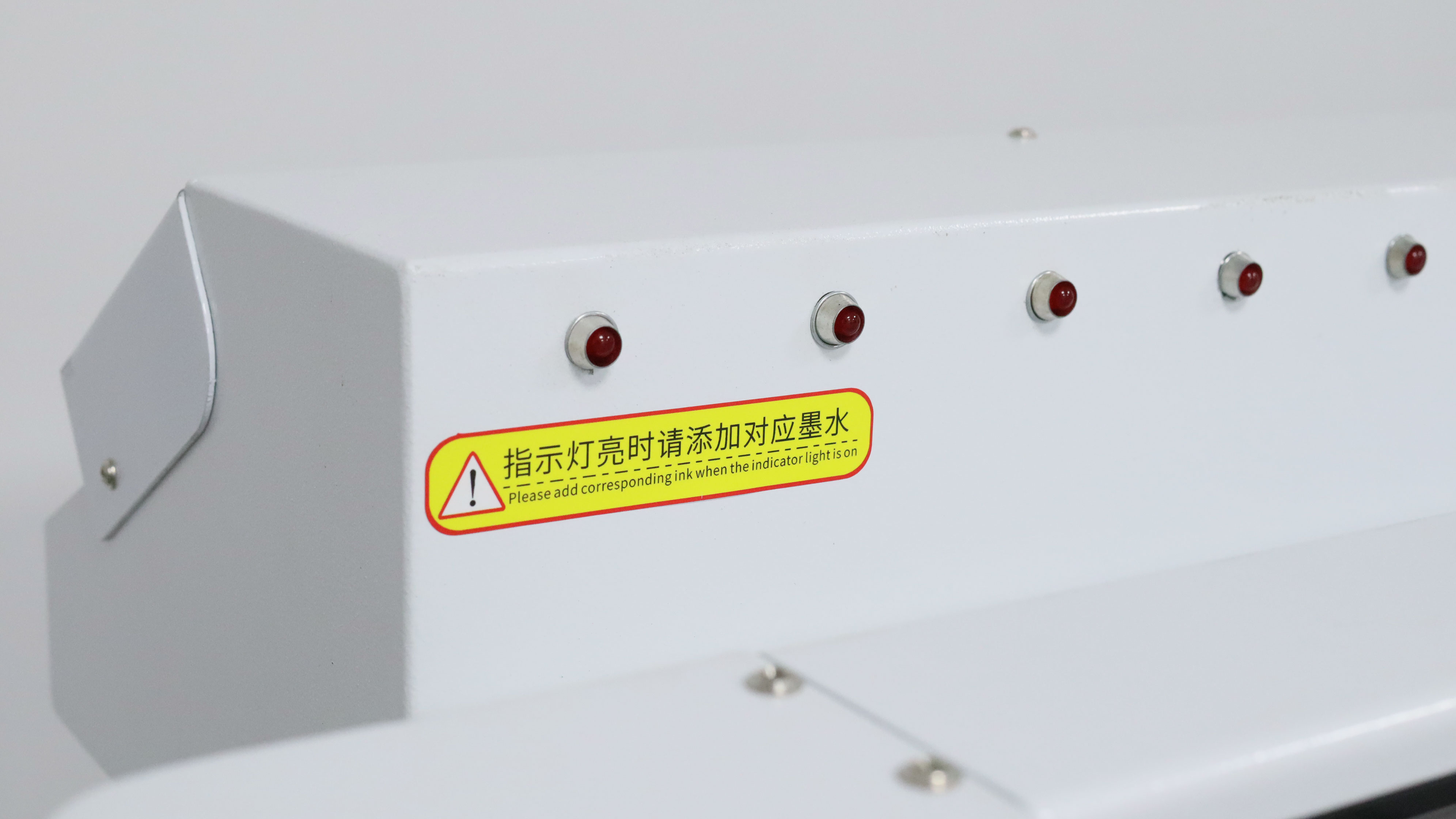

5. Low Ink alarm system

8 lights for 8 kinds of ink make sure you will notice the ink shortage when it does, the ink level sensor is placed inside the bottle so it can detect accurately.

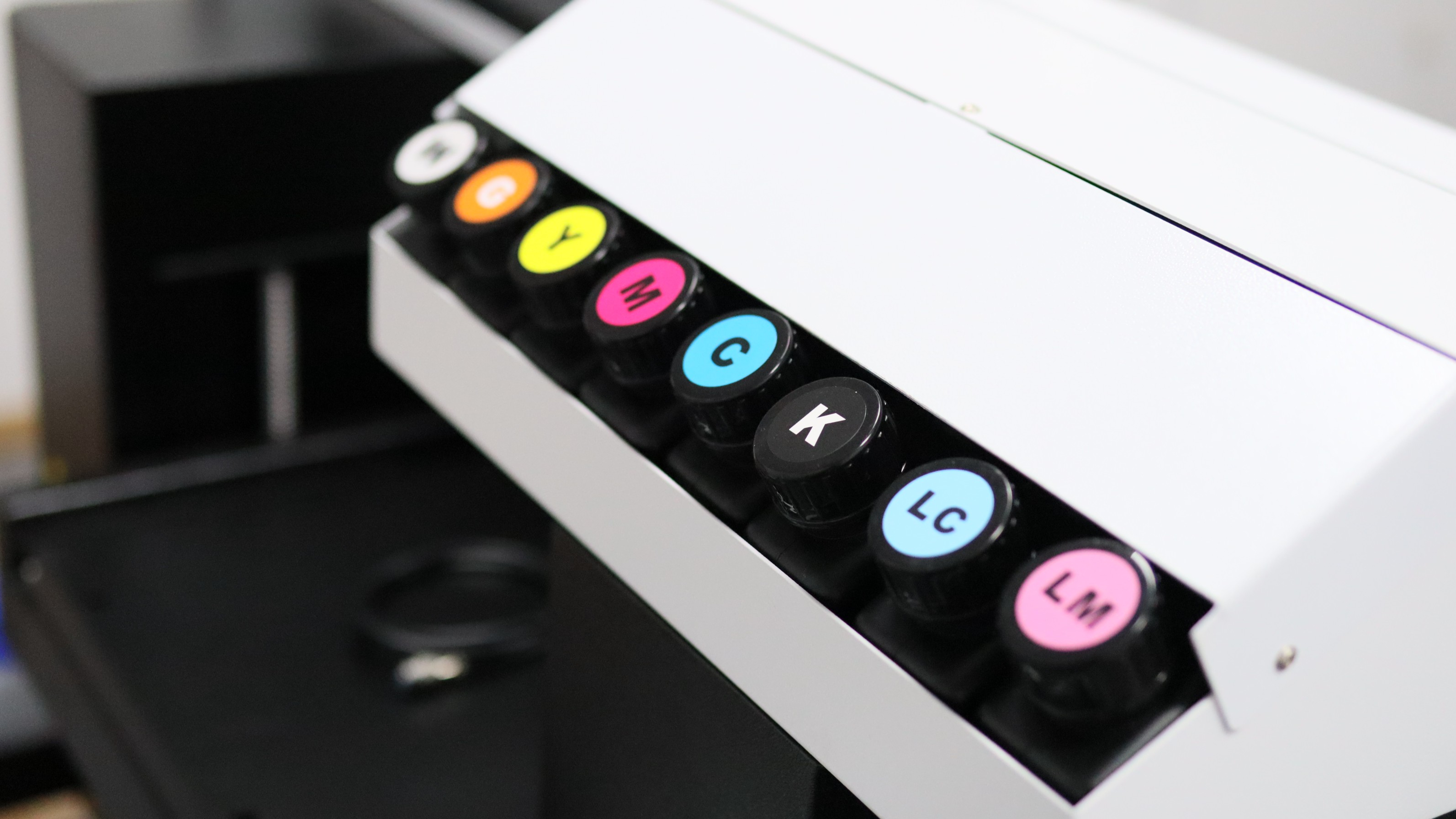

6. 6 colors+White+Varnish

CMYKLcLm+W+V ink system now has Lc and Lm 2 extra colors to improve the color accuracy, making the printed result even sharper.

Feel free to ask for the color test print from our sales to examine the result.

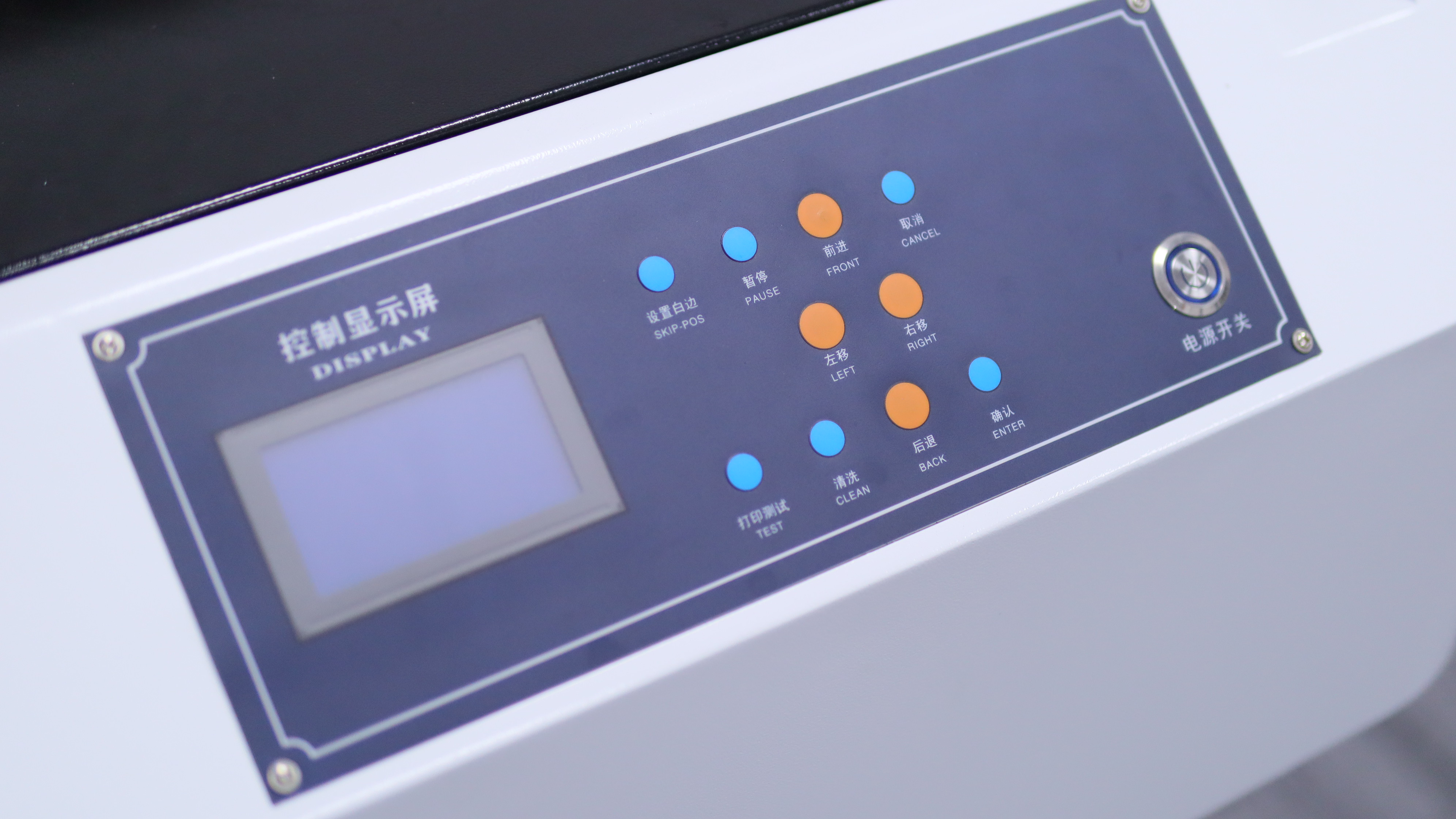

7. Front panel

The front panel has the basic control functions, like on/off switch, making the platform up and down, moving the carriage right and left and doing test print, etc. You can operate here even without the computer.

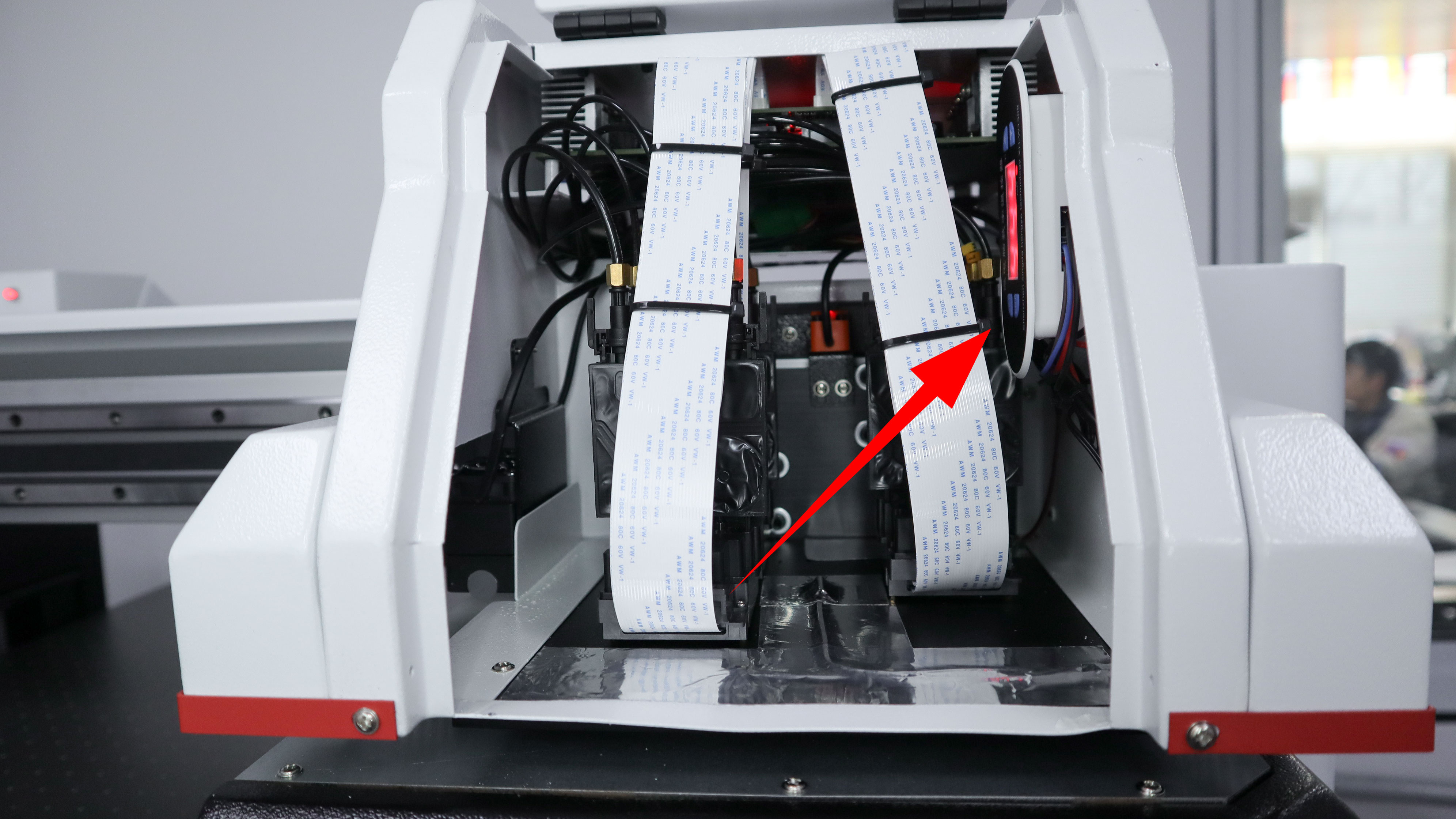

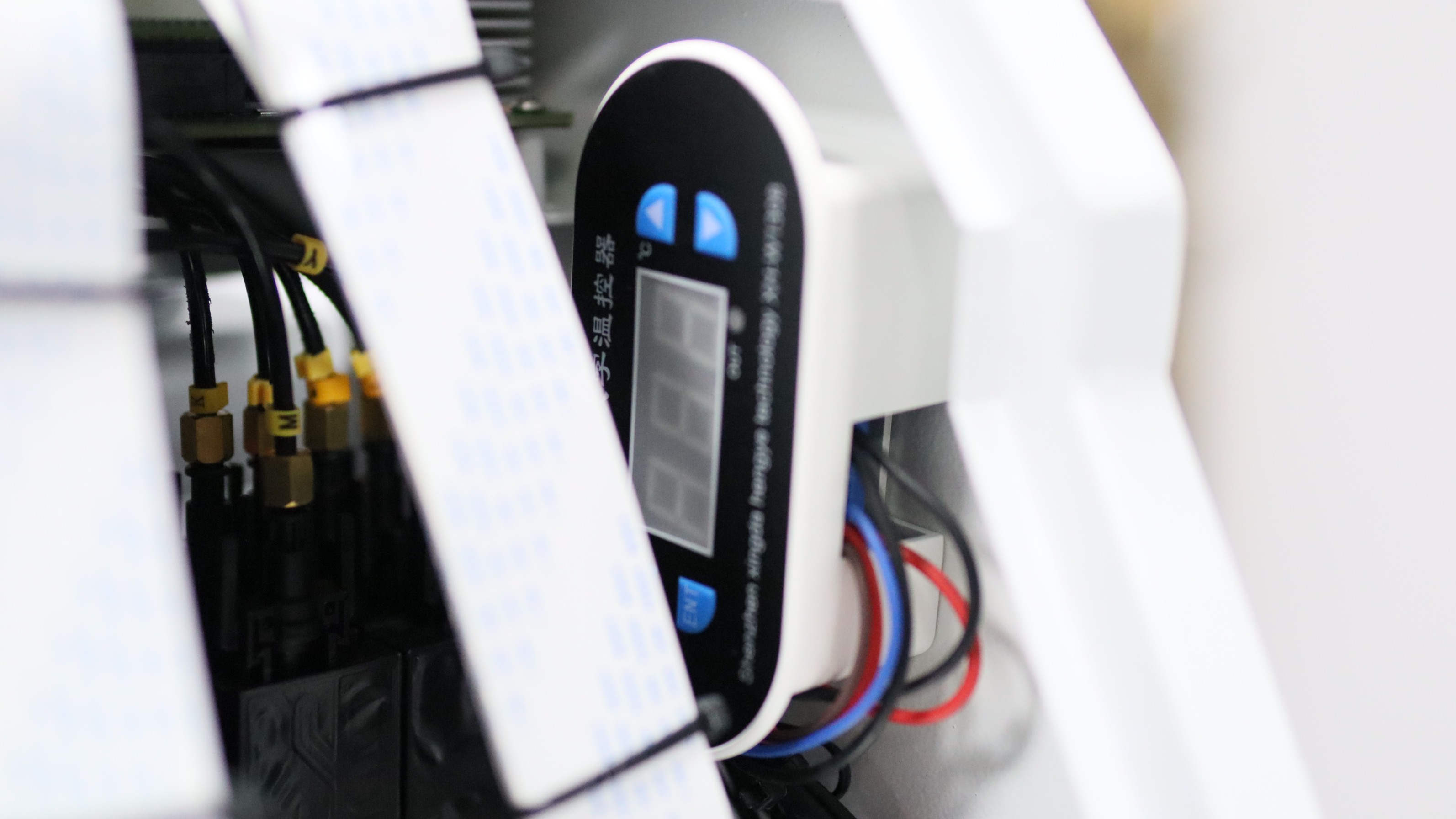

8. Carraige plate temperature controler

It's a compact device inside the printer carriage that serves to 1)heat the metal carriage bottom plate and 2)display the real time temperature of the carriage bottom plate.

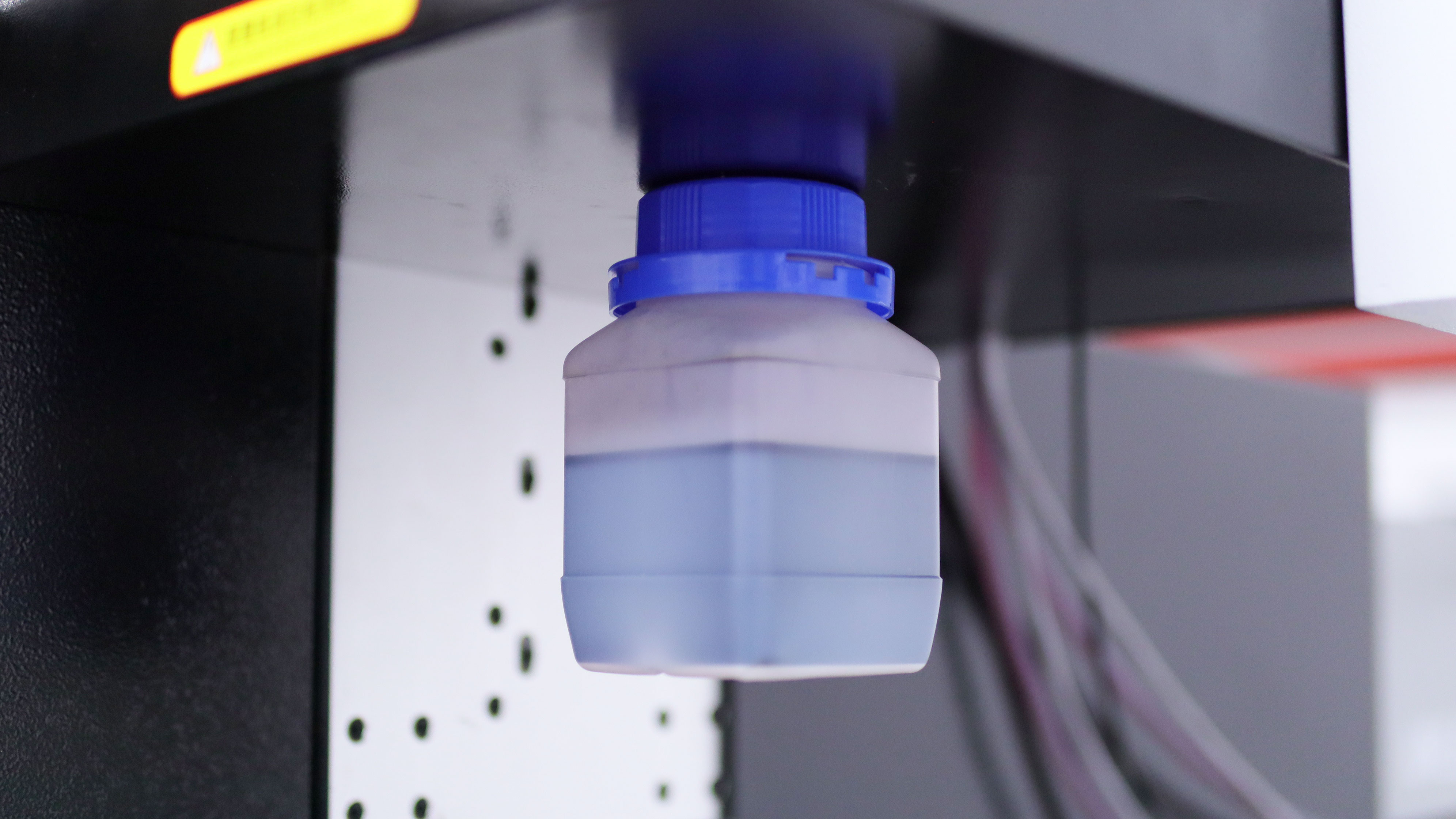

9. Waste ink bottle

The waste ink bottle is simi-transparent, so you can see the liquid level of the waste ink and clean it when necessary.

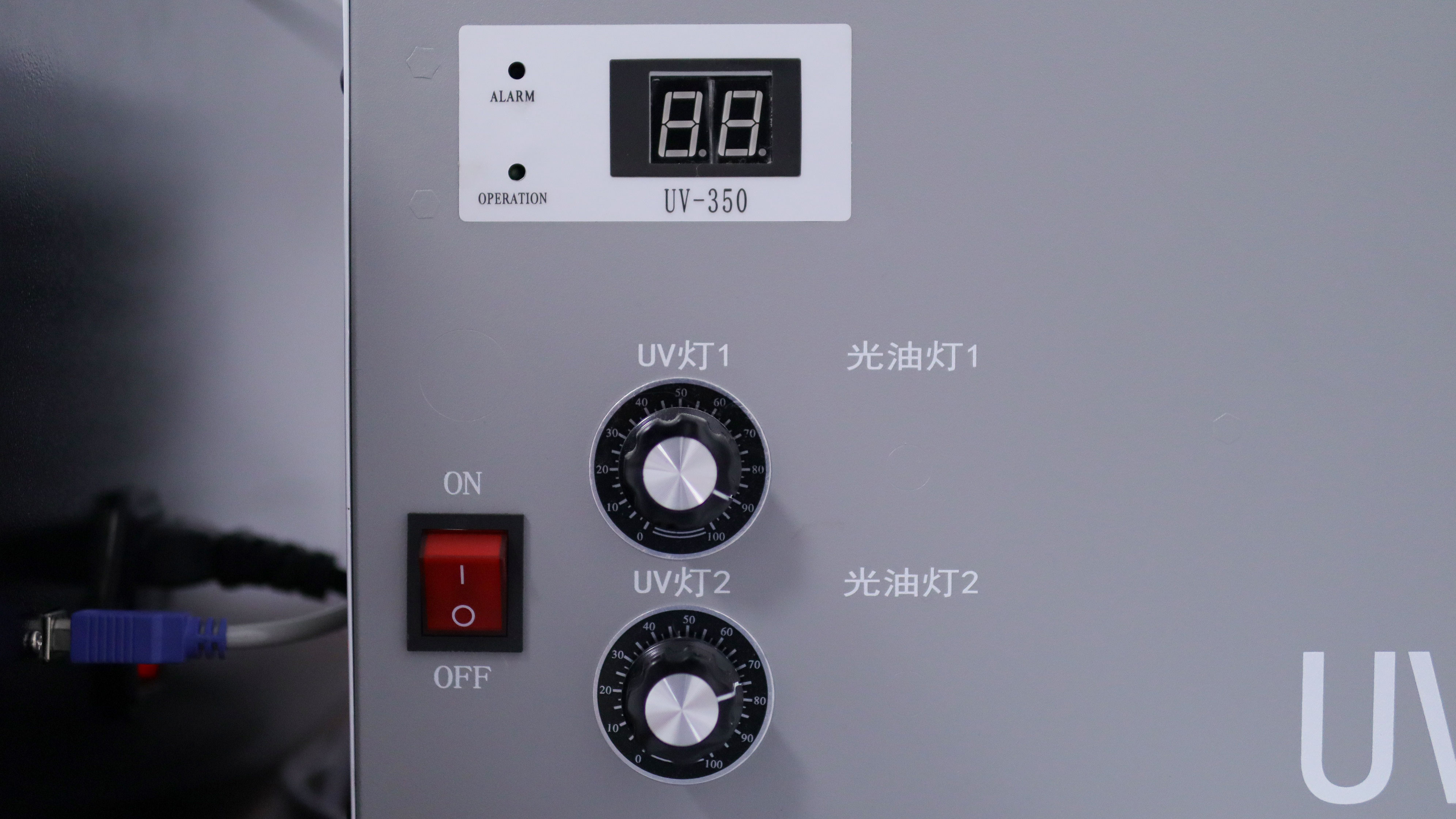

10. UV LED lamp power knobs

There are two UV LED lamps in Nano 9 for color+white and varnish respectively. Thus we designed two UV lamp wattage controlers. With them, you can adjust the wattage of the lamps according to your jobs' requirement.

For example, if you need to print heat-sensitive materials like film A&B(for stickers), you might want to turn down the lamp wattage to prevent it from altering its shape because of the heat.

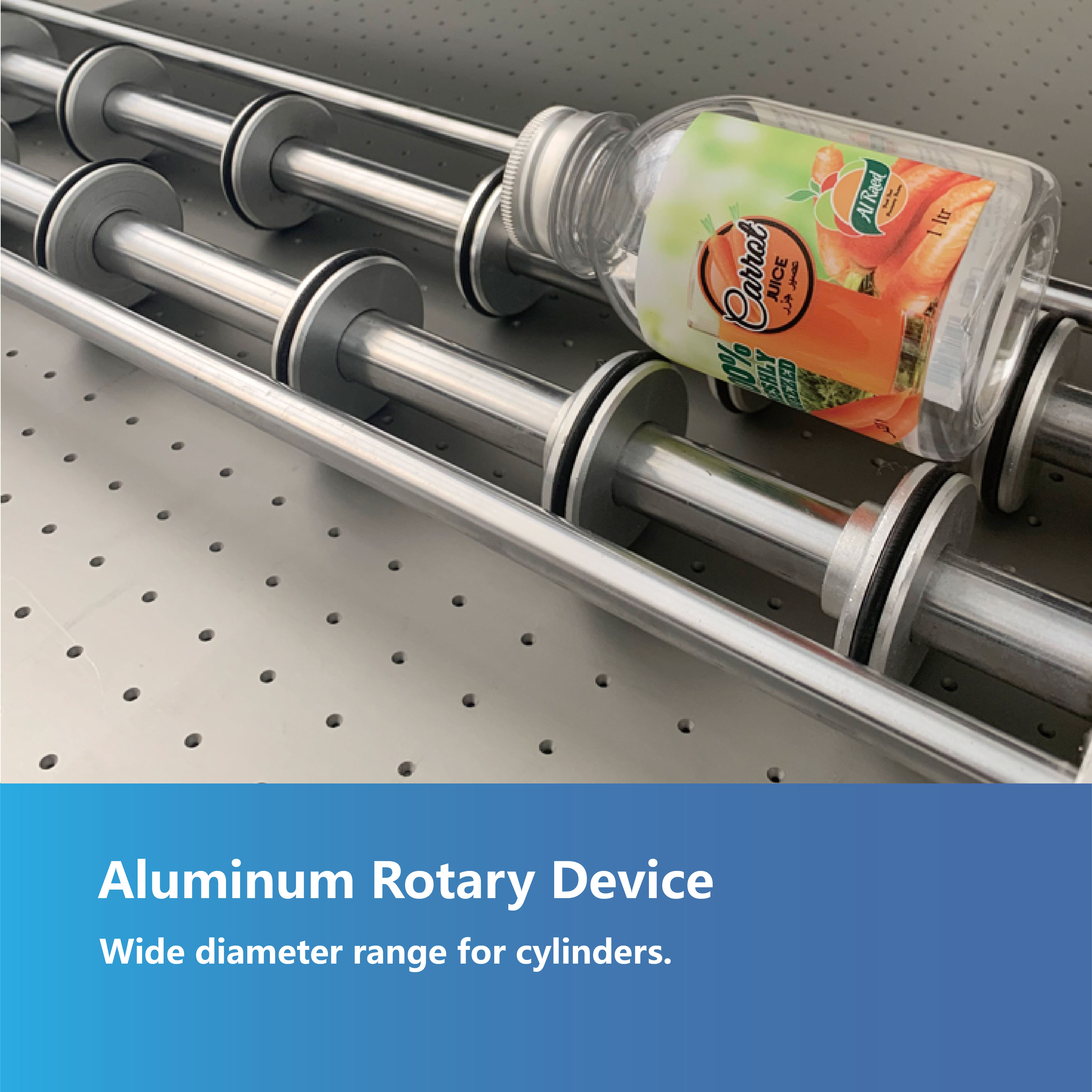

11. Aluminum Rotary device

Nano 9 also supports rotary printing with the help of the rotary device. It can handle three kinds of rotary products: the bottle with a handle like mug, the bottle without a handle like normal water bottle, and the tapered bottle like tumbler(need an extra small gadget).

It's convenient to install and uninstall the device, just need to put it on the platform and the magnet will fix the device in place. Then we need to switch the print mode to rotary and we'd be able to do the print just as usual.

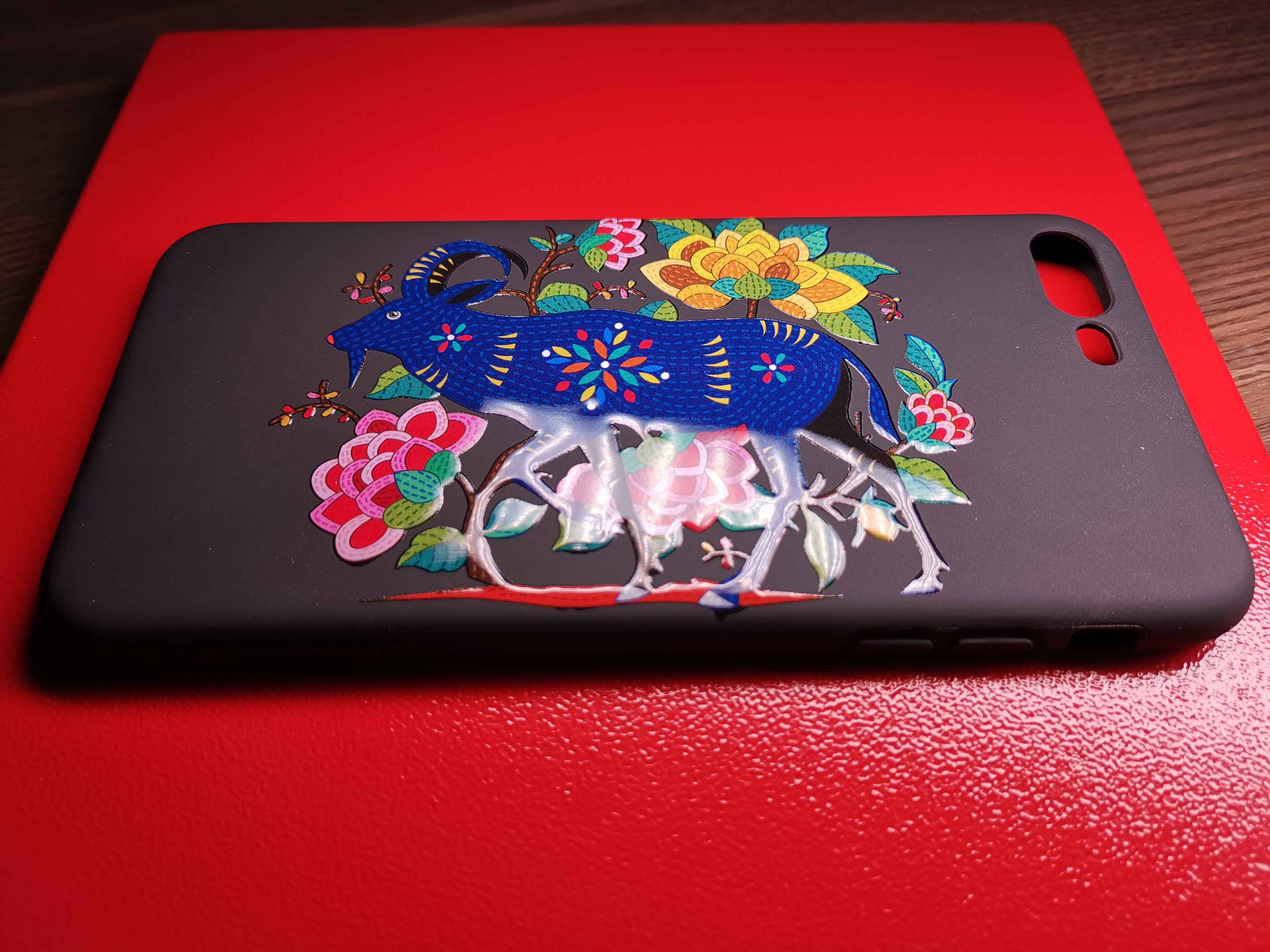

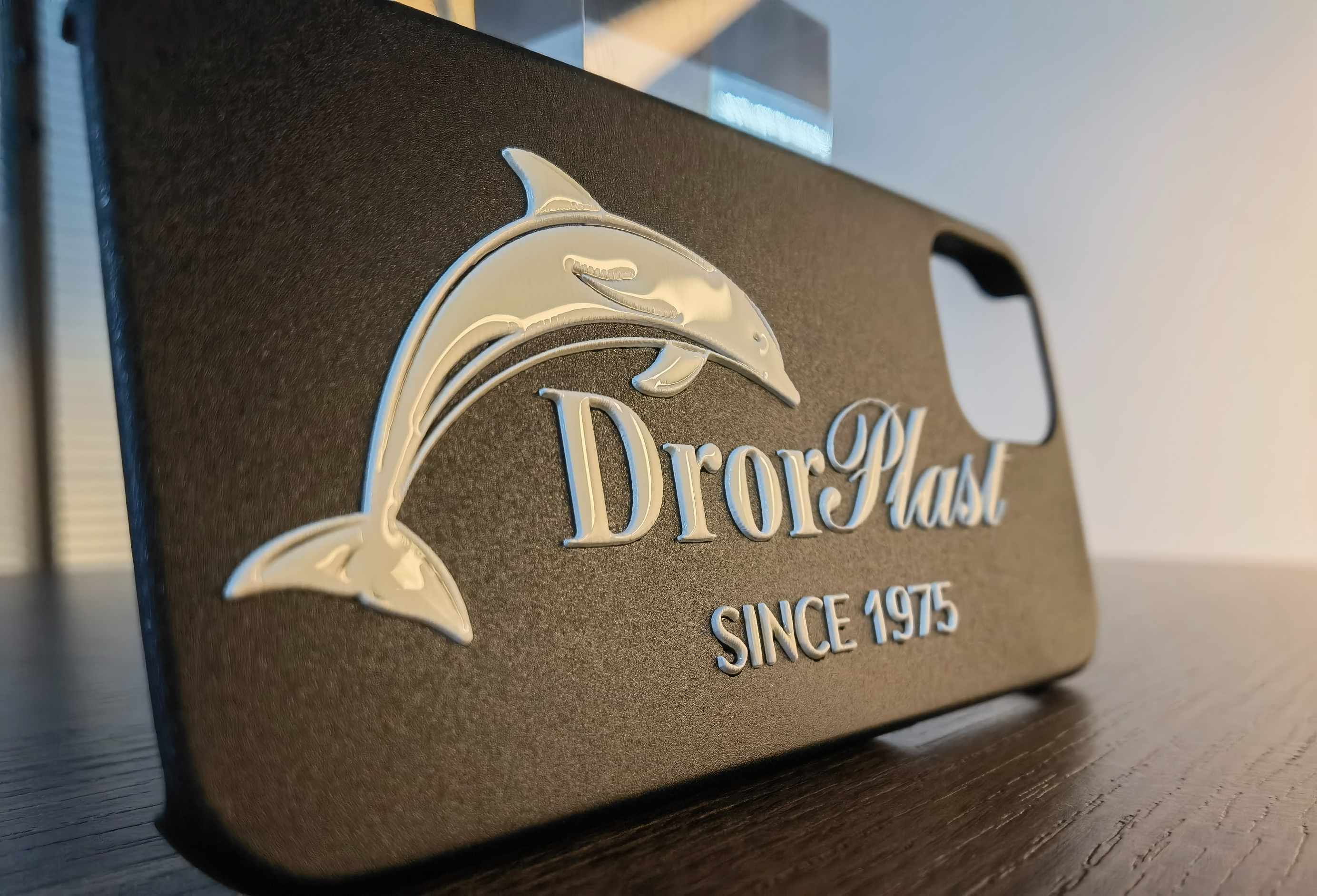

12. Embossing/Varnish supported

Nano 9 is capable of realizing the above special prints: embossing, varnish/glossy. And we have the respective video tutorials to show you step by step.

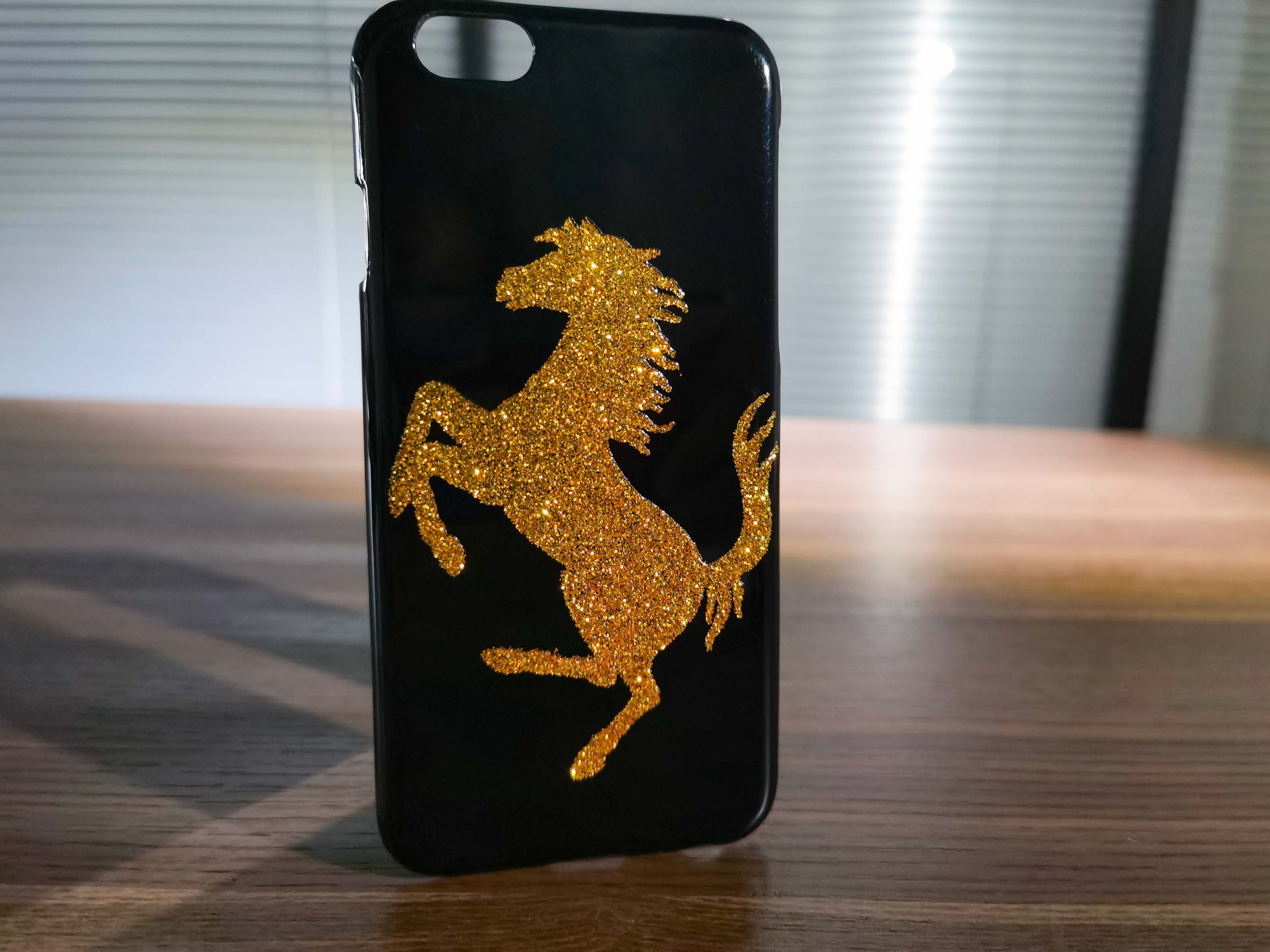

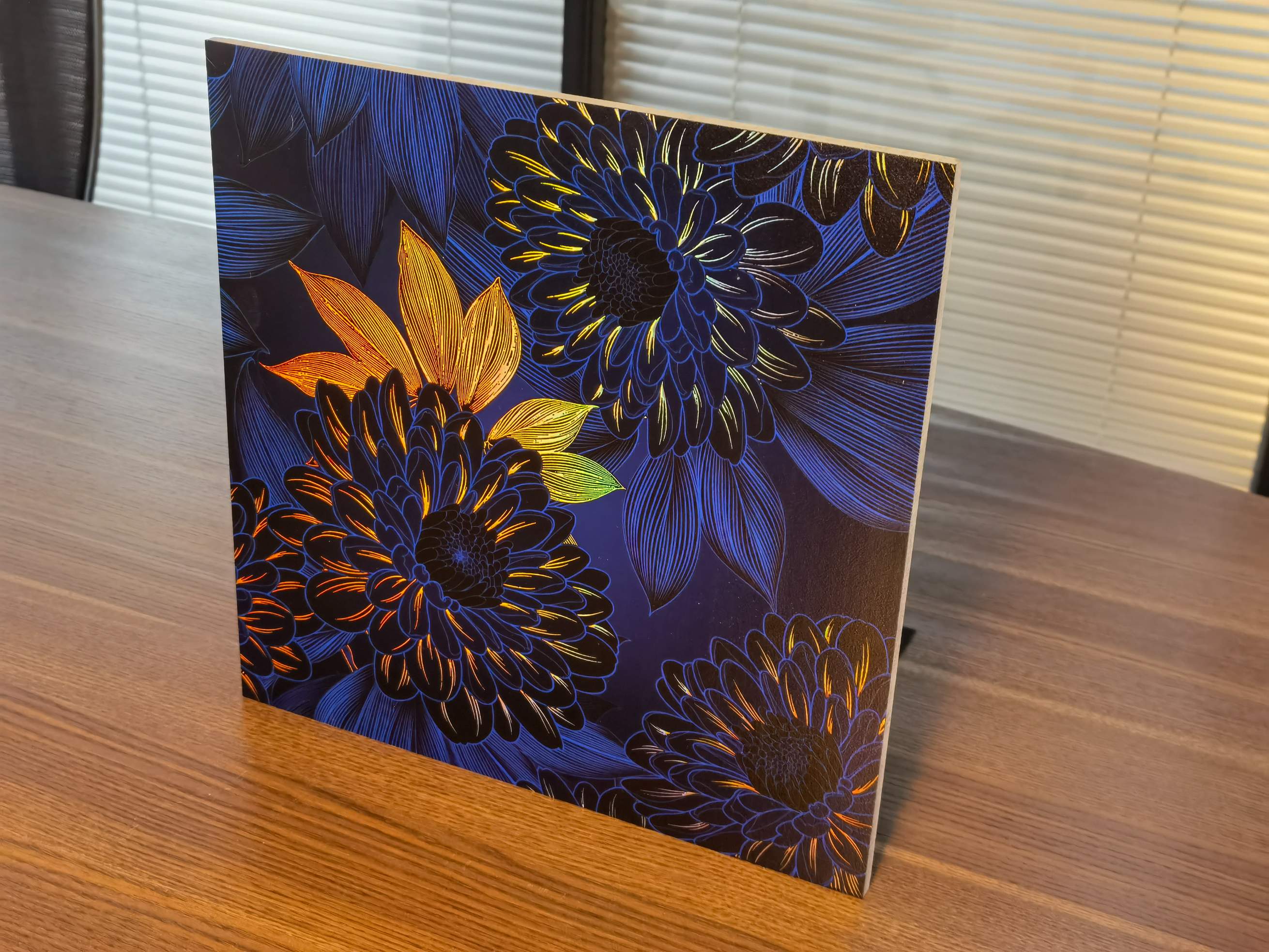

Glitter Golden Powder Effect

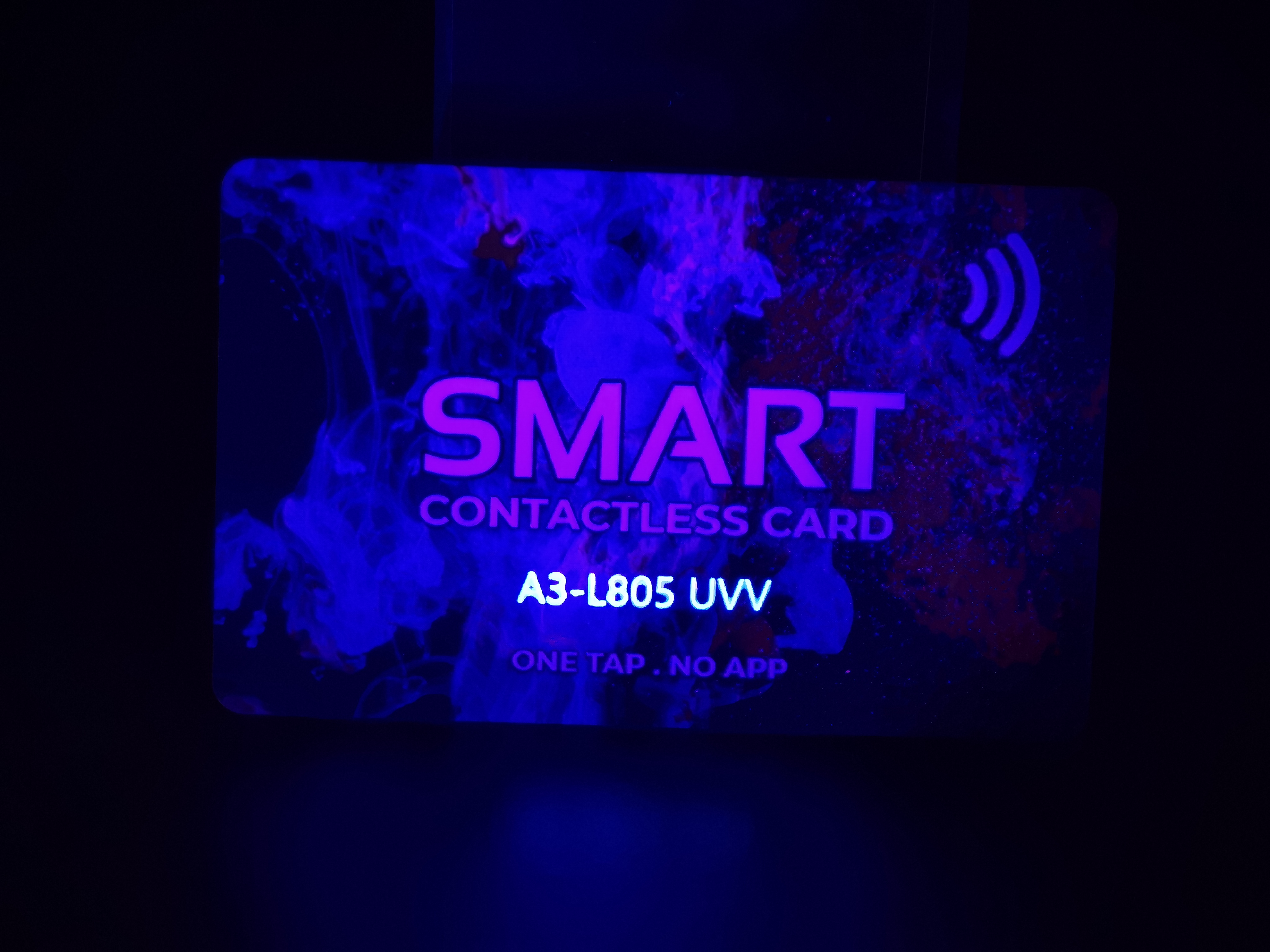

Fluorescent Effect

Anti-counterfeiting Effect

Metallic Golden Foil Effect

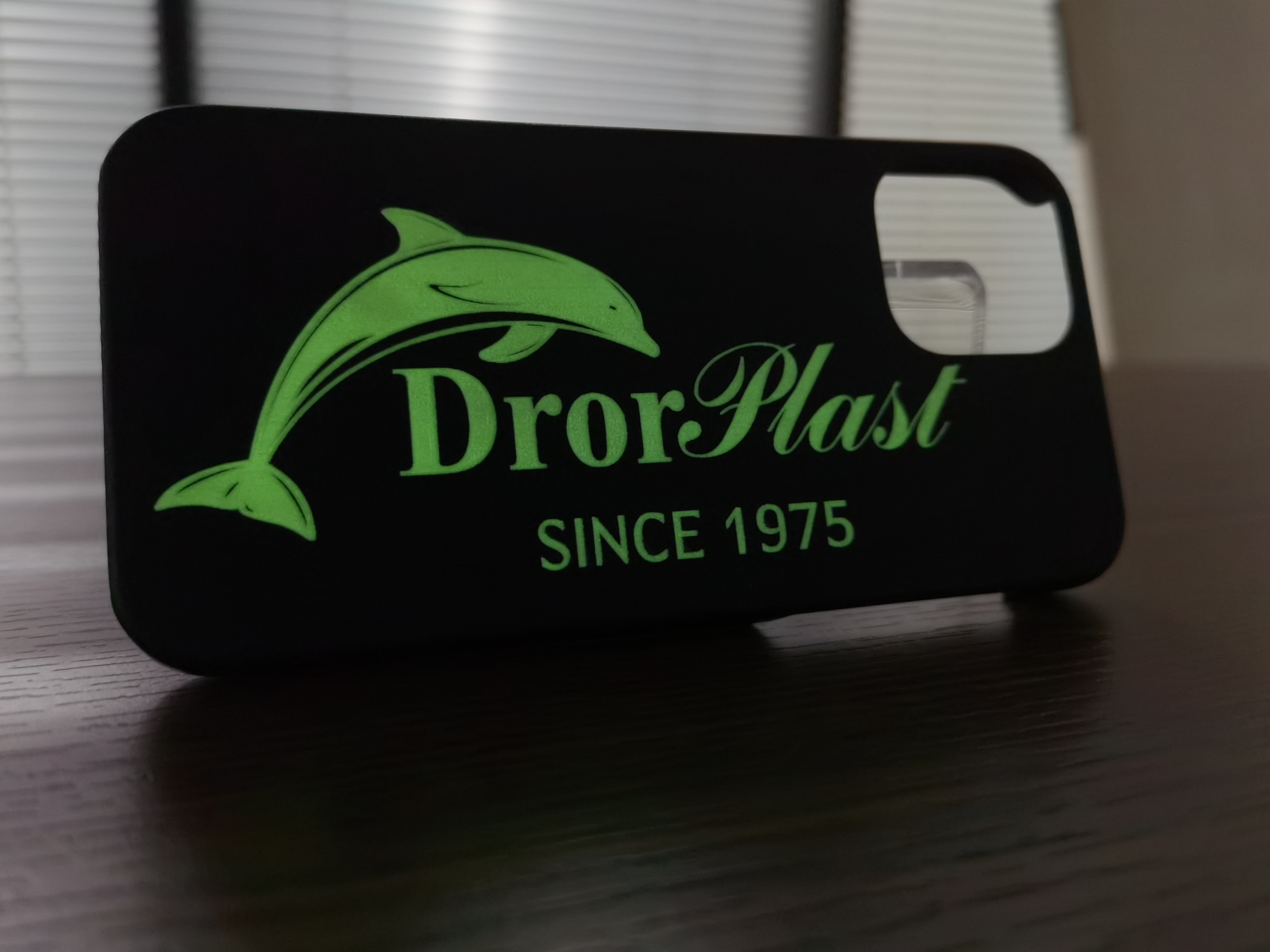

13. Special UV Results Supported

With special methods, Nano 9 is capable of realizing the above effect, adding new value to your works!

Specification
