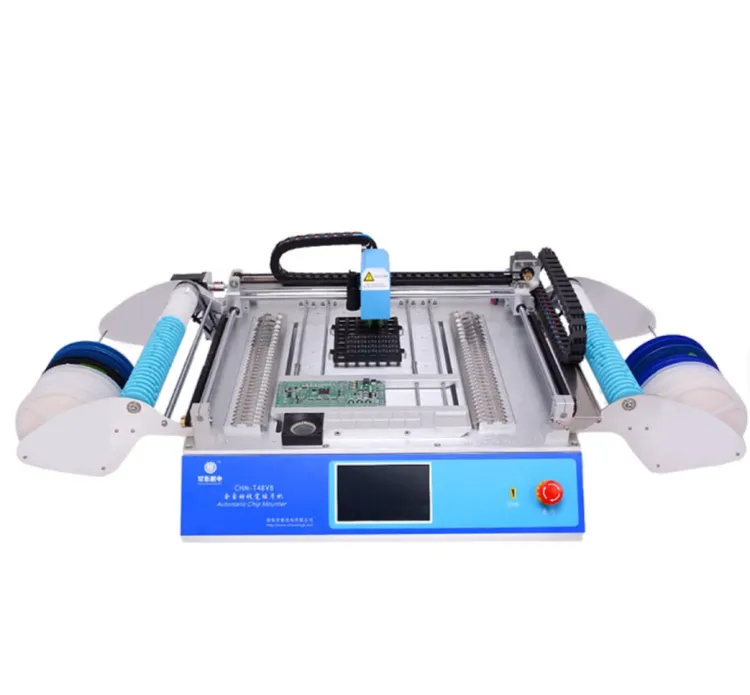

Two cameras Smd Led Production Line SMT Pick and Place Machine CHM-T48VB, visual smt pick and place machine, 58 feeders SMT

SKU: 60549726334
Category: Pharmaceutical & Medical Production Lines

Price per item

R175,000.00

Quantity

Contact Support

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options

Section:: Production Lines
Category:: Pharmaceutical & Medical Production Lines
SKU:: 60549726334

Sold by Afrimart Online

Afrimart Online

Welcome to Afrimart Online, the premier destination offering an extensive range of products and streamlined services tailored to optimize your cross-border import procurement process. Our comprehensive platform serves as...

B21, China Town Mall, Midrand

011 805 0386

View Store

Plan your purchase

Delivery & Shipping

Estimated delivery

27 Dec, 2026

Delivery timing is confirmed with your order.

1-year warranty

Included with this product

View Shipping Policy

Shop with Confidence

Shipping
Information Returns
Policy Product
Support

Product Description

Specification

Dimensions	1310mm(L)×710mm(W)×340mm(H)
Weight	49kg
Power Supply	AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W
Air Supply	No external air supply required
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	2
Mounting Speed	6000cph (optimal without vision detection); 4000cph (optimal with vision detection)
Control Accuracy	0.025mm
Component Type	0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	10mm(L)×10mm(W)～345mm(L)×360mm(W)
PCB Conveying	Manual operation
Nozzle Change	Manual operation
Control System	Built-in computer(embedded Linux operating system), 7-inch touch screen
Drive System	X&Y-axisdriven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported
Transmission System	Synchronous belt + polished rod +linear guide
Feeding System	58 tape feeding stacks(8mm：44，12mm：8；16mm：4，24mm：2；customization supported), 14 preset general IC stacks, worksurface custom IC trays and stick feeder supported
Vision System	Up-looking camera for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning

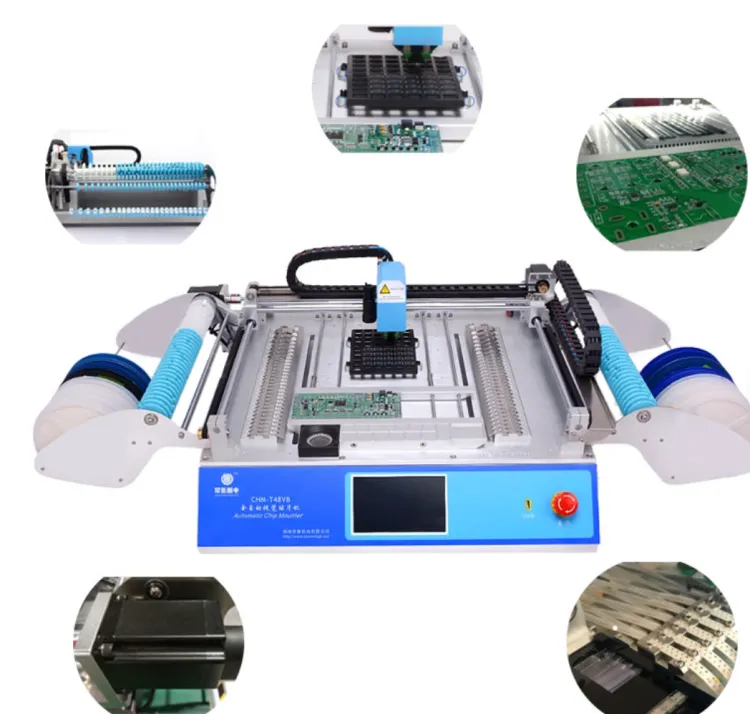

Description

PCB Clamping Area

Maximum support 345mm(L)x360mm(W) PCB,

Suitable for various process PCB board mounting

Operating System

Placement Effect

Technical Specifications

Technical specifications for Two cameras Smd Led Production Line SMT Pick and Place Machine CHM-T48VB, visual smt pick and place machine, 58 feeders SMT
Dimensions	1310mm(L)×710mm(W)×340mm(H)
Weight	49kg
Power Supply	AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W
Air Supply	No external air supply required
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	2
Mounting Speed	6000cph (optimal without vision detection); 4000cph (optimal with vision detection)
Control Accuracy	0.025mm
Component Type	0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	10mm(L)×10mm(W)～345mm(L)×360mm(W)
PCB Conveying	Manual operation
Nozzle Change	Manual operation
Control System	Built-in computer(embedded Linux operating system), 7-inch touch screen
Drive System	X&Y-axisdriven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported
Transmission System	Synchronous belt + polished rod +linear guide
Feeding System	58 tape feeding stacks(8mm：44，12mm：8；16mm：4，24mm：2；customization supported), 14 preset general IC stacks, worksurface custom IC trays and stick feeder supported
Vision System	Up-looking camera for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning

Frequently Asked Questions

What are the dimensions of the CHM-T48VB SMT Pick and Place Machine?

The dimensions of the CHM-T48VB machine are 1310mm (L) × 710mm (W) × 340mm (H).

What is the weight of the machine?

The weight of the CHM-T48VB is 49kg.

What power supply options are available for this machine?

The machine operates on AC220V (50Hz, single phase) or AC110V (60Hz, single phase) with a power consumption of 300W.

Does the CHM-T48VB require an external air supply?

No, the machine does not require an external air supply as it has a built-in vacuum pump.

What is the optimal mounting speed of the machine?

The optimal mounting speed is 6000 components per hour (cph) without vision detection and 4000 cph with vision detection.

What types of components are compatible with this pick and place machine?

The machine supports various component types including 0402/0603 to 5050, SOT, SOP, QFP, QFN, BGA, and others like resistors, capacitors, diodes, triodes, LEDs, and ICs.

What is the thickness range of PCBs that can be used?

The machine can handle PCB thicknesses ranging from 0.6mm to 3.5mm.

What is the maximum PCB size that the machine can accommodate?

The maximum PCB size supported is 345mm (L) × 360mm (W).

How does the control system work?

The machine features a built-in computer with an embedded Linux operating system and a 7-inch touch screen for easy operation.

What type of drive system is used in the CHM-T48VB?

The X and Y axes are driven by stepping motors with closed-loop control via encoders, and the Z-axis has reset detection capabilities.

How many feeders does the machine support?

The CHM-T48VB supports 58 tape feeding stacks, which can include various feeder sizes.

What kind of vision system does the machine have?

The machine is equipped with an up-looking camera for automatic component calibration and a down-looking camera for PCB calibration and component positioning.

Is manual operation required for PCB conveying?

Yes, manual operation is required for PCB conveying.

How is nozzle change managed in this machine?

Nozzle changes are conducted manually in the CHM-T48VB.

Can the feeding system be customized?

Yes, the feeding system can be customized to accommodate specific requirements, including custom IC trays and stick feeders.
