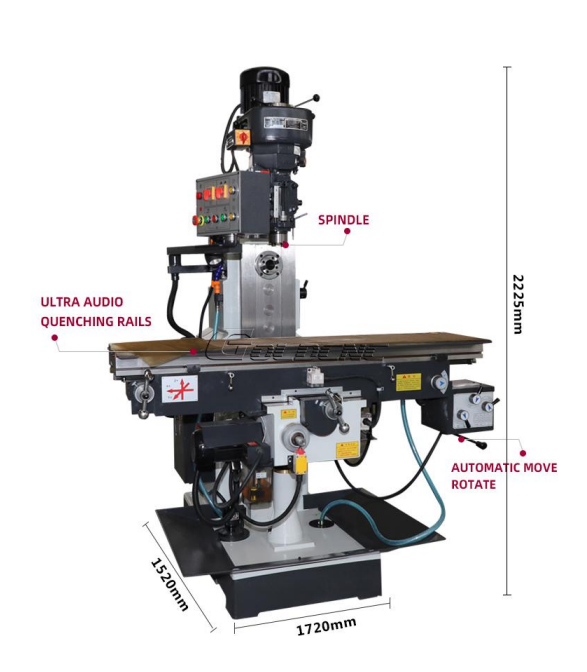

This milling machine is a light-weight general-purpose metal cutting machine with both vertical and horizontal milling functions. It can mill planes, slopes, grooves and splines of small and medium parts. Widely used in machinery processing, molds, instruments, meters and other industries.
1. The main components such as the base, the fuselage, the work table, the middle slide, and the lifting slide are all made of high-strength materials and processed by manual aging to ensure the long-term stability of the machine tool.
2. The milling head is equipped with a turret milling head, and the spindle is equipped with manual and micro feed methods, which is convenient and accurate; the milling head can be adjusted within ±45° in the vertical plane to expand the machining range of the machine.
3. There are three kinds of manual feed, motorized feed and motorized fast feed in the longitudinal and horizontal direction of the worktable. Motorized feed can obtain 8 different feed speeds to meet different processing requirements; rapid feed can make The workpiece quickly reaches the processing position, reducing non-processing time.
4. The Z-direction lifting of the lifting platform can be achieved in two ways: manual and mobile, and the manual and mobile are interlocked, eliminating unsafe factors.
5. The X-direction travel of the worktable can reach 800mm, and the X, Y, Z guide rail pairs are super-audio quenched, precision ground and scraped to improve accuracy and extend the service life of the machine tool.
6. The manual lubricating device can forcibly lubricate the vertical, horizontal and vertical screws and guide rails to reduce the wear of the machine tool and ensure the efficient operation of the machine tool; at the same time, the cooling system changes the size of the coolant flowrate by adjusting the nozzle to meet different needs Processing needs.
7. The operating system of the machine tool is suspended on the upper right of the machine tool through the support arm, which is ergonomic and easy to operate; the operation panels are all designed with visual symbols, which is simple and intuitive.
| Attribute | Details |
|---|---|
| Model | X6332C |
| Spindle taper | 7: 24 ISO40(vertical/horizontal) |
| Spindle travel(mm) | 127(vertical) |
| Spindle sleeve automatic feed stage and range (mm/r) | (3 step)0.04/0.08/0.15 |
| Spindle end to table distance (mm) | 155-550(vertical) |
| Cantilever beam travel (mm) | 500 |
| Distance from the center of the spindle hole to the guide surface of the bed (mm) | 155-550(vertical) |
| Distance from the center of the spindle hole to the work surface (mm) | 0-350(horizontal) |
| Spindle hole center to hanger plane distance (mm) | 190(horizontal) |
| Spindle speed range (rpm) | (16 step)60-4540(vertical) (12 step)40-1300(horizontal) |
| Workbench size (mm) | 1500*320 |
| Table travel (longitudinal / horizontal / vertical) (mm) | 1000/320/400 |
| Work platform longitudinal/transverse maneuvering feed rate (mm/min) | (8 stage)22-555(Fast forward810) |
| Worktable vertical maneuvering speed (mm/min) | 560 |
| Workbench T-slot (groove number / width / spacing) | 3/14/70 |
| Main motor power (kw) | 2.2(vertical)3.0(horizontal) |
| Worktable machine feed motor power (w) | 750 |
| Elevator lift motor power (w) | 1100 |
| Machine size(mm) | 1670*1500*2200 |
| Gross Weight(kg) | 1200kg |
No approved technical specifications are available yet. Please refer to the product description or contact our team.
A turret milling machine is a light-weight general-purpose metal cutting machine that features both vertical and horizontal milling functions, allowing it to mill various shapes and sizes of small to medium parts.
This milling machine is suitable for machining materials used in machinery processing, molds, instruments, meters, and other related industries.
Key features include a high-strength construction, turret milling head with manual and micro feed options, multiple feed methods, ergonomic operation, and a robust lubrication system.
The machine features super-audio quenched guide rails that are precision ground and scraped, enhancing accuracy and extending the service life of the machine.
The X-direction travel of the worktable can reach up to 800mm, with additional travel capabilities in the Y and Z directions.
Yes, the milling head can be adjusted within ±45° in the vertical plane to expand the machining range.
This machine offers three types of feed options: manual feed, motorized feed, and motorized fast feed, with eight different feed speeds available for various processing needs.
Yes, the lifting platform can be raised either manually or via a motor, and both methods are interlocked to eliminate unsafe conditions.
The spindle speed range is 60-4540 rpm for vertical milling and 40-1300 rpm for horizontal milling, providing flexibility for different machining tasks.
The main motor power is 2.2 kW for vertical milling and 3.0 kW for horizontal milling.
The machine includes a manual lubricating device that can forcibly lubricate the vertical, horizontal, and vertical screws and guide rails, ensuring efficient operation.
The workbench size is 1500mm x 320mm, providing ample space for various machining tasks.
Yes, the ergonomic design of the operating system, which is suspended on the upper right of the machine, includes intuitive visual symbols for ease of operation.
The gross weight of the turret milling machine is 1200 kg.
Yes, the turret milling machine is designed for both vertical and horizontal milling operations, making it versatile for various applications.
