The Turning Thread Lathe Machine is designed for precision and efficiency. This semi-automatic lathe machine is perfect for both professionals and hobbyists who require high-quality threading and turning capabilities. With its robust specifications, it can handle medium...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

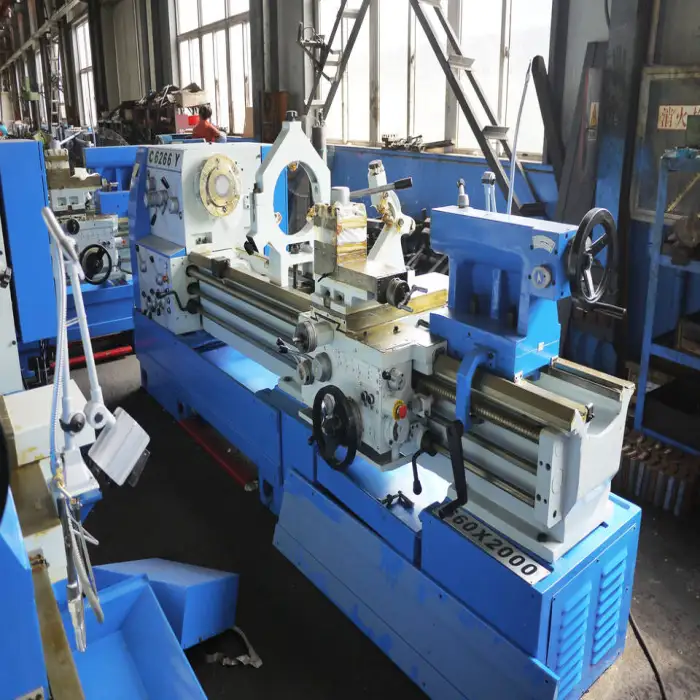

The Turning Thread Lathe Machine is designed for precision and efficiency. This semi-automatic lathe machine is perfect for both professionals and hobbyists who require high-quality threading and turning capabilities. With its robust specifications, it can handle medium-duty machining tasks with ease.
| Attribute | Details |
|---|---|
| Max Length of Workpiece | 3000 mm |
| Spindle Bore | 103 mm (4") |
| Spindle Speed | 9 - 1275 rpm |
| Width of Bedways | 400 mm |
| Weight | 3150 kg |
| Tool Post Stations | 8, 6 |
| Rapid Feed Speed | 0 - 2000 mm/min |
| Voltage | 380V/220V/customized |
| Warranty | 1 Year |
| MODEL | C6260Y | C6266Y | C6280Y | C62100Y | ||
| CAPACITIES | Max swing over bed | 600mm (23 3/5") | 660mm (26") | 800mm (31 1/2") | 1000mm (39 1/3") | |
| Max swing over slide | 375mm(14 3/4" ) | 435mm(17 1/8") | 545mm(21 2/5") | 745mm(29 1/3") | ||
| Workpiece cutting length | 1000mm, 1500mm, 2000mm. 3000mm.4000mm | |||||
| Max swing over gap | 800mm(31 1/2") | 860mm(33 4/5") | 1000mm (39") | 1200mm(47 1/4") | ||
| Effective length of gap | 280mm (11") | |||||
| Bed width | 400mm (15 7/10") | |||||
| HEADST0CK | Spindle hole | 103mm(4 1/16")/ 130mm(5 1/8") | ||||
| Spindle nose | IS0-D11 | |||||
| Spindle taper | Metric 115mm / 140mm (1:20) | |||||
| Spindle speeds (number) | 9-1275 rpm (18 steps)/ 9-938 rpm (12 steps) | |||||
| FEEDS | Metric threads range (kinds) | 0. 5-112mm (72 kinds) | ||||
| Inch threads range (kinds) | 1/4-56inch (72 kinds) | |||||
| Module threads range (kinds) | 0. 5-7m π(36 kinds) | |||||
| Pitch threads range (kinds) | 4-56D.P (36 kinds) | |||||
| Longitudinal feeds range (kinds) | 0.073-4.066mm/rev (0.0028-0.16 inch/rev) (54 kinds) | |||||
| Cross feeds range (kinds) | 0.036-2.033mm/rev (0.0014-0.08 inch/rev) (54 kinds) | |||||
| Rapid traverse speed | 5m/min (16.4 ft/min) | |||||
| Leadscrew size: diameter/ pitch | 40mm/12mm or 40mm 1/2" | |||||
CARRIAGE | Cross slide travel | 325mm (12 4/5") | ||||
| Compound rest travel | 110mm (4 1/3") | |||||
| Cross-section size of tool shank | 32mm X 32mm | |||||
| TAILSTOCK | Taper of tailstock sleeve | MT6 | ||||
| Diameter of tailstock sleeve | 90mm (3 1/2") | |||||
| Travel of tailstock sleeve | 150mm (5 7/8") | |||||
| MOTOR | Main motor power | 7. 5kw or 11kw | ||||
| Cooling bump motor | 0.125kw | |||||
| Rapid motor | 0.12kw | |||||
Center Distance Packing size(L*W*H)
| 1000mm 2820X1300X2100mm(111X51X82. 5inch) 1500mm 3320X1300X2100mm(130X51X 82. 5inch) 2000mm 3820X1300X2100mm(150X51X82. 5inch) 3000mm 4820X1300X2100mm(189X51X82. 5inch) 4000mm 5820X1300X2100mm(229X51X82. 5inch) | |||||
Center Distance Net weight / gross weight (Kgs) | 1000mm 2900/3500kg 3000/3600kg 3150/3750kg 3450/4050kg 1500mm 3150/3750kg 3250/3850kg 3400/4000kg 3700/4300kg 2000mm 3400/4050kg 3500/4150kg 3650/4300kg 3950/4600kg 3000mm 3800/4450kg 3900/4550kg 4050/4700kg 4350/5000kg 4000mm 4200/4850kg 4300/4950kg 4450/5100kg 4750/5400kg | |||||
| Max Length of Workpiece | 3000 mm |
|---|---|
| Spindle Bore | 103 mm (4") |
| Spindle Speed | 9 - 1275 rpm |
| Width of Bedways | 400 mm |
| Weight | 3150 kg |
| Tool Post Stations | 8, 6 |
| Rapid Feed Speed | 0 - 2000 mm/min |
| Voltage | 380V/220V/customized |
| Warranty | 1 Year |
The maximum length of workpiece that the Turning Thread Lathe Machine can handle is 3000 mm.
The spindle speed range of the Turning Thread Lathe Machine is from 9 to 1275 rpm.
The Turning Thread Lathe Machine is equipped with 8 tool post stations for efficient tool changes.
The weight of the Turning Thread Lathe Machine is 3150 kg.
Yes, the semi-automatic operation of the Turning Thread Lathe Machine makes it suitable for both professionals and hobbyists, including beginners.
The machine can create metric threads, inch threads, module threads, and pitch threads, offering a wide range of threading capabilities.
The machine operates at a voltage of 380V/220V and can be customized as needed.
The Turning Thread Lathe Machine comes with a warranty of 1 year.
Yes, the Turning Thread Lathe Machine offers customizable color options to fit your workspace.
The rapid feed speed of the Turning Thread Lathe Machine ranges from 0 to 2000 mm/min.
The maximum swing over bed varies by model: C6260Y (600 mm), C6266Y (660 mm), C6280Y (800 mm), and C62100Y (1000 mm).
This machine is perfect for manufacturing precision components, creating threaded parts, machining large workpieces, hobbyist projects, and repair and maintenance of machinery parts.
The travel distance of the tailstock sleeve is 150 mm (5 7/8 inches).
The Turning Thread Lathe Machine is designed to handle a variety of materials, including metals and plastics, suitable for medium-duty machining tasks.
The Turning Thread Lathe Machine can handle a maximum workpiece weight of 100 kg.
