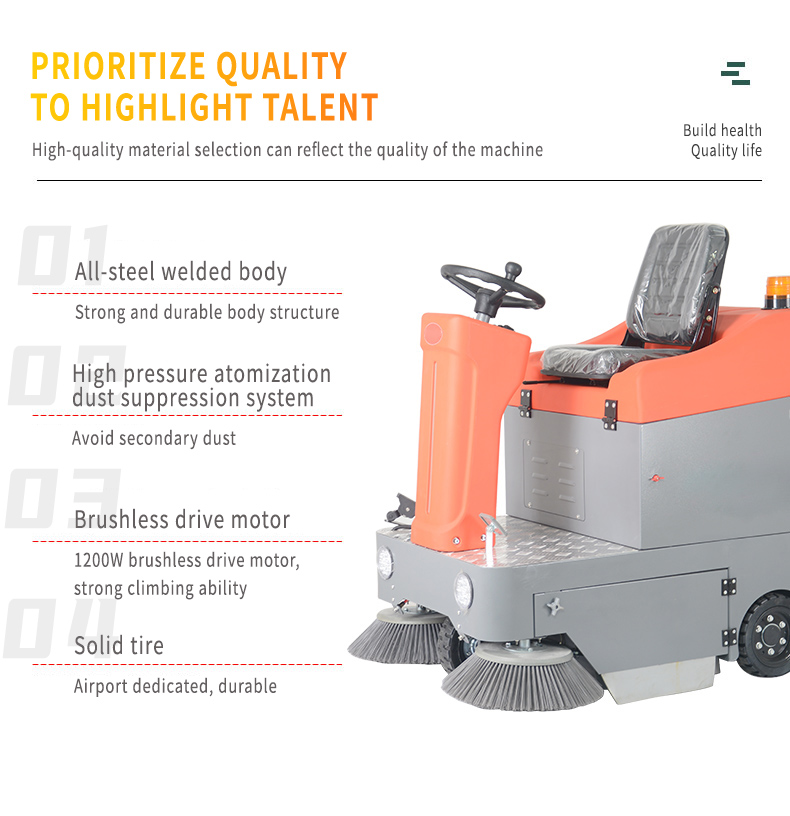

TS1 Street Sweeper Ride-On Road Sanitation Floor Vacuum and Sprinkler

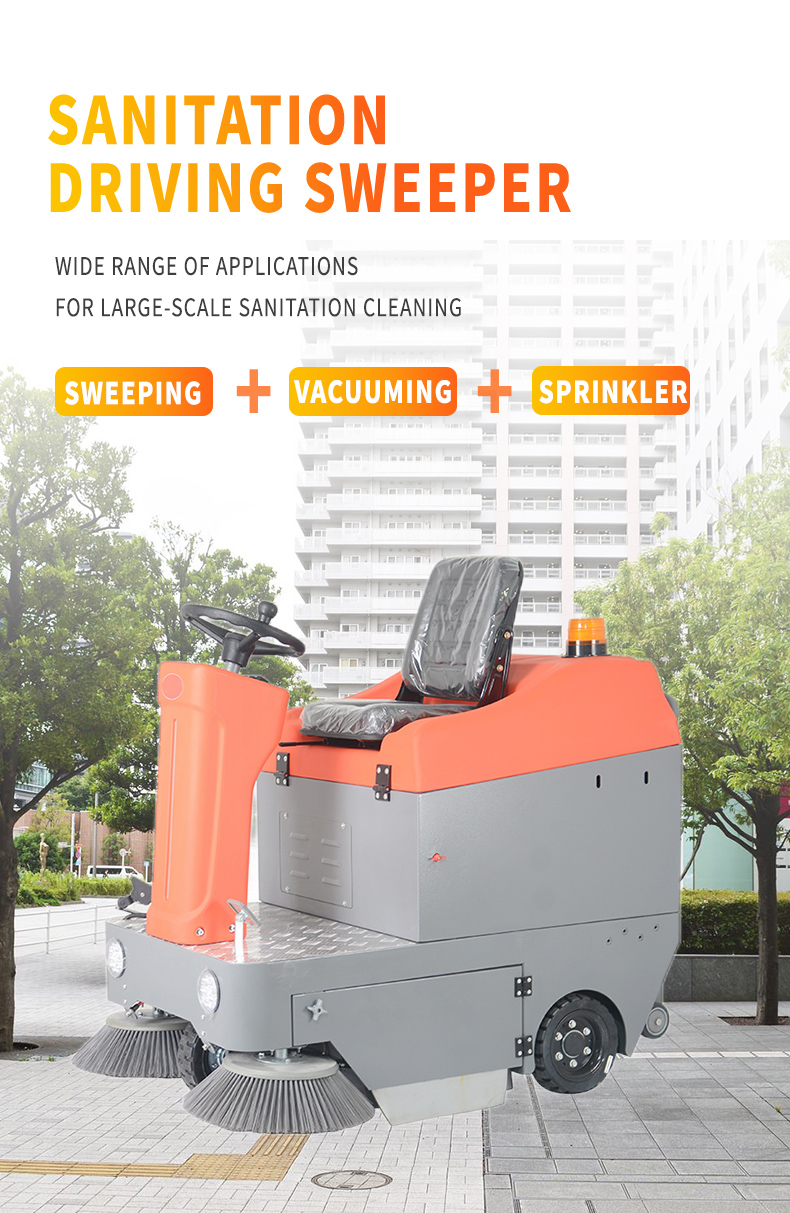

The TS1 is a ride-on street sweeper designed for road sanitation, floor vacuuming and water sprinkling. It's intended for cleaning streets, parking lots, industrial yards and large indoor/outdoor paved areas efficiently.

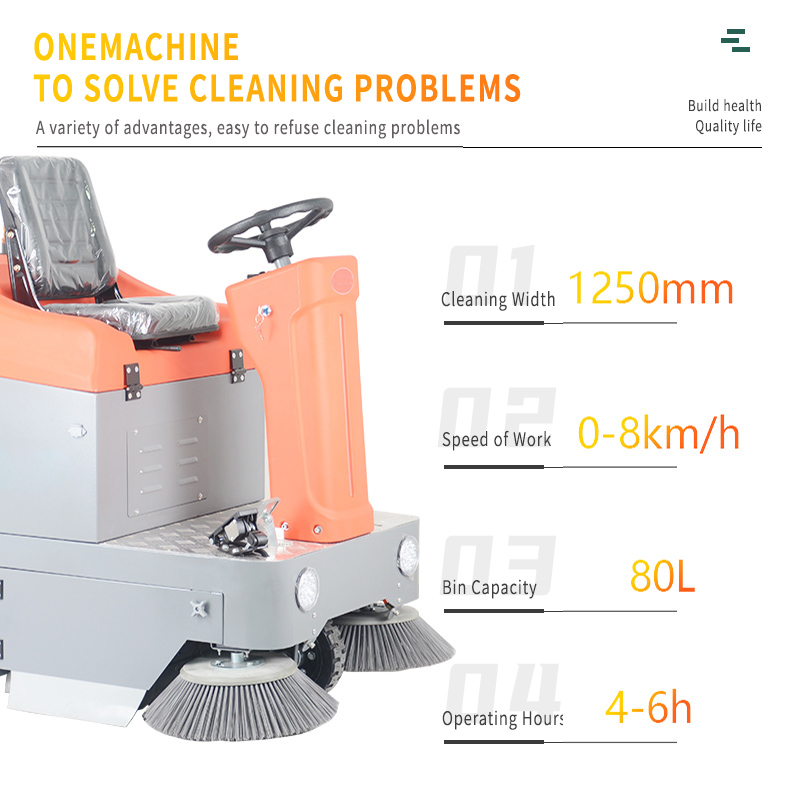

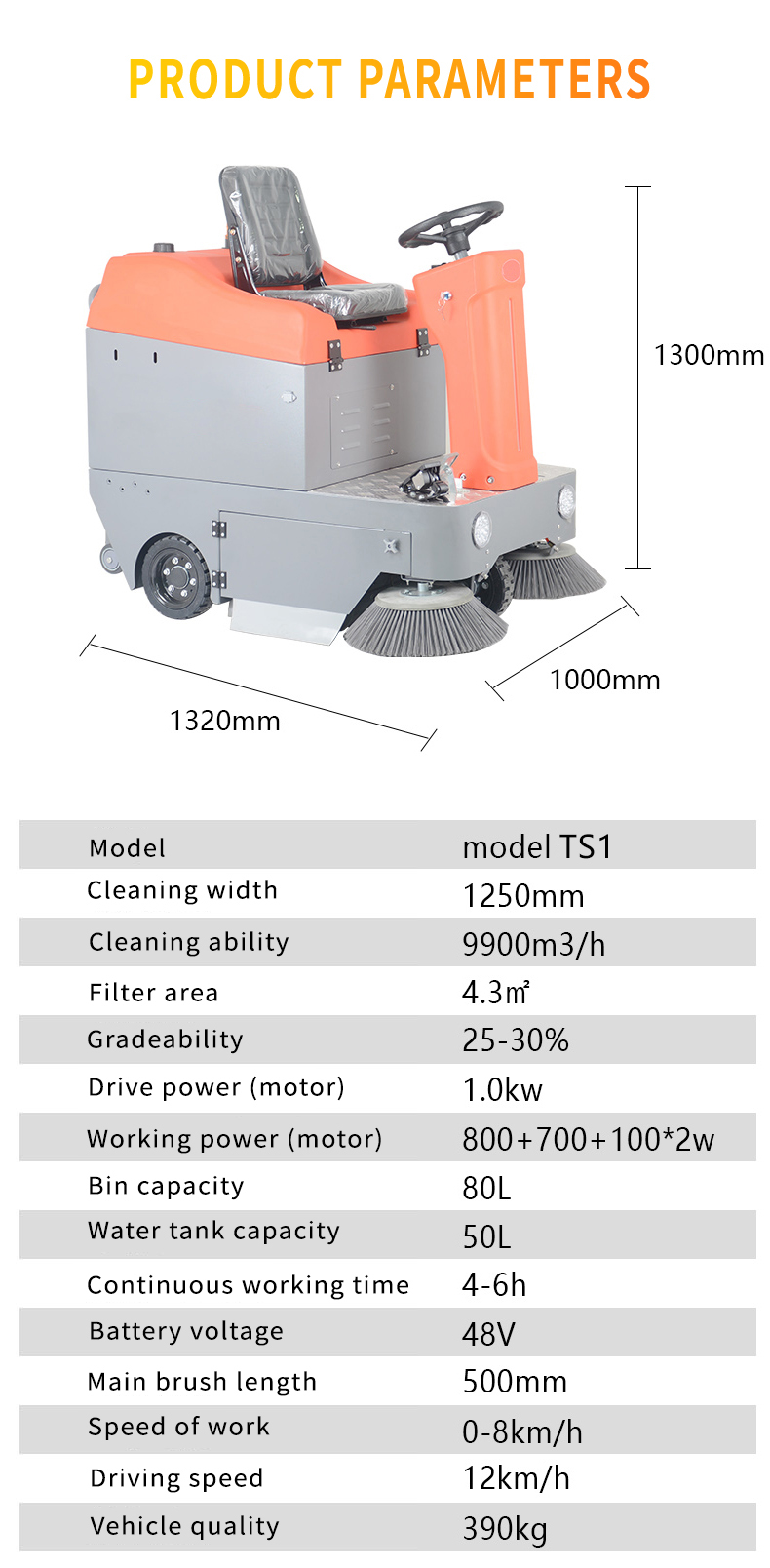

Cleaning width: 1250 mm; Working time per charge: 4–6 hours; Bin capacity: 80 L; Work efficiency: 9,900 m²/h; Water tank: 50 L; Weight: 390 kg; Travel speed: 0–8 km/h; Main brush length: 500 mm; Motors: 800 W + 700 W + 100 W ×2.

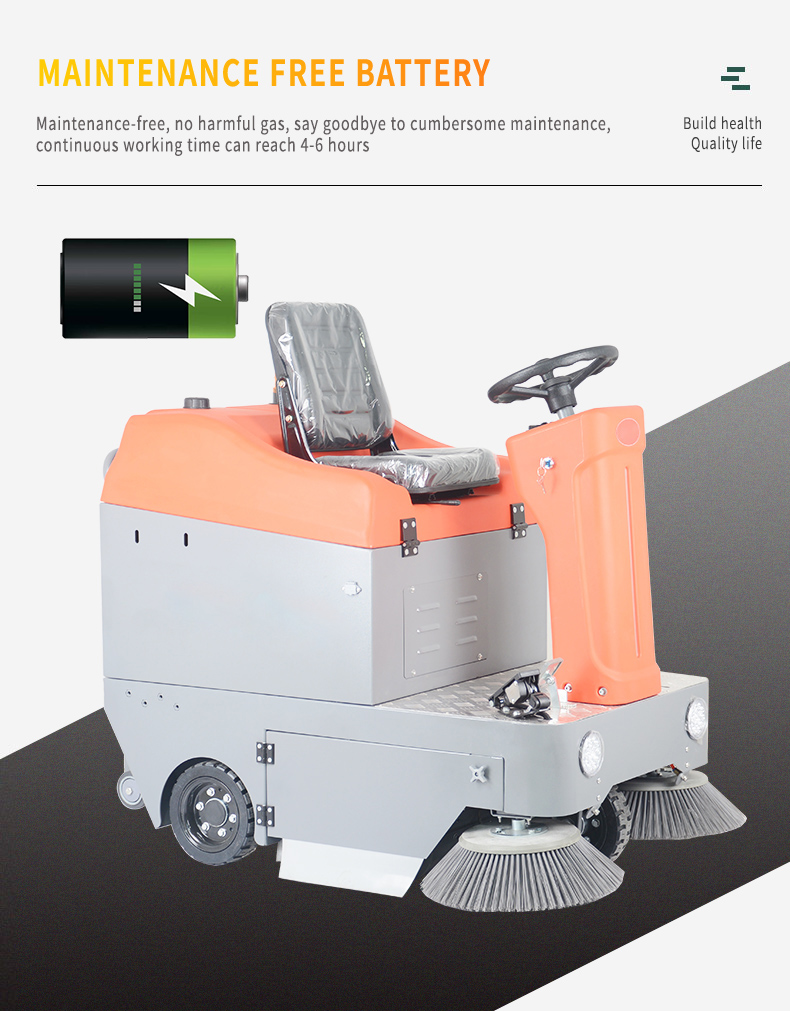

Typical working time is 4–6 hours per full charge. Exact charging time and battery type depend on the battery supplied with your unit — check the battery specification from your dealer or the user manual for exact charging times.

With a 1,250 mm cleaning width and a specified efficiency of about 9,900 m²/h, the TS1 is suitable for high-productivity cleaning of large paved areas when operated at appropriate speed and sweep settings.

The machine uses a 500 mm main brush plus side or auxiliary brushes (depending on configuration) and multiple motors (800 W, 700 W, and two 100 W motors) to provide mechanical sweeping and vacuum suction. The brush agitates debris and the suction system collects it into the 80 L bin.

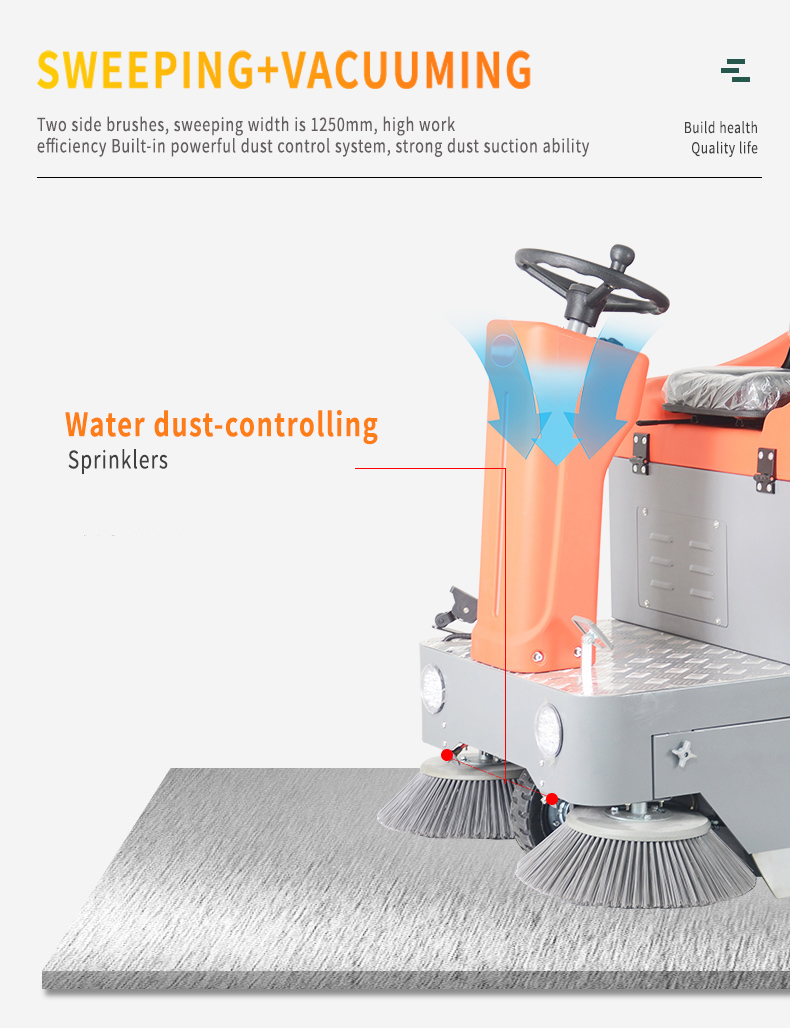

The TS1 includes a 50 L water tank and an adjustable sprinkler system to control dust while sweeping. Water flow can be regulated to suit surface and dust conditions; consult the operator controls for adjustment options.

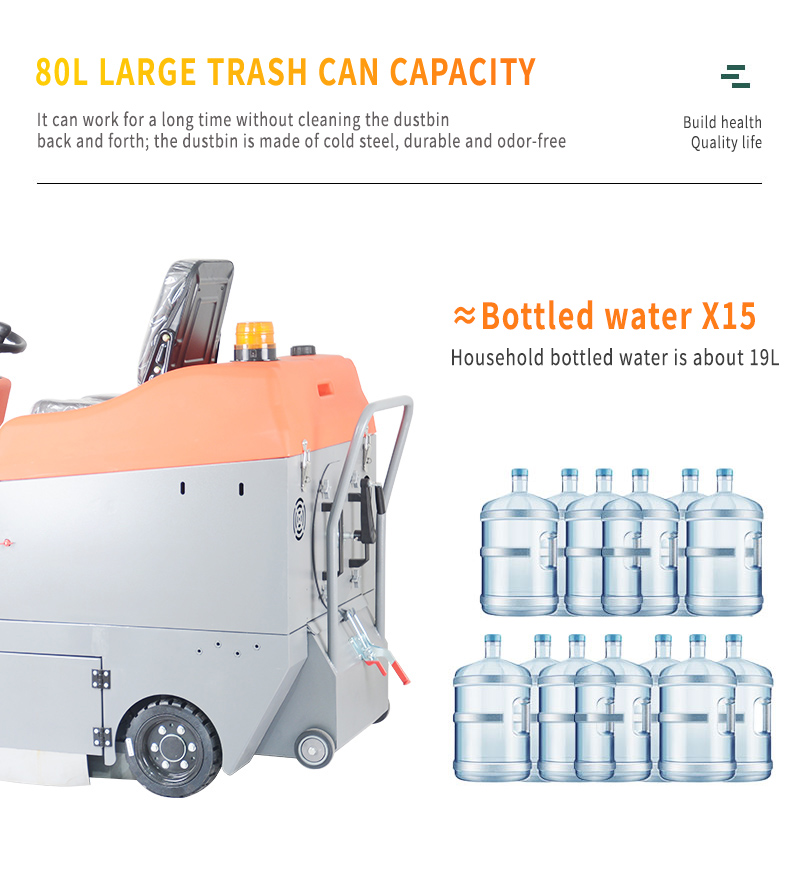

The 80 L debris bin is designed for easy removal and emptying — follow the operator manual for safe bin removal and disposal. Emptying frequency depends on debris load and usage, but check the bin regularly during heavy-duty cleaning runs.

The TS1 is suitable for paved surfaces such as asphalt, concrete and large indoor floors. It handles general street debris, dust and light litter. Avoid extremely uneven terrain, soft ground or steep slopes — consult the manual for maximum recommended inclines.

Routine maintenance includes checking and replacing brushes and filters, emptying and cleaning the debris bin, inspecting the water system and hoses, charging and maintaining the battery, and periodic lubrication and inspection of mechanical parts. Follow the maintenance schedule in the operator manual.

Yes — common spare parts (brushes, filters, belts, seals) and optional accessories (replacement side brushes, upgraded filters, canopies or lights) are typically available through the manufacturer or authorized dealers. Contact your seller for a parts list and ordering information.

The TS1 has an operating weight of about 390 kg. Exact external dimensions vary by configuration; consult the product specification sheet or your dealer for detailed dimensions to plan transport and storage.

The TS1 has a travel range up to 8 km/h and a variable speed control (0–8 km/h) so operators can adjust speed to match cleaning conditions and desired performance.

Operators should be trained on controls, use appropriate PPE, follow load limits, and avoid steep slopes or unsafe conditions. The machine includes standard safety interlocks and controls; refer to the user manual for detailed safety procedures and emergency shutdown instructions.

Noise and emissions depend on the powertrain and motor configuration. The TS1 is electrically driven and typically produces lower emissions than combustion sweepers. For specific noise (dB) and emissions data, request the technical sheets from the supplier.

Warranty terms and after-sales support vary by manufacturer and dealer. Ask your supplier for warranty duration, coverage details, recommended service intervals and authorized service centers before purchase.
