The DHBT40-10-82 Diesel Engine Concrete Pump is a hydraulic concrete pumping machine designed for transporting concrete to construction locations requiring efficient and continuous delivery. Powered by a diesel engine, it is suitable for construction sites where indepen...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The DHBT40-10-82 Diesel Engine Concrete Pump is a hydraulic concrete pumping machine designed for transporting concrete to construction locations requiring efficient and continuous delivery. Powered by a diesel engine, it is suitable for construction sites where independent operation and reliable concrete placement are required.
The machine features a hydraulic pumping system with an S-tube distribution valve, a 400-litre hopper, and a wireless remote control. It offers a maximum theoretical concrete output of 40 m³/h and a maximum concrete pumping pressure of 10 MPa. The quoted package includes 100 metres of steel delivery pipes.
High pumping capacity: Maximum theoretical output of 40 m³/h.
Diesel-powered operation: Available with a WEICHAI 82 kW engine or an optional CUMMINS 92 kW engine.
Hydraulic pumping system: Open-circuit hydraulic system designed for concrete pumping operations.
S-tube distribution valve: Features wear-resistant components for durability.
Wireless remote control: Allows remote operation of supported functions.
Centralised lubrication design: Helps distribute lubrication to machine lubrication points.
Air-cooled radiator: Supports hydraulic system temperature management.
Concrete delivery accessories: Quoted configuration includes 100 metres of steel pipes.
| Specification | Details |
|---|---|
| Model | DHBT40-10-82 |
| Machine type | Diesel engine concrete pump |
| Maximum theoretical output | 40 m³/h |
| Maximum concrete pumping pressure | 10 MPa |
| Distribution valve type | S-tube valve |
| Concrete cylinder diameter × stroke | 180 × 1,200 mm |
| Main oil cylinder diameter × stroke | 100 × 1,200 mm |
| Hopper capacity | 400 L |
| Feeding height | 1,100 mm |
| Outlet diameter | 150 mm |
| Engine model | WEICHAI WP4G110E220 |
| Engine power | 82 kW |
| Engine speed | 2,100 r/min |
| Hydraulic circuit | Open circuit |
| Pumping system pressure | 31.5 MPa |
| Mixing system pressure | 6–8 MPa |
| Hydraulic oil tank capacity | 200 L |
| Delivery distance (vertical/horizontal) | 50 m / 300 m |
| Maximum aggregate diameter | 40 mm |
| Delivery pipe inside diameter | 125 mm |
| Dimensions (L × W × H) | 4,620 × 1,750 × 1,770 mm |
| Total weight | 3,800 kg |
| Remote control | Wireless |
| Radiator | Air-cooled |
| Included delivery pipes | 100 m of steel pipes |
Residential and commercial building construction
Foundations and concrete footings
Concrete slab and floor pouring
Civil engineering and infrastructure projects
General construction requiring concrete delivery to elevated or distant locations
Engine options: The quotation lists a WEICHAI 82 kW version and a CUMMINS 92 kW version. The detailed technical specifications above relate to the WEICHAI-powered configuration. Confirm the final engine configuration and specifications when ordering.
DHBT40-10-82 Diesel concrete pump quotation-HAMAC.pdf
| Model | DHBT40-10-82 |
|---|---|
| Machine type | Diesel engine concrete pump |
| Maximum theoretical output | 40 m³/h |
| Maximum concrete pumping pressure | 10 MPa |
| Distribution valve type | S-tube valve |
| Concrete cylinder diameter × stroke | 180 × 1,200 mm |
| Main oil cylinder diameter × stroke | 100 × 1,200 mm |
| Hopper capacity | 400 L |
| Feeding height | 1,100 mm |
| Outlet diameter | 150 mm |
| Engine model | WEICHAI WP4G110E220 |
| Engine power | 82 kW |
| Engine speed | 2,100 r/min |
| Hydraulic circuit | Open circuit |
| Pumping system pressure | 31.5 MPa |
| Mixing system pressure | 6–8 MPa |
| Hydraulic oil tank capacity | 200 L |
| Maximum aggregate diameter | 40 mm |
| Dimensions (L × W × H) | 4,620 × 1,750 × 1,770 mm |
| Total weight | 3,800 kg |
| Remote control | Wireless |
| Radiator | Air-cooled |
| High pumping capacity | Maximum theoretical output of 40 m³/h. |
| Diesel-powered operation | Available with a WEICHAI 82 kW engine or an optional CUMMINS 92 kW engine. |
| Hydraulic pumping system | Open-circuit hydraulic system designed for concrete pumping operations. |
| S-tube distribution valve | Features wear-resistant components for durability. |
| Wireless remote control | Allows remote operation of supported functions. |
| Centralised lubrication design | Helps distribute lubrication to machine lubrication points. |
| Air-cooled radiator | Supports hydraulic system temperature management. |
| Engine options | The quotation lists a WEICHAI 82 kW version and a CUMMINS 92 kW version. The detailed technical specifications above relate to the WEICHAI-powered configuration. Confirm the final engine configuration and specifications when ordering. |
| Capacity | 40 m³/h |

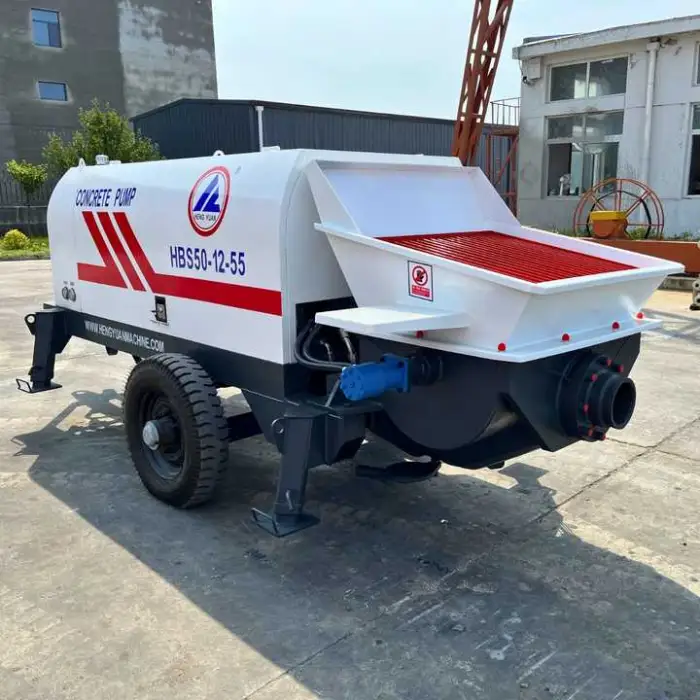

The Trailer Pump Concrete has a maximum productivity of 40 to 80 m3/h.
The Trailer Pump is equipped with a diesel engine, providing powerful performance.
The maximum vertical conveying distance is 120 meters, and the maximum horizontal conveying distance is 400 meters.
The Trailer Pump weighs approximately 5000 kg.
Yes, the Trailer Pump can accommodate aggregate sizes ranging from 20 to 50 mm.
Yes, it is ideal for large-scale concrete projects, as well as for construction sites, building foundations, and road and bridge construction.
The design of the Trailer Pump is compact and mobile, making it easy to transport to different job sites.
The color of the Trailer Pump can be customized according to the customer's requirement.
The engine power of the Trailer Pump ranges from 176 kW to 45 kW.
Yes, the Trailer Pump is suitable for both residential and commercial building projects.
Key features include a diesel engine for powerful performance, high efficiency with a capacity of 40-80 m3/h, and a compact design for easy transport.
Yes, the Trailer Pump is designed for ease of use, allowing operators to efficiently pump concrete both vertically and horizontally.
The Trailer Pump is beneficial for construction sites, building foundations, road and bridge construction, and large-scale concrete projects.
Like all machinery, the Trailer Pump requires regular maintenance to ensure optimal performance. Always refer to the manufacturer's guidelines for specific maintenance instructions.
Training may be available through the manufacturer or local distributors. It is recommended to inquire about training options when purchasing.
