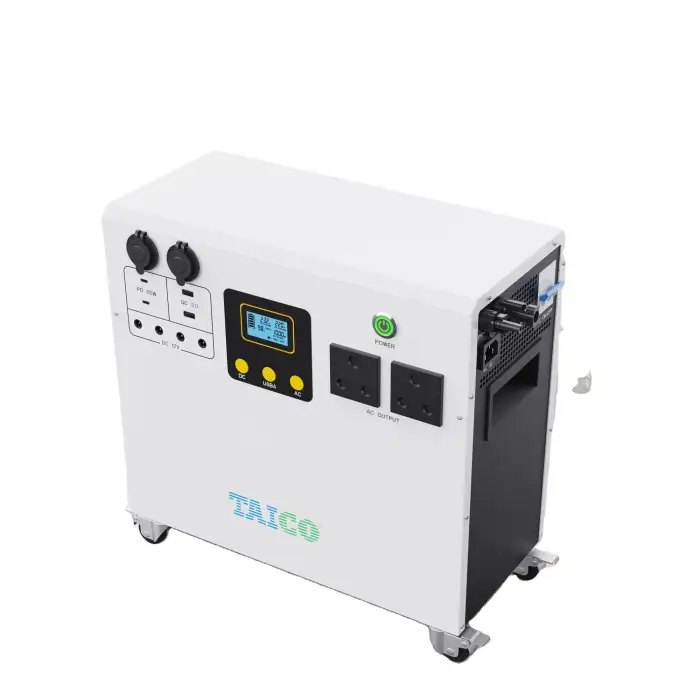

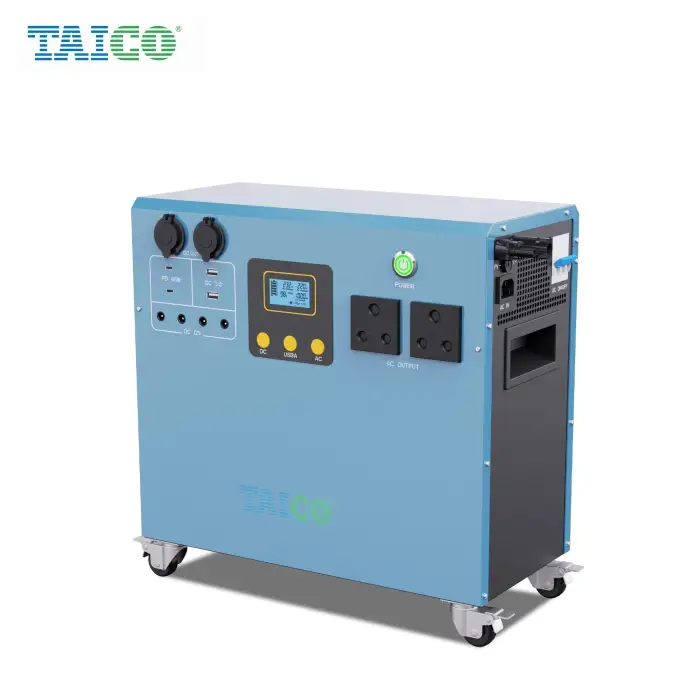

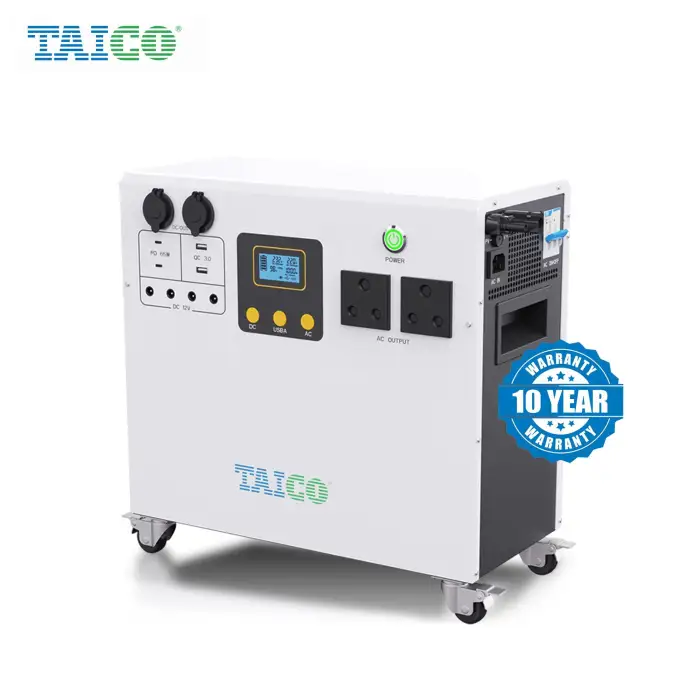

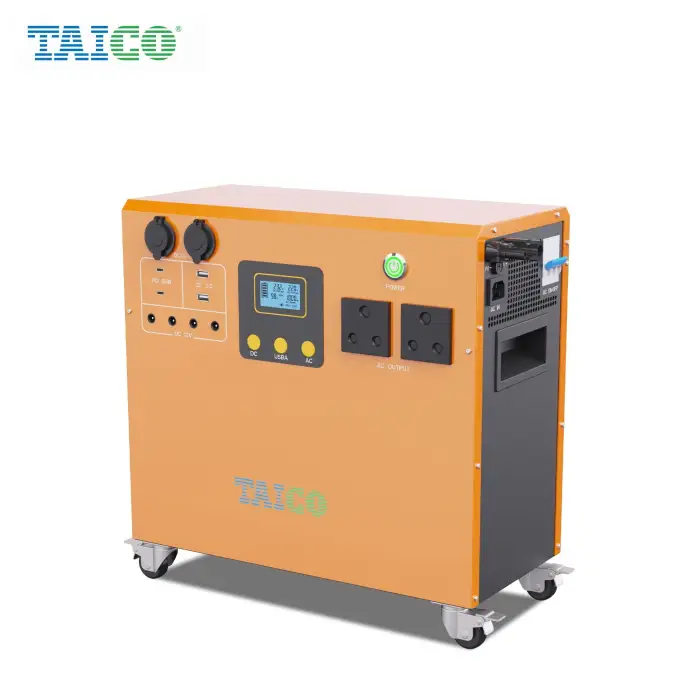

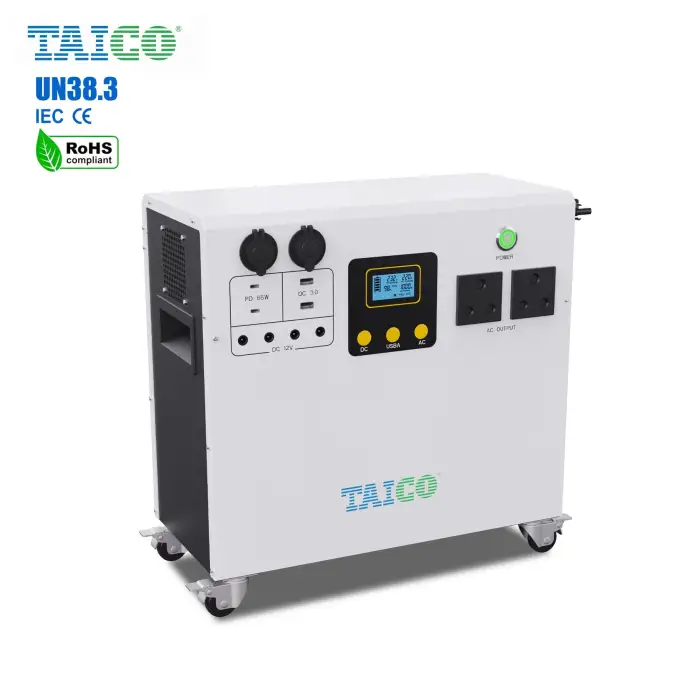

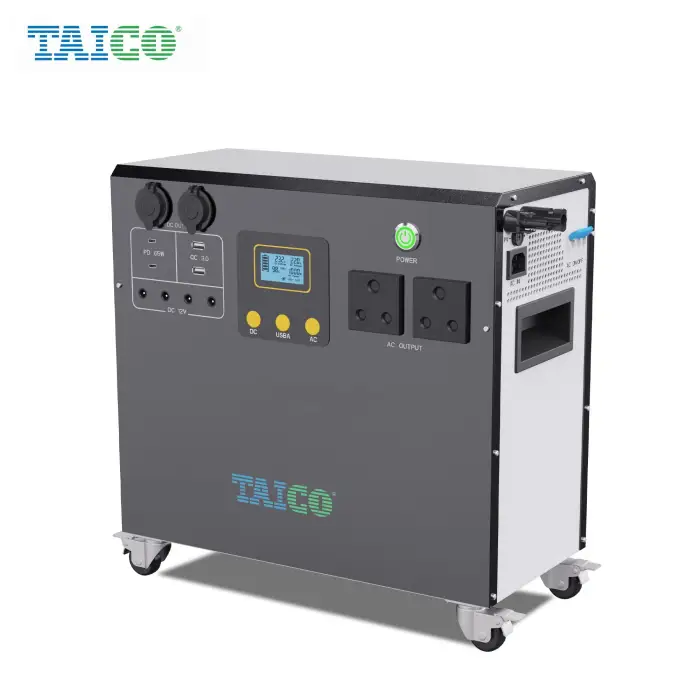

The TKEM-M2 Lithium Lifepo4 Battery is a high-performance power storage solution designed for a variety of applications. With advanced features and a reliable design, this battery ensures efficient energy storage, making it perfect for balancing voltage in both residential and commercial systems. It offers a compact, sealed, and maintenance-free option that guarantees long-lasting performance.
The TKEM-M2 Lithium Lifepo4 Battery offers efficient and reliable energy storage with a focus on durability and ease of use. Its high capacity, robust protection, and low-maintenance design make it an excellent choice for anyone seeking to optimize their energy system. Whether used in solar power setups, backup systems, or electric vehicles, this battery provides reliable performance and long-lasting energy storage.
Specification
| SPECIFICATION | TKEM-M1 1KW/1280WH | TKEM-M2 1KW/2560WH | TKEM-M3 2KW/2560WH |
| INVERTER/CHARGER | |||
| Inverter Type | 1KW/25.6V | 1.2KW/25.6V | 2KW/51.2V |
| Rated Output Power | 2KW | 2.4KW | 4KW |
| Output Voltage Waveform | Pure Sine Wave | 230VAC | |
| Output Voltage | 230VAC | ||
| Low DC Warning Voltage | 22.4Vdc | 44.8Vdc | |
| Low DC Cut-off Voltage | 21.6Vdc | 43.2Vdc | |
| Low DC Warning Return Voltage | 22.4Vdc | 44.8Vdc | |
| Total Charging Current(Grid+solar) | 20A Max. | 20A Max. | |
| Bulk Charging Voltage | 29.3Vdc | 58.6Vdc | |
| Float Charging Voltage | 28.8Vdc | 57.6Vdc | |
| LITHIUM IRON BATTERY | |||
| Normal Battery Modular | 25.6V50Ah | 25.6v 100ah | 51.2v 50ah |
| Normal Capacity (25°C,0.2C) | 1280Wh | 2560 Wh | |
| Nominal Battery Voltage | 25.6Vdc | 51.2Vdc | |
| Max.Charge Current | 60A | ||
| Max.Discharge Current | 60A | ||
| Operation Voltage Range | 22.4Vdc~29.2Vdc | 40V-58.4V | |
| Operation Temperature | -23°C~+65°C | ||
| AC INPUT | |||
| Nominal Input Voltage | 230Vac | ||
| Low Loss Voltage | 170Vac +7(UPS),90Vac+ 7(Appliances | ||
| Low Loss Returm Voltage | 180Vac土7(UPS),100Vac7(Appliances | ||
| High Loss Voltage | 250Vac土7 | ||
| High Loss Returm Voltage | 260Vac土7 | ||
| Max. AC Input Voltage | 265V ac | ||
| Nominal Input Frequency | 50HZ | ||
| AC Charging Current | 20AMax | ||
| SOLAR INPUT | |||
| Nominal PV Voltage | 36Vdc | ||
| PV Array MPPT Voltage Range | 30Vdc~60Vdc | ||
| Max. PV Array Open Circuit Voltage | 60Vdc | ||
| Solar Charging Current | 10A Max. | ||
| PRODUCTS SIZE(mm) | 432*190*395 | 432*190*395 | updating |
| Cartoon size (mm) | 500*260*465 | 500*260*465 | updating |
| PROTECTION | |||
| Protection | Overcharge protection 、Overdischarge protection 、Overcurrent 、protection. | ||
| AMBIENT | |||
| Noise(dB) | <30°C < 40dB (1 meter) | ||
| Working Temperature | -23°C~+65°C | ||
| Humidity | 0~95%( no condensation) | ||
| Sea Level(m) | <1500 | ||
| OTHERS | |||
| Effeciency | 92.0% |
| High Capacity | The TKEM-M2 Battery has a capacity of 100Ah, ensuring ample power storage to meet your energy needs. It’s ideal for systems that require reliable and consistent power supply. |
|---|---|
| Nominal Voltage | Operating at a nominal voltage of 25.6V, this battery is well-suited for use in solar energy systems, electric vehicles, and other battery-powered applications. |
| Voltage Balancing | The TKEM-M2 is designed to balance the voltage, ensuring efficient performance and longevity of your energy system. |
| Sealed and Maintenance-Free | This battery is sealed and maintenance-free, meaning it requires little to no attention after installation, making it a hassle-free solution for users. |
| Reliable Cooling | The battery is equipped with liquid cooling, which helps to maintain an optimal temperature for improved efficiency and long-lasting performance. |
| Protection Class IP54/IP64 | With protection classes of IP54 and IP64, this battery is resistant to dust and water, ensuring reliable performance in various environments. |
| Multiple Communication Ports | The TKEM-M2 is equipped with RS485, CAN, and RS232 communication ports, making it easy to connect and integrate with other devices and systems. |
| Compact Design | With dimensions of 500260465mm, this battery is compact enough to fit into a variety of setups without taking up too much space. |
| Voltage | 25.6V |
The TKEM-M2 Lithium Lifepo4 Battery has a capacity of 100Ah, which provides ample power storage to meet various energy needs.
The TKEM-M2 operates at a nominal voltage of 25.6V, making it suitable for solar energy systems, electric vehicles, and other battery-powered applications.
Yes, the TKEM-M2 battery is sealed and maintenance-free, requiring little to no attention after installation.
The TKEM-M2 is designed to balance voltage, which ensures efficient performance and longevity of your energy system.
The TKEM-M2 battery has protection classes of IP54 and IP64, making it resistant to dust and water for reliable performance in various environments.
The TKEM-M2 battery measures 500mm x 260mm x 465mm, making it compact enough for various setups.
The TKEM-M2 battery is equipped with RS485, CAN, and RS232 communication ports for easy connection and integration with other devices.
Yes, samples of the TKEM-M2 battery can be requested for testing and evaluation before making a full order.
The TKEM-M2 battery can operate in temperatures ranging from -23°C to +65°C.
The TKEM-M2 battery has an efficiency of 92.0%.
The TKEM-M2 battery is ideal for use in solar power setups, backup systems, and electric vehicles.
The TKEM-M2 battery is equipped with a liquid cooling system to maintain optimal temperature for improved efficiency and long-lasting performance.
The TKEM-M2 battery features overcharge protection, overdischarge protection, and overcurrent protection.
Yes, the TKEM-M2 battery is designed for both residential and commercial systems, providing reliable power storage.
The maximum charge current for the TKEM-M2 battery is 60A.
