Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

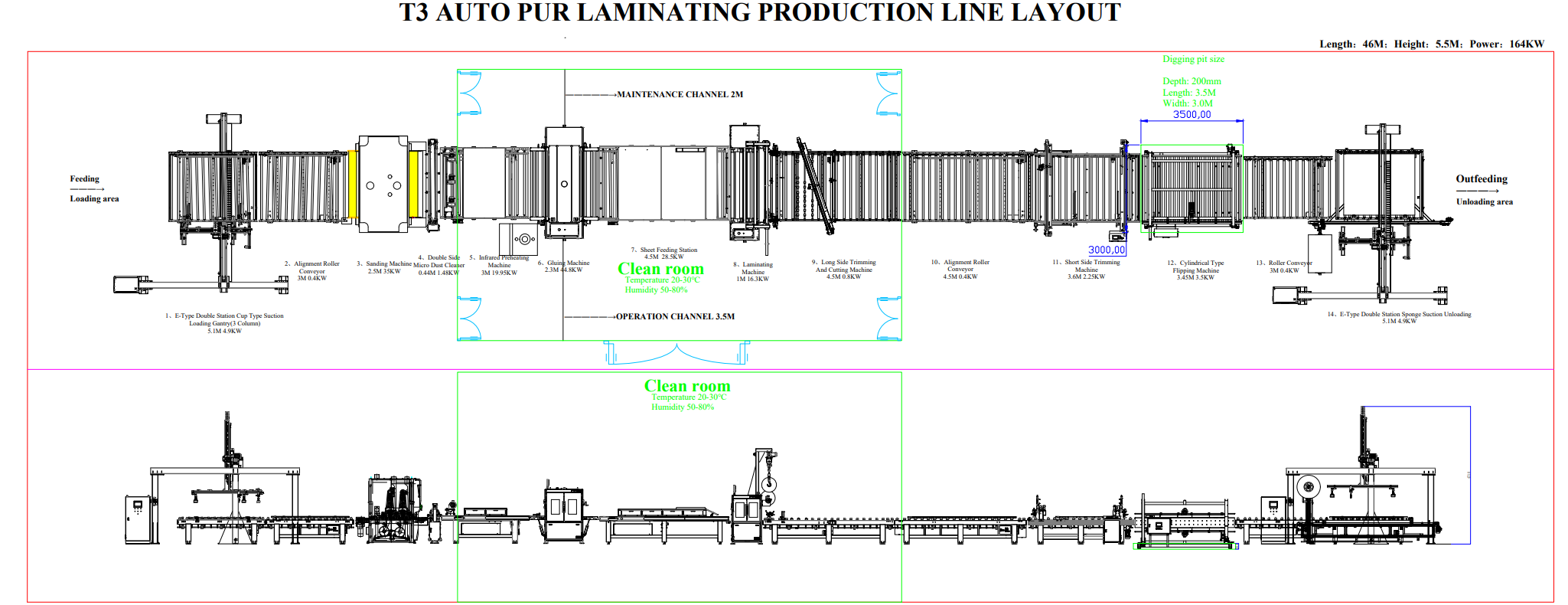

| No. | Process | Name (1950mm working width) | Model | Quantity | Image |
| 1 | Loading | E-TYPE DOUBLE STATION CUP TYPE SUCTION LOADING GANTRY(3 column) | XL2219-01A-X14 | 1 |  |
| 2 | Make the board running in a straight line | ALIGNMENT ROLLER CONVEYOR | G1319-K | 1 |  |
| 3 | 1) Enhance adhesion of board 2) Keep the thickness of each board consistent | SANDING MACHINE | / | 1 |  |
| 4 | 1) Dust cleaning after sanding 2) Necessary dust removal process before gluing | DOUBLE SIDE MICRO DUST CLEANER | D8219 | 1 |  |
| 5 | Heat the board before gluing | INFRARED PREHEATING MACHINE | G1319-FKY | 1 |  |
| 6 | GLUING | GLUING MACHINE （Including 1set Glue Melt Machine AD200） | T1119E | 1 |  |
| 7 | Acrylic, formica and other sheet materials feeding station | SHEET FEEDING STATION | G1419A-T | 1 |  |
| 8 | LAMINATING | LAMINATING MACHINE | Y1219 | 1 |  |
| 9 | 1) Trim the excess PVC/PET on both sides 2) Trim PVC/PET between boards | LONG SIDE TRIMMING AND CUTTING MACHINE | G1419A-QX | 1 |  |
| 10 | Make the board running in a straight line and increase the stroke to ensure the short side trimmer has enough time to complete finishing | ALIGNMENT ROLLER CONVEYOR | G1419A-K | 1 |  |
| 11 | Trim the excess PVC/PET at the head and tail of the board | SHORT SIDE TRIMMING MACHINE | Q1319a | 1 |  |
| 12 | Turn over the board with PVC/PET and stack them face to face to prevent them from being damaged. | CYLINDRICAL TYPE FLIPPING MACHINE | FB-190 | 1 |  |
| 13 | Make the board running in a straight line | ALIGNMENT ROLLER CONVEYOR | G1319-K | 1 |  |
| 14 | Unloading | E-TYPE DOUBLE STATION SPONGE SUCTION UNLOADING GANTRY | XL2219-02B-Z-X14 | 1 |  |
| T3 Laminating Production Line Specifications | No.ProcessName (1950mm working width)ModelQuantityImage1LoadingE-TYPE DOUBLE STATION CUP TYPE SUCTION LOADING GANTRY(3 column)XL2219-01A-X1412Make the board running in a straight lineALIGNMENT ROLLER CONVEYORG1319-K131) Enhance adhesion of board 2) Keep the thickness of each board consistentSANDING MACHINE/141) Dust cleaning after sanding 2) Necessary dust removal process before gluingDOUBLE SIDE MICRO DUST CLEANERD821915Heat the board before gluingINFRARED PREHEATING MACHINEG1319-FKY16GLUINGGLUING MACHINE （Including 1set Glue Melt Machine AD200）T1119E17Acrylic, formica and other sheet materials feeding stationSHEET FEEDING STATIONG1419A-T18LAMINATINGLAMINATING MACHINEY1219191) Trim the excess PVC/PET on both sides 2) Trim PVC/PET between boardsLONG SIDE TRIMMING AND CUTTING MACHINEG1419A-QX110Make the board running in a straight line and increase the stroke to ensure the short side trimmer has enough time to complete finishingALIGNMENT ROLLER CONVEYORG1419A-K111Trim the excess PVC/PET at the head and tail of the boardSHORT SIDE TRIMMING MACHINEQ1319a112Turn over the board with PVC/PET and stack them face to face to prevent them from being damaged.CYLINDRICAL TYPE FLIPPING MACHINEFB-190113Make the board running in a straight lineALIGNMENT ROLLER CONVEYORG1319-K114UnloadingE-TYPE DOUBLE STATION SPONGE SUCTION UNLOADING GANTRYXL2219-02B-Z-X141 |
|---|
The T3 Laminating Production Line has a working width of 1950mm.
The T3 Laminating Production Line can process acrylic, formica, and other sheet materials.
The loading system features an E-Type double station cup type suction loading gantry that ensures the board runs in a straight line.
The alignment roller conveyor enhances adhesion of the board and keeps the thickness of each board consistent.
Yes, a sanding machine and a double side micro dust cleaner are included to ensure dust removal after sanding and before gluing.
The infrared preheating machine heats the boards before gluing to enhance adhesion.
The gluing process includes a gluing machine with a glue melt machine to ensure proper application of adhesives.
The laminating machine trims the excess PVC/PET on both sides and between the boards for a clean finish.
This machine trims excess PVC/PET and ensures the boards are properly aligned during the process.
The short side trimming machine trims excess PVC/PET at the head and tail of the board for a neat finish.
The cylindrical type flipping machine turns over the boards with PVC/PET and stacks them face to face to prevent damage.
The unloading system features an E-Type double station sponge suction unloading gantry for efficient board unloading.
Yes, the T3 Laminating Production Line is designed to handle large volumes of materials efficiently.
The production line includes various safety features such as emergency stop buttons and safety guards to ensure operator safety.
Yes, training is typically provided to ensure operators are familiar with the machinery and its safety protocols.
