SX-II700-500 LED Operating Shadowless Lamp — image 1

SX-II700-500 LED Operating Shadowless Lamp
Hospital Furniture

SX-II700-500 LED Operating Shadowless Lamp

  • SKU: 60606826432
  • Category: Hospital Furniture

R98,999

Contact Support

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options
Section:
Furniture
SKU:
60606826432
Payment security and privacy badges

Product Description

Product Description

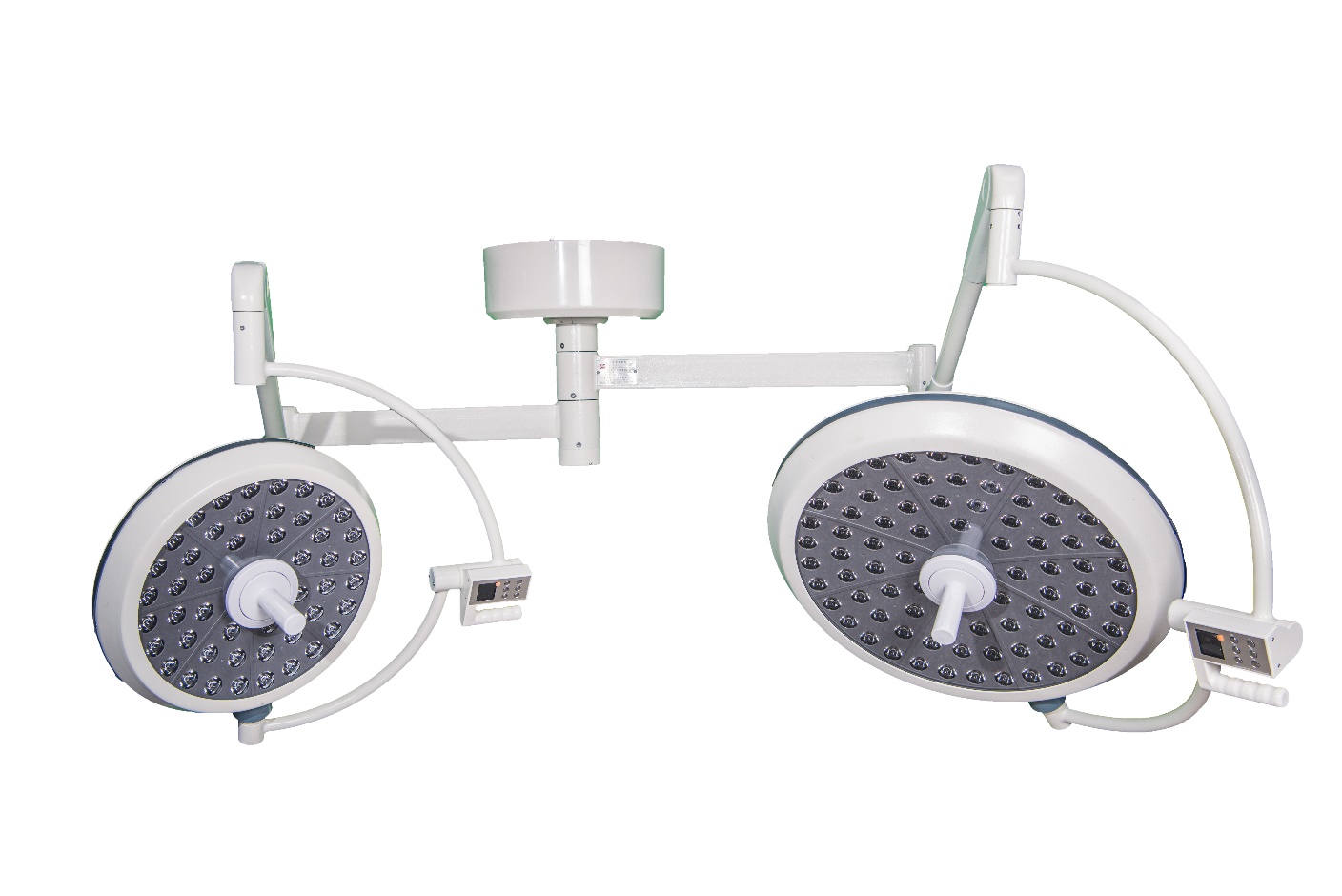

SX-II700/500 LED Operating Shadowless Lamp


  1. Technical parameter;
General Technical Specifications
Lamp holder Dia.（MM)700            500
Illuminance40000-180000       30000-160000
Color Temperature(K)3700-5000K(Adjustable)
Spot Diameter MM150-350
The depth of the irradiation (MM)≥1200
Brightness Adjustment Digital Display1-100
Color Rendering Index (CRI)≥96%
Color Reduction Index (RA)≥97%
Temperature at surgeon's head≤1℃
Temperature in operation field≤2℃
Working radius600-1800MM
Power supply and voltage220V±22V 50HZ±1HZ
Input power400VA
Bulb average lift≥60000h
Bulb power150W/150W
Best height installation2800MM-3000MM





二、Unique features:

1、Scope of application：The lamp is suitable for various surgical lighting in hospitals, which is an ideal special lighting device for modern operating rooms.

2、The device with digital control LED brightness and is a reliable circuit design, also with uniform brightness adjustment, wide adjustment range, no stroboscopic.

3、Long service life is up to 80,000h of the lighting source, each bulb can be

exchanged individually to ensure the maximum economy use.

4、LED has no infrared and ultraviolet radiation, the wound healing can be speeded up and no radiation pollution.

5、Temperature in the operation field is small, average irradiation energy is 3.8mw/m2.

6、The rotating arm can rotate 360°, it is flexible, portable and non-drifting.

7、The adopted spring assembly balancer structure is flexible, easy to be controlled and positioned exactly, largest adjustable range can be achieved.

8、The operation lamp adopts fully enclosed structure and streamlined design, which fully meets the requirements of laminar flow purification and sanitation in the operating room.

9、Ultrathin design can obtain excellent laminar flow effect, the thickest is at most 10cm.

10、Dia.700 lampholder =80 lamp beads, Dia.500 lamp holder=48 lamp beads.

11、The lamp cover material is imported aluminum, detachable handle and can be sterilized at 134℃ high lever to ensure reliable operation of the equipment.







三、Configuration;

NoItem NameQTYUnitRemark
1700 lampholder1set
2500 lampholder1set
3Disinfection handle4pcs
4Lamp beads128pcs
5Balancer2sets
6Rotating arm1setDouble arms
7Switch power supply assembly2sets
8Fixed base1set
9Shield1set
10Light tools1set
11Operating manual/warranty card1



set


12Guarantee1set



Frequently Asked Questions

What is the power supply requirement for the SX-II700-500 LED Operating Shadowless Lamp?

The SX-II700-500 operates on a power supply of 220V ± 22V and 50Hz ± 1Hz.

What is the lifespan of the bulbs used in the SX-II700-500?

The average lifespan of the bulbs in the SX-II700-500 is over 60,000 hours.

Can the brightness of the lamp be adjusted?

Yes, the brightness can be adjusted digitally, with a range from 1 to 100.

What is the color temperature range of this lamp?

The SX-II700-500 has an adjustable color temperature range from 3700 to 5000K.

Is there any radiation emitted from the lamp?

No, the LED technology used in this lamp does not emit infrared or ultraviolet radiation.

What is the maximum working radius of the lamp?

The maximum working radius of the SX-II700-500 is between 600 to 1800 mm.

How does the lamp ensure a sterile environment in the operating room?

The lamp has a fully enclosed structure and streamlined design, which meets laminar flow purification requirements.

What is the weight of the lamp and how is it mounted?

The lamp is designed to be lightweight and is mounted using a fixed base with a rotating arm that can rotate 360°.

How many lamp beads are used in the 700 mm and 500 mm lamp holders?

The 700 mm lamp holder uses 80 lamp beads, while the 500 mm lamp holder uses 48 lamp beads.

What is the color rendering index (CRI) of the lamp?

The color rendering index (CRI) of the SX-II700-500 is ≥96%, ensuring accurate color representation.

What are the installation height recommendations for the lamp?

The best height for installation is between 2800 mm to 3000 mm.

How is the lamp controlled?

The lamp is controlled digitally, allowing for reliable and uniform brightness adjustment.

Can the disinfection handle be sterilized?

Yes, the detachable handle can be sterilized at high levels up to 134°C.

What is the temperature at the surgeon's head during operation?

The temperature at the surgeon's head is maintained at ≤1°C, ensuring comfort during procedures.

Is the lamp suitable for all types of surgical procedures?

Yes, the SX-II700-500 is suitable for various surgical lighting needs in hospitals and modern operating rooms.
