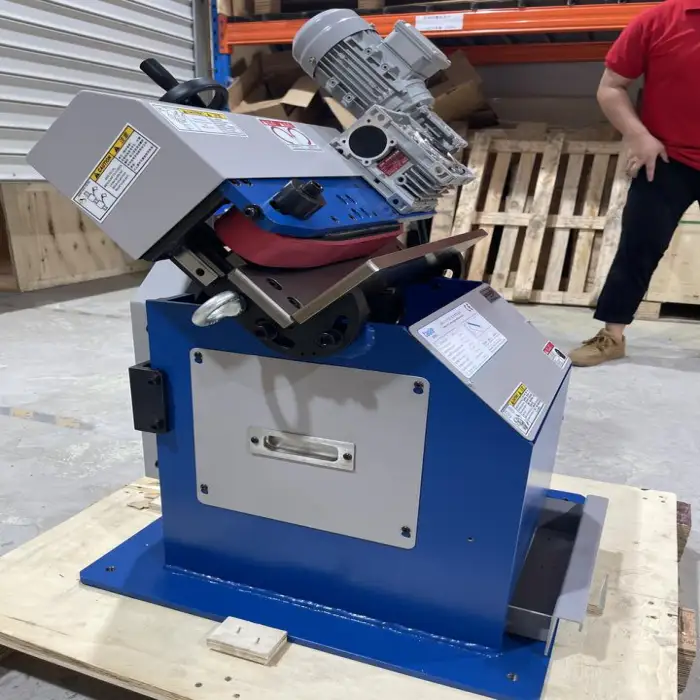

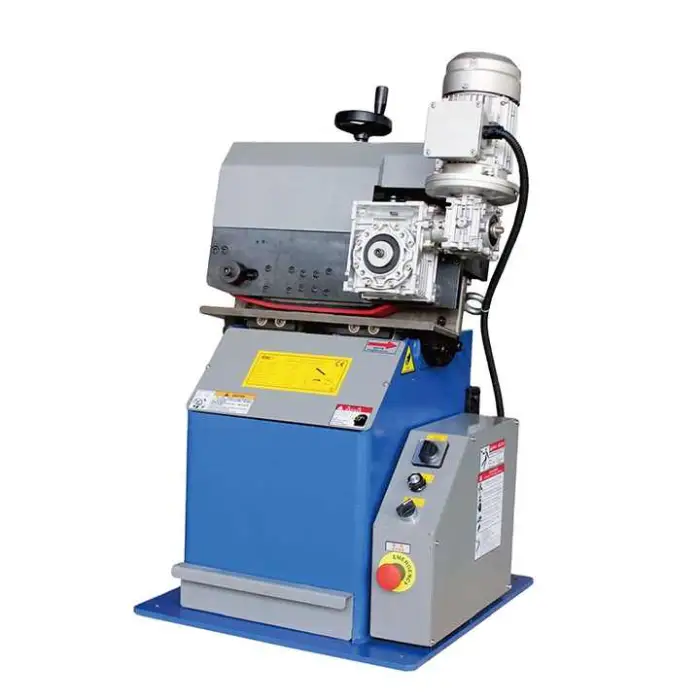

The adjustable bevel angle range of the Stationary Edge Milling Machine is from 25 to 80 degrees.
This machine can create V and Y bevel joints.
The machine can handle a maximum bevel width of 25mm.
The clamp thickness range is between 3mm and 30mm.
The machine weighs 155 kg, and the single gross weight with packaging is 180 kg.
The machine requires a power supply of 1.62 kW and operates at a voltage of 220 V.
Yes, the Stationary Edge Milling Machine comes with a 1-year warranty.
The process length capacity of the machine is greater than 150mm.
Yes, the machine is designed to be easy to operate and maintain.
It is suitable for metalworking industries, manufacturing, fabrication shops, and custom metal projects.
The cutter plate diameter is 80mm.
Yes, it is ideal for beveling small metal plates and processing steel bars.
The machine uses a continuous processing system with a belt feeding system.
Yes, it comes with a comprehensive machinery test report.
The single package size is 64 x 85 x 11.6 cm.
