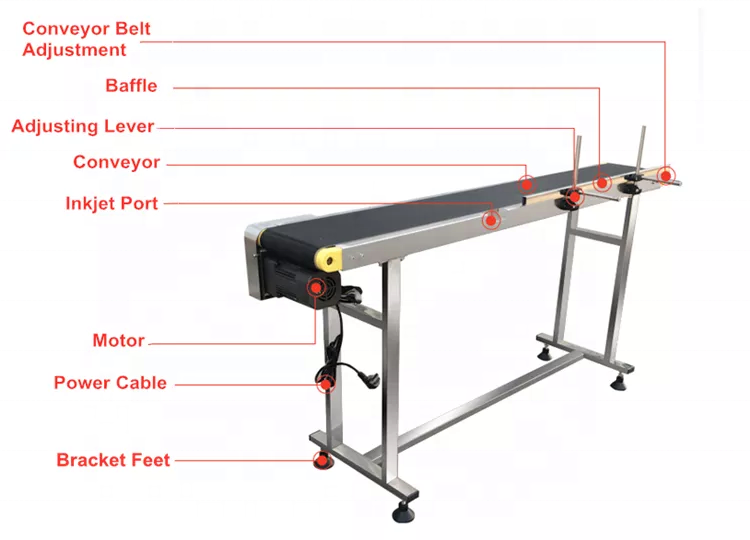

Stainless Steel Conveyor Belt System

The conveyor operates at 10–30 m/min. Speed is adjusted using an electronic stepless speed regulation system for precise, continuous control.

Standard supply voltage is 220V/50Hz (custom voltages available). The drive uses a 60W motor paired with a single-phase asynchronous gear speed reducer.

Outline dimensions are 1500 mm (L) x 250 mm (W) x 750 mm (H). The effective belt width is 190 mm and belt thickness is 2 mm.

It is suitable for conveying small to medium-sized items such as packaged goods, components, and assemblies. For very heavy, oversized, or irregular items, please consult the supplier to confirm suitability and any required modifications.

Transport stability is described as medium stable. Exact allowable load per meter is not specified in the basic data—contact the manufacturer with your product dimensions and weight for a certified load capacity and any required reinforcement.

The body is stainless steel with a drawing-polished finish, which is commonly used in hygienic applications. However, specific food-/pharma-grade certification, stainless steel grade (e.g., 304/316), and sanitary options should be confirmed with the supplier for regulatory compliance.

Positioning uses a single barrier location mode to stop or index items. Additional sensors or positioning devices can usually be integrated if you need higher-precision indexing.

Transmission is accomplished via a combination of gear, chain, and conveyor belt mechanisms driven by the gear reducer and motor.

The machine has adjustable feet to adapt to your workspace. Install on a stable, level surface, connect the specified power supply per local electrical codes, and ensure proper anchoring if required. Refer to the supplier's installation guide for detailed instructions.

Regular maintenance includes inspecting and tensioning the belt, checking chains and gears for wear, lubricating bearings per supplier intervals, and keeping the stainless surfaces clean with appropriate non-abrasive, stainless-safe cleaners. Schedule periodic inspections of the motor, reducer, and fasteners.

Yes. Common customizations include supply voltage, belt type/width, overall dimensions, speed range, and integration of sensors or guards. Contact the manufacturer with your requirements for a quote.

Standard product data does not list builtin emergency stops or guarding. These safety features (emergency stop buttons, light curtains, guards, interlocks) can typically be added—ask the supplier to include required safety devices to meet your site regulations.

The body receives a drawing-polishing treatment, giving a clean, professional finish and improved resistance to corrosion. Confirm the stainless steel grade with the supplier for specific corrosion resistance needs.

Warranty terms and spare parts availability are not specified in the basic description. Contact the manufacturer or dealer for warranty details, lead times for common spare parts (belts, motors, reducers, chains), and recommended spare-part stock levels.
