The Solid-Liquid Separator Stacked Spiral Sludge Dewatering Machine is an advanced solution for thickening and dewatering sludge waters. This reliable equipment offers simple installation and easy operation. It is designed to filter suspended matter effectively, making...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The Solid-Liquid Separator Stacked Spiral Sludge Dewatering Machine is an advanced solution for thickening and dewatering sludge waters. This reliable equipment offers simple installation and easy operation. It is designed to filter suspended matter effectively, making it an essential tool for any sludge dewatering plant.
| Attribute | Details |
|---|---|
| Capacity | 1.5-30m3/h |
| Color | Natural colour of stainless steel |
| Function | Filtering Suspended Matter |
| Material | SUS304 |
| Voltage | 380V /Customized |
| Warranty | 1 Year |
| Weight | 1000 kg |
| Productivity | 100L/Hour |
| Working Hours | 10001-20000 |
型号 Model | 处理能力 （kg-DS/h） | 螺旋轴规格 Spiral diameter (mm) | 泥饼排出口 离地面距离Discharge Distance (mm) | 尺寸 Dimensions(mm) | 设备重量 Net Weight (kg) | 运行重量 Operating Weight (kg) | 功率 Power (kw) | ||
| L | W | H | |||||||
| DL131 | 4～14 | ￠130*1 | 340 | 2041 | 636 | 1006 | 240 | 330 | 0.4 |
| DL132 | 8～28 | ￠130*2 | 302 | 2139 | 886 | 1006 | 330 | 480 | 0.6 |
| DL201 | 8～20 | ￠200*1 | 432 | 2434 | 768 | 1307 | 400 | 650 | 0.57 |
| DL202 | 16～40 | ￠200*2 | 433 | 2484 | 914 | 1307 | 560 | 760 | 0.94 |
| DL203 | 24～60 | ￠200*3 | 433 | 2586 | 1244 | 1527 | 850 | 1050 | 1.51 |
| DL251 | 12～25 | ￠250*1 | 474 | 2593 | 768 | 1569 | 450 | 700 | 0.57 |
| DL253 | 24～75 | ￠250*3 | 433 | 2836 | 1244 | 1527 | 1370 | 1570 | 1.51 |
| DL301 | 20～70 | ￠300*1 | 568 | 3138 | 969 | 1821 | 860 | 1250 | 0.95 |
| DL301L | 20～70 | ￠300*1 | 638 | 3324 | 710 | 1659 | 860 | 1250 | 1.5 |
| DL302 | 40～140 | ￠300*2 | 523 | 3334 | 1162 | 1608 | 1300 | 1900 | 1.65 |
| DL302L | 40～140 | ￠300*2 | 555 | 3531 | 1100 | 1872 | 1400 | 2000 | 1.65 |
| DL303 | 60～210 | ￠300*3 | 560 | 3477 | 1605 | 1821 | 1700 | 2600 | 2.2 |
| DL304 | 90～280 | ￠300*4 | 504 | 3736 | 2030 | 1816 | 2050 | 2950 | 2.95 |
| DL351 | 40～120 | ￠350*1 | 676 | 3819 | 1000 | 2179 | 1500 | 2480 | 1.65 |
| DL352 | 80～240 | ￠350*2 | 657 | 3919 | 1375 | 2179 | 2950 | 4500 | 2.75 |
| DL353 | 120～360 | ￠350*3 | 658 | 4120 | 1905 | 2181 | 4350 | 6750 | 4.05 |
| DL401 | 67.5～160 | ￠400*1 | 676 | 3819 | 1000 | 2179 | 1950 | 2900 | 1.65 |
| DL402 | 135～320 | ￠400*2 | 657 | 3919 | 1375 | 2179 | 3300 | 4900 | 2.75 |
| DL402L | 135～320 | ￠400*2 | 687 | 4787 | 1430 | 2458 | 3500 | 5100 | 3.55 |
| DL403 | 200～480 | ￠400*3 | 658 | 4120 | 1905 | 2181 | 4350 | 6750 | 4.05 |
| DL403L | 200～480 | ￠400*3 | 686 | 5206 | 2040 | 2458 | 4550 | 6950 | 5.6 |
| DL404 | 266～640 | ￠400*4 | 657 | 3919 | 2760 | 2179 | 5450 | 7650 | 5.5 |
| DL404L | 266～640 | ￠400*4 | 686 | 5206 | 2620 | 2458 | 4550 | 6950 | 7.5 |

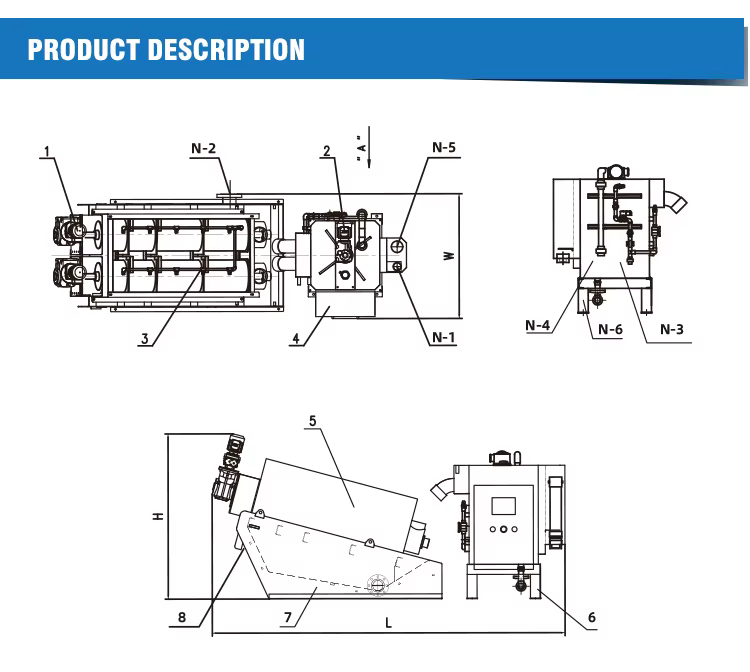

Screw Sludge Dewatering
| 1. Motor | 2. Flocculation Mixer | 3. Screw Body |
| 4. Electric Control Cabinet | 5. Side Cover | 6. Base Of Flocculation Mixing Tank |
| 7. Screw Body Base | 8. Dry Sludge Outlet | |
| N-1. Sewage Inlet | N-2. Filtration Discharge | N-3. Feed Water Inlet |
| N-4. Chemical Dosing Inlet | N-5. Returning Pipeline | N-6. Vent Of Mixing Tank |
| Capacity | 1.5-30m3/h |
|---|---|
| Color | Natural colour of stainless steel |
| Function | Filtering Suspended Matter |
| Material | SUS304 |
| Voltage | 380V /Customized |
| Warranty | 1 Year |
| Weight | 1000 kg |
| Productivity | 100L/Hour |
| Working Hours | 10001-20000 |
| L | H W |
The machine has a capacity range of 1.5 to 30 m3/h, making it versatile for different sludge dewatering needs.
The machine is constructed from durable SUS304 stainless steel, which ensures longevity and resistance to corrosion.
The machine employs advanced technology to effectively filter suspended solids from liquids, improving the quality of the effluent.
The standard voltage is 380V, but it can be customized to meet specific requirements.
No, the Solid-Liquid Separator is designed for simple installation and easy operation, making it user-friendly.
The machine comes with a 1-year warranty on core components, providing peace of mind for users.
The total weight of the machine is approximately 1000 kg.
The machine has a productivity rate of 100 liters per hour.
It is primarily used for thickening sludge in wastewater treatment plants, dewatering industrial sludge, and separating solids from liquids across various industries.
The machine is designed for a working lifespan of 10,001 to 20,000 hours, depending on usage and maintenance.
Yes, we offer online support after the sale to assist with any questions or issues that may arise.
Yes, it is designed to effectively handle a wide variety of sludge types, making it suitable for different industrial applications.
Key features include simple installation, easy operation, high capacity, durable construction, effective filtration, and a 1-year warranty.
Yes, customization options are available, especially regarding voltage and specific operational needs.
By effectively filtering and dewatering sludge, it improves the efficiency of sludge handling, reducing disposal costs and enhancing overall plant performance.
