Our product has advantages over other similar product:
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
Our product has advantages over other similar product:
1.Transmission Motor adopts Fuji servo motor from Japan, ensure stability and precision control.
2. X, Y axis adopt imported servo driver from Japan, cooperate with imported linear railway, ensure that performence of high precision, high speed and excellent stability.
3.The Camera adopts Germany imported spare part, automatic visual auxiliary positioning, positioning is accurate, convenient.
4.Our feeder is electric feeder, can satisfy the requirement of different smd LED components.
5.Programming software using database system, different types of PCB programming can be stored, convenient adjust, new product only need one time programming, can use at any time in the future.
6.Platform, Y, X can manually move, the movement speed free adjust, can achieve arbitrary point manually to arrive, convenient programming.
7. Software is easy to operate, can update anytime by free.
| DIMENSION (MM) | 2950(L)* 2150(W)* 1500(H) |
| PCB (MM) | 1200(L) * 330(W) |
| Mounting precision | 0.2mm |
| Mounting Height | <15mm |
| Mounting Speed | 150000-170000 |
| System | Windows7 |
| POWER | 220V |
| MAXIMUM POWER | 5.0KW |
| AIR PRESSURE | >5KG |
| POSITIONING | VISION SYSTEM for mark point |
| WEIGHT | About 1800KG |
| DIMENSION (MM) | 2950(L)* 2150(W)* 1500(H) |
|---|---|
| PCB (MM) | 1200(L) * 330(W) |
| Mounting precision | 0.2mm |
| Mounting Height | <15mm |
| Mounting Speed | 150000-170000 |
| System | Windows7 |
| POWER | 220V |
| MAXIMUM POWER | 5.0KW |
| AIR PRESSURE | >5KG |
| POSITIONING | VISION SYSTEM for mark point |
| WEIGHT | About 1800KG |

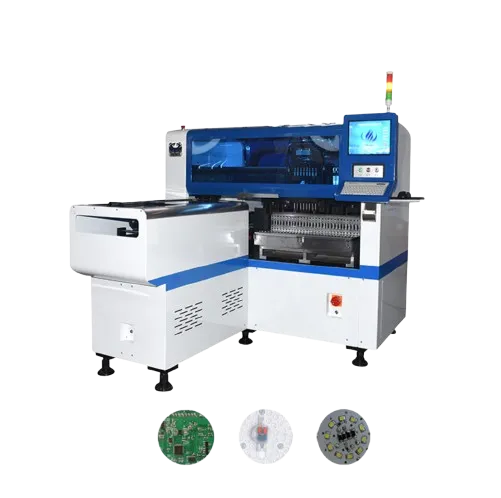

The primary function of this machine is to facilitate the efficient production of SMT LED lamps and LED tubes by automating the placement and assembly of SMD LED components on printed circuit boards (PCBs).
This machine boasts several advantages, including high precision control through a Fuji servo motor, imported servo drivers, automatic visual auxiliary positioning from Germany, and a user-friendly programming software that allows for easy adjustments and future reprogramming.
The electric feeder is designed to satisfy the requirements of various SMD LED components, ensuring versatility in production.
The mounting precision of this machine is 0.2mm, allowing for accurate placement of components on the PCB.
The machine supports a maximum mounting height of less than 15mm.
The SMT LED lamp production line can achieve a mounting speed ranging from 150,000 to 170,000 components per hour, significantly boosting production efficiency.
The machine operates on Windows 7, providing a familiar interface for users.
The machine dimensions are 2950mm (L) x 2150mm (W) x 1500mm (H).
The machine weighs approximately 1800KG.
Yes, the programming software is designed to be easy to operate and can be updated for free at any time, allowing for convenience and adaptability.
Yes, the platform, as well as the X and Y axes, can be manually moved, and the movement speed can be freely adjusted for precise programming.
The machine requires an air pressure of greater than 5KG for optimal operation.
The automatic visual positioning system uses high-quality camera technology imported from Germany to ensure accurate and convenient positioning of components on the PCB.
The programming database system allows users to store different types of PCB programming, making it convenient to adjust for new products without needing to reprogram each time.
The maximum power consumption of the machine is 5.0KW.
