Small Crawler Photovoltaic Pile Driver Multifunctional Hydraulic Screw Solar HFPV-1M Hammer Domestic System for Drilling Machine

The HFPV-1M is a compact crawler-mounted, multifunctional hydraulic screw pile driver designed for efficient pile driving and drilling in solar photovoltaic, construction and mining projects. It combines a fully hydraulic system with PLC control and an onboard engine to set concrete precast piles quickly and reliably.

Key specs include piling speed 55–110 r/min, weight 6,100 kg, overall dimensions 7000 × 2280 × 2700 mm, core components PLC/engine/pump, and a fully hydraulic drive system. Outgoing inspection video is provided.

Typical applications are installation of solar photovoltaic mounting foundations, general construction pile driving, precast concrete pile setting and various mining or infrastructure projects that require rapid, mobile pile installation.

The machine is designed primarily for concrete precast piles and hydraulic screw-type piling used in solar foundations. For exact compatible pile diameters and lengths, provide your pile specifications to the manufacturer or dealer to confirm compatibility and tooling.

The unit includes an onboard engine and hydraulic pump as part of its core components. For fuel type, engine model and power ratings, contact the supplier or consult the product datasheet.

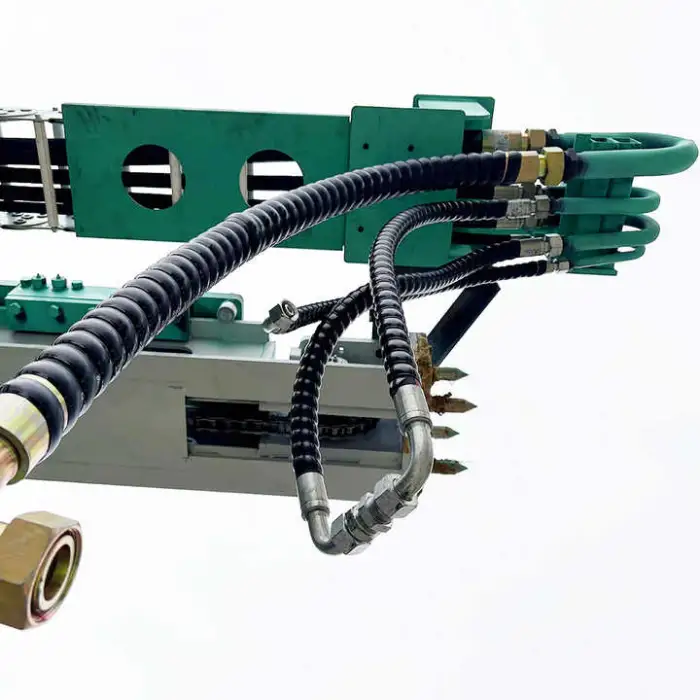

A fully hydraulic system means all main functions (rotation, pushing, hammering and travel) are driven by hydraulic power. Benefits include smooth and responsive control, high force density, better efficiency for heavy-duty piling and simplified mechanical linkages.

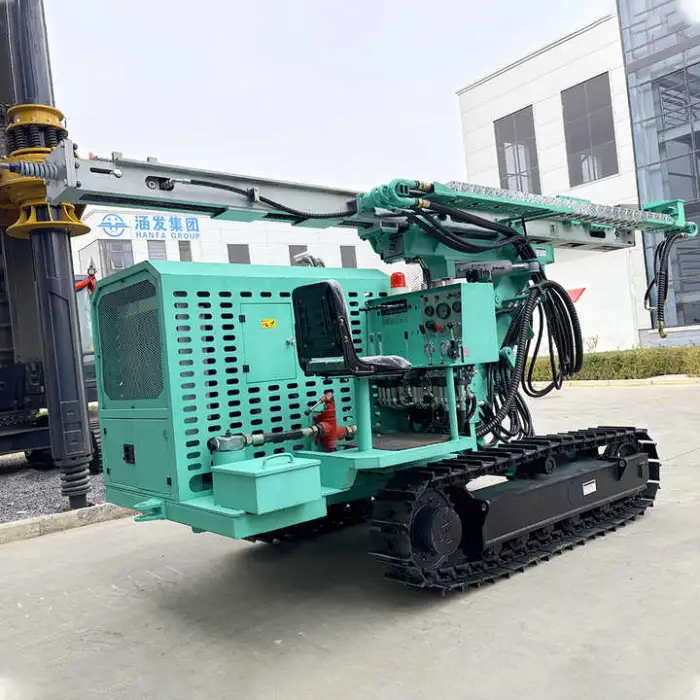

Yes — it is crawler-mounted for on-site mobility across uneven terrain. At 6,100 kg it is relatively lightweight for its class, facilitating maneuverability and repositioning around solar farm sites and construction areas.

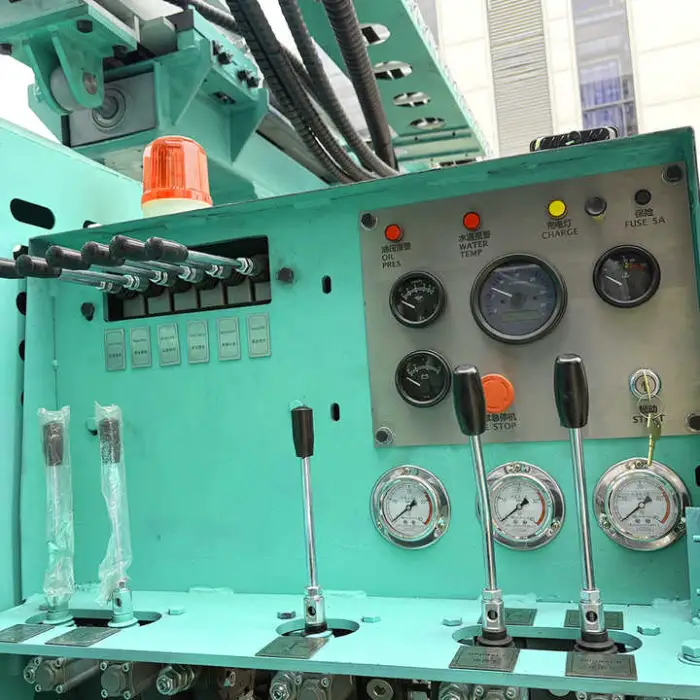

The HFPV-1M includes PLC-based control for managing hydraulic functions and process logic. Specific operator interface details and automation options should be confirmed with the supplier; custom control setups may be available.

The machine is supplied with standard industrial safety measures and control interlocks as part of its design. For exact safety features (emergency stop, alarms, overload protection, guarding) refer to the machine manual or ask the manufacturer for a safety specification sheet.

Routine maintenance follows the manufacturer’s service schedule (hydraulic fluid/filters, engine checks, wear inspection). Hanfa provides engineers available for overseas on-site service; contact your dealer to arrange maintenance contracts or spare parts.

Operator training is recommended and typically available through the manufacturer or authorized dealers. Training covers safe operation, basic maintenance, troubleshooting and controls/PLC operation.

Warranty terms and spare parts availability vary by seller and region. Contact the manufacturer or your local dealer for specific warranty coverage, spare parts lead times and service agreements.

Overall machine dimensions are 7000 × 2280 × 2700 mm. The product listing includes a single package size of 67 × 22.3 × 29.8 cm and a single gross weight of 68.0 kg for certain shipped components; check with the supplier for full shipping configuration, crating requirements and transport logistics for the complete machine.

The HFPV-1M is a multifunctional platform that can accept piling and drilling tooling such as hydraulic screw heads, hammers and pile adapters. Specific attachments and tooling options should be requested from the manufacturer to match your pile type and site needs.

Contact Hanfa or an authorized dealer with project details (site conditions, pile type and size, expected daily installation rate). Provide these details to receive a tailored quote, availability information and to arrange a machine demonstration or site evaluation.
