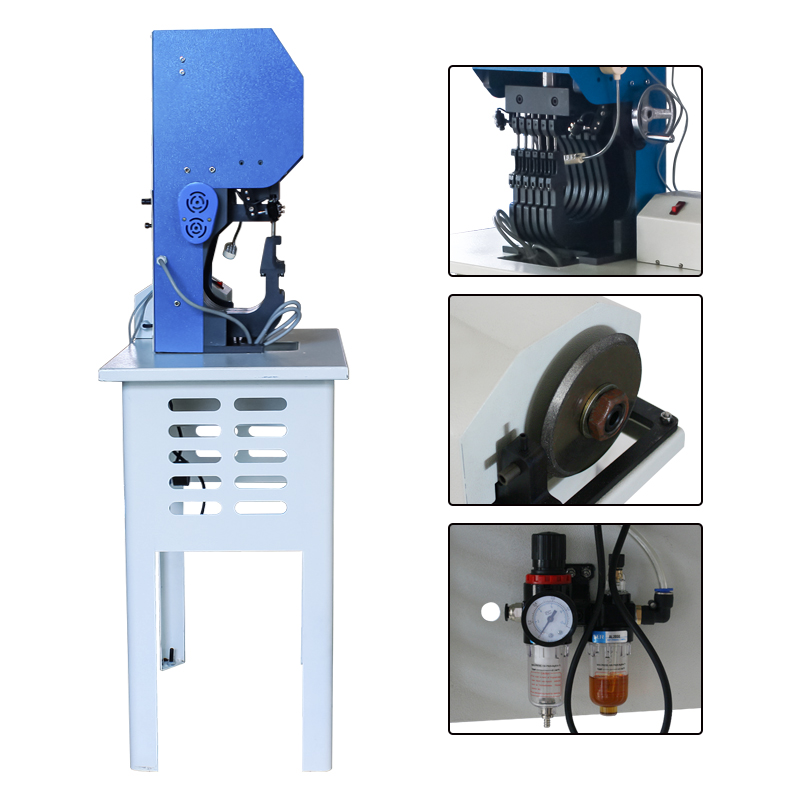

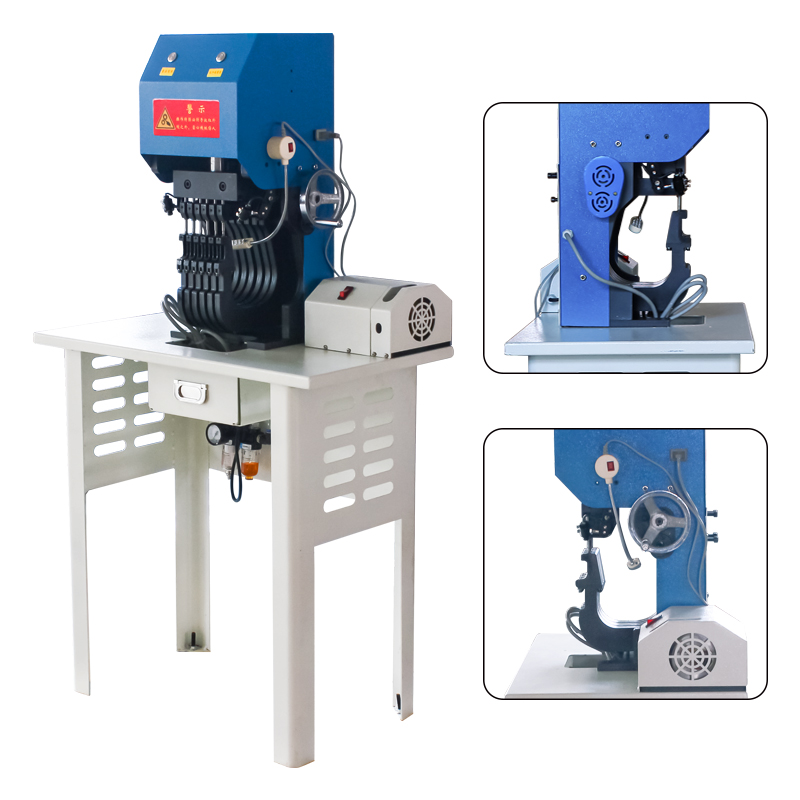

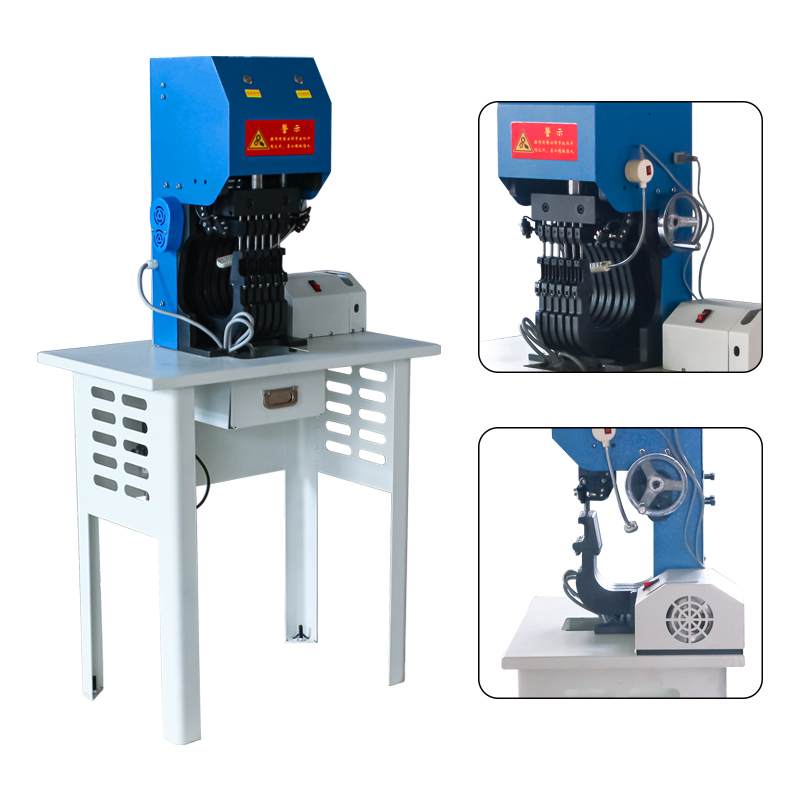

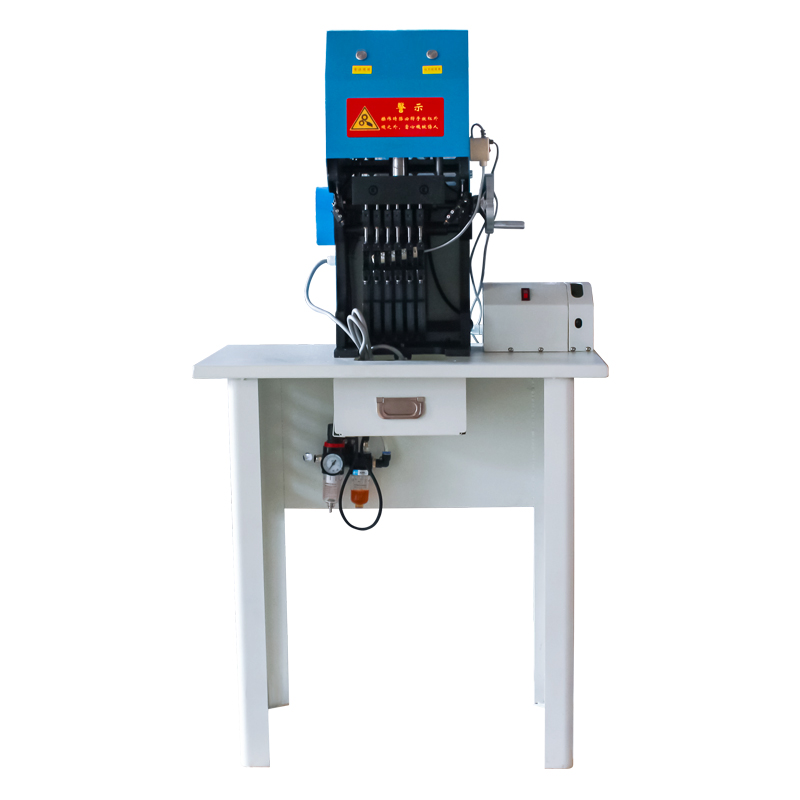

Six Holes Punching Machine - Model: QC68222

The QC68222 is designed for punching multiple holes simultaneously in materials such as shoe uppers, leather, bags, shoulder straps, paper products and similar sheet materials to increase production efficiency and reduce labour.

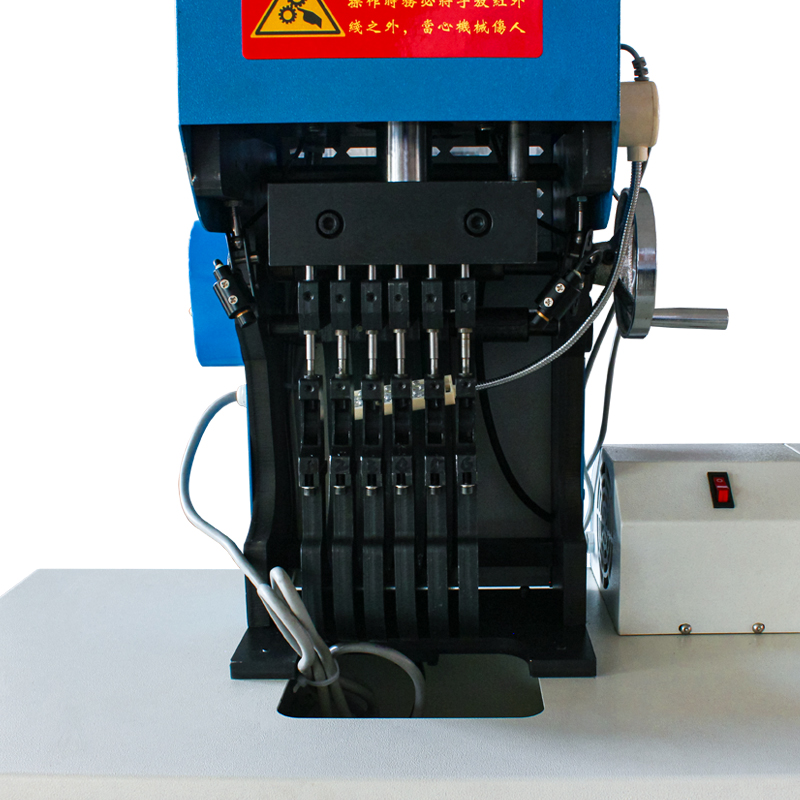

The machine is equipped with six needles (punching heads) and can produce six holes in a single stroke.

Electrical requirement is 220V. The pneumatic requirement is 0.6 MPa (check that your compressed air system can supply this pressure and sufficient flow).

Hole spacing is adjustable between 11.5 mm and 22 mm to accommodate different patterns and layouts.

The machine measures approximately 642 × 370 × 1180 mm (L × W × H) and weighs about 55 kg.

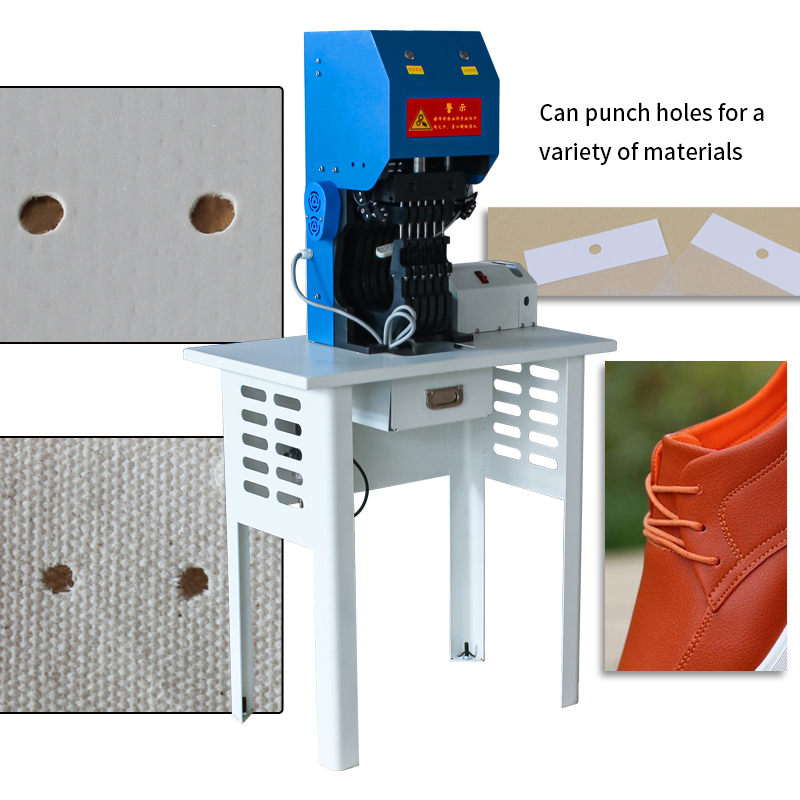

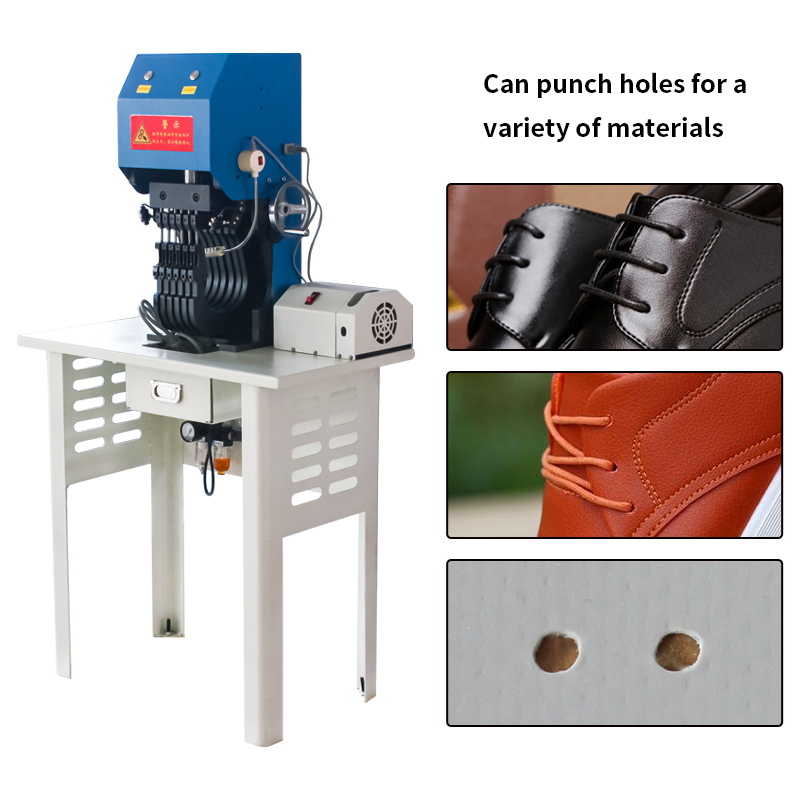

Typical materials include leather, fabric, synthetic straps and paper products. Maximum thickness depends on material type and the punch/die used; for best results, test your specific material or consult the supplier for recommended thickness ranges.

Yes — hole diameter is determined by the punch/die set installed. The machine uses interchangeable punch dies and needles; contact your supplier for available die sizes and replacement tooling.

Punch spacing is adjusted using the machine's mechanical adjustment points (fixtures/guides) per the operator manual. For exact steps and fine adjustment, follow the manual or request supplier guidance during setup.

Regular maintenance includes keeping the machine clean, checking and tightening fasteners, lubricating moving parts per the manual, inspecting and replacing worn punches/dies and seals, and ensuring clean, dry compressed air at the correct pressure.

Common consumables include punch dies, needles, springs/seals (if applicable) and any cutting edges. Stocking a few spare dies and replacement needles will reduce downtime.

The machine is designed for safe, high-efficiency operation. Typical safety provisions include guards and an emergency stop. Always follow the supplied safety instructions, use appropriate PPE and ensure operators are trained. Confirm exact safety features with the supplier.

Production speed depends on operator skill, material, punch pattern and cycle settings. The QC68222 is built for high-efficiency operation, but for reliable throughput estimates provide sample materials and patterns to the supplier for testing.

Basic setup generally requires leveling the machine, connecting 220V power and 0.6 MPa compressed air, fitting the required punch dies and performing test runs. Many suppliers offer installation, commissioning and operator training — confirm availability when ordering.

The product line offers scalable models and adjustable features to suit different production needs. For custom spacing, tooling or additional options, contact the supplier to discuss available customizations.

Warranty terms and after-sales support vary by supplier and region. Contact the seller or manufacturer for details on warranty coverage, spare-part availability, lead times and service agreements.
