Introducing our top-of-the-line Single Roll A4 Paper Cutting Machine with Pneumatic Paper Roll – the perfect solution for cutting A4 and A3 paper. This machine is designed to provide efficient and precise cutting, making it the best jumbo roll cutting machine in the market.
| Model | HKA-1100 |
| Max. Diameter of Unwinding | φ1400mm |
| Max. Cutting Width | 1100mm |
| Cutting Length | A4/A3 (297*210mm, 297*420mm) |
| Cutting Speed | 50-200 times/min |
| Paper GSM | 60-120g |
| Cutting Precision | ±0.2mm |
| Ream Height (mm) | 500pcs |
| Total Power | 12kw |
| Machine Weight | 4500kg |
| Compressed Air (Mpa) | Customer's Own Responsibility |
| Main Power Source | 380V/50HZ, Phase 4 Wires |
| Machine Size (L*W*H) | 7500×3200×1800 (mm) |
-Pneumatic paper roll for easy and efficient cutting.
-Precision cutting with a cutting speed of 50-200 times per minute.
-Can handle paper GSM of 60-120g.
-High cutting precision of ±0.2mm.
-Perfect for cutting paper in various sizes and types for printing, packaging, and other industries.
-Ideal for use in offices, schools, and printing shops.
-Efficiently cuts large quantities of paper with precision and ease.

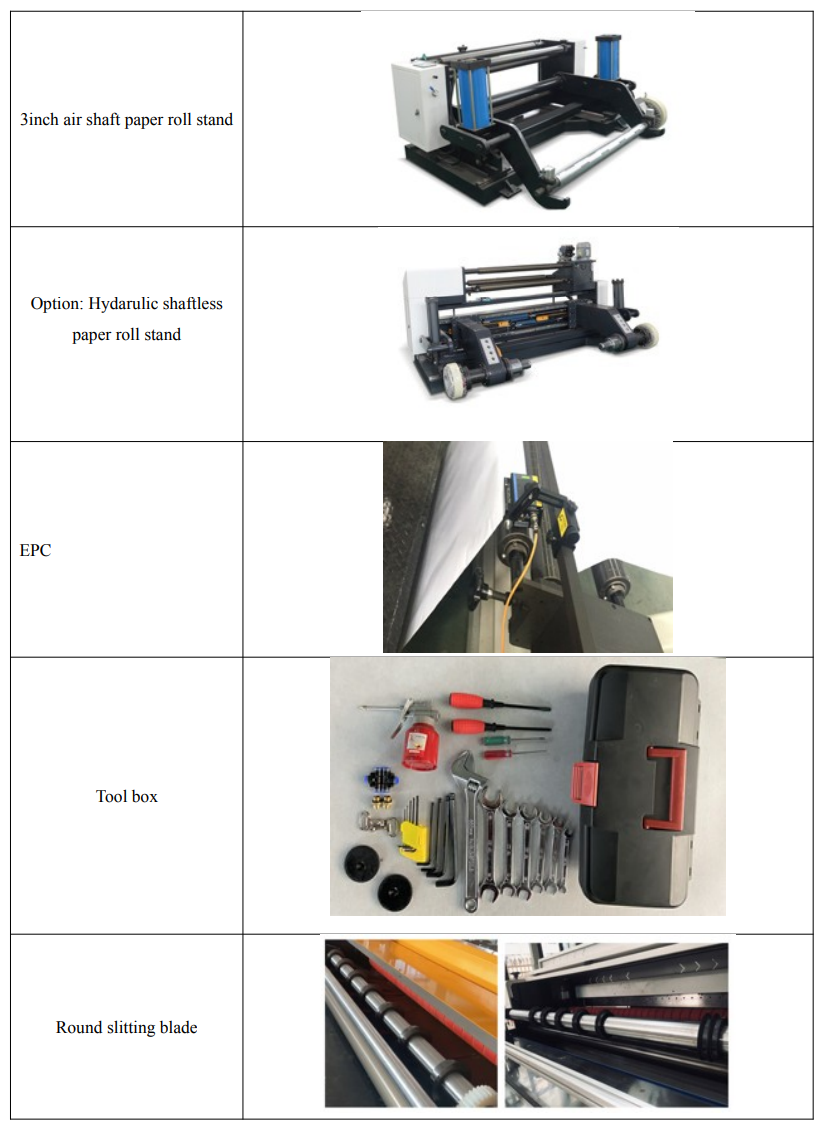

Unwinding Unit：
1.Control way：through PLC tape control way(Panasonic Japan)
2.Unwinding use 3#air shaft (shaftness 3-6# can be chosen)（two sets）
3.Driver roller use aluminum roller, through static balanced aluminum alloy guide roller Page 2 of 7
4.Base material position can be adjust.
5.Automatic air shaft (shaftness can be customized)loading equipment structure system 6.Unwinding use photocell control edge position control system（two sets）

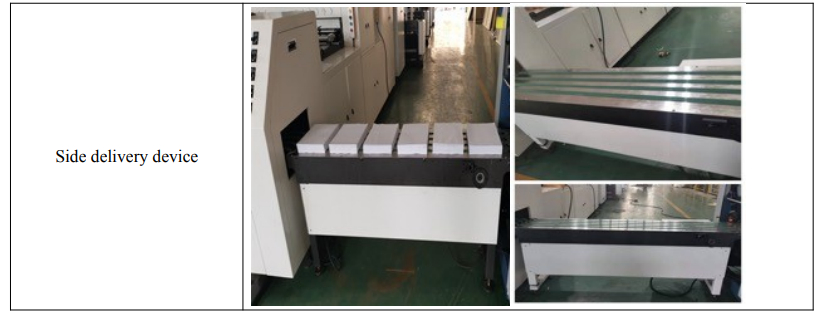

1、Automatic conveying device: three-stage conveying mode；
2、Conveyor motor adopts 0.75KW frequency conversion synchronous control；
3、Automatic pneumatic control of baffle
