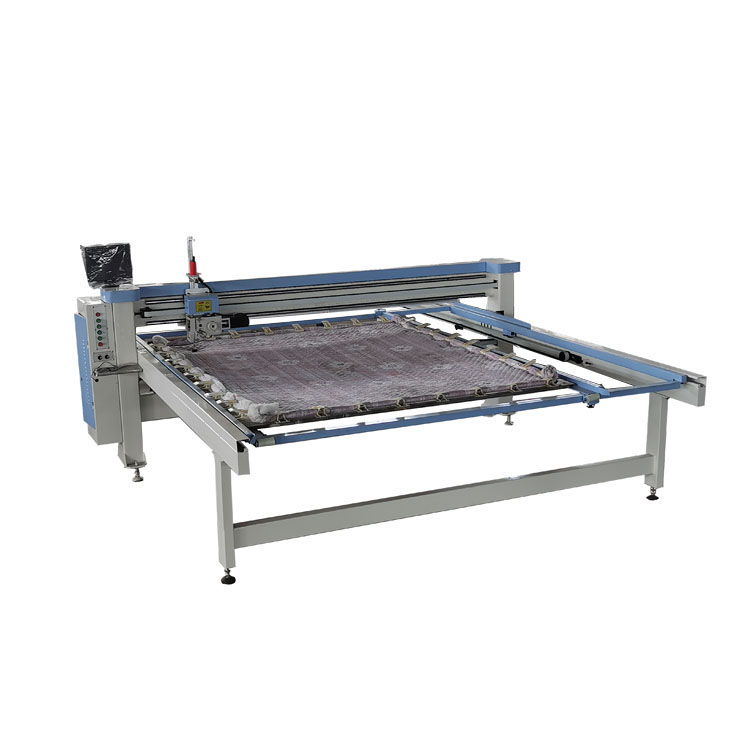

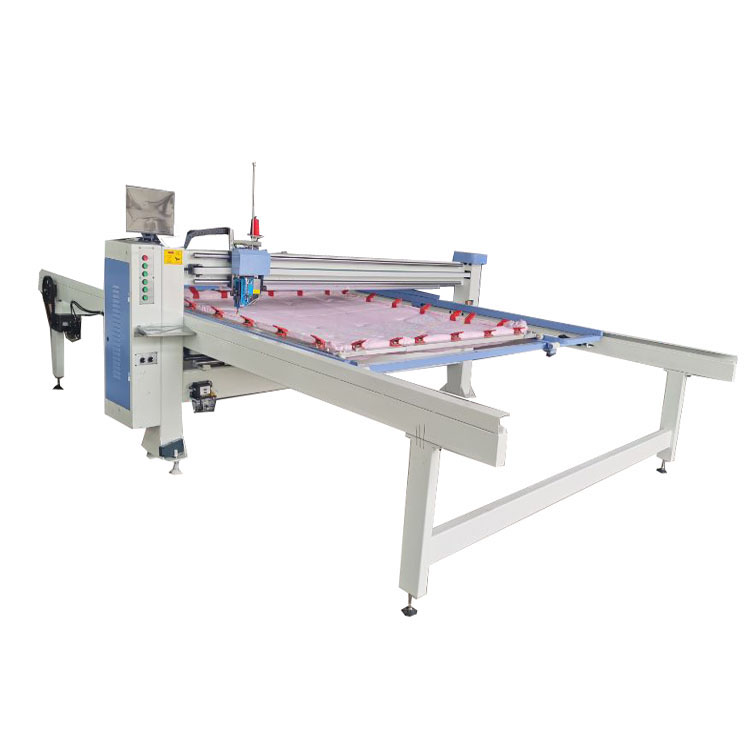

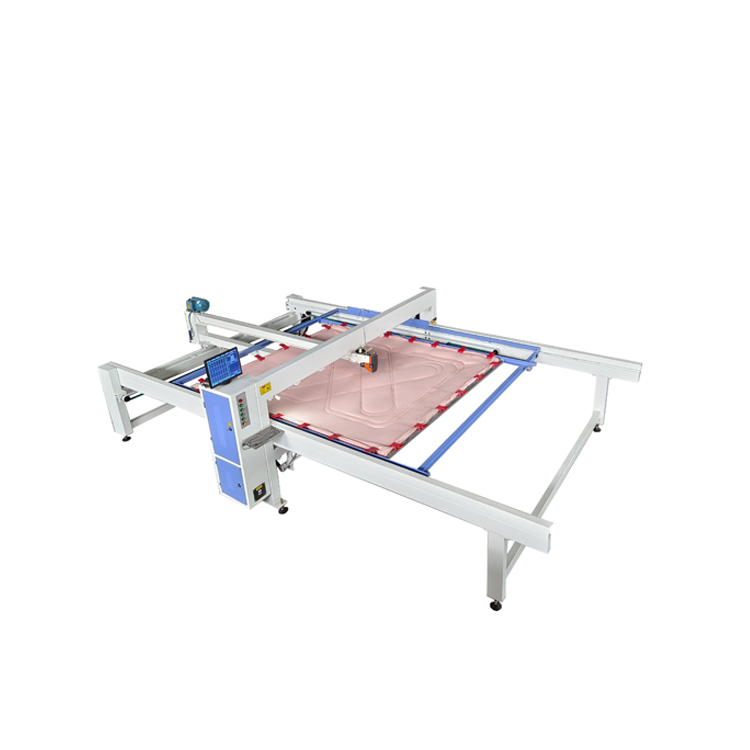

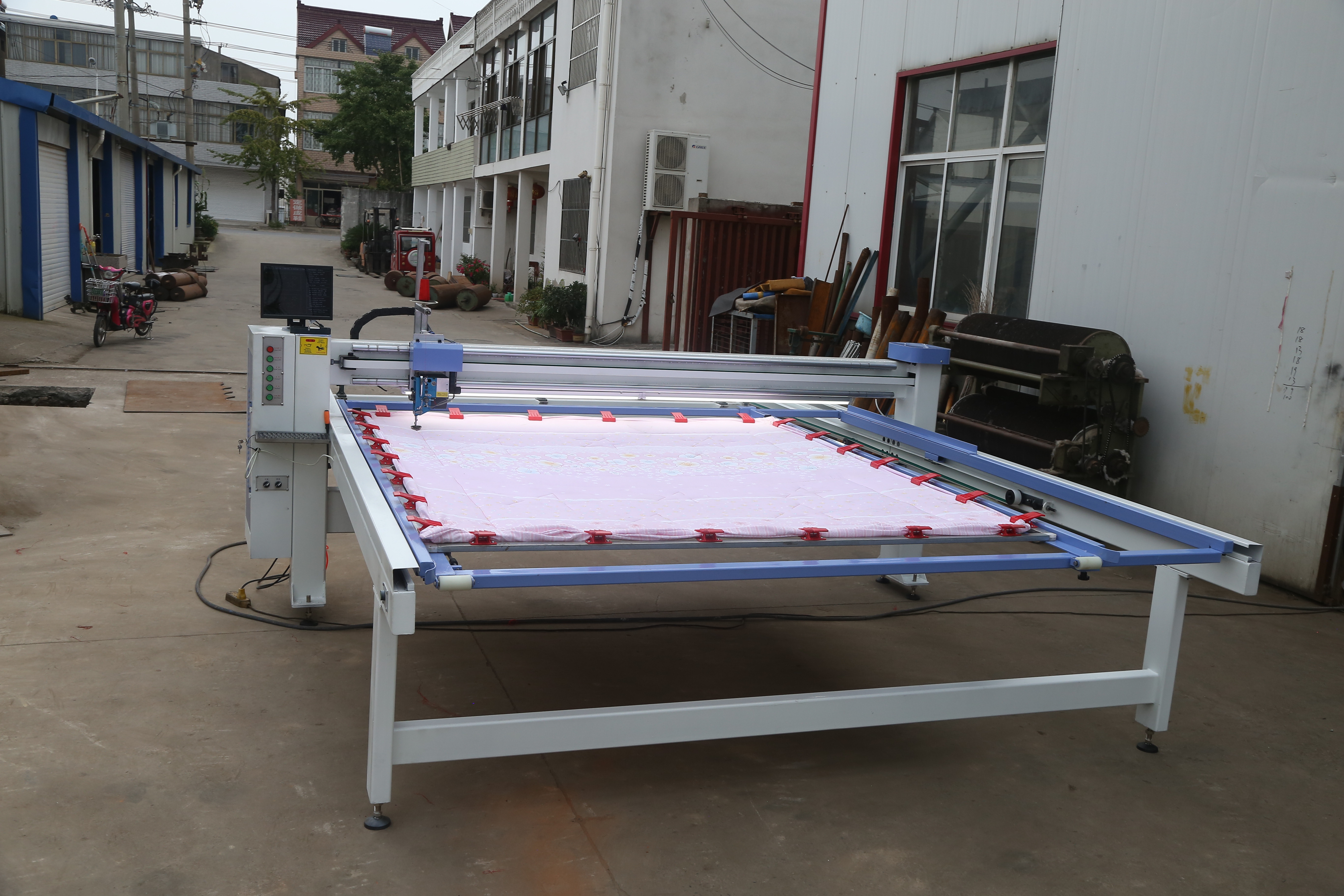

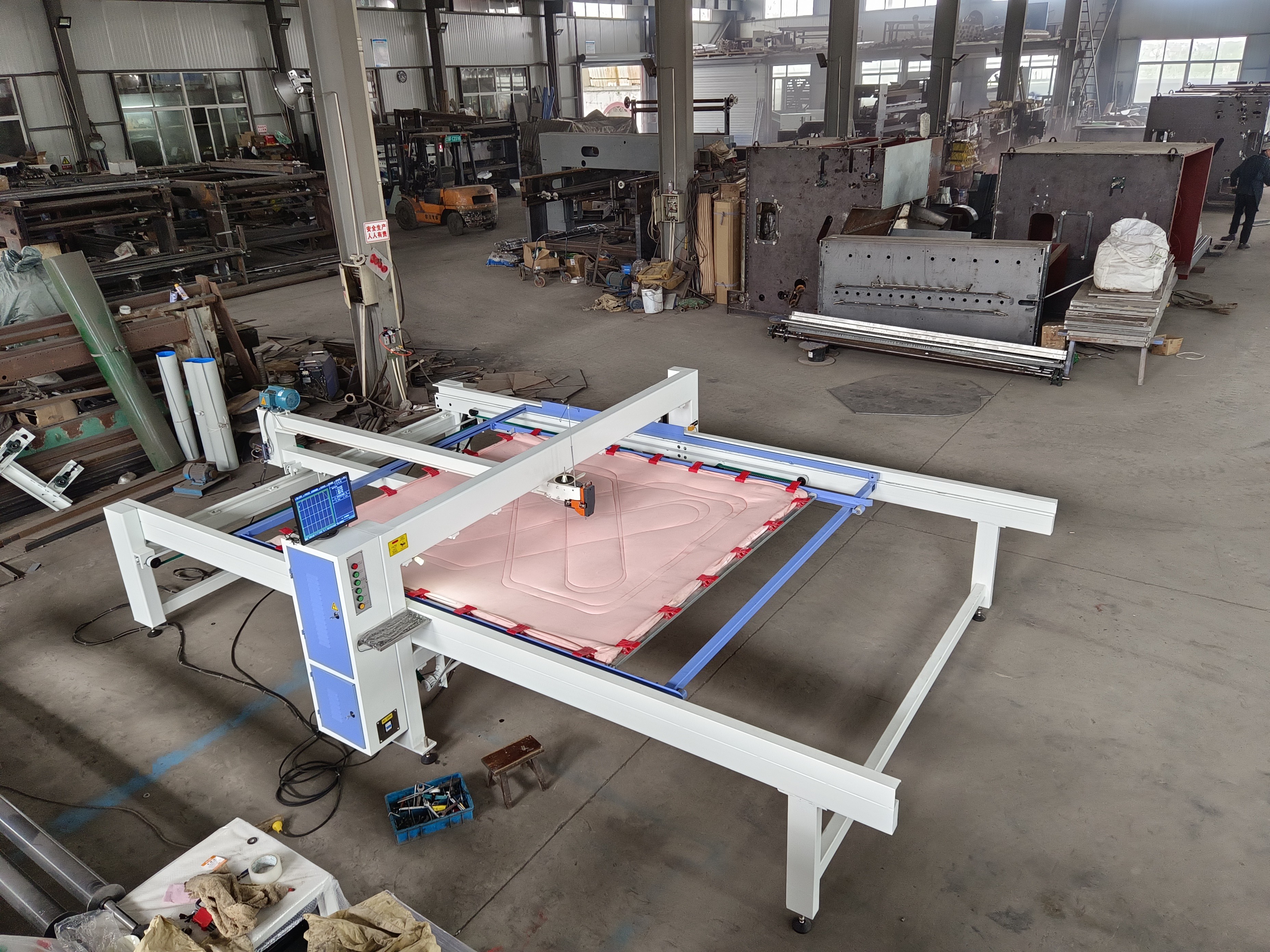

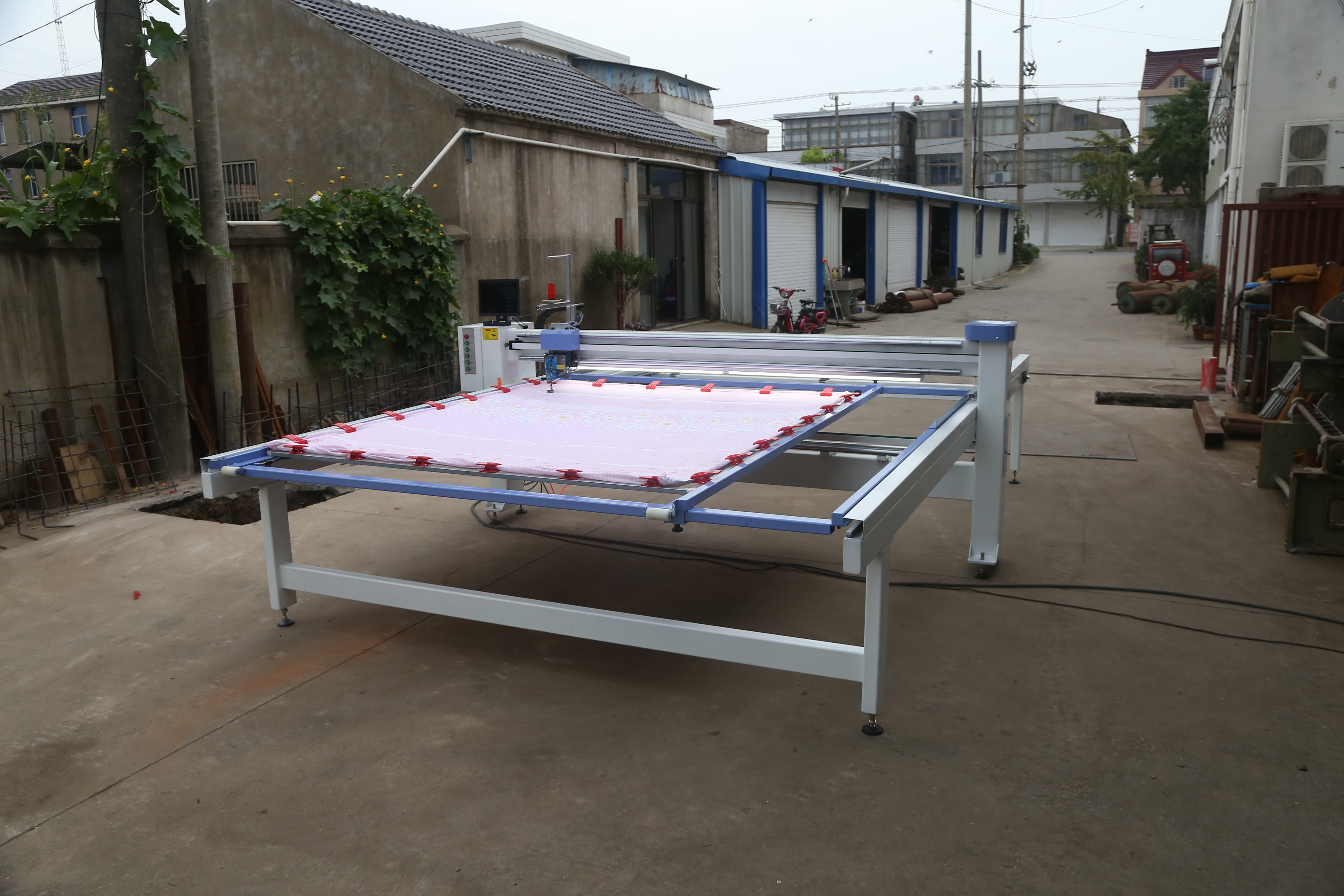

Single Head Quilting Machine Automatic Quilt Making Machine - Quilt Size 2.6*2.8M

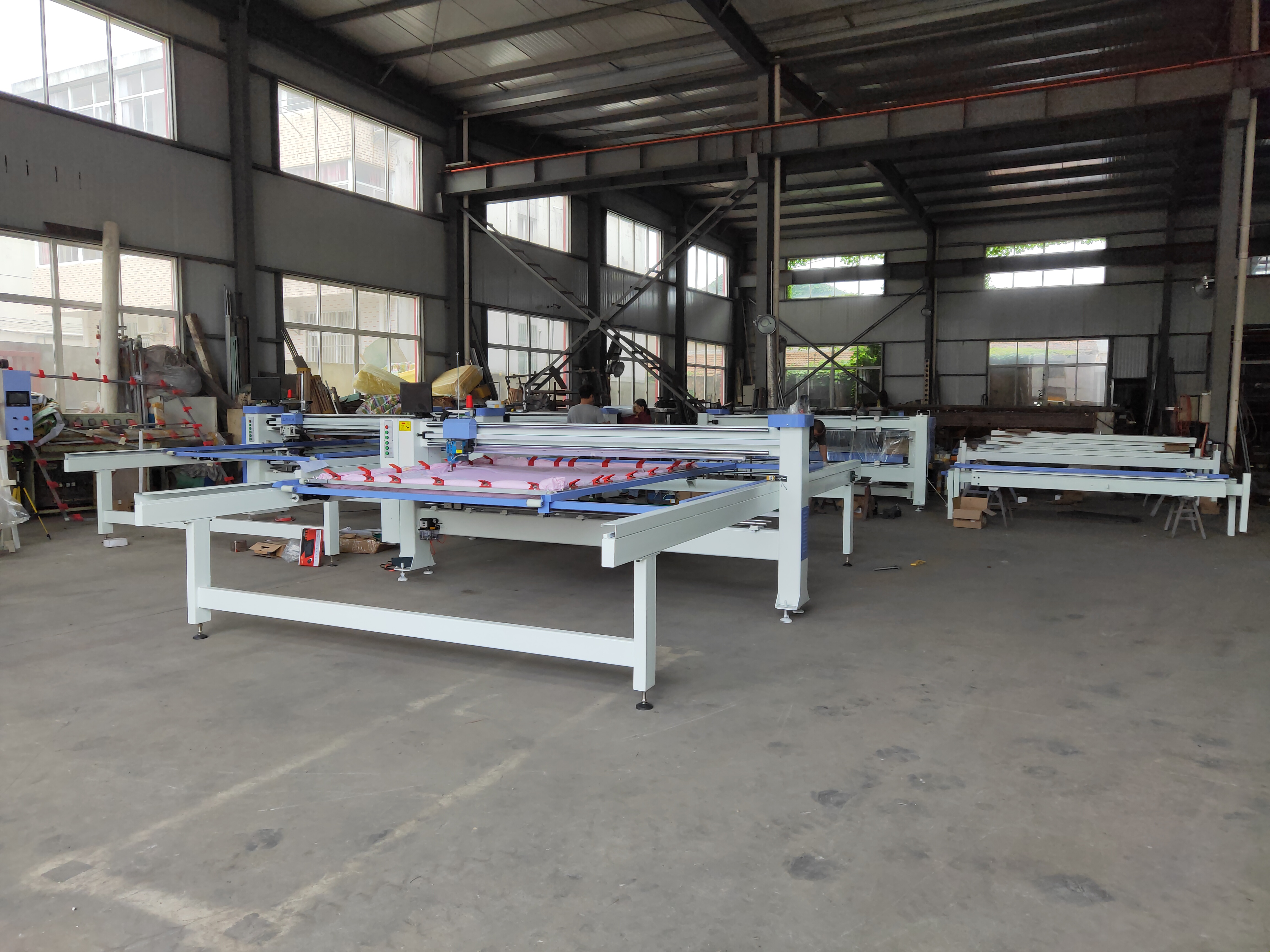

This automatic single-needle quilting machine is designed for making quilts, blankets, duvets, comforters and similar quilted products.

Available configurations include SL-LA (step motor), SL-LA2 (head servo motor) and SL-LA3 (all servo motor). Optional upgrades include lifting head, direct-drive sewing head, automatic thread trimming, automatic lubricating, touch-screen computer, WiFi and remote-control systems.

Max quilt sizes offered: 2.4×2.6 m, 2.6×2.8 m, 2.8×3.0 m and 3.0×3.2 m. Corresponding maximum quilting areas are slightly smaller (e.g., 2.3×2.5 m up to 2.9×3.1 m) depending on model.

Maximum sewing thickness is 7–8 cm.

Standard electrical requirement is single-phase 220V, 50Hz.

The machine uses SINGER MR5 needles in sizes 18–22 (18# to 22#).

Standard operating speed range is 2200–3000 RPM. The machine is built for continuous daily operation at these speeds.

The machine comes equipped with 300+ DST-format patterns and supports DST pattern files for custom designs.

It features a special computer system in English, easy to operate, with options for a touch-screen interface, automatic pattern scanning and automatic pattern adjustment/design.

These features are optional upgrades. Available automated options include automatic thread trimming, automatic lubricating, automatic return-to-origin, lifting head and direct-drive sewing head.

Non-human-damage parts are covered free for one year. The manufacturer provides lifetime online guidance. For full warranty terms, exclusions and claim procedures, contact sales/service.

Machine weight varies by model and size—approximately 700 kg, 750 kg, 800 kg or 850 kg depending on configuration.

Regular maintenance includes cleaning lint and debris, routine lubrication (or using the automatic lubricating option), timely needle replacement, checking belt/tension and following the operator manual. Schedule and intervals depend on usage intensity.

The system is designed to be easy to operate with an English interface and lifetime online guidance is provided. For on-site training or detailed commissioning, contact the supplier to arrange options (may incur extra cost).

Contact the sales department with your required model, desired options (motor type, automatic features, touch screen, WiFi, etc.), destination and quantity. They will provide pricing, lead times, shipping terms, minimum order quantity and customization possibilities.
