SIEG De4-Pro IKC4-Pro Mini CNC Lathe 808D 8 Station ATC Bench CNC Lathe for Education Machine Fablab Equipment

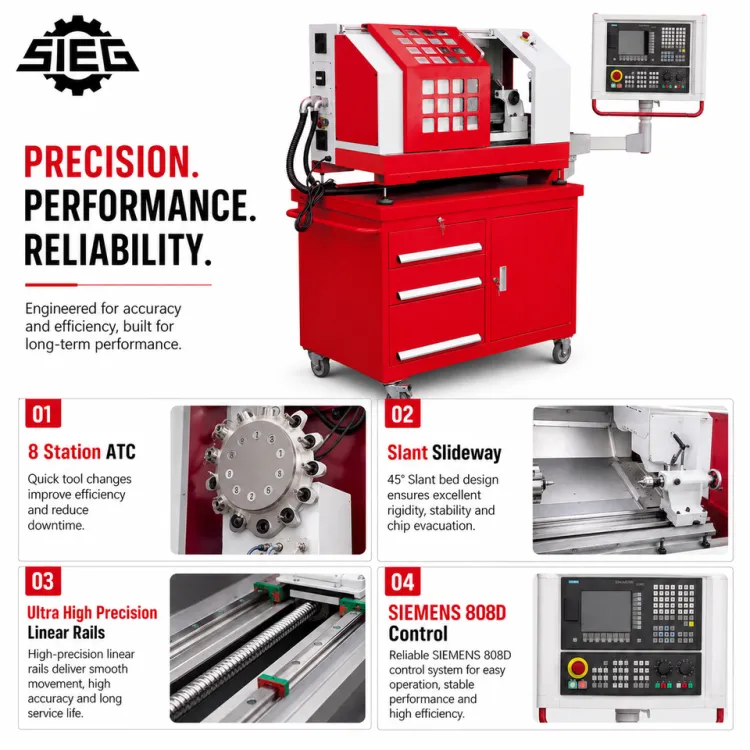

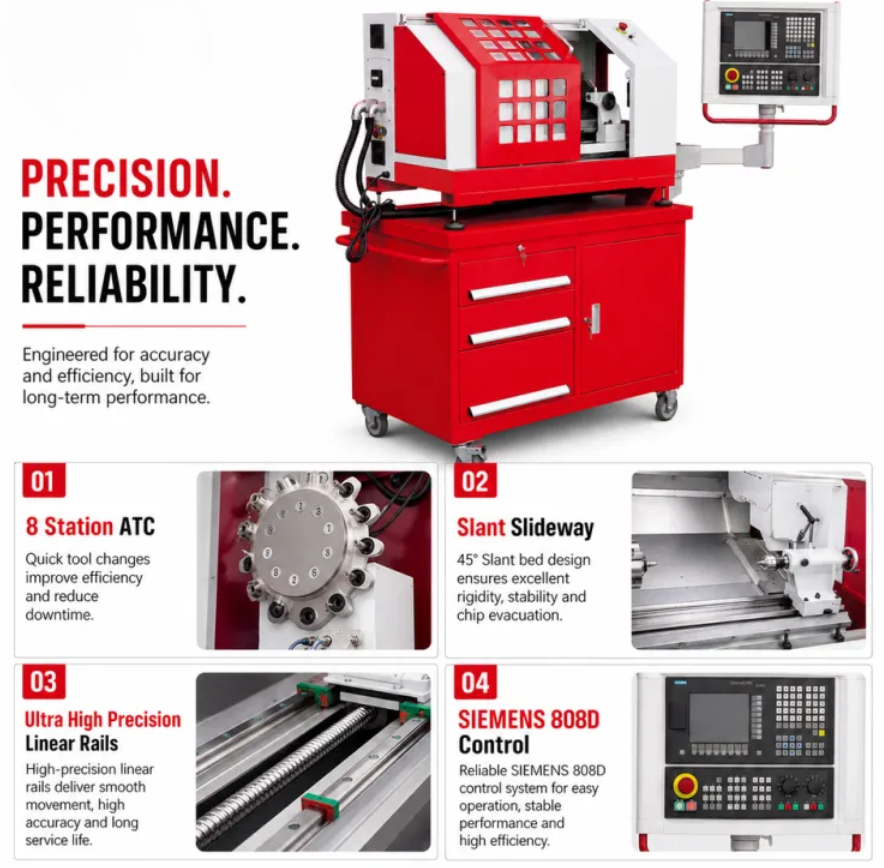

The SIEG De4-Pro IKC4-Pro Mini CNC Lathe is a powerful and precise machine. It is perfect for schools, labs, and small workshops. This bench CNC lathe uses a SIEMENS 808D control system. It has an 8 station ATC for fast tool changes. The slant slideway and ultra high precision linear rails help you make parts with great accuracy. You can use it to teach students or make small parts. It works with 110 V, 220 V, or 380 V power.

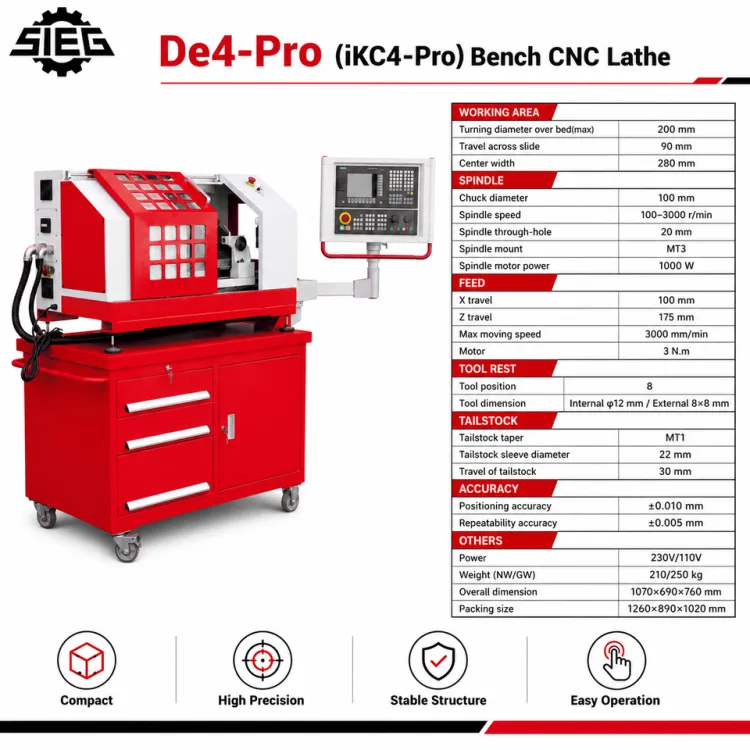

Specifications
| Attribute | Details |
|---|---|
| Product Name | SIEG De4-Pro IKC4-Pro Mini CNC Lathe |
| Type | Bench CNC Lathe |
| CNC Control System | SIEMENS 808D |
| Number of Axes | 2 |
| Number of Spindles | 1 |
| Tool Post Stations | 8 Station ATC |
| Max. Length of Workpiece | 280 mm |
| Max. Weight of Workpiece | 5 kg |
| Travel (X Axis) | 100 mm |
| Travel (Z Axis) | 175 mm |
| Width of Bed | 210 mm |
| Range of Spindle Speed | 100 - 3000 rpm |
| Positioning Accuracy | ±0.015 mm |
| Repeatability (X/Y/Z) | ±0.01 mm |
| Cutting Torque | 3 Nm |
| Spindle Through-hole | 20 mm |
| Slideway Structure | Slant Slideway Linear Guide |
| Chuck Diameter | 100 mm |
| Spindle Mount | MT3 |
| Machining Capacity | Medium Duty |
| Voltage | 110 V, 220 V, 380 V |
| Dimension (L*W*H) | 1070*690*760 mm |
| Weight | 210 kg |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
