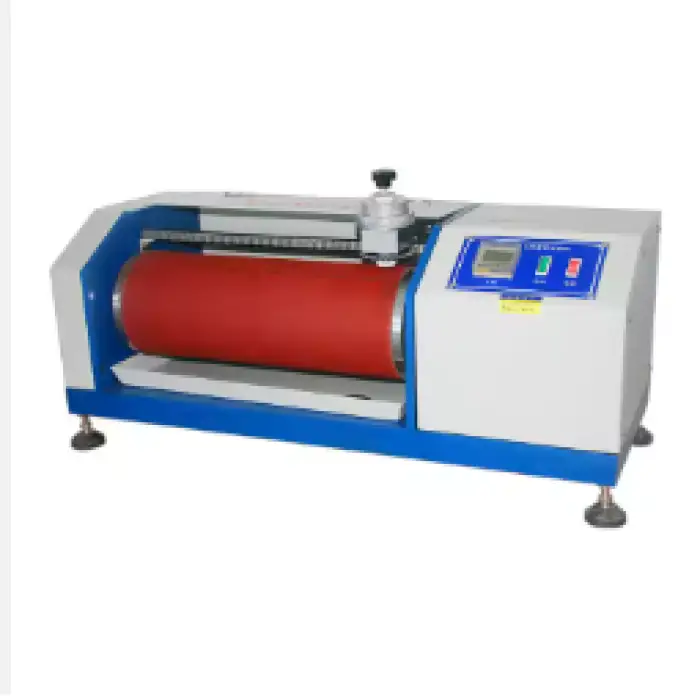

The Shoe Abrasion Tester is designed to measure the wear resistance of materials, helping manufacturers assess the durability of products like shoes and belts.
The tester can evaluate various materials including rubber, leather, and synthetic options.
It applies a specific load to the material while a wear wheel rotates against it, measuring how much material is worn away over a set distance.
The specimen load for the Shoe Abrasion Tester is 10N ± 0.2N.
The tester offers testing loads of 2.5N and 7.5N.
The specimen should have a diameter of 16mm and a thickness of at least 6mm.
The wear wheel rotates at a speed of 40 ± 1 RPM.
The emery cloth specification is 60 #, measuring 425 ± 473 ± 1.5 mm.
The testing length is 40M, which is approximately 84 rotations.
The test arm weight is 250 ± 5 grams.
The Shoe Abrasion Tester operates on a power supply of 220V 50HZ with a drive power of 40W; 1/30.
The machine dimensions are 600 ± 330 ± 420 mm, and it weighs 75 kg.
Yes, it features simple controls that make it easy to operate for quick and efficient testing.
It is primarily used in the shoe industry for leather performance testing, as well as in quality control for clothing and luggage manufacturing.
Yes, it is suitable for research laboratories conducting material studies and testing for commodity inspection and technical supervision.
