The Sheet Metal Uncoiler 3 in 1 Decoiler Straightener Feeder Machine is an essential tool for metal processing. This machine combines three functions: decoiling, straightening, and feeding. It offers high-quality performance, making it ideal for various metalworking tas...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

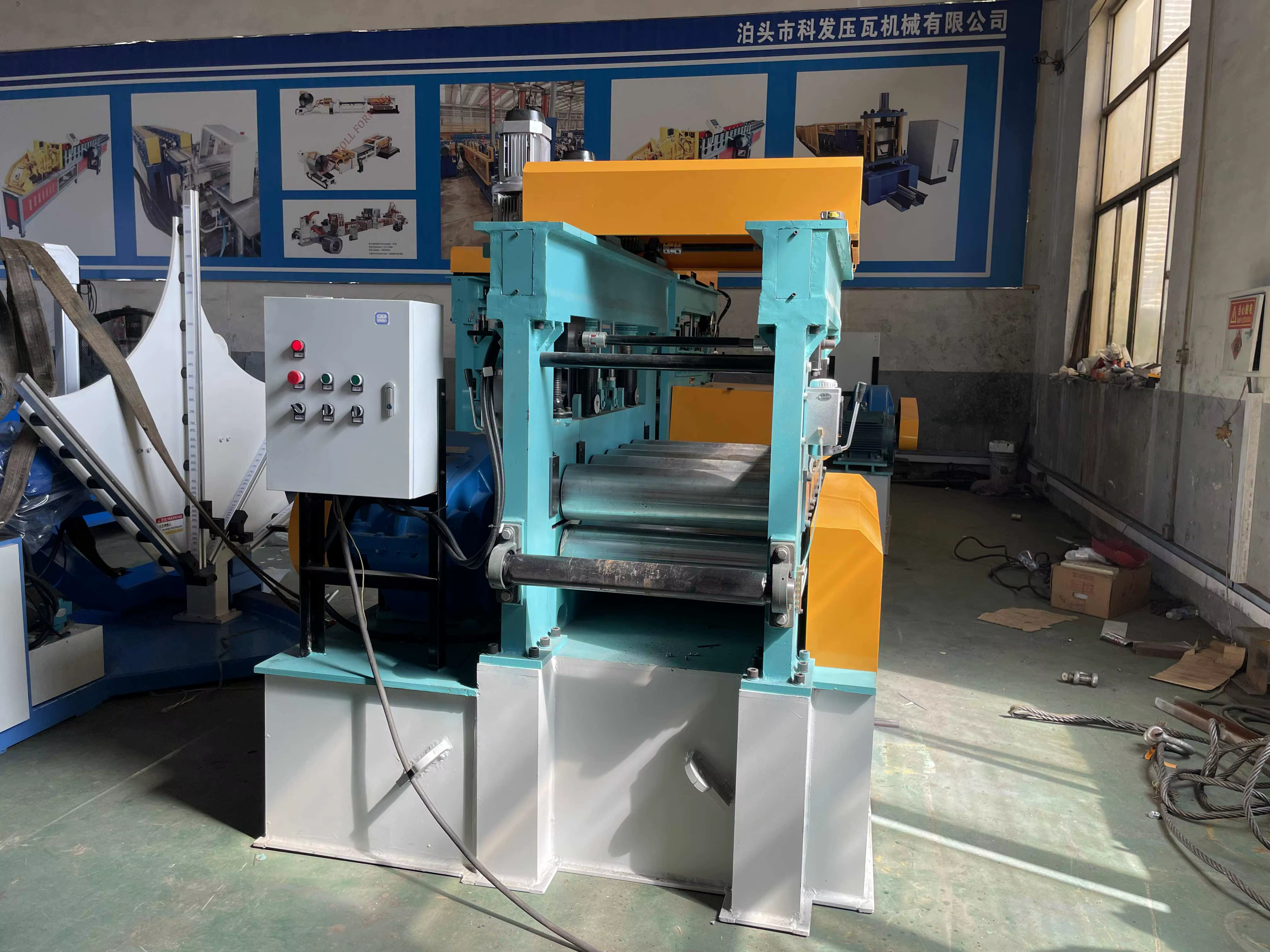

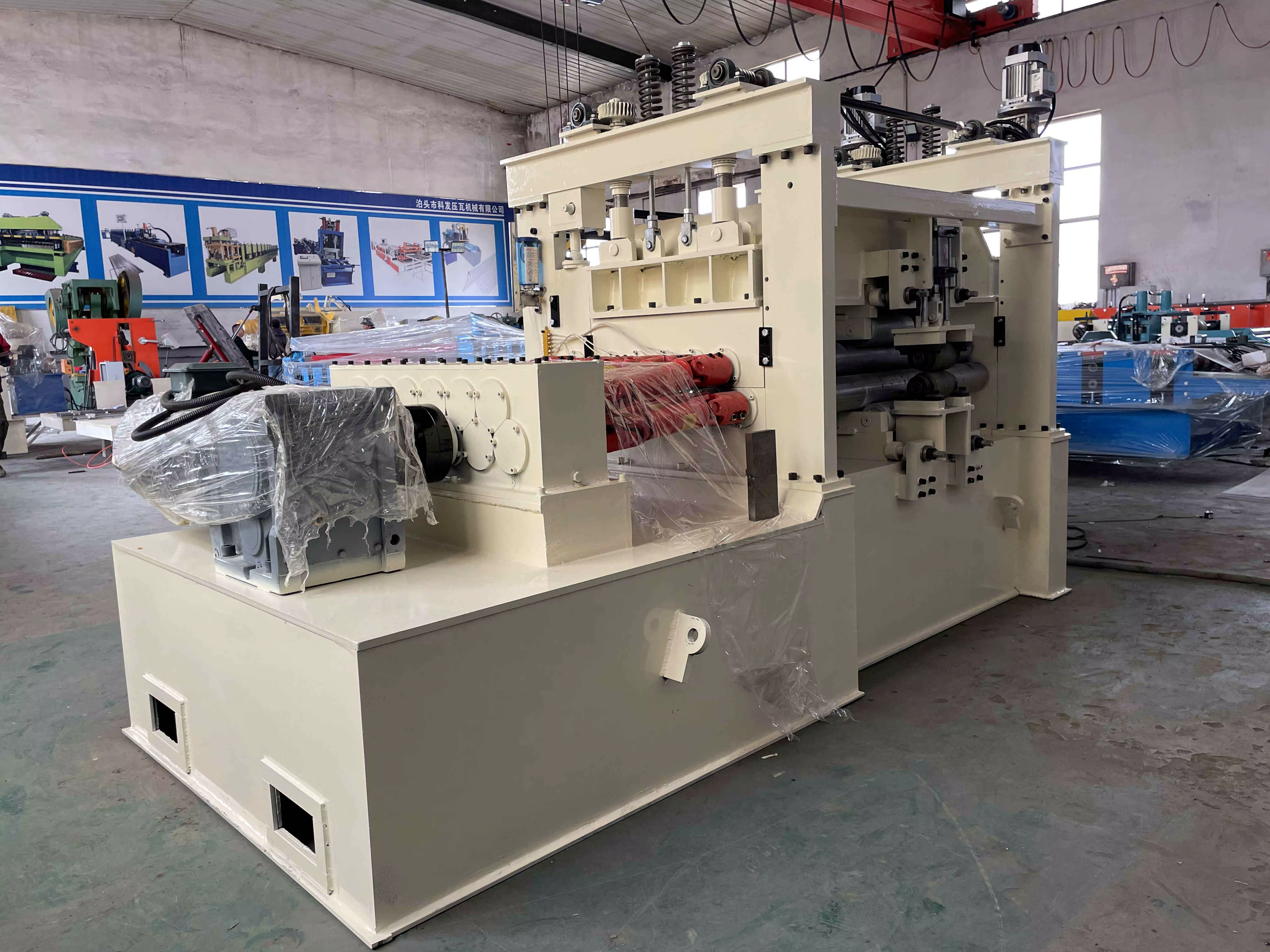

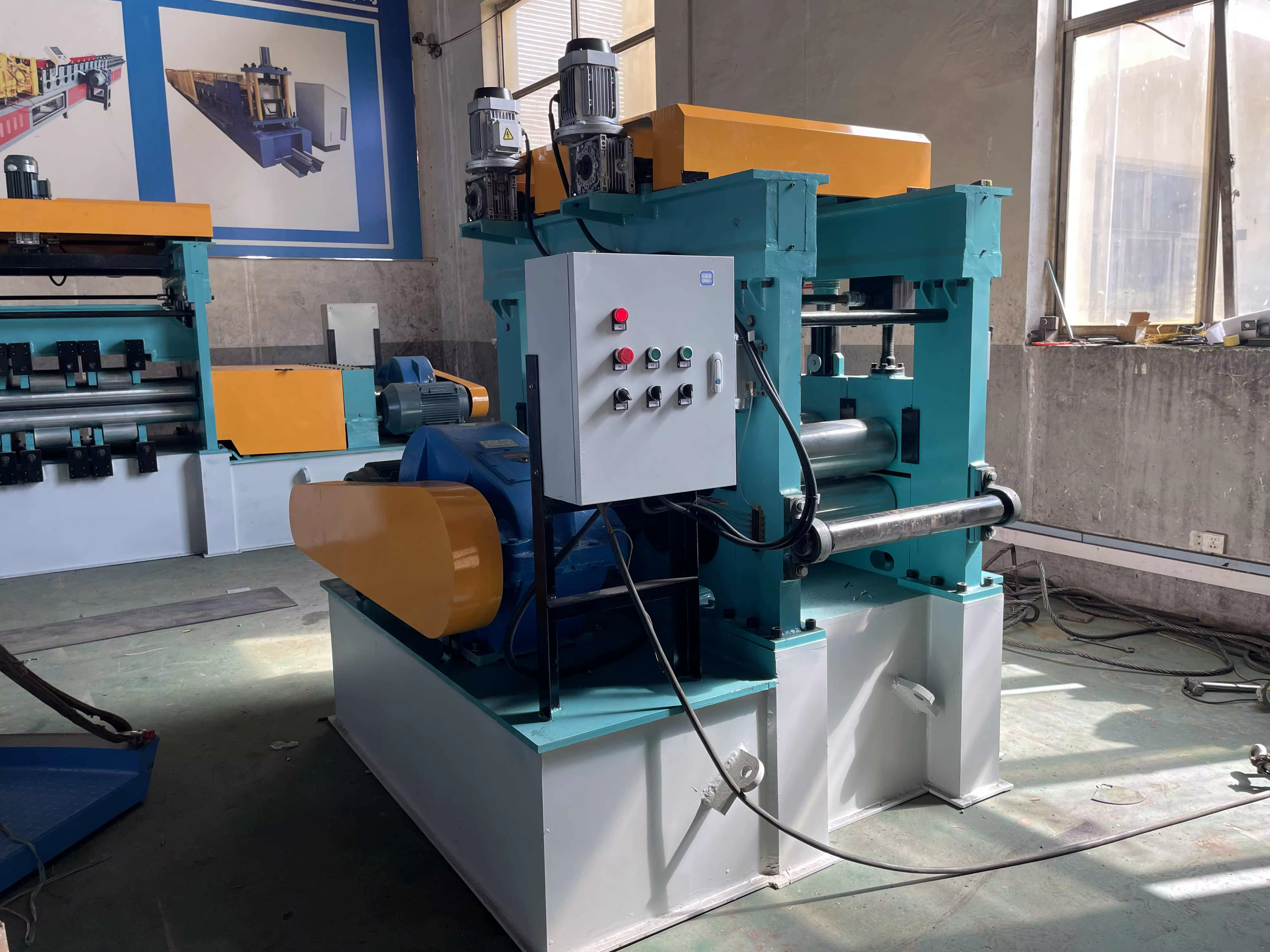

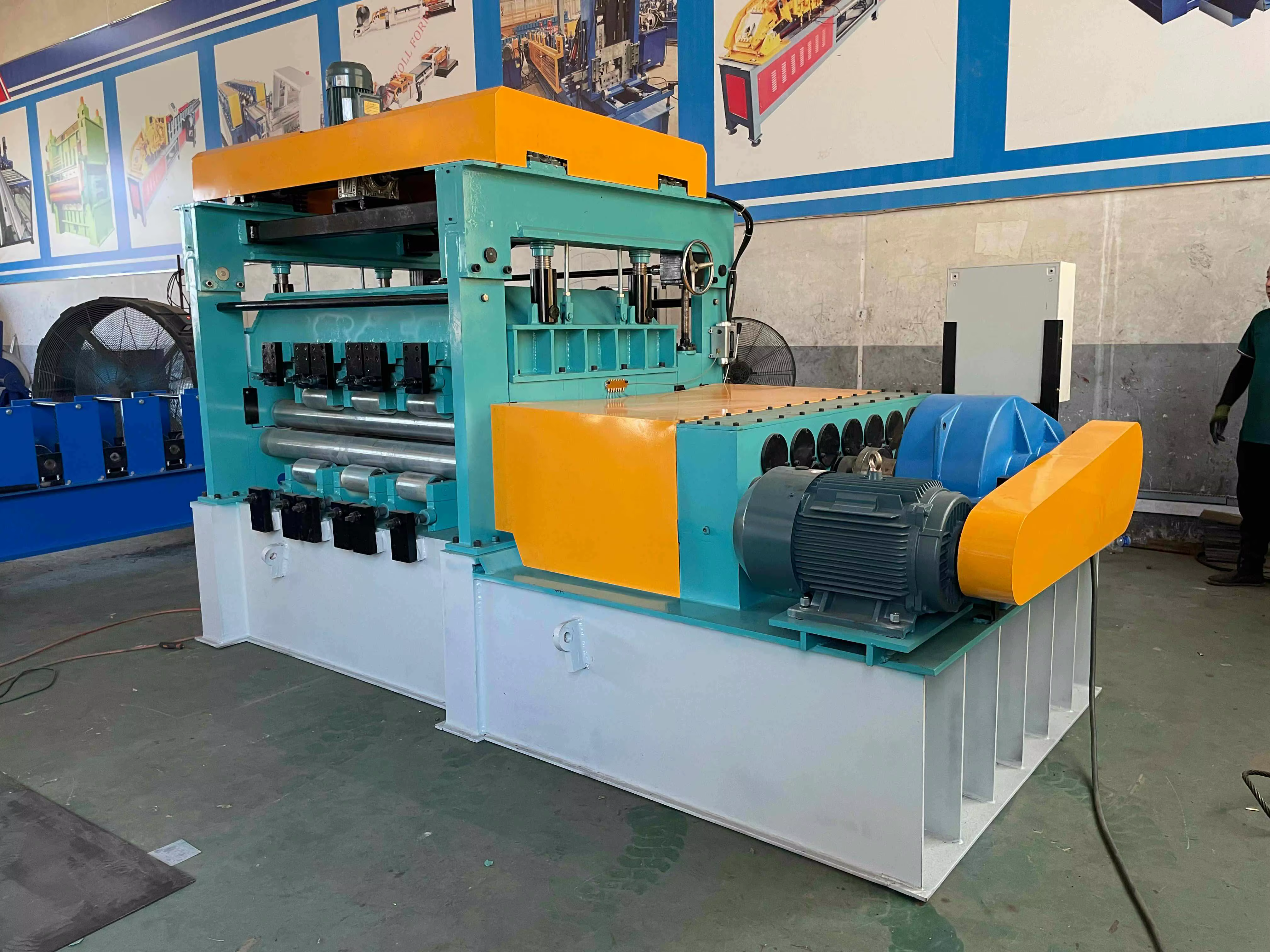

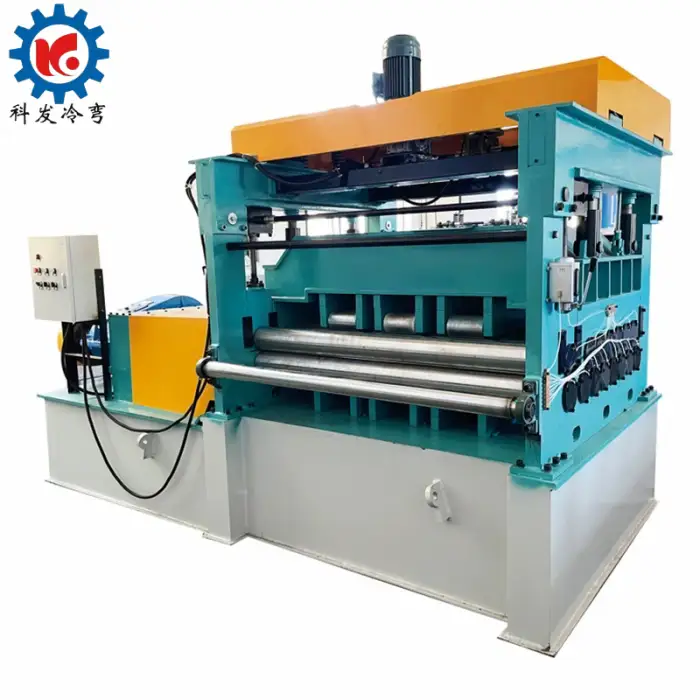

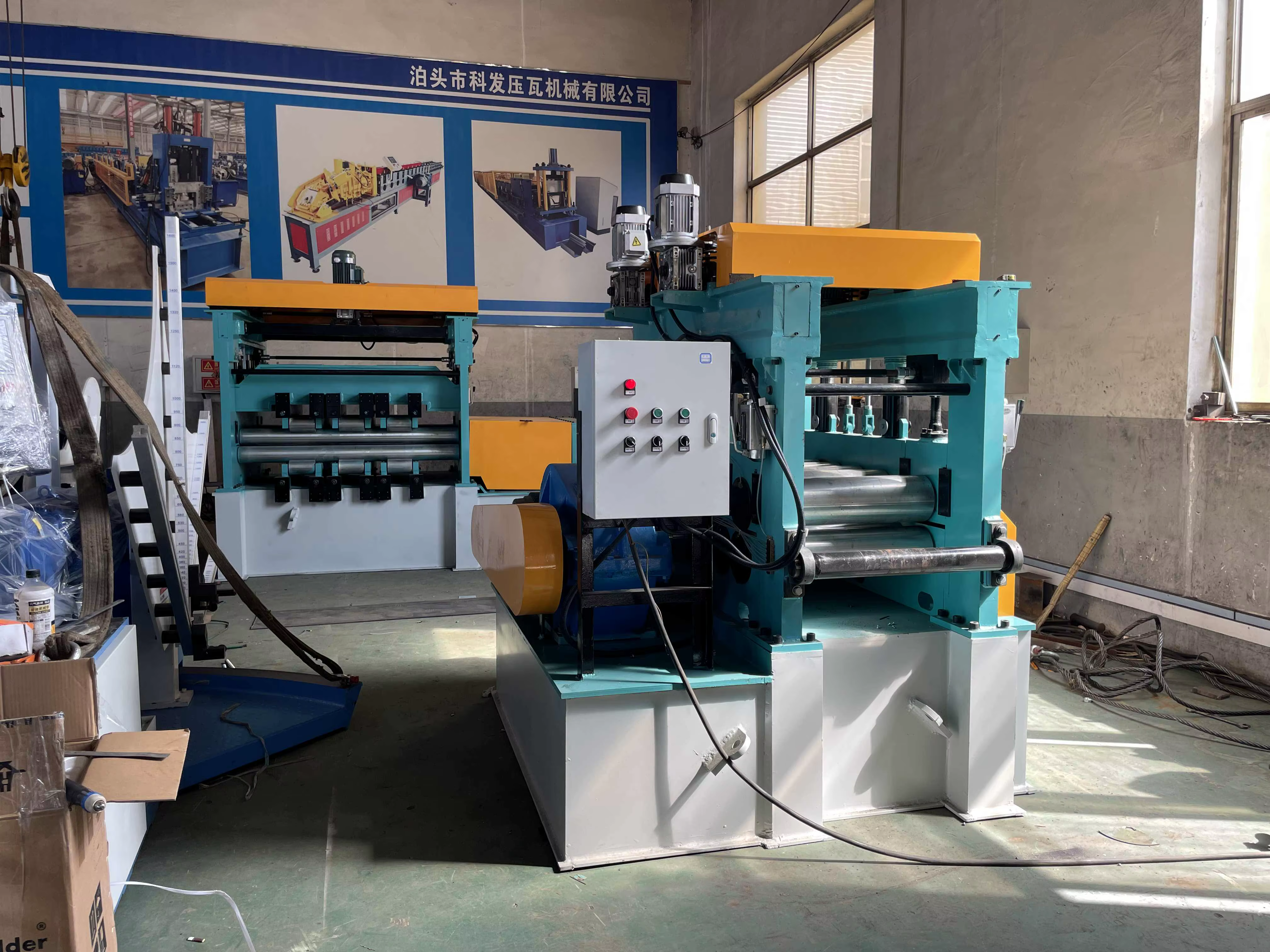

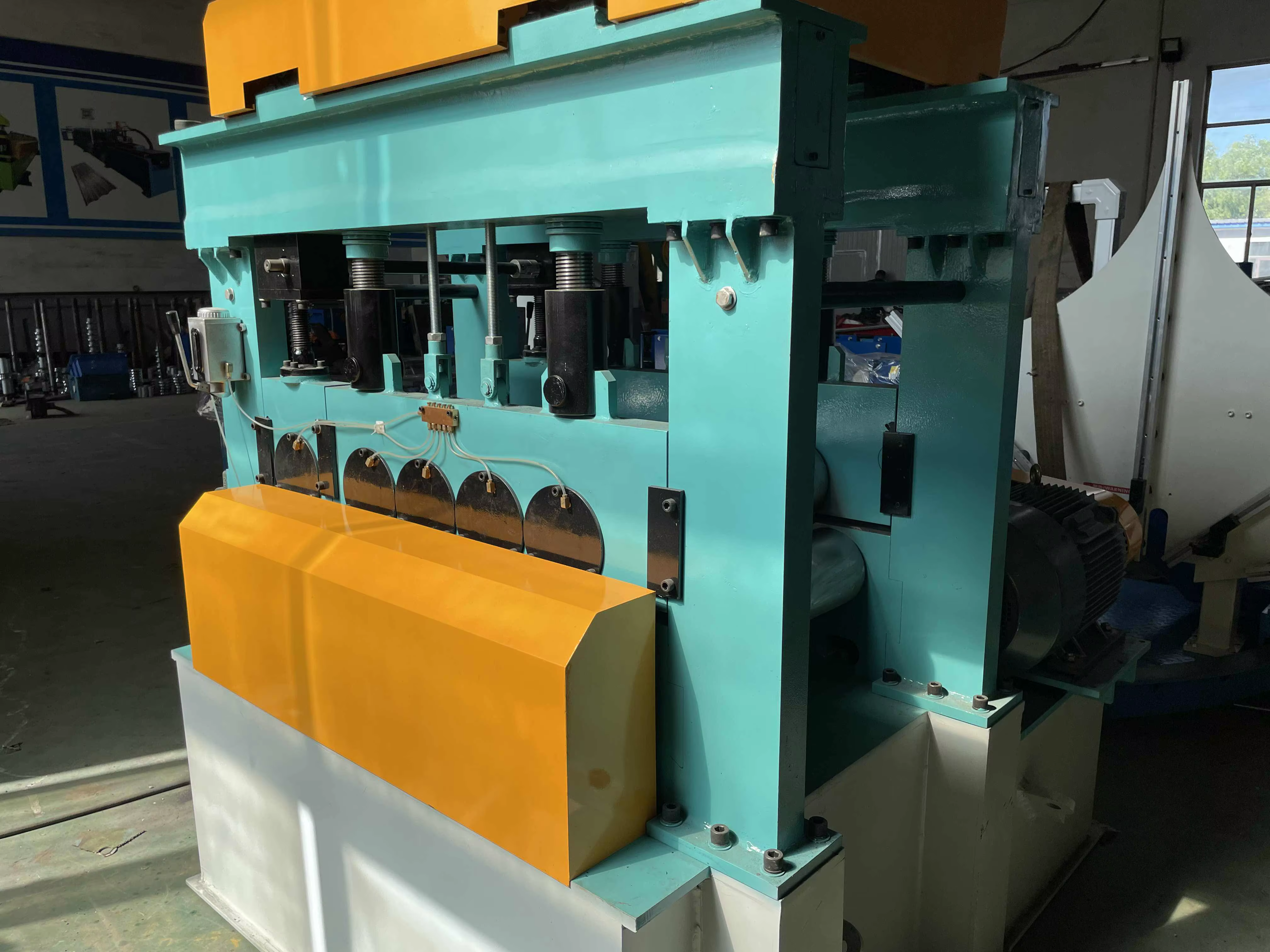

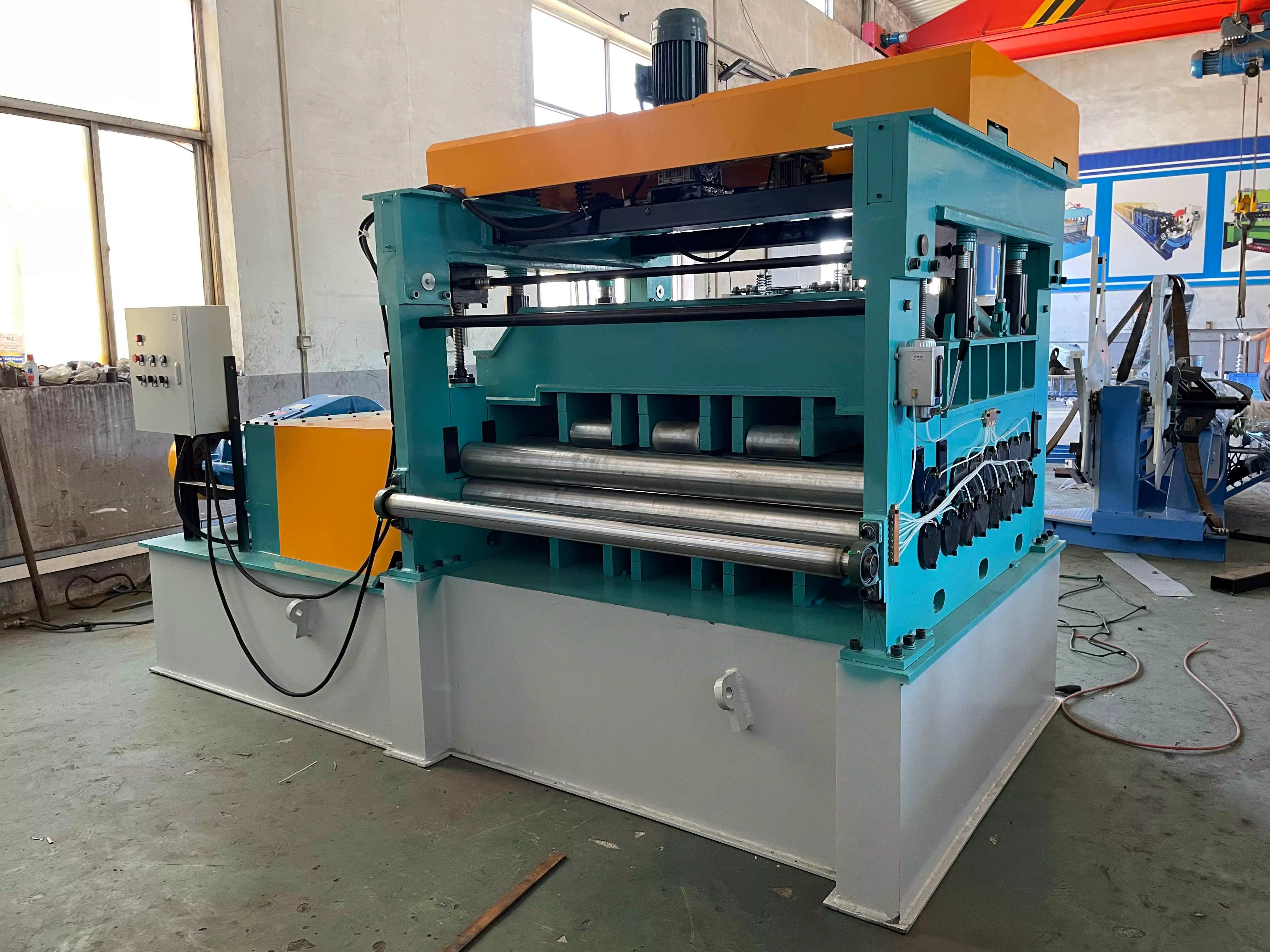

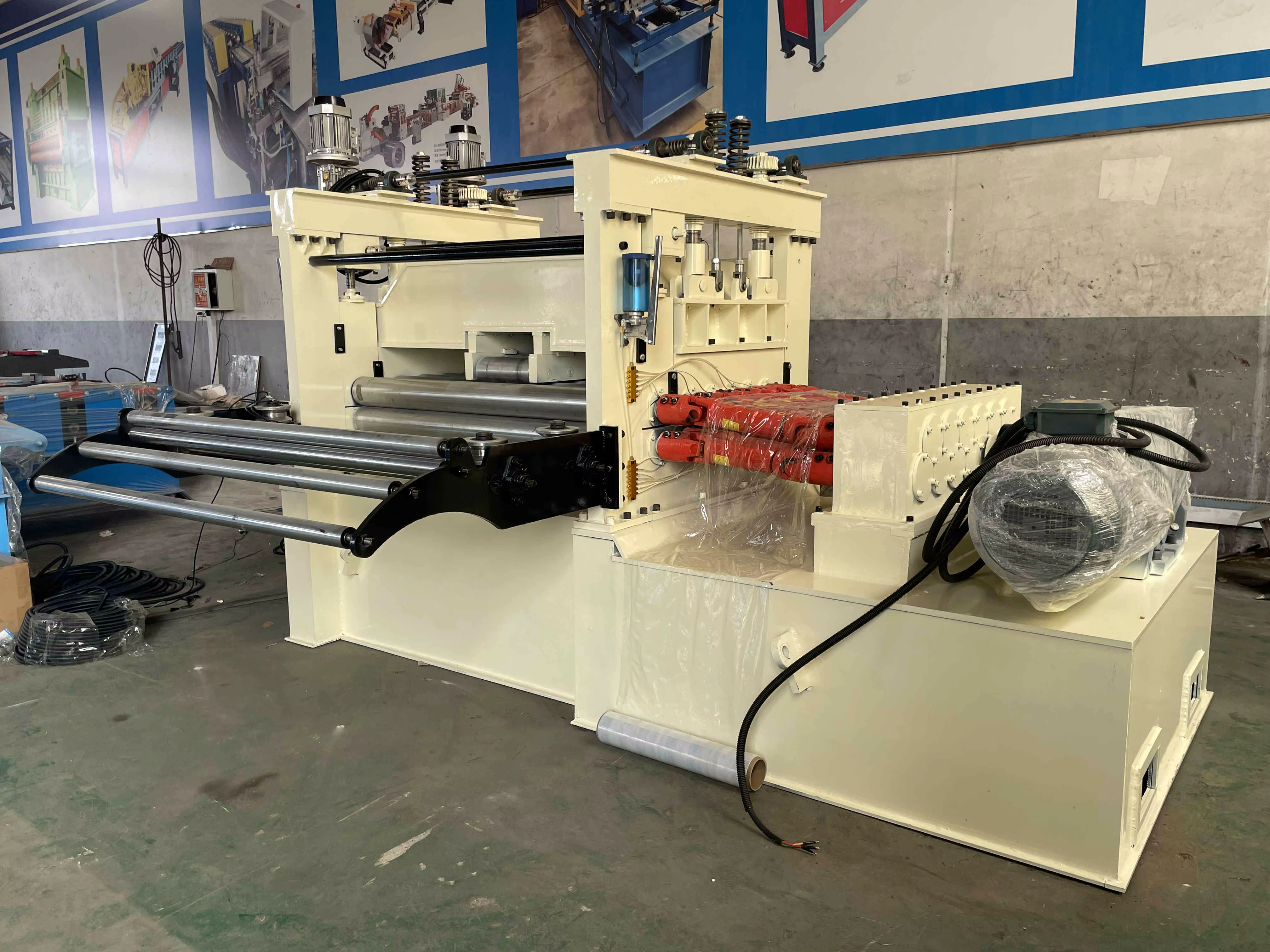

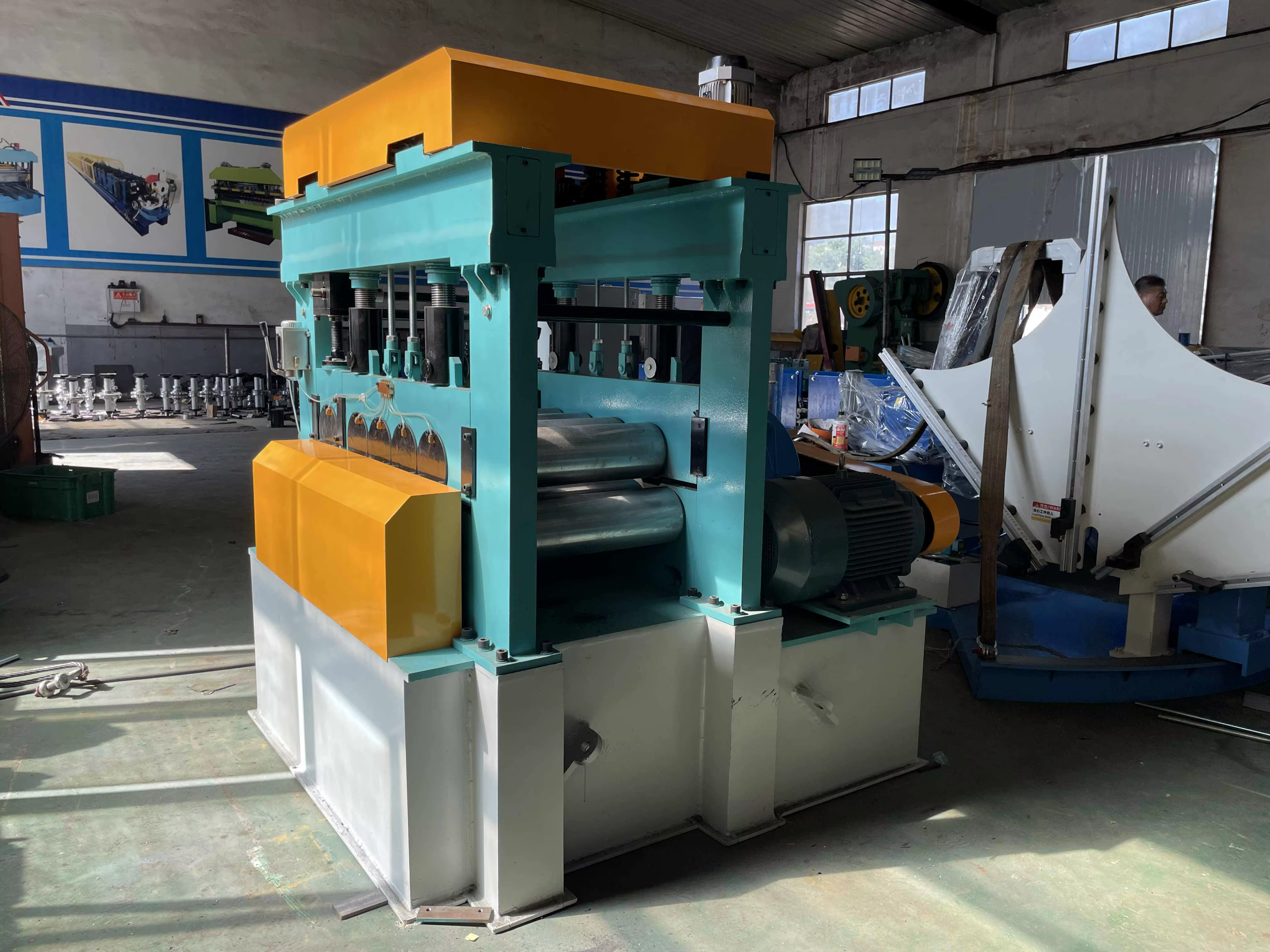

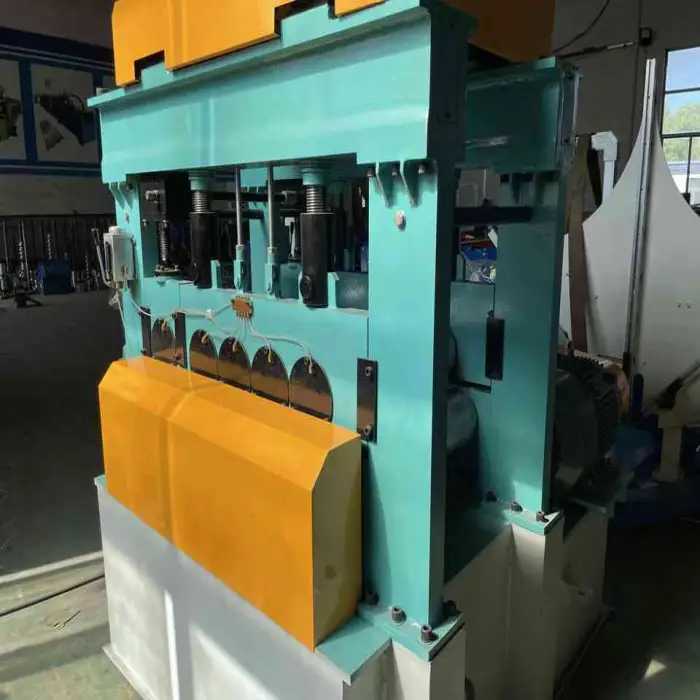

The Sheet Metal Uncoiler 3 in 1 Decoiler Straightener Feeder Machine is an essential tool for metal processing. This machine combines three functions: decoiling, straightening, and feeding. It offers high-quality performance, making it ideal for various metalworking tasks. With its advanced technology, it improves efficiency and accuracy in your operations.
| Attribute | Details |
|---|---|
| Leveling accuracy | ≤1mm/m² |
| Leveling speed | 8m/min |
| Number of work rolls | 11 (bar) with counter rolls |
| Plate yield limit | 235MPa |
| Flat width | ≤1550mm |
| Plate thickness | 6mm |
| Power | 15KW |
| Voltage | 380V |
| Weight | 18000kg |
| Warranty | 1.5 Years |
| Item | Parameter | Unit | Remark |
| Max straightening width | 2000 | mm | Q235(HRC,HR1,SPHC) |
| Max straightening speed | 25 | m/min | / |
| Straightening roll diameter | 165 | mm | / |

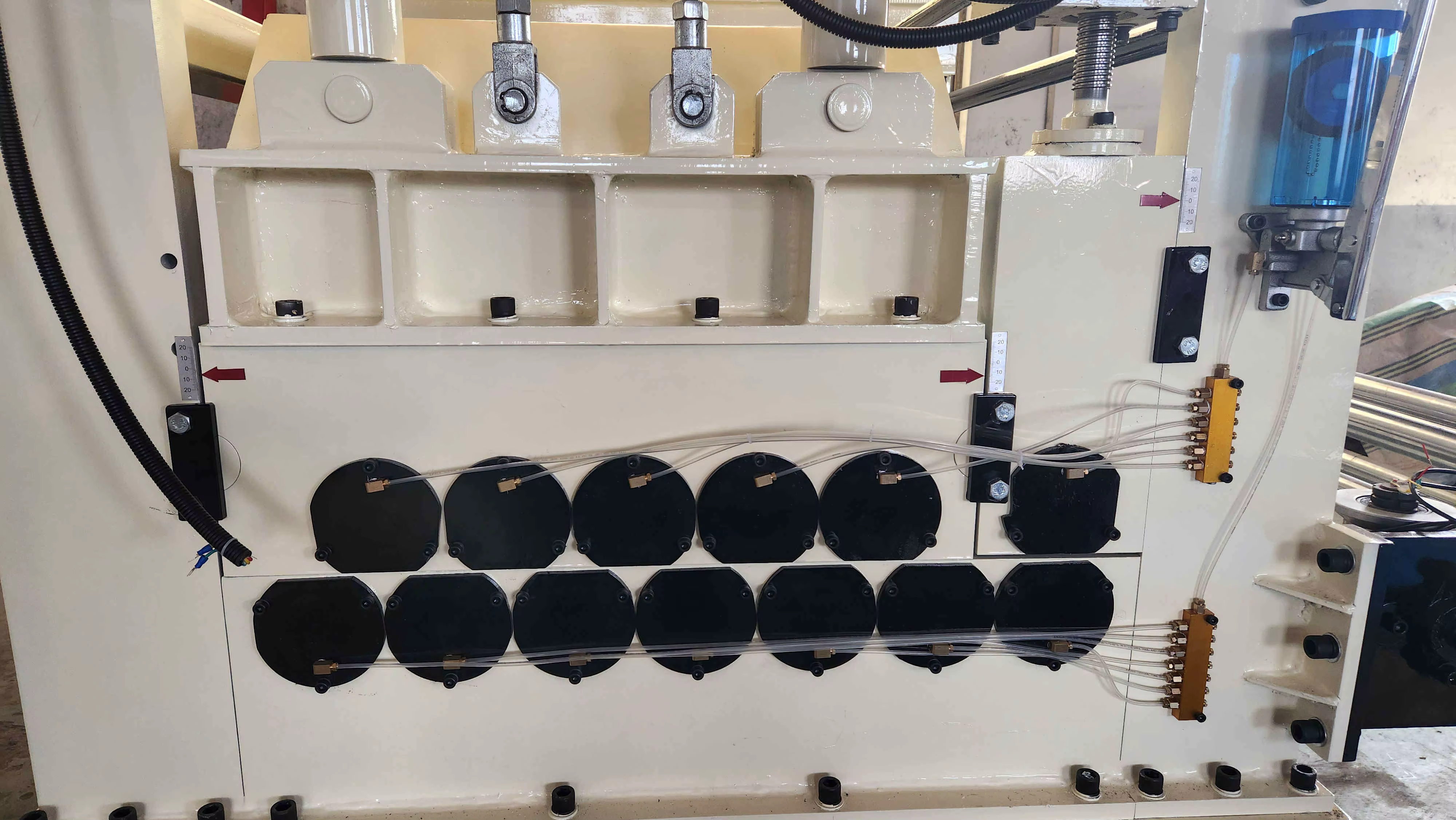

| Straightening roll number | 13 | PCS | Feeder roller 2 pcs, straightening roller 11 pcs |
| Straightening precision | ±1 | mm/m² | / |
| Roller distance | 185 | mm | / |
| Max roller stroke | -16+30mm | / | / |
| Working roll material | 42CrmoV | / | / |
| Working roll treatment | Tempering, quenching | / | Grinding after surface quenching |
| Lubrication | Auto | / | Oil supply |

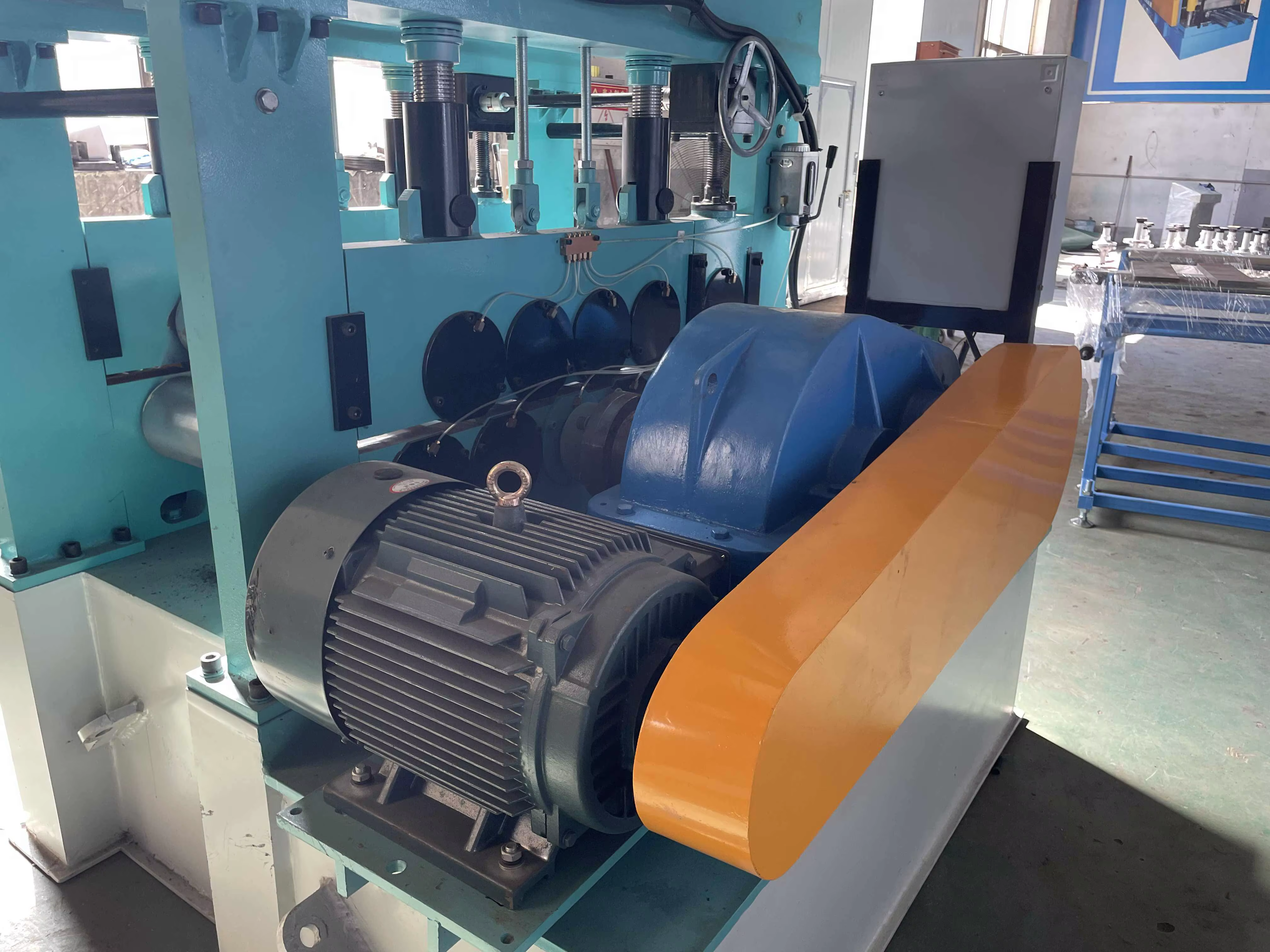

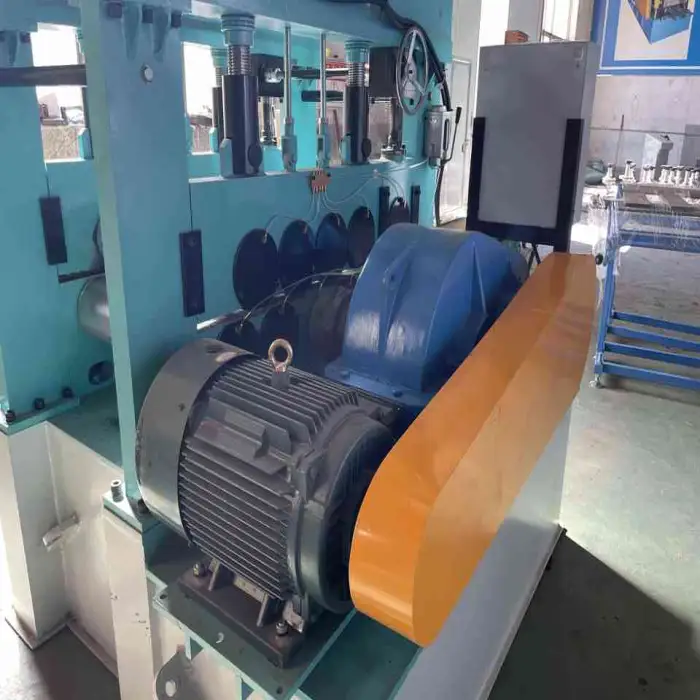

| Main motor | 55 | KW | AC |
| Machine weight | 18 | Ton | / |
| Leveling accuracy | ≤1mm/m² |
|---|---|
| Leveling speed | 8m/min |
| Number of work rolls | 11 (bar) with counter rolls |
| Plate yield limit | 235MPa |
| Flat width | ≤1550mm |
| Plate thickness | 6mm |
| Power | 15KW |
| Voltage | 380V |
| Weight | 18000kg |
| Warranty | 1.5 Years |
| The Sheet Metal Uncoiler 3 in 1 Decoiler Straightener Feeder Machine is an essential tool for metal processing. This machine combines three functions | decoiling, straightening, and feeding. It offers high-quality performance, making it ideal for various metalworking tasks. With its advanced technology, it improves efficiency and accuracy in your operations. |
The primary function of the Sheet Metal Uncoiler 3 in 1 machine is to decoile, straighten, and feed sheet metal, making it an essential tool for various metal processing tasks.
The leveling accuracy of the Sheet Metal Uncoiler 3 in 1 machine is ≤1mm/m².
The machine can handle a maximum flat width of ≤1550mm.
The machine can process plates with a thickness of up to 6mm.
The machine requires a power supply of 15KW and operates at a voltage of 380V.
The machine weighs approximately 18000kg.
The Sheet Metal Uncoiler 3 in 1 machine comes with a warranty period of 1.5 years.
This machine is ideal for metal fabrication shops, automotive parts manufacturing, construction material processing, home appliance production, and metal sheet forming industries.
The leveling speed of the Sheet Metal Uncoiler 3 in 1 machine is 8m/min.

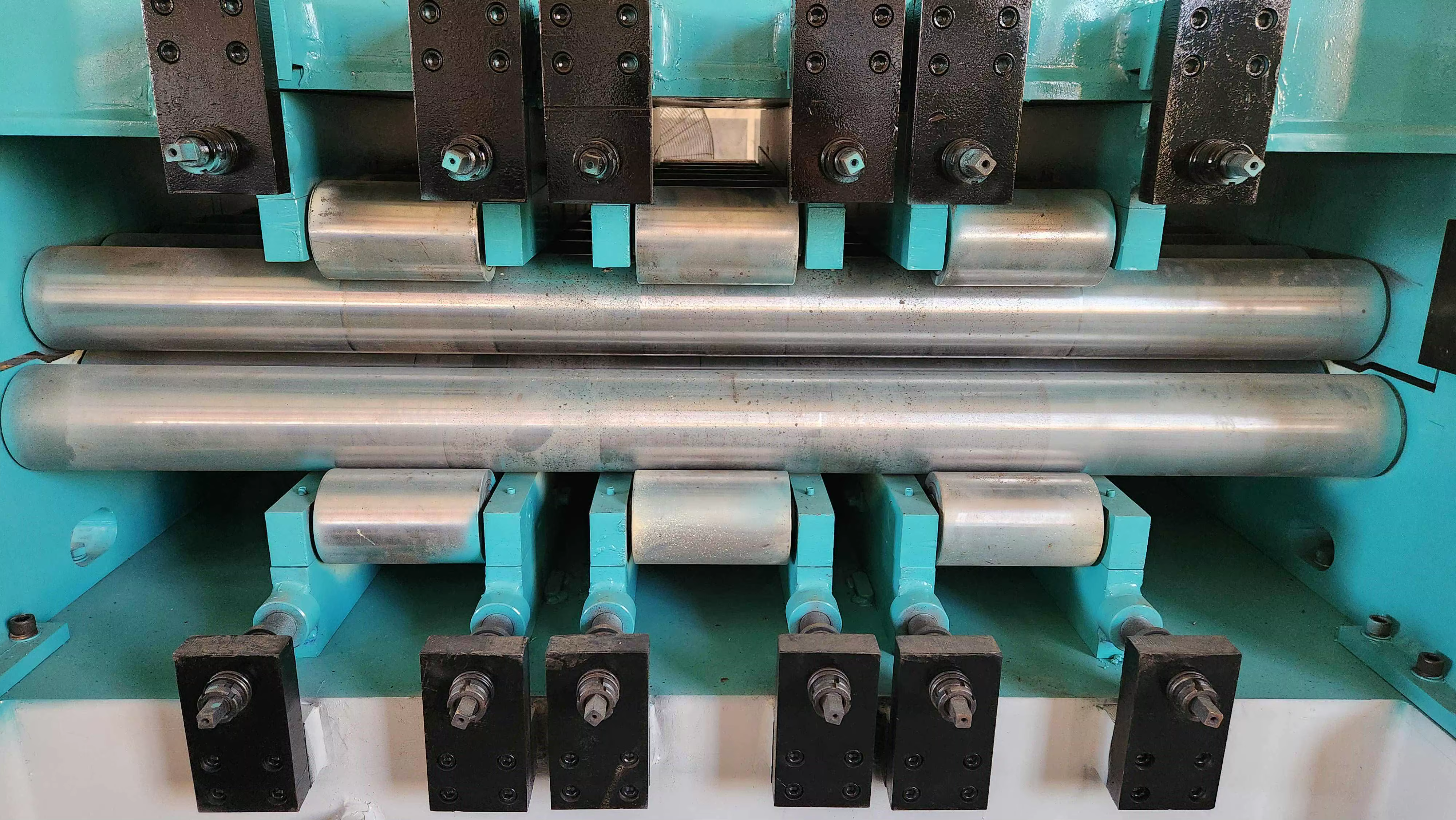

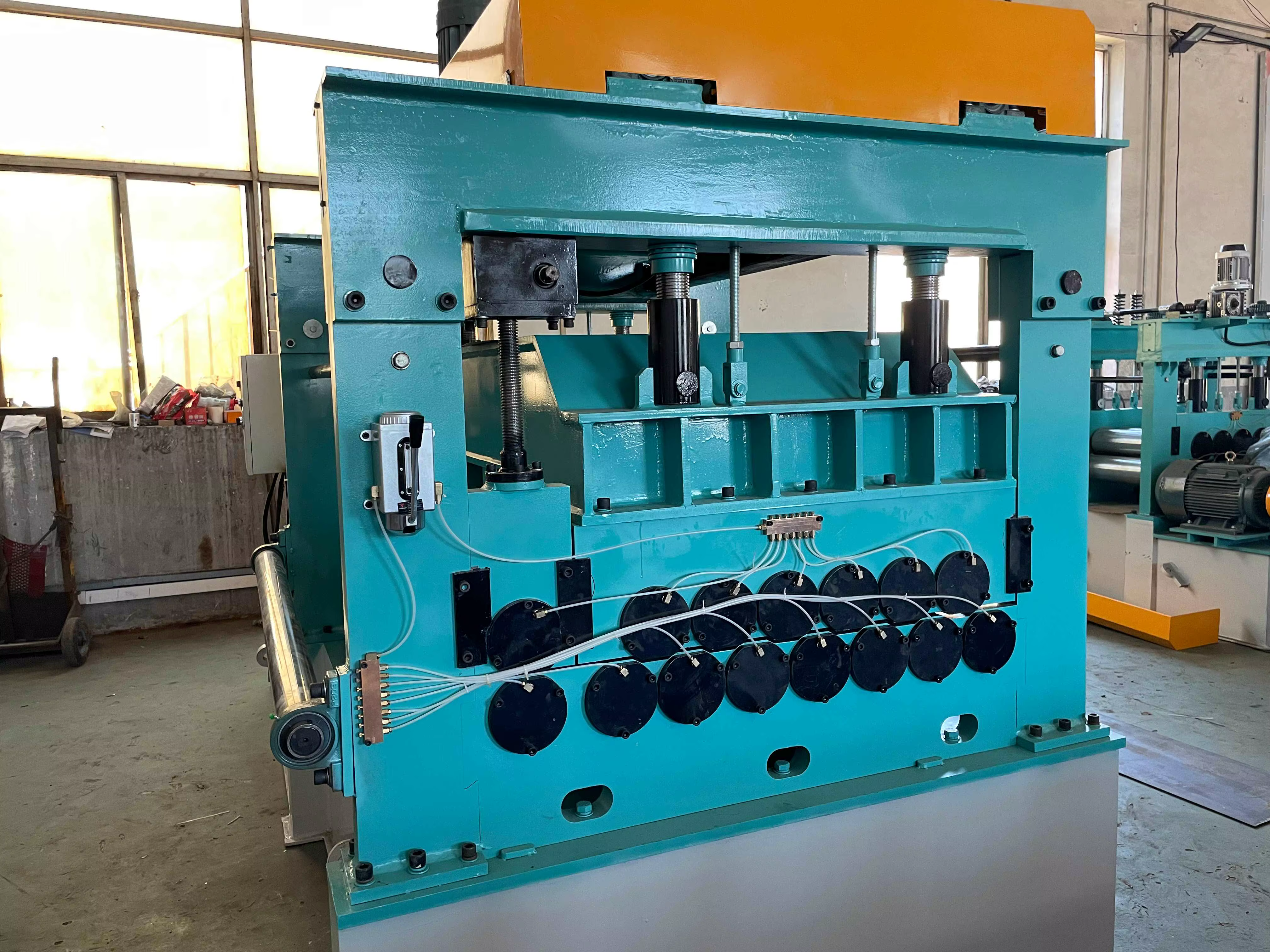

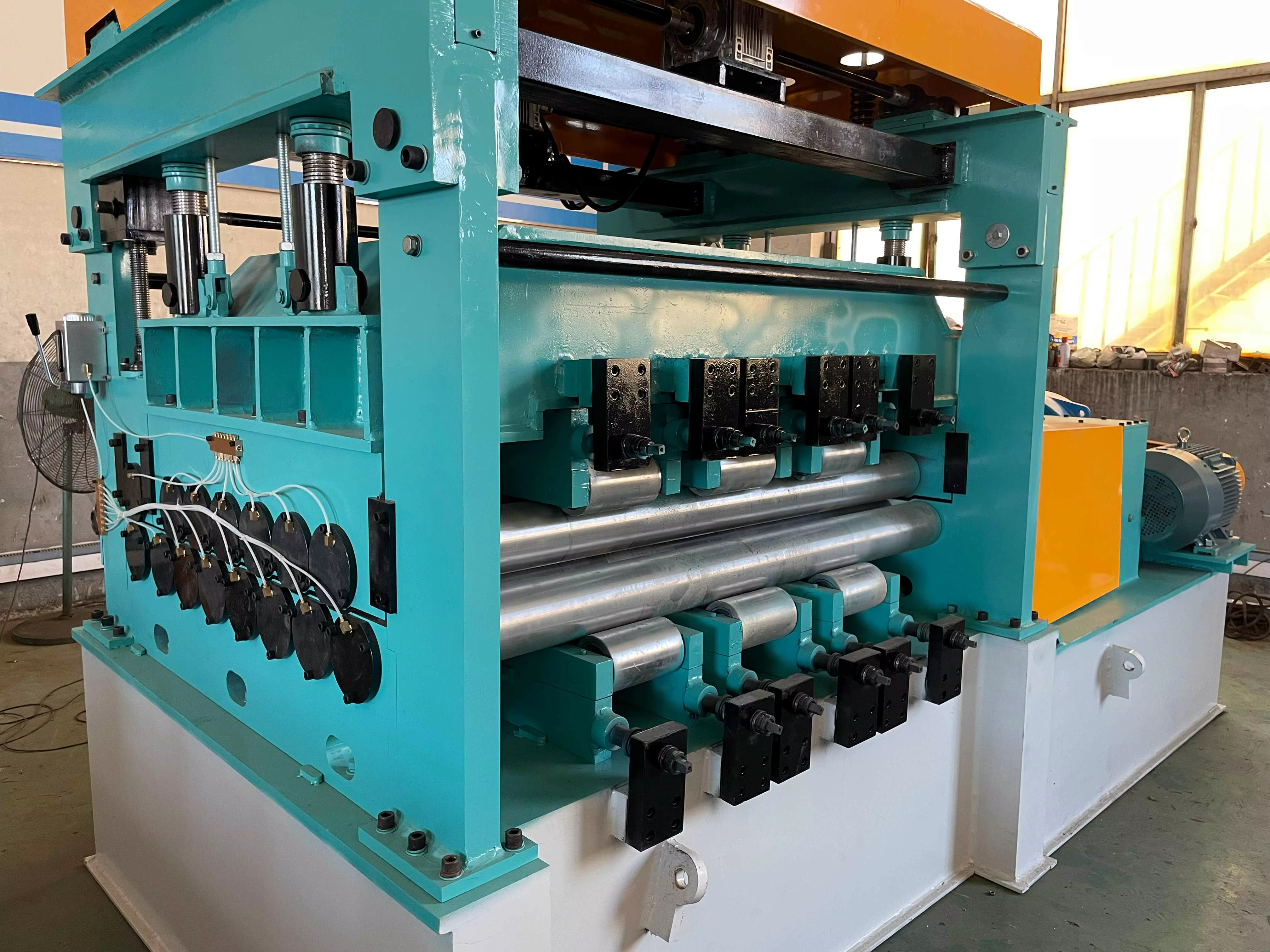

The machine features 11 work rolls (bar) along with counter rolls.
The plate yield limit for the machine is 235MPa.
Yes, the Sheet Metal Uncoiler 3 in 1 machine is designed to be easy to operate, enhancing usability for operators.
Yes, the machine comes with a comprehensive machinery test report to ensure quality and performance.
Absolutely! The machine is suitable for use in home appliance production as well as other metalworking applications.
The advanced technology of the Sheet Metal Uncoiler 3 in 1 machine enhances efficiency and accuracy in metal processing operations.
