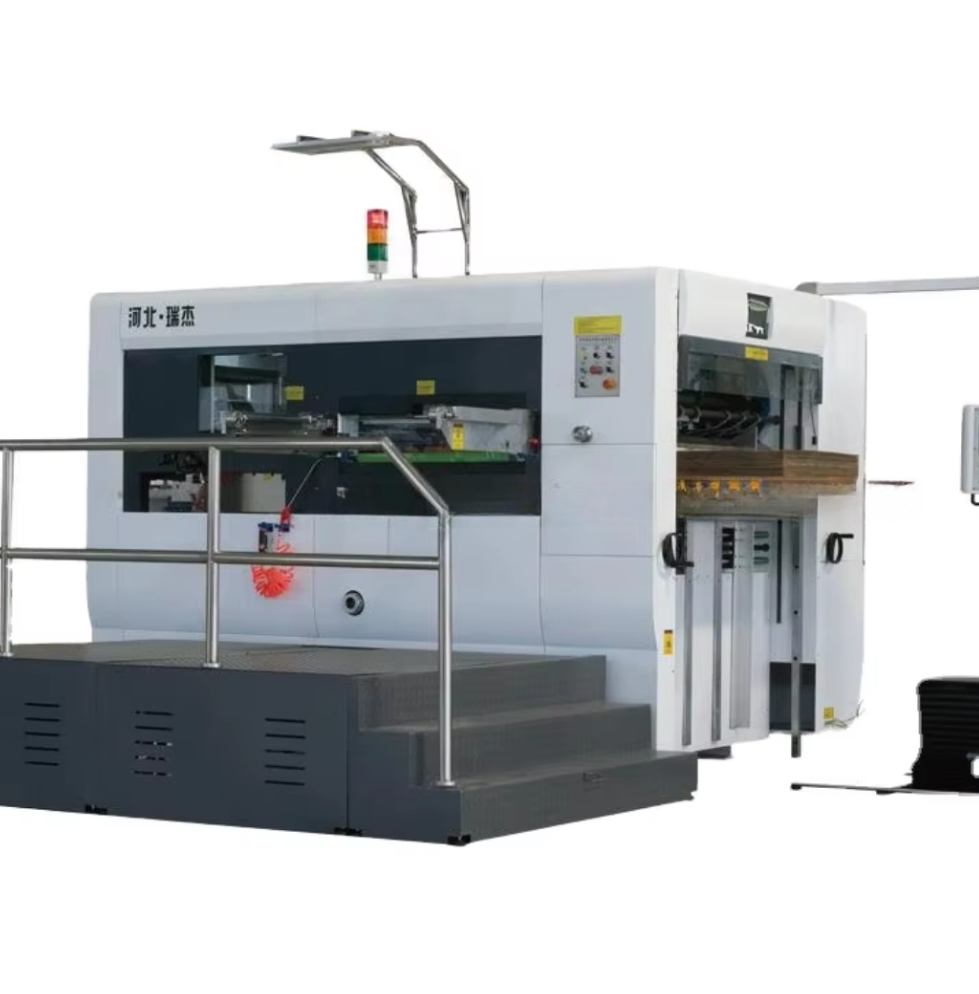

Semi-Automatic Die Cutting Machine (Model D-1300)

Semi-Automatic Die Cutting Machine (Model D-1300)

The Semi-Automatic Die Cutting Machine (D-1300) is a high-performance industrial solution engineered for precision die cutting of corrugated board, white board, and other packaging materials. Designed for demanding production environments, it delivers accurate cutting, reliable operation, and high output while maintaining consistent quality across every production run. Its heavy-duty construction, advanced feeding system, and precision die-cutting mechanism make it ideal for carton manufacturers, packaging converters, and commercial print finishing operations.

Key Features

• High-precision die cutting for consistent and accurate finished products.
• Heavy-duty cast iron frame designed for long-term durability and stable operation.
• High-pressure die-cutting system suitable for thick paperboard and corrugated materials.
• Precision paper feeding and registration system for improved alignment.
• Advanced lubrication system to reduce wear and extend machine life.
• User-friendly control interface for efficient machine operation.
• Automatic paper delivery system for neat stacking and continuous production.
• Safety protection features integrated throughout the machine for secure operation.
• Designed for medium to high-volume packaging and carton manufacturing.

Technical Specifications

• Maximum Paper Size: 1300 × 950 mm
• Minimum Paper Size: 550 × 480 mm
• Maximum Die-Cutting Size: 1290 × 920 mm
• Minimum Gripper Margin: 8 mm
• Maximum Working Pressure: 300 tons
• Applicable Materials:
  • White board ≥ 250 g/m²
  • Corrugated board up to 9 mm thickness
• Die-Cutting Precision: ±0.25 mm
• Maximum Operating Speed: 5,500 sheets/hour
• Maximum Feeding Pile Height: 1,550 mm
• Maximum Delivery Pile Height: 1,250 mm
• Main Motor Power: 15 kW
• Rated Power: 22 kW
• Machine Weight: 14,000 kg
• Overall Dimensions: 5846 × 4245 × 2332 mm

Applications

This machine is ideal for die cutting:

• Corrugated cartons
• Folding cartons
• Packaging boxes
• Display packaging
• White board and paperboard products
• Industrial packaging components

The D-1300 combines precision engineering, robust construction, and efficient production capabilities, making it a dependable solution for manufacturers seeking consistent, high-quality die-cutting performance in commercial and industrial packaging operations.
