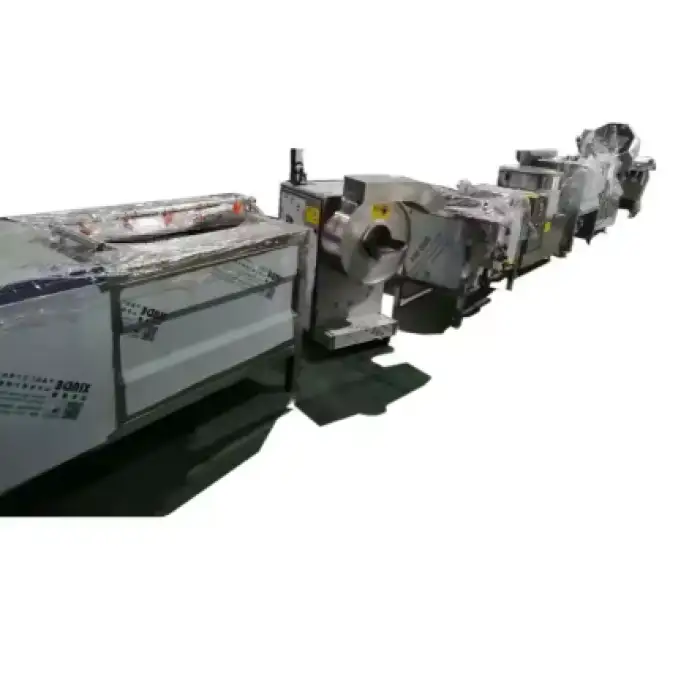

Semi Automatic Frozen French Fries Production Line 100KG/H

Semi Automatic Frozen French Fries Production Line 100KG/H

The Semi Automatic Frozen French Fries Production Line 100KG/H is designed for efficient processing of fresh potatoes into delicious frozen French fries. This production line offers a complete solution from washing to sealing, ensuring high-quality fries with minimal effort. With advanced technology and durable materials, this line is perfect for food businesses looking to enhance their production capabilities.

Specifications

Key Features

• Complete production line from washing to sealing.
• Durable design with 304 stainless steel for hygiene.
• Efficient processing with semi-automatic operation.
• High capacity of 100KG/H for large-scale production.
• Advanced technology for consistent quality fries.

Applications

• Food processing plants producing frozen fries.
• Restaurants and fast-food chains needing bulk fries.
• Frozen food manufacturers seeking efficient production.
• Catering services providing frozen potato products.
• Snack food companies looking to expand their offerings.

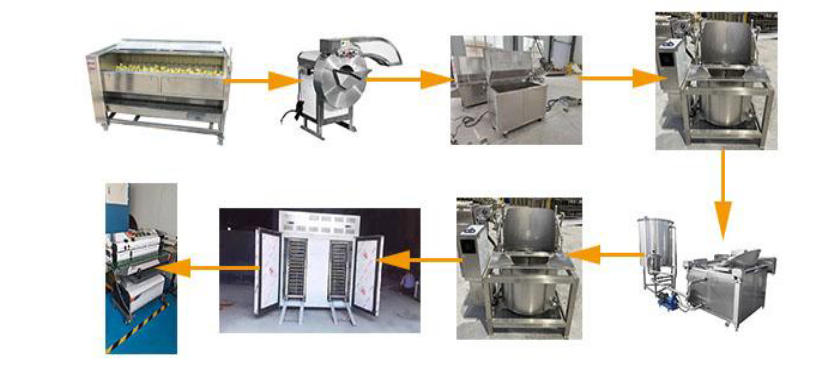

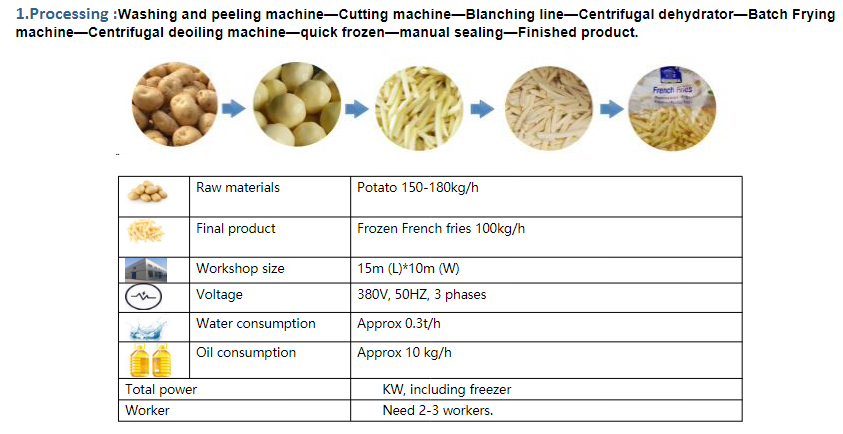

1-Processing :Washing and peeling machine—Cutting machine—Blanching line—Centrifugal dehydrator—Batch Frying
machine—Centrifugal deoiling machine—quick frozen—manual sealing—Finished product.

2.General information
Raw material & products quality target: Raw material standard: Fresh potato, no rot, no deterioration, no plant diseases and insect pests;
no concave on the head of potato, surface smooth, no crack and hollow; dry matter content ≥21%, deoxidize sugar content ≤ 0.2%; the
potato shape round better

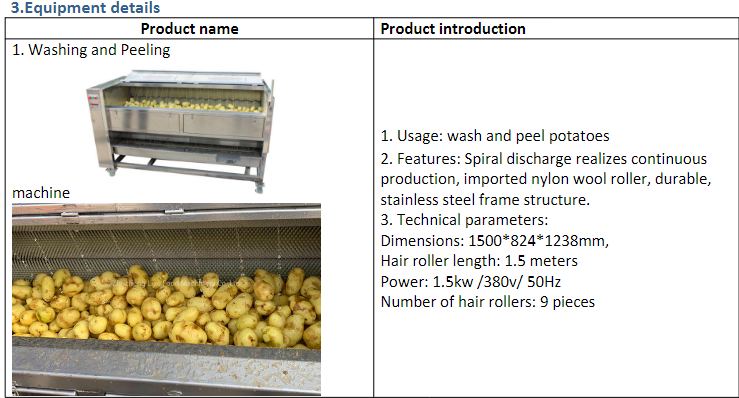

Washing & Peeling Machine
1. Usage: wash and peel potatoes
2. Features: Spiral discharge realizes continuous
production, imported nylon wool roller, durable,
stainless steel frame structure.
3. Technical parameters:
Dimensions: 1500*824*1238mm,
Hair roller length: 1.5 meters
Power: 1.5kw /380v/ 50Hz
Number of hair rollers: 9 pieces

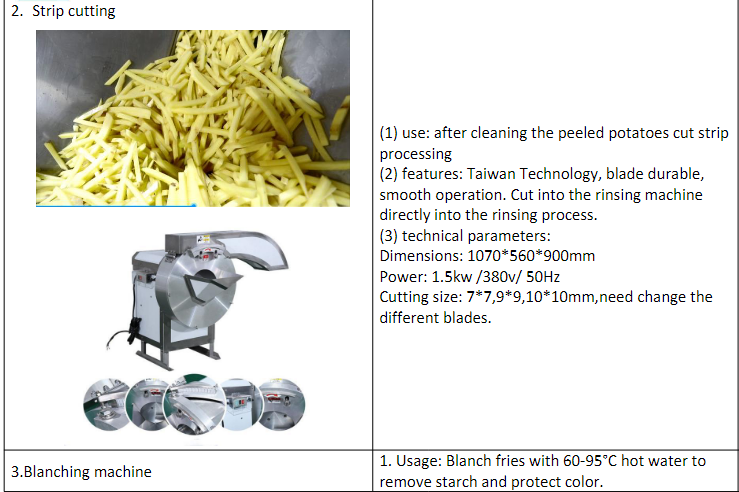

2. Strip Cutting
(1) use: after cleaning the peeled potatoes cut strip
processing
(2) features: Taiwan Technology, blade durable,
smooth operation. Cut into the rinsing machine
directly into the rinsing process.
(3) technical parameters:
Dimensions: 1070*560*900mm
Power: 1.5kw /380v/ 50Hz
Cutting size: 7*7,9*9,10*10mm,need change the
different blades

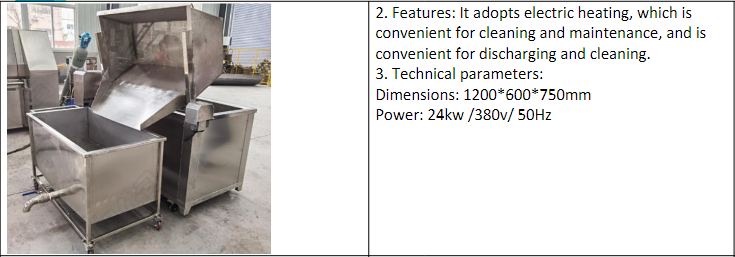

3.Blanching Machine
1. Usage: Blanch fries with 60-95°C hot water to
remove starch and protect color.
2. Features: It adopts electric heating, which is
convenient for cleaning and maintenance, and is
convenient for discharging and cleaning.
3. Technical parameters:
Dimensions: 1200*600*750mm
Power: 24kw /380v/ 50Hz

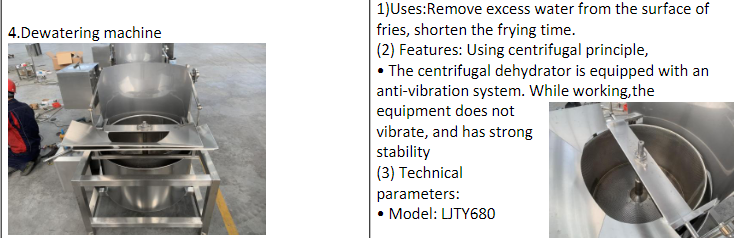

4. Dewatering Machine
)Uses:Remove excess water from the surface of
fries, shorten the frying time.
(2) Features: Using centrifugal principle,
• The centrifugal dehydrator is equipped with an
anti-vibration system. While working,the
equipment does not
vibrate, and has strong
stability
(3) Technical
parameters:
• Model: LJTY680
 Diameter: 680mm
• Power: 1.5kw /240v/50Hz
(4) Material configuration
• Rack material: 304 stainless steel
• Other materials: 304 stainless steel plate is cut,
folded and welded

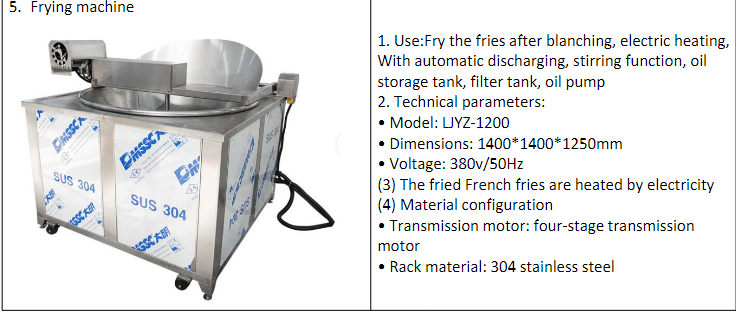

5.Frying Machine
1. Use:Fry the fries after blanching, electric heating,
With automatic discharging, stirring function, oil
storage tank, filter tank, oil pump
2. Technical parameters:
• Model: LJYZ-1200
• Dimensions: 1400*1400*1250mm
• Voltage: 380v/50Hz
(3) The fried French fries are heated by electricity
(4) Material configuration
• Transmission motor: four-stage transmission
motor
• Rack material: 304 stainless steel

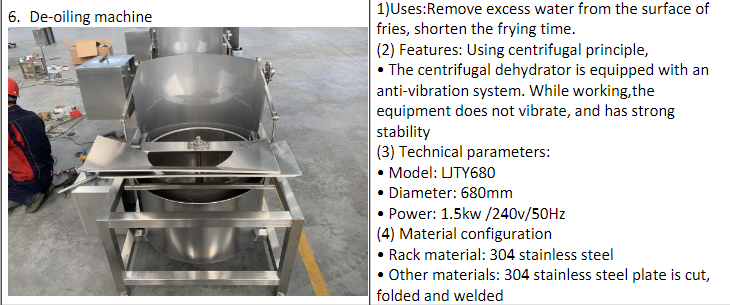

6. De-Oiling Machine
1)Uses:Remove excess water from the surface of
fries, shorten the frying time.
(2) Features: Using centrifugal principle,
• The centrifugal dehydrator is equipped with an
anti-vibration system. While working,the
equipment does not vibrate, and has strong
stability
(3) Technical parameters:
• Model: LJTY680
• Diameter: 680mm
• Power: 1.5kw /240v/50Hz
(4) Material configuration
• Rack material: 304 stainless steel
• Other materials: 304 stainless steel plate is cut,
folded and weldedD

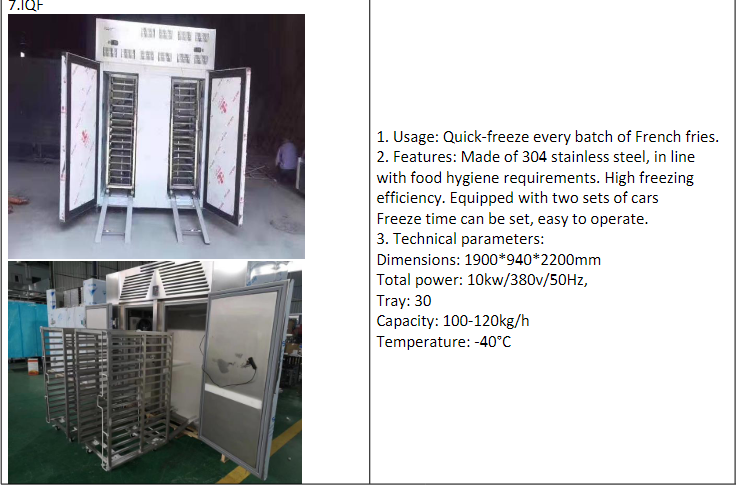

7.IQF
1. Usage: Quick-freeze every batch of French fries.
2. Features: Made of 304 stainless steel, in line
with food hygiene requirements. High freezing
efficiency. Equipped with two sets of cars
Freeze time can be set, easy to operate.
3. Technical parameters:
Dimensions: 1900*940*2200mm
Total power: 10kw/380v/50Hz,
Tray: 30
Capacity: 100-120kg/h
Temperature: -40°C

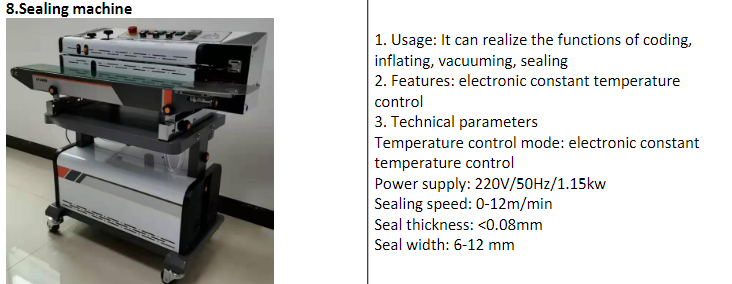

8.Sealing Machine
1. Usage: It can realize the functions of coding,
inflating, vacuuming, sealing
2. Features: electronic constant temperature
control
3. Technical parameters
Temperature control mode: electronic constant
temperature control
Power supply: 220V/50Hz/1.15kw
Sealing speed: 0-12m/min
Seal thickness: <0.08mm
Seal width: 6-12 mm
