A semi-automatic BGA rework station with optical alignment, three independent heating zones, and a touch-screen controller for accurate chip removal and reballing-free soldering.
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
A semi-automatic BGA rework station with optical alignment, three independent heating zones, and a touch-screen controller for accurate chip removal and reballing-free soldering.

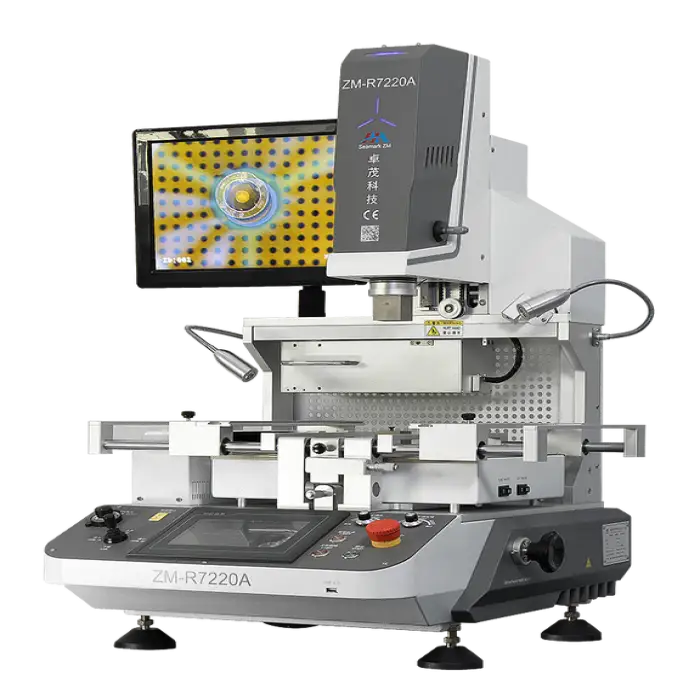

The R7220A removes, places, and solders BGA chips and other surface-mount components on PCBs, such as phone, laptop, console, and server boards. A high-definition CCD camera with automatic optical zoom and a laser red-dot indicator lines up the chip with its pads to within ±0.02 mm. Hot-air top and bottom heaters work with a large infrared preheating zone to bring the board up to temperature evenly, which reduces warping and protects delicate components. Real-time temperature curves and a 7-inch touch screen make profiles easy to set and monitor.

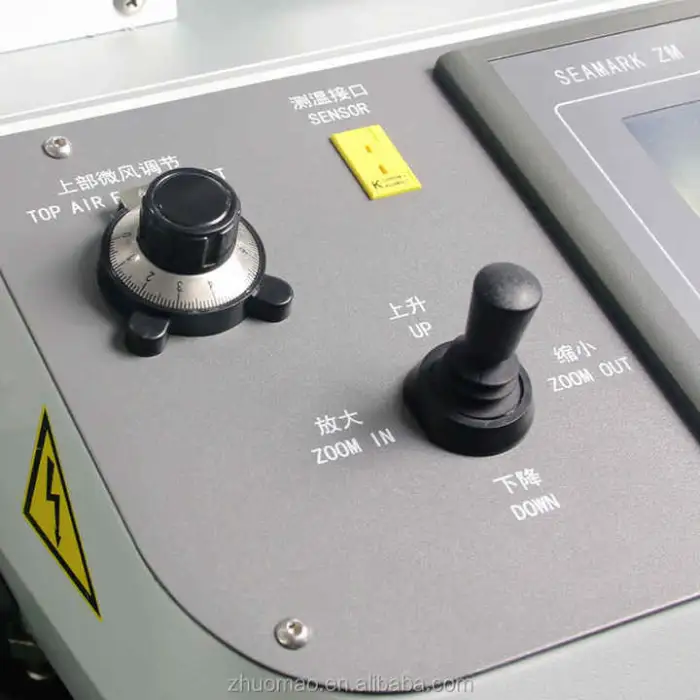

| Item | Detail |
|---|---|
| Model | R7220A |
| Power supply | AC 220 V ±10%, 50/60 Hz |
| Total power | 5.65 kW (max) |
| Top heater | 1.45 kW |
| Bottom heater | 1.2 kW |
| IR preheater | 2.7 kW |
| IR preheating zone | 375 × 285 mm |
| PCB size | Max. 412 × 370 mm, min. 6 × 6 mm |
| BGA chip size | Max. 60 × 60 mm, min. 2 × 2 mm |
| Temperature sensor | 1 pc |
| Temperature control | K-type thermocouple, closed loop, ±3°C |
| Alignment system | 2 MP HD digital imaging, automatic optical zoom, laser red-dot indicator |
| Alignment accuracy | ±0.02 mm |
| Operation | 7-inch HD touch screen |
| Control system | Autonomous heating control system V2 |
| Display | 15-inch industrial display (720P) |
| Vacuum adsorption | Automatic |
| Positioning | V-groove with universal fixture |
| Feeding device | None |
| Dimensions (L × W × H) | 685 × 633 × 850 mm |
| Weight | 76 kg |
Mobile phone and laptop repair shops, game console and TV board repair, electronics manufacturers and rework lines, and training and R&D labs.
The datasheet lists the IR preheater as 2.7 W, which I read as 2.7 kW since the total is 5.65 kW, though the three heaters add up to 5.35 kW. Please confirm the exact power figures with the supplier.

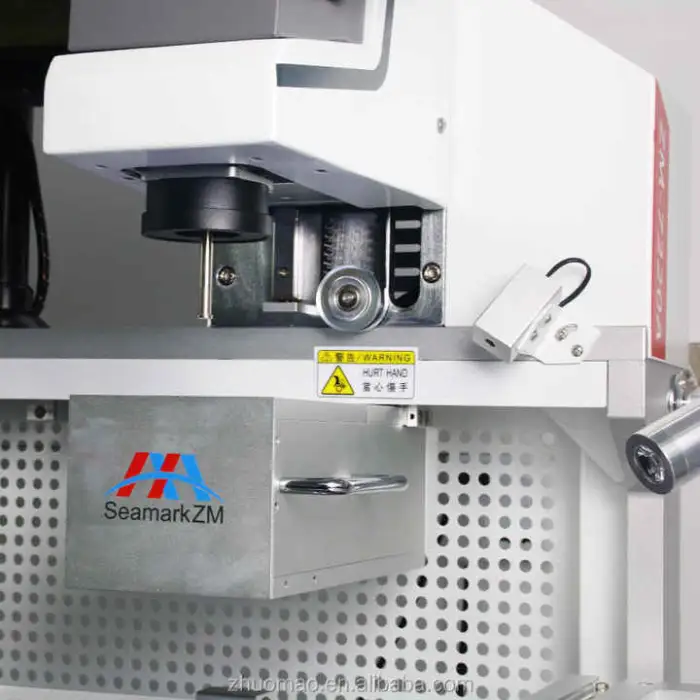

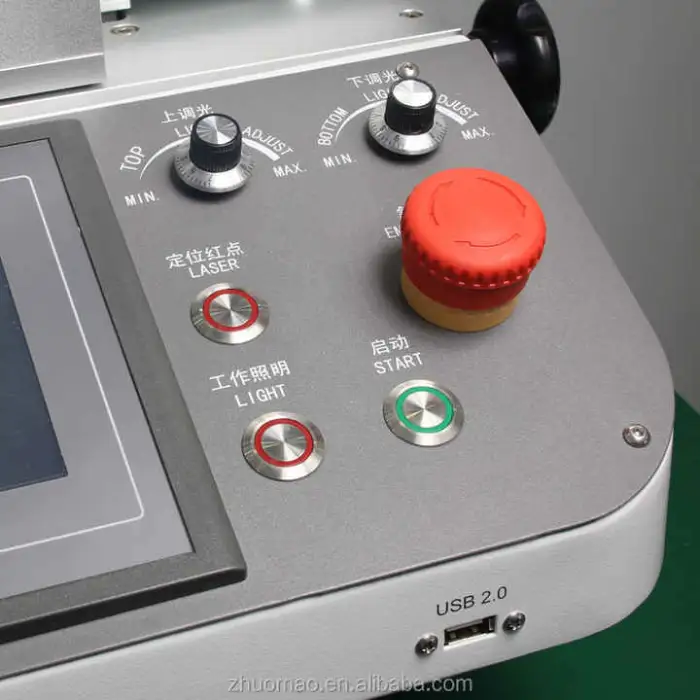

| Item | Detail |
|---|---|
| Model | R7220A |
| Power supply | AC 220 V ±10%, 50/60 Hz |
| Total power | 5.65 kW (max) |
| Top heater | 1.45 kW |
| Bottom heater | 1.2 kW |
| IR preheater | 2.7 kW |
| IR preheating zone | 375 × 285 mm |
| PCB size | Max. 412 × 370 mm, min. 6 × 6 mm |
| BGA chip size | Max. 60 × 60 mm, min. 2 × 2 mm |
| Temperature sensor | 1 pc |
| Temperature control | K-type thermocouple, closed loop, ±3°C |
| Alignment system | 2 MP HD digital imaging, automatic optical zoom, laser red-dot indicator |
| Alignment accuracy | ±0.02 mm |
| Operation | 7-inch HD touch screen |
| Control system | Autonomous heating control system V2 |
| Display | 15-inch industrial display (720P) |
| Vacuum adsorption | Automatic |
| Positioning | V-groove with universal fixture |
| Feeding device | None |
| Dimensions (L × W × H) | 685 × 633 × 850 mm |
| Weight | 76 kg |
| Optical alignment system | 2-megapixel HD digital imaging with automatic optical zoom, manual control, and laser red-dot alignment. |
| High placement accuracy | ±0.02 mm alignment accuracy. |
| Three heating zones | Top hot-air heater, bottom hot-air heater, and an IR preheating area for even, controlled heating. |
| Rapid heating and cooling | A medium-wave ceramic infrared heating plate and an integrated laminar cooling fan. |
| Accurate temperature control | K-type thermocouple closed-loop control with accuracy up to ±3°C. |
| Real-time temperature monitoring | Live temperature display with automatic curve analysis. |
| 7-inch HD touch screen | with autonomous heating control system V2 (software copyright). |
| 15-inch industrial display | (720P) to view the alignment clearly. |
| Automatic vacuum adsorption | to pick up and hold the chip. |
| Flexible PCB support | Multi-functional movable PCB fixing bracket, V-groove positioning with a universal fixture, and a BGA bottom support frame. |
| Safety | Emergency stop button and CE marking. |
The Seamark BGA Rework Station ZM-R7220A is designed for repairing cell phone motherboards and LCD screens, making it suitable for both professional and hobbyist electronics repair.
The ZM-R7220A has a weight of 76 kg, operates at 220 V, has a rated capacity of 5.65 KW, and features K-type thermocouple close-loop temperature control and laser positioning for precise repairs.
Yes, the ZM-R7220A features a mobile design, making it easy to transport between different work locations.
The machine utilizes K-type thermocouples for close-loop temperature control, ensuring that soldering is safe and effective.
Key features include its heavy-duty design, advanced laser positioning for accuracy, high automatic level for efficient operation, and effective temperature control.
Yes, the ZM-R7220A can be used for quality control testing of repaired devices, ensuring that they function properly after repairs.
The Seamark BGA Rework Station is packaged in a wooden case to ensure it arrives safely and securely.
The supply ability for the ZM-R7220A is 500 units per month.
This rework station is suitable for both professionals in electronics repair workshops and hobbyists working on personal projects.
The advanced laser positioning allows for precise alignment during repairs, which enhances the accuracy and quality of the work performed.
The ZM-R7220A is mainly used for repairing cell phone motherboards and fixing LCD screens on various mobile devices.
The Seamark BGA Rework Station operates at a voltage of 220 V.
Yes, the ZM-R7220A is designed to be user-friendly, making it accessible for both beginners and experienced technicians.
Regular maintenance includes cleaning the machine, checking the temperature calibration, and ensuring all components are functioning properly to maintain efficiency.
Please check with the retailer or manufacturer for specific warranty details regarding the ZM-R7220A.
