RT-PA Pneumatic Barrel Pump

The RT-PA Pneumatic Barrel Pump is an air-operated fluid transfer pump designed for efficient handling and transfer of liquids from drums, tanks and other containers. Its pneumatic operation makes it suitable for applications where compressed air is preferred, including environments where electrical pumping equipment may be unsuitable. Pneumatic barrel pumps are commonly used for transferring oils, chemicals, solvents and other industrial liquids. (Rotopower Pumps and Motors Pvt Ltd)

The RT-PA provides a flow rate of 40–80 L/min, a lifting height of 3–8 metres, and supports liquids with viscosity up to 1,000 CPS. The pump is available with tube materials including SS304, SS316, RPP, PVDF and PTFE, allowing the configuration to be selected according to the liquid being handled.

Key Features

Pneumatic/air-operated design

Flow rate of 40–80 L/min

Lift height of 3–8 m

Working pressure up to 1.5 MPa

Required air pressure of 0.6–0.8 MPa

Suitable for liquids up to 1,000 CPS viscosity

BT4 Ex-grade

Adjustable speed supported

Multiple tube material options

Available in different tube lengths

Suitable for drum and container fluid transfer

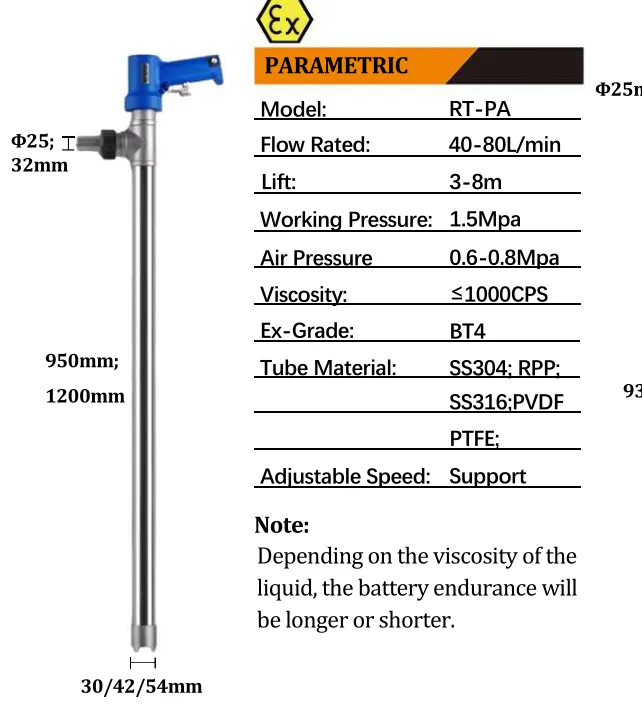

Technical Specifications

Specification	Details
Model	RT-PA
Pump Type	Pneumatic Barrel Pump
Flow Rate	40–80 L/min
Lift	3–8 m
Working Pressure	1.5 MPa
Air Pressure	0.6–0.8 MPa
Maximum Viscosity	≤1,000 CPS
Ex-Grade	BT4
Tube Materials	SS304, RPP, SS316, PVDF, PTFE
Adjustable Speed	Supported
Tube Length Options	950 mm / 1200 mm
Tube Diameter Options	30 / 42 / 54 mm
Connection/Outlet Diameter	Ø25 mm
Additional Diameter Specification	Ø25 / 32 mm

Applications

The RT-PA is suitable for transferring and dispensing a variety of industrial liquids, including:

Oils and lubricants

Chemicals

Solvents

Industrial fluids

Liquid raw materials

Process liquids

Other compatible low-to-medium viscosity fluids

Note: Actual pump performance and battery/endurance characteristics can vary according to the viscosity and properties of the liquid being transferred. The supplied specification states that endurance may be longer or shorter depending on liquid viscosity.
