Product Description

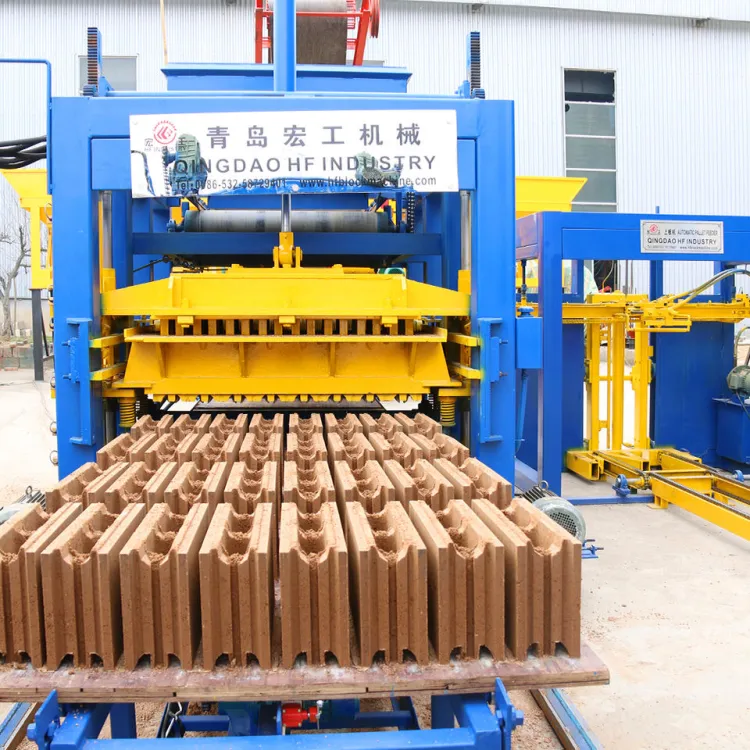

QT4-16 Automatic Hydraulic Block Making Machine - 360-400 pcs/h, Advanced PLC, Optional Color Feeding System

The QT4-16 Automatic Hydraulic Block Making Machine & Production Line is a high-efficiency concrete block manufacturing system designed for the automated production of hollow concrete blocks, solid blocks and paving stones. The system combines a hydraulic block-forming machine, automatic material feeding, concrete mixing, pallet handling and automatic stacking to create an integrated production solution.

The QT4-16 uses an advanced PLC control system for automated operation and a 16 MPa hydraulic system to provide high compaction pressure, helping produce dense, durable and accurately formed concrete products. Interchangeable moulds allow the production line to manufacture different block and paver sizes according to the required application.

With a moulding cycle of approximately 15–25 seconds, the system is designed for high-volume commercial block production while reducing manual material handling and labour requirements.

Technical Specifications – Main Machine

Specification	Details
Machine Model	QT4-16
Machine Type	Automatic Hydraulic Block Making Machine
Production Type	Hollow Blocks, Solid Blocks & Paving Stones
Rated Hydraulic Pressure	16 MPa
Moulding Cycle Time	15–25 seconds
Pallet Size	900 × 550 mm
Control System	Advanced PLC Controller
Feeding System	Automatic Material Feeder
Hydraulic System	Hydraulic Station
Main Mixer	JQ500 Pan Mixer
JQ500 Mixer Input Capacity	800 L
JQ500 Mixer Output Capacity	500 L
JQ500 Motor Power	11 kW
JQ500 Productivity	≥20 m³/h
GMT Pallet Size	900 × 550 × 23 mm
GMT Pallet Weight	Approx. 11.9 kg/pallet
Standard GMT Pallets	1,000 pcs

Production Capacity

Product	Dimensions	Pieces / Mould	Approx. Pieces / Hour	Approx. Pieces / 8 Hours
Hollow Block	400 × 200 × 200 mm	4	720–960	5,760–7,680
Hollow Block	400 × 150 × 200 mm	5	900–1,200	7,200–9,600
Hollow Block	400 × 100 × 200 mm	7	1,260–1,680	10,080–13,440
Color Paver	225 × 112.5 × 60 mm	12	1,728–2,880	13,824–23,040
Color Paver	200 × 100 × 60 mm	14	2,010–3,360	16,080–26,880

Production figures are estimated based on the stated 15–25 second moulding cycle and an 8-hour working day.

Complete Production Line Configuration

The standard production line consists of the following major equipment:

Equipment	Description
JQ500 Pan Mixer	500 L output concrete mixer with 11 kW motor
8 m Belt Conveyor	Transfers mixed raw material to the block-making machine
Material Hopper	Holds and feeds concrete material into the production system
QT4-16 Main Host	Automatic hydraulic block-forming machine
Automatic Stacker	Automatically stacks freshly formed blocks layer by layer
Transport Trolleys	2 sets for transporting blocks during production
GMT Pallets	1,000 × 900 × 550 × 23 mm pallets
Color Feeding System	Optional system for producing coloured/premium paving surfaces
JQ350 Color Mixer	Optional mixer used with the colour-feeding system

Key Features

Fully automatic production system with PLC control.
16 MPa hydraulic pressure for high-density concrete block forming.
15–25 second moulding cycle for high production throughput.
Automatic material feeding reduces manual intervention.
Interchangeable moulds allow production of different block and paver sizes.
Capable of producing hollow blocks, solid blocks and paving stones.
Automatic stacking system reduces manual handling after moulding.
JQ500 pan mixer provides consistent concrete mixing before moulding.
8 m conveyor system provides continuous material transfer.
GMT pallets offer a durable and dimensionally stable platform for freshly moulded products.
Optional colour feeding system enables production of coloured paving stones with a decorative surface layer.
Designed as an integrated production line, combining mixing, conveying, forming and stacking.
Suitable for high-volume commercial concrete-product manufacturing.
