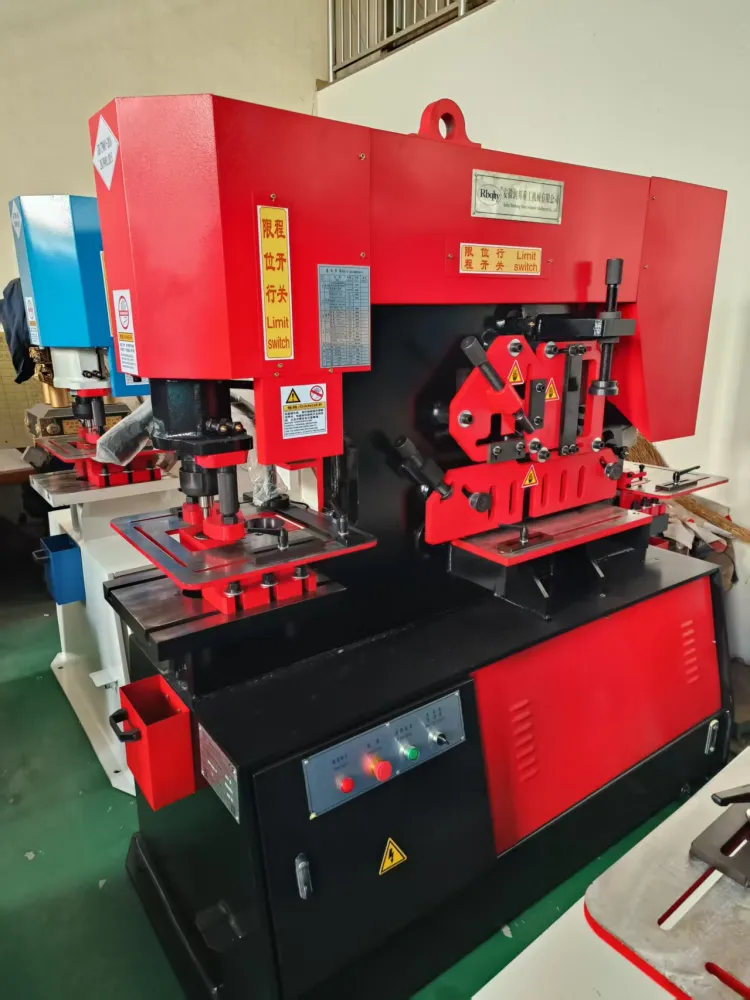

Q35Y-20 Hydraulic Ironworker Machine

The Q35Y-20 Hydraulic Ironworker Machine is a strong and useful tool for metal work. It helps you punch holes, cut bars, and shape metal parts. This machine is built for workshops and factories that need to work with steel and other metals. It is easy to use and saves time because it does many jobs in one machine. The Q35Y-20 Hydraulic Ironworker Machine is a great choice for making metal parts for buildings, frames, and repairs.

Specifications

Attribute	Details
Model	Q35Y-20
Machine Type	Hydraulic Ironworker Machine
Punching Pressure	90 Ton
Maximum Steel Plate Thickness	20 mm
Maximum Material Strength	≤450 N/mm²
Angle of Shear	6°
Flat Bar Shearing Capacity	20 × 330 mm / 10 × 480 mm
Maximum Cylinder Stroke	80 mm
Stroke Frequency	15 times/min
Throat Depth	355 mm
Maximum Punching Diameter	30 mm
Motor Power	7.5 kW
Overall Dimensions	1,950 × 920 × 1,950 mm

Key Features

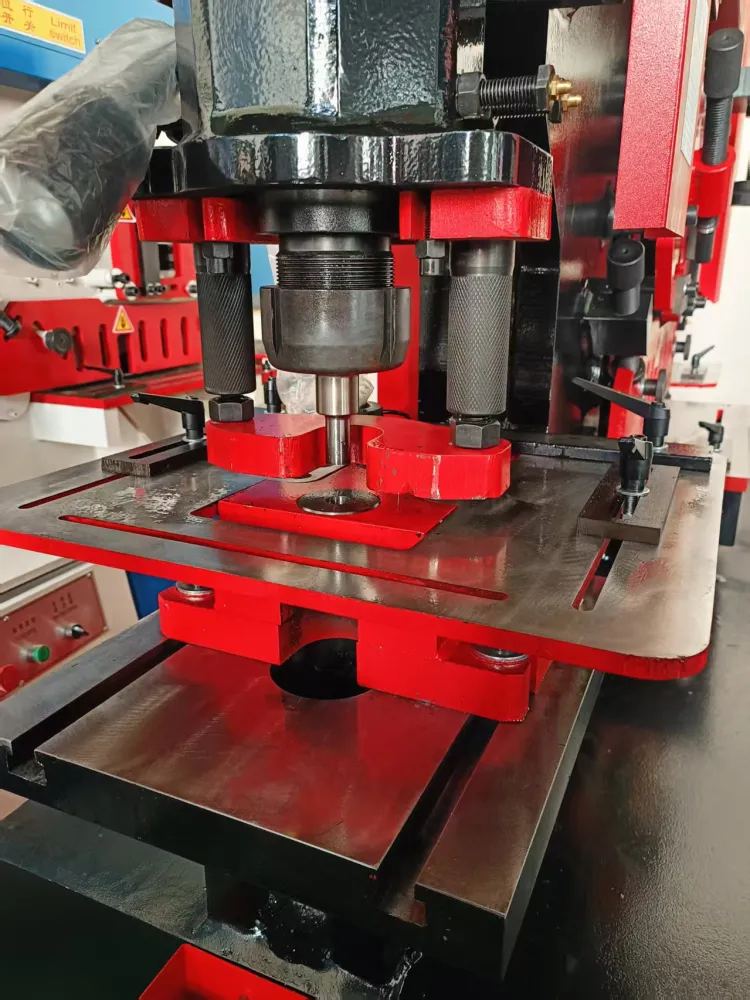

The Q35Y-20 Hydraulic Ironworker Machine has a strong 90-ton punching force. It can punch holes up to 30 mm wide in thick steel plates.
It is a multi-function machine. You can punch, shear, cut, and notch different metal shapes using one tool.
The machine uses a hydraulic system. It has an 80 mm cylinder stroke and can work 15 times per minute.
It is built with a strong frame. The machine is 1,950 × 920 × 1,950 mm in size and uses a 7.5 kW motor for power.

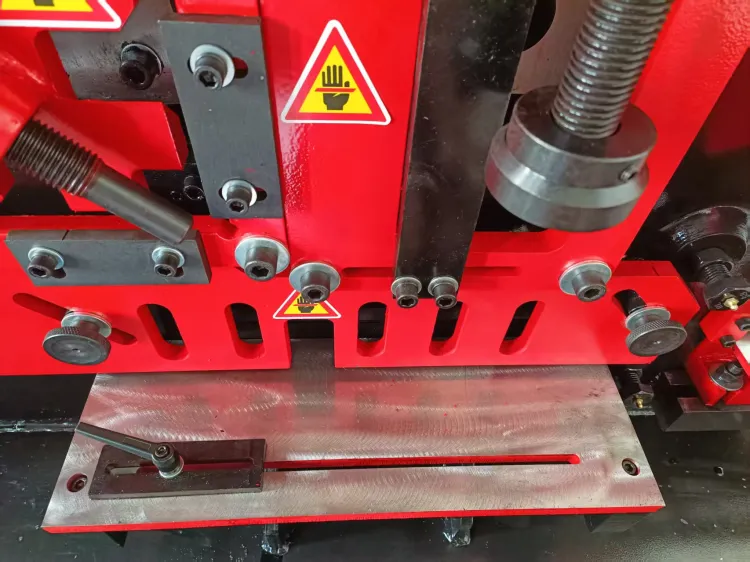

It comes with standard tooling for punching, cutting bars, cutting plates, cutting angle steel, and notching. Optional tooling is available for cutting channels and I/T-beams.
The machine has a reliable hydraulic system, gear pump, and electrical controls for smooth operation.

Applications

Structural steel fabrication – making beams and frames for buildings.
Metal workshops – for cutting and shaping steel parts.
Construction and engineering – preparing metal pieces for projects.
Steel-frame manufacturing – creating parts for large metal structures.
General metal cutting and punching – for everyday workshop tasks.
Manufacturing and fabrication plants – for high-volume metal work.
Maintenance and repair workshops – for fixing and making metal parts.

Technical Specifications

Technical specifications for Q35Y-20 Hydraulic Ironworker Machine
Model	Q35Y-20
Machine Type	Hydraulic Ironworker Machine
Punching Pressure	90 Ton
Maximum Steel Plate Thickness	20 mm
Maximum Material Strength	≤450 N/mm²
Angle of Shear	6°
Flat Bar Shearing Capacity	20 × 330 mm / 10 × 480 mm
Maximum Cylinder Stroke	80 mm
Stroke Frequency	15 times/min
Throat Depth	355 mm
Maximum Punching Diameter	30 mm
Motor Power	7.5 kW
Overall Dimensions	1,950 × 920 × 1,950 mm
