PVC series pipes are mainly used for agricultural water supply system, sewer system, waters discharge systems for civil and industrial buildings, cable conduits, protection sheathing for electric cables, etc.
PVC Series pipe solution, equipped with new design high-efficiency twin-screw conical extruder, which is high speed high efficiency; Reasonable flow channel design, accurate melting temperature control; planetary non-dust cutting, uniform chamfering.
| Model | Pipe range (mm) | Extruder model | Output(kg/h) | Extruder motor power(kw) |
| ACM-63PVC | Φ16-63 Dual pipe | SJZ65/132 | 280-350 | 37 |
| ACM-110PVC | Φ50-110 Dual pipe | SZJ80/156 | 400-550 | 55 |
| ACM-160PVC | Φ40-160 | SJZ65/132 | 280-350 | 37 |
| ACM-250PVC | Φ50-250 | SJZ65/132 | 280-350 | 37 |
| ACM-315PVC | Φ160-450 | SZJ80/156 | 400-550 | 75 |
| ACM-450PVC | Φ280-630 | SZJ80/156 | 400-550 | 75 |
| ACM-630PVC | Φ315-800 | SZJ92/188 | 750-850 | 110 |
| ACM-800PVC | Φ500-1200 | SZJ105/216 | 900-1100 | 160 |
Detailed Images
Inverter: ABBAir Switch: LS Contactor: SchneiderRelay &Temperature controller: Omron
Conical double screw extruder
Technical parameter
Material of screw: 38CrMoAl
Heating zones: 4 Heating power: 35kw
Cooling mode: Air fans
Driving motor: 55KW (siemens)Dosing feeding motor: 1.5KWVacuum pump: 1 set
Cool mode: Air fans: 3 Sets

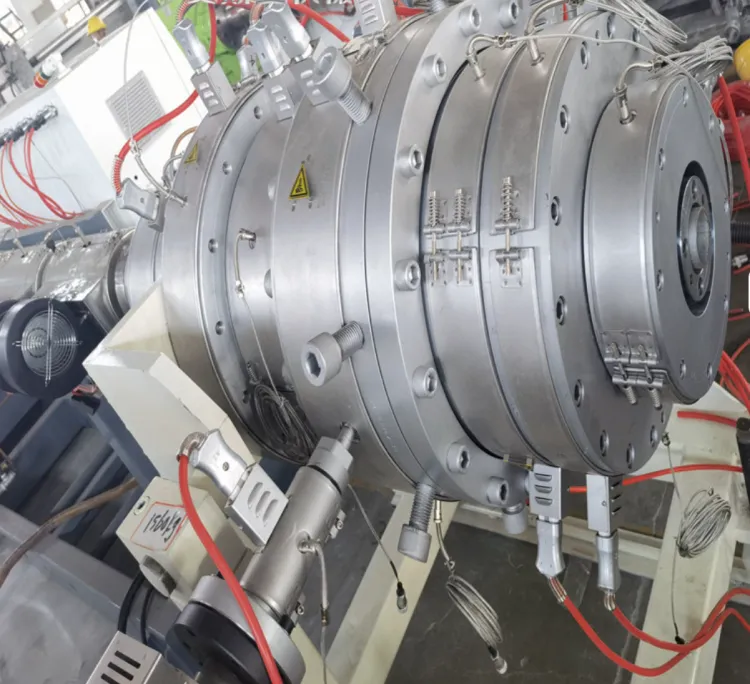

Mould
Technical parameter
Include calibration sleeveMaterial: Made by 40Cr.Diameter spec: Ф160, 200, 250, 315 mm
Wall thickness:Providing by customerQTY. of heating zone:14 Heating power: 32KW
Vacuum calibration tank
Technical parameter
Vacuum ,Water spray & Moving system
Length: 5600mmVacuum pump power: 3 KW x 2Water pump power: 4 KW x 2+ 3KWTank material: 304 Stainless steel Vacuum gauge:0.03-0.06MpaSpraying nozzle: ABS
Haul off
Technical parameter
Four claws haul-off
Motor: 1.4×4KWClaw length:1800mm Claw width: 80mmMaximum traction speed: 3m/minMax traction force:2000NPneumatic clamping: adopt anti-friction rubber block

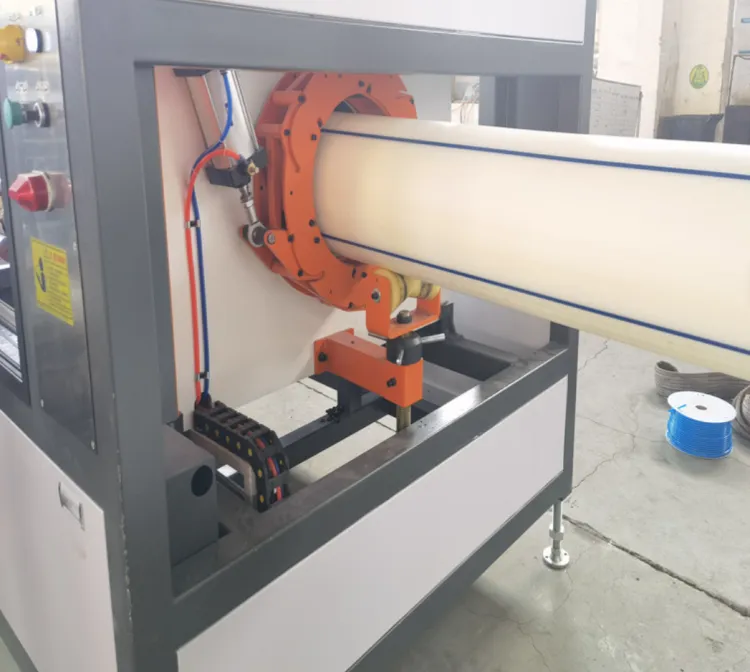

Planetary Cutter
Technical parameter
scrap collecting device;Independent control system
Cutting method: mechanical enter knifeDiameter of saw: 130mmCutting motor: 2.2KWRevolution motor: 1.5KWCutting saw: steel alloyDuralumin clamping for accurate cutting.Dust collection motor power 0.75KWWith chamfering function

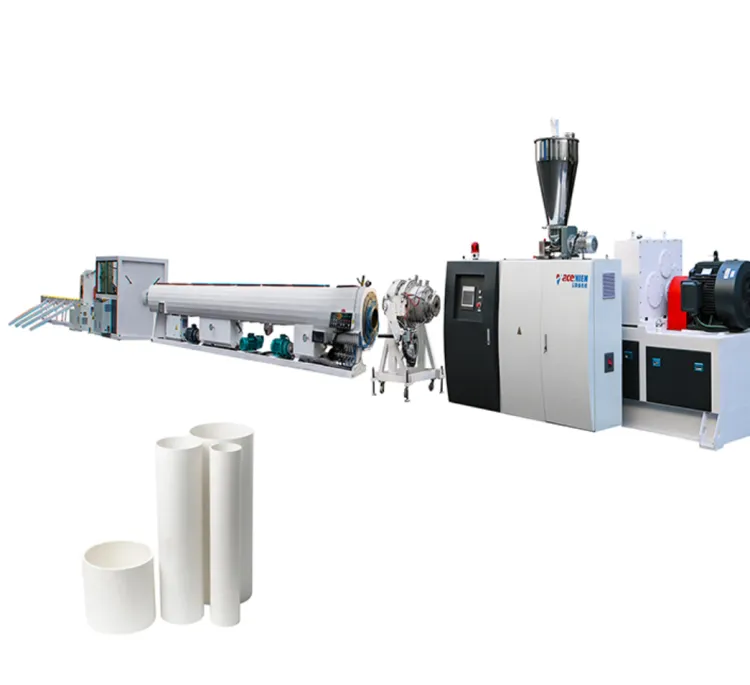

PVC 2 strand pipe extrusion line，We can customize the size of the tube, the output and the number of strands according to customer needs.
Machine List
PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum forming machine—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.
| No. | Equipment list for PVC pipe extrusion line | Quantity |
| 1 | Mixing machine | 1 set |
| 2 | Auto feeder | 2 sets |
| 3 | Conical double screw extruder | 1 set |
| 4 | Die head and sizing mold | customized |
| 5 | Haul off device | 1 set |
| 6 | Auto cutting machine | 1 set |
| 7 | Laser printer or ink jet printer | 1 set |
| 8 | PVC pipe stacker | 1 set |
| 9 | PVC pipe joint belling machine | 1 set |
| 10 | Crushing machine | 1 set |
| 11 | PVC powder milling machine | 1 set |
| 12 | Air compressor | 1 set |
| 13 | Water chiller | 1 set |
| Inverter | ABBAir Switch: LS Contactor: SchneiderRelay &Temperature controller: Omron |
|---|---|
| Material of screw | 38CrMoAl |
| Heating zones | 4 Heating power: 35kw |
| Cooling mode | Air fans |
| Driving motor | 55KW (siemens)Dosing feeding motor: 1.5KWVacuum pump: 1 set |
| Cool mode | Air fans: 3 Sets |
| Include calibration sleeveMaterial | Made by 40Cr.Diameter spec: Ф160, 200, 250, 315 mm |
| Wall thickness | Providing by customerQTY. of heating zone:14 Heating power: 32KW |
| Length | 5600mmVacuum pump power: 3 KW x 2Water pump power: 4 KW x 2+ 3KWTank material: 304 Stainless steel Vacuum gauge:0.03-0.06MpaSpraying nozzle: ABS |
| Motor | 1.4×4KWClaw length:1800mm Claw width: 80mmMaximum traction speed: 3m/minMax traction force:2000NPneumatic clamping: adopt anti-friction rubber block |
| Cutting method | mechanical enter knifeDiameter of saw: 130mmCutting motor: 2.2KWRevolution motor: 1.5KWCutting saw: steel alloyDuralumin clamping for accurate cutting.Dust collection motor power 0.75KWWith chamfering function |
This machine is designed to produce PVC pipes ranging from Φ16 to Φ1200 mm, including dual pipes for various applications.
The maximum output capacity varies depending on the model, with outputs ranging from 280 kg/h to 1100 kg/h.
The machine is primarily designed for PVC, UPVC, and CPVC materials used in irrigation, sewer systems, and more.
The extruder motor power varies by model, ranging from 37 kW to 160 kW depending on the size and capacity of the extruder.
The machine features accurate melting temperature control through its reasonable flow channel design and multiple heating zones.
Yes, the machine can be customized to produce various pipe sizes, output, and strand numbers based on customer requirements.
The vacuum calibration tank helps to shape and cool the extruded pipes to ensure precise dimensions and quality.
The machine is equipped with a planetary cutter that features a mechanical enter knife and a steel alloy cutting saw for accurate cuts.
The extrusion line includes a mixing machine, auto feeders, conical double screw extruder, die head, haul-off device, auto cutting machine, and more.
Yes, the machine includes a dust collection system to ensure a clean working environment during production.
The cooling method utilizes air fans to cool the extruded pipes during the production process.
The machine incorporates safety features like pneumatic clamping and anti-friction rubber blocks to ensure safe operation.
The warranty period typically varies by manufacturer, but it often includes a standard warranty for parts and labor.
Yes, training options are usually available to ensure operators are familiar with the machine's functions and safety procedures.
Technical support can typically be obtained through the manufacturer's customer service or support hotline, as well as online resources.
