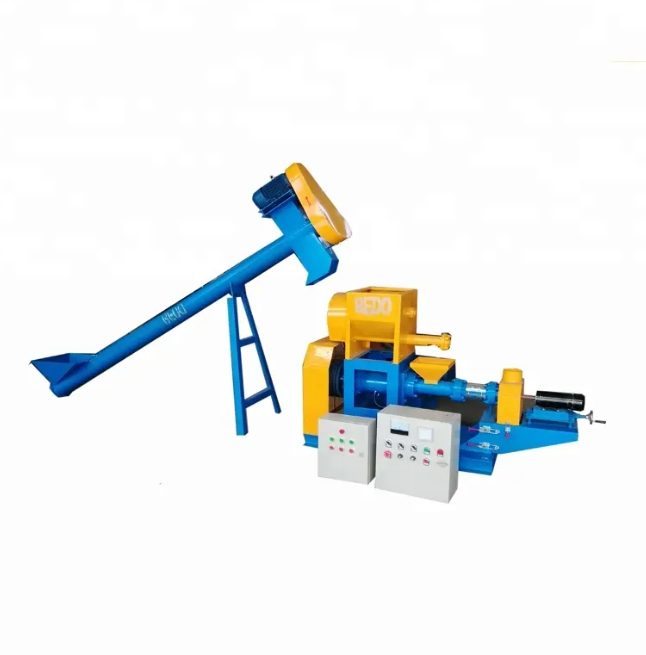

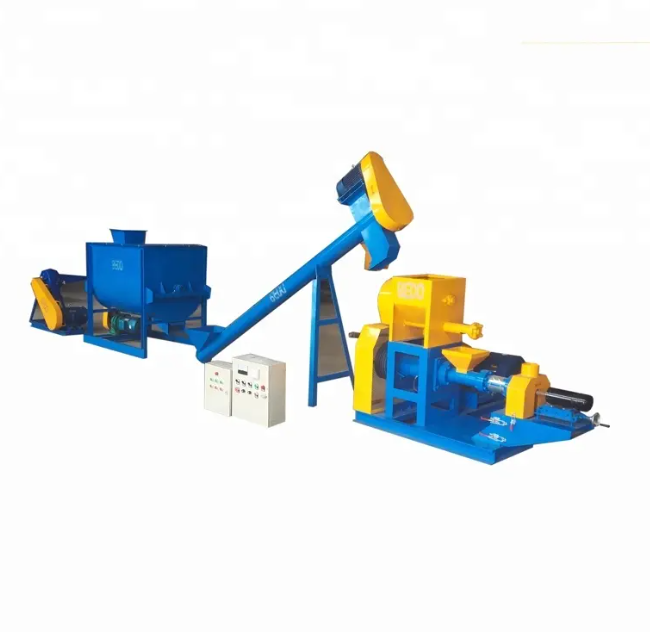

Screw conveyors are used to convey materials such as bulk solids or sludge both on
horizontal and high inclination, and are designed to provide an enclosed method of
transferring materials from one point to another. It is consisting of a screw inside
a hollow pipe, contained within a tube and it is turned with the help of a motor
in order to deliver material from one end of the conveyor to the other.
This screw conveyor is used in the process to make the working continuals, easy to operate and save labor and has been widely used in national economic sectors, such
as building materials, metallurgy, chemical, electric power, coal, machinery, light industry, suitable for conveying powder, granular, small block materials, such as cement , coal,
grain, fertilizer, ash, sand, coke, etc.,
Features:
1. Large carrying capacity, safe and reliable operation.
2. Good adaptability and long service life.
3. Small size and rapid rotary speed, which ensures rapid and average conveying.
Specifications :
| Model | BC160 | BC200 | BC250 | BC315 | BC400 | BC500 | BC630 |
| Screw diameter(mm) | 160 | 200 | 250 | 315 | 400 | 500 | 630 |
| Pitch (mm) | 160 | 200 | 250 | 315 | 355 | 400 | 450 |
| Speed(rpm) | 60-120 | 45-90 | 45-90 | 35-75 | 35-75 | 30-60 | 30-60 |
| Convey capacity(m3/h) | 3.8-7.6 | 5.6-11 | 11-22 | 17-36.4 | 31.7-66.1 | 46.5-93.1 | 83.1-160 |
Specification details are not available in this product description. Contact our team for more information.
The BD-SC3 can transport a variety of materials including powder, granular, and small block materials such as cement, coal, grain, fertilizer, ash, sand, and coke.
The conveying capacity varies by model, ranging from 3.8 to 160 m3/h depending on the screw diameter and specifications.
This screw conveyor is widely used in industries such as building materials, metallurgy, chemical, electric power, coal, machinery, and light industry.
The BD-SC3 consists of a screw inside a hollow pipe, contained within a tube, which is turned by a motor to transport materials from one end to another.
Yes, the BD-SC3 is designed for both horizontal and high inclination conveying of materials.
Key features include large carrying capacity, safe and reliable operation, good adaptability, long service life, small size, and rapid rotary speed for even material conveying.
The BD-SC3 is available in screw diameters of 160mm, 200mm, 250mm, 315mm, 400mm, 500mm, and 630mm.
The speed varies by model, with speeds ranging from 30 to 120 rpm depending on the specific model of the BD-SC3.
The BD-SC3 makes operations continual and easy to manage, which helps save labor and increase efficiency in material handling.
While the BD-SC3 is designed for a variety of materials, it's important to assess the specific properties of abrasive or corrosive materials to ensure compatibility and longevity.
Regular maintenance includes checking for wear and tear, ensuring lubrication of moving parts, and inspecting the motor and drive system for optimal performance.
The BD-SC3 is powered by an electric motor, which drives the screw to facilitate the movement of materials.
Installation instructions are provided with the product, but generally involve securing the unit to the ground, connecting the motor, and ensuring proper alignment of the screw.
Yes, the BD-SC3 can often be customized based on the specific needs of your application, including size, screw design, and materials used.
Safety features include an enclosed design to prevent material spillage, reliable motor controls, and options for overload protection.
