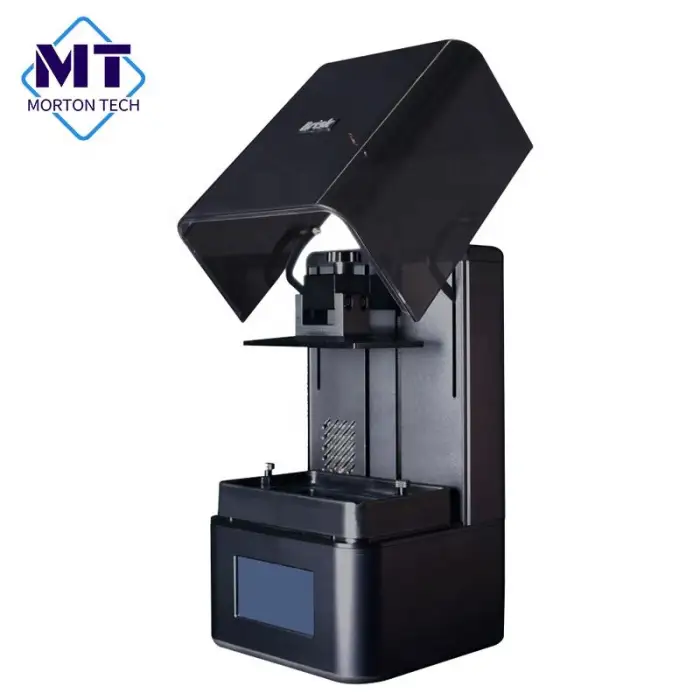

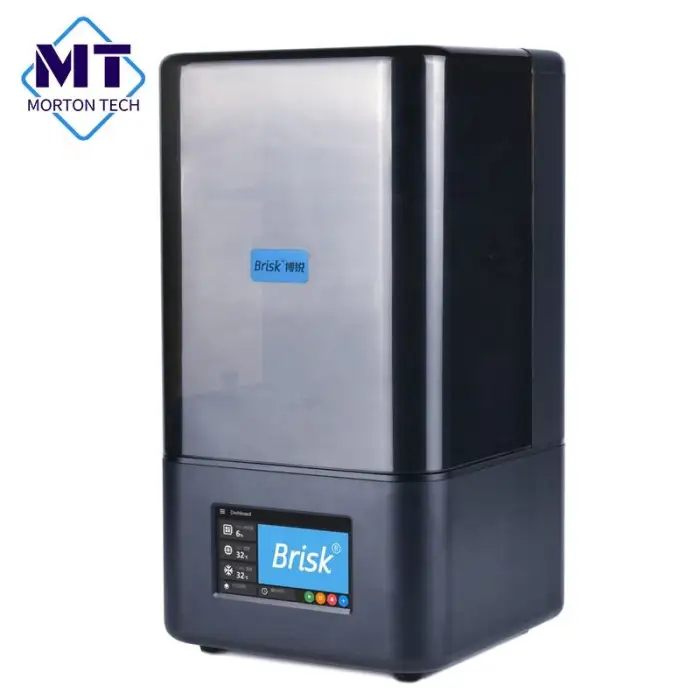

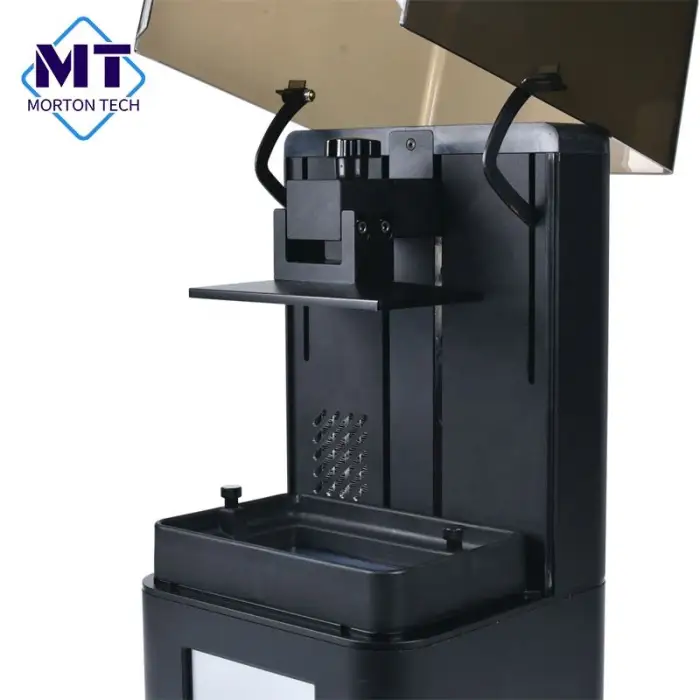

Professional Digital Dental 3d Printer

The printer is tailored for dental clinics and denture labs and can print dental molds, temporary crowns, implant guide plates, personalized trays, and implant locators using suitable dental resins.

Printable area is 81 × 128 mm with a maximum build height of 150 mm.

It uses a 4K HD projection screen. Layer thickness is adjustable from 0.025 to 0.2 mm, typical test speed is 75 mm/hr at 0.1 mm layers, and positional accuracy is ±0.05 mm.

The machine is built from metal, plastic and steel components and is designed to work with light-curing (photopolymer) dental resins. Use biocompatible, dental-grade resins appropriate for the intended application and compliant with local regulations.

Rated input power is 80 W. The unit operates on 220 V, 50/60 Hz power supply.

The product carries CE certification and is listed under safety standard GB/T18830-2009 with an instrument classification of Class IIS. Always verify local regulatory requirements for clinical use.

Printed parts typically require washing (e.g., isopropanol) to remove uncured resin and final post-curing in a suitable UV curing unit to reach full mechanical properties and biocompatibility per the resin manufacturer's instructions.

The printer is compatible with standard dental 3D printing workflows. Export your dental models from CAD/design software as standard formats (e.g., STL) and process them with a compatible slicer or the manufacturer's recommended software.

Nominal printing speed is up to 75 mm/hour measured at a 0.1 mm layer thickness. Actual speed depends on chosen layer thickness, model geometry, resin properties and curing settings.

Regular maintenance includes cleaning the resin vat and build platform after use, inspecting and replacing the FEP/film as needed, keeping the LCD/projection screen free of resin and debris, and following the manufacturer’s calibration and software update recommendations.

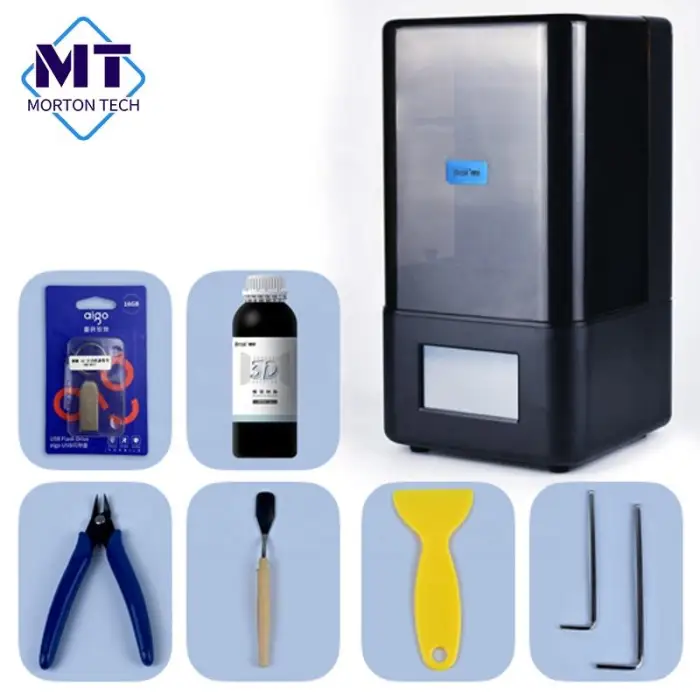

Machine size is 200 × 200 × 378 mm (20 × 20 × 37.8 cm) and the machine weight is approximately 7 kg. It ships in a carton box sized to accommodate the unit and accessories.

Yes — the product listing indicates OEM services are accepted. Contact the manufacturer or distributor for minimum order quantities, artwork/branding requirements and lead times.

Operate the printer in a stable indoor environment free of direct sunlight, excessive dust and extreme temperatures. For best results, follow the manufacturer's guidance on temperature and humidity ranges and allow adequate ventilation when handling resins.

Warranty and support details vary by seller/distributor. The product is CE certified; contact your supplier for warranty duration, technical support channels and spare parts availability.

Yes. Wear appropriate PPE (nitrile gloves, eye protection), avoid skin contact with liquid resin, ensure proper ventilation, follow resin MSDS guidelines, and adhere to disposal and sterilization protocols required for dental devices in your region.
