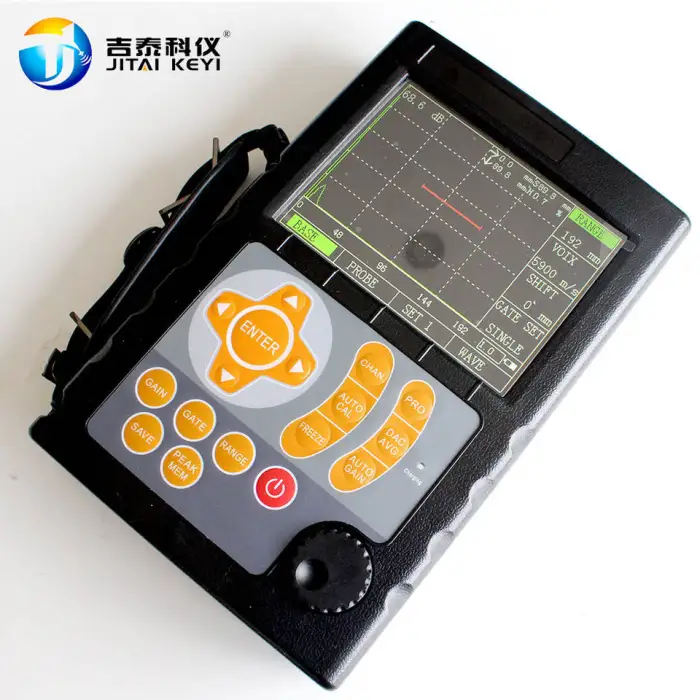

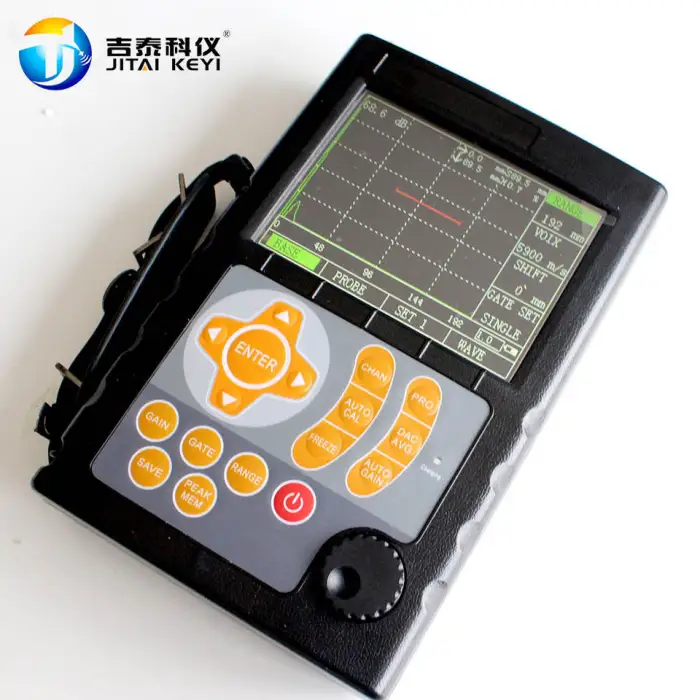

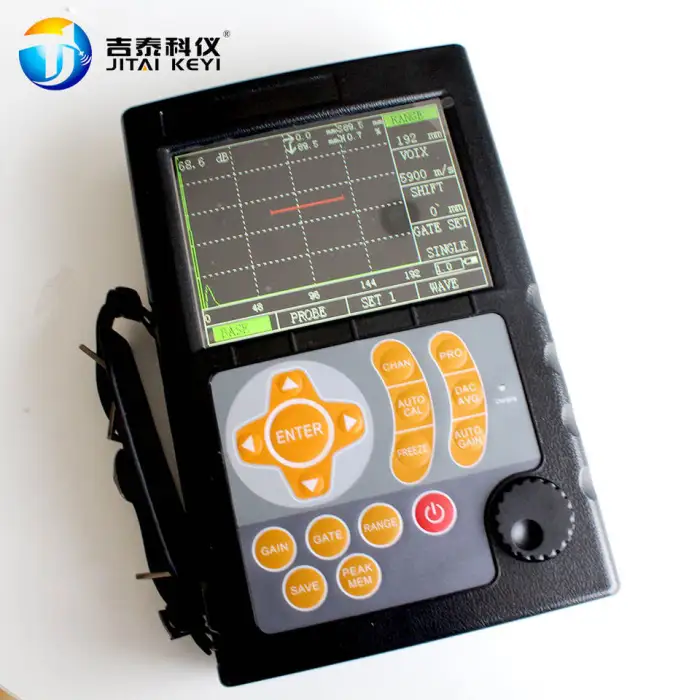

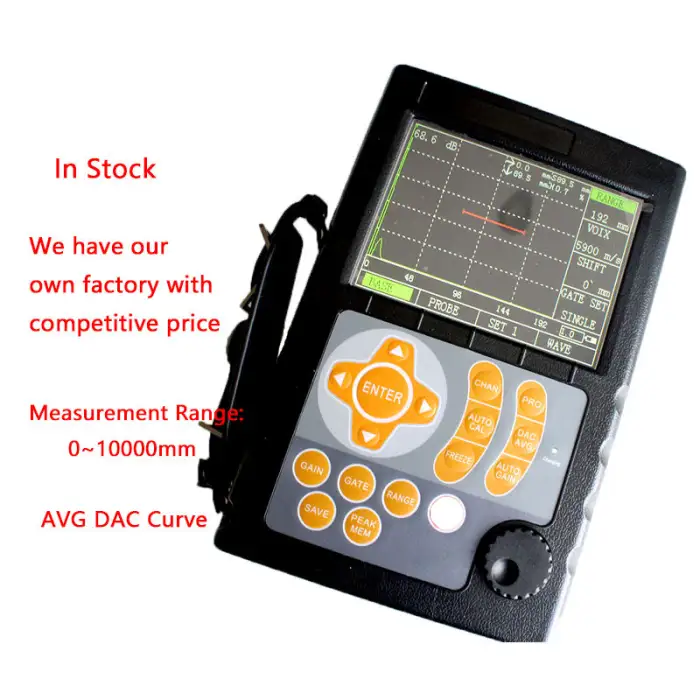

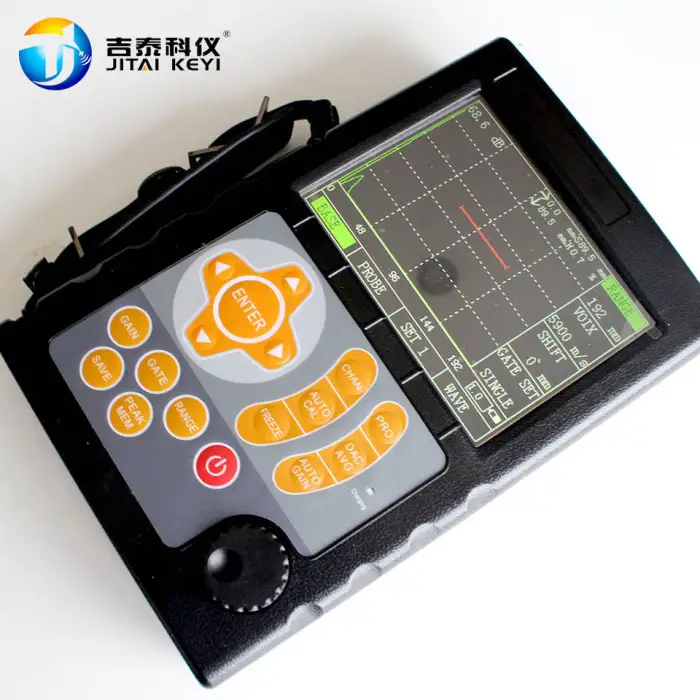

The Portable Digital NDT Ultrasonic Flaw Detector is a powerful tool designed for industrial metal testing. This ultrasonic testing equipment helps to find flaws in metal structures quickly and accurately. With its user-friendly design and advanced features, it is an es...
The Portable Digital NDT Ultrasonic Flaw Detector is a powerful tool designed for industrial metal testing. This ultrasonic testing equipment helps to find flaws in metal structures quickly and accurately. With its user-friendly design and advanced features, it is an essential device for quality control in various industries.
| Attribute | Details |
|---|---|
| Gain | 0-130dB |
| Horizontal linear error | ≤0.2% |
| Vertical linear error | ≤3% |
| Power | 7.4V 4800mAh |
| Resolution | 0.1mm (2.5mm~100mm), 1mm (>100mm) |
| Weight | 1.0 kg (with battery) |
| Working Frequency | 0.2-20MHz |
| Waveform memory | 500 |
| Zero (μs) | 0.0 ~99.99 |
| Packaging | Plastic Box |
| Single gross weight | 6.000 kg |
| Single package size | 46X38X18 cm |
| Modle size | JUT500 | JUT600 | JUT800 |
| Measuring range | 0-6000mm | 0-10000mm | 0-10000mm |
| Gain | 0-100dB | 0-120dB | 0-130dB |
| D-Delay | -20µs~+3400µs | -20µs~+3400µs | -20µs~+3400µs |
| Resolution | 0.1mm(2.5mm~100mm) 1mm(>100) | 0.1mm(2.5mm~100mm) 1mm(>100) | 0.1mm(2.5mm~100mm) 1mm(>100) |
| P-Delay | 0µs~99.99µs | 0µs~99.99µs | 0µs~99.99µs |
| Material Velocity | 1000 m/s~9999m/s | 1000 m/s~15000m/s | 1000 m/s~15000m/s |
| Temperature | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ |
| Humidity | 20%~90%RH | 20%~90%RH | 20%~90%RH |
| Power | 7.4V 4800mAh | 7.4V 4800mAh | 7.4V 4800mAh |
| Working time | >8 hours | >10 hours | >10 hours |
| Display | LED true color | LED true color | LED true color |
| Size | 238mm*160mm*50mm | 238mm*160mm*50mm | 238mm*160mm*50mm |
| Weight | 1.0kg | 1.0kg | 1.0kg |
| Gain | 0-130dB |
|---|---|
| Horizontal linear error | ≤0.2% |
| Vertical linear error | ≤3% |
| Power | 7.4V 4800mAh |
| Resolution | 0.1mm (2.5mm~100mm), 1mm (>100mm) |
| Weight | 1.0 kg (with battery) |
| Working Frequency | 0.2-20MHz |
| Waveform memory | 500 |
| Zero (μs) | 0.0 ~99.99 |
| Packaging | Plastic Box |
| Single gross weight | 6.000 kg |
| Single package size | 46X38X18 cm |
The Portable Digital NDT Ultrasonic Flaw Detector is primarily used for industrial metal testing, helping to identify flaws in metal structures quickly and accurately.
The device has a resolution of up to 0.1mm for detailed flaw detection in metal structures, with a 1mm resolution for measurements over 100mm.
The flaw detector operates on a 7.4V 4800mAh battery, offering a working time of more than 8 hours, depending on the model.
The Portable Digital NDT Ultrasonic Flaw Detector features a compact and portable design, an intuitive interface, and LED true color display for easy handling and operation.
It can detect various defects, including cracks, weld defects, and other inconsistencies in metal structures, making it suitable for quality control and maintenance checks.
Yes, the device is designed to operate within a temperature range of -20℃ to 50℃ and humidity levels of 20% to 90% RH, making it suitable for outdoor testing in various conditions.
The device can store up to 500 waveforms, allowing for easy recall and analysis of previous tests.
The available models are JUT500, JUT600, and JUT800, each with varying measuring ranges and gain capabilities.
The Portable Digital NDT Ultrasonic Flaw Detector weighs 1.0 kg with the battery included.
The measuring ranges are as follows: JUT500 has a range of 0-6000mm, JUT600 and JUT800 have ranges of 0-10000mm.
Yes, the flaw detector is suitable for maintenance checks on aircraft and vehicles, ensuring structural integrity and safety.
The horizontal linear error is ≤0.2% and the vertical linear error is ≤3%, ensuring precise measurements.
The flaw detector is designed for testing various types of metals, making it suitable for quality control in manufacturing and inspection applications.
The device has a built-in memory function that allows it to store up to 500 waveforms for analysis and review.
The device typically comes packaged in a plastic box, which may include necessary cables, user manuals, and possibly calibration tools.
