Portable BC-10D Electric Steel Plate Beveling Machine Small Milling Groove Chamfering Machine with Automatic Feature

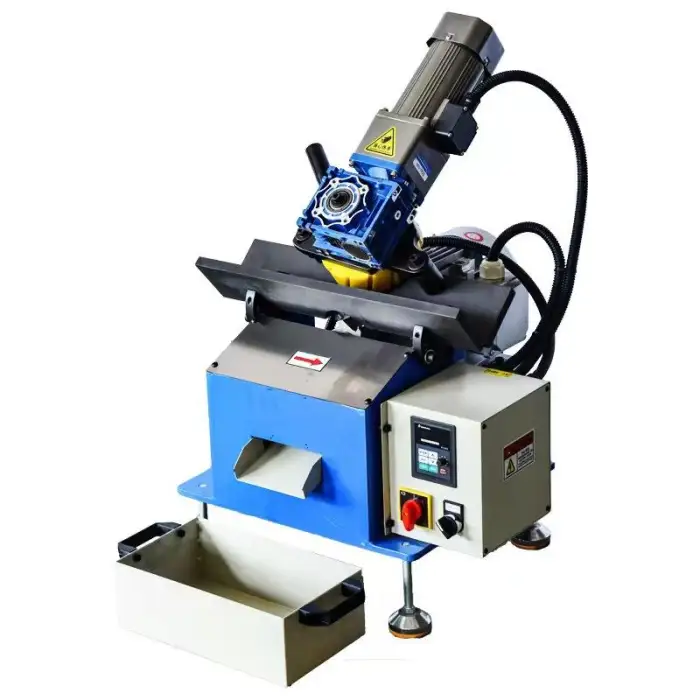

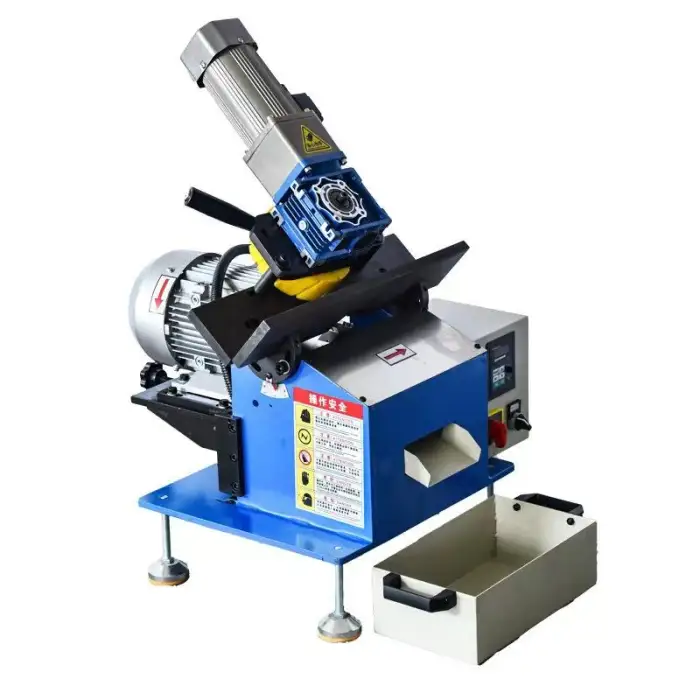

Portable BC-10D Electric Steel Plate Beveling Machine

The BC-10D Plate Beveling Machine is a high-performance metal edge preparation solution designed for creating precise bevels on steel plates prior to welding. Ideal for fabrication workshops, shipbuilding, pressure vessel manufacturing, structural steel processing, and heavy engineering applications, this machine delivers smooth, accurate bevels that improve weld quality and reduce preparation time.

Powered by a robust **2450W motor**, the BC-10D provides reliable performance and consistent cutting results across a wide range of plate thicknesses. The machine features an adjustable feed speed of **0-1500 mm/min**, allowing operators to optimize processing speed according to material type and beveling requirements.

Capable of producing bevel widths from **1 mm to 18 mm** and single bevel widths from **1 mm to 7 mm**, the BC-10D offers exceptional flexibility for various welding preparations. The adjustable bevel angle range of **30° to 60°** enables precise edge configurations to meet different fabrication specifications.

Designed to handle plate thicknesses from **2 mm to 40 mm**, the machine incorporates a secure clamping system suitable for materials with a minimum clamp width of **25 mm**, ensuring stability and accuracy during operation. Each machine is supplied with **12 beveling blades** as standard, providing extended operational capability and reduced downtime.

 Key Features

* High-performance plate beveling machine
* Suitable for welding edge preparation
* Powerful 2450W motor
* Adjustable feed speed from 0-1500 mm/min
* Adjustable bevel angle from 30° to 60°
* Bevel width up to 18 mm
* Suitable for plate thicknesses from 2-40 mm
* Stable clamping system for accurate machining

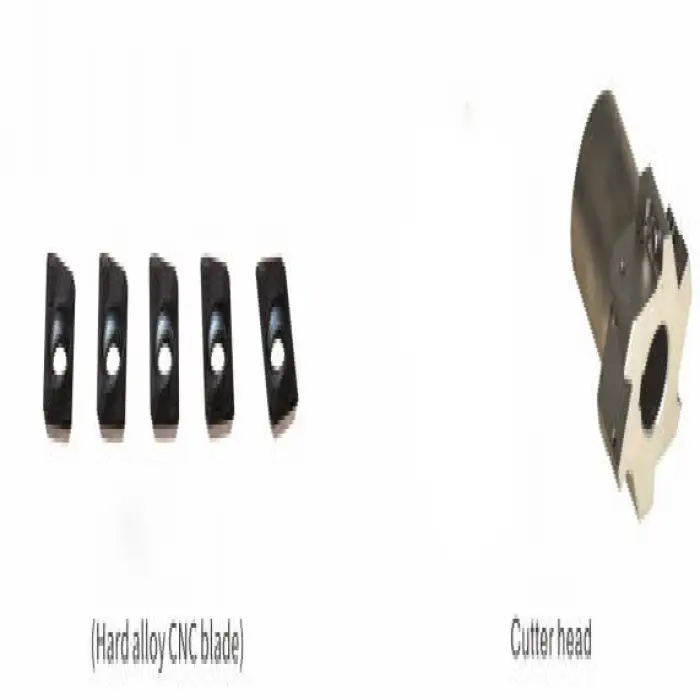

* Equipped with 12 beveling blades
* Industrial-grade construction
* Improves welding quality and efficiency
* Easy operation and maintenance

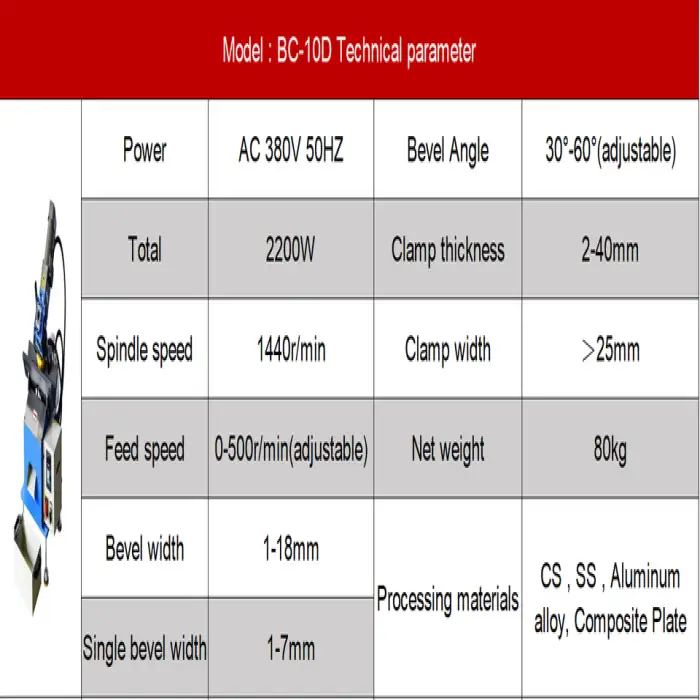

 Technical Specifications

| Specification | Details |

| Model | BC-10D |
| Voltage | AC 380V, 3 Phase, 50/60Hz |
| Total Power | 2450W |
| Spindle Speed | 1440 RPM |
| Feed Speed | 0-1500 mm/min (Adjustable) |
| Bevel Width | 1-18 mm |
| Single Bevel Width | 1-7 mm |
| Bevel Angle | 30°–60° (Adjustable) |
| Clamp Thickness | 2-40 mm |
| Minimum Clamp Width | >25 mm |
| Standard Blades Included | 12 Pieces |

 Applications

* Steel fabrication workshops
* Structural steel manufacturing
* Pressure vessel fabrication
* Shipbuilding and marine construction
* Pipeline fabrication
* Heavy engineering projects
* Welding preparation operations

The BC-10D Plate Beveling Machine provides fabricators with a reliable, efficient, and precise solution for metal edge preparation, helping to improve weld penetration, reduce labour costs, and increase overall production efficiency.
