Pneumatic Training Kit Didactic Equipment School Equipment Teaching Pneumatic Trainer SLD

Product Description

Specification

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

00:00

02:13

Jinan Should Shine supply educational equipment, didactic equipment, vocational training equipment for university, college, engineer training centers. Jinan Should Shine design, develop, manufacture and supply after sales service for educational equipment for USA, Canada, U.K., Australia, New Zealand, and more than 80 countries in the world, with more than 10 years design, manufacture and export service, with 10 engineer design team, and 10 international sales team, supply professional technical consultant and professional after sales services. With self owned brand: ShouldShine, JSS, SSEDU, gunt, and passed ISO9001 certificate since 2013. Jinan Should Shine is Alibaba verified supplier, past Intertek on site checking. Jinan Should Shine has a wide range of products including 8 ranges: electrical training equipment, mechatronics training equipment, fluid lab equipment, thermal training equipment, refrigeration training equipment, food machine trainer, PCB lab equipment, mechanical training equipment.

Products Description

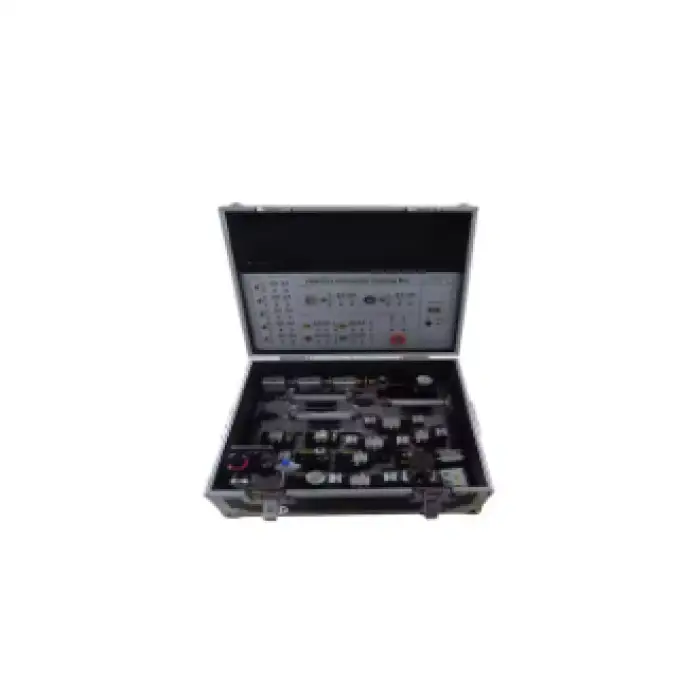

ZMP2101 Pneumatic Training Kit I Introduction Kit type pneumatic training system is designed according to “Hydraulic and Pneumatic Drive” and “Pneumatic Control Technology” to meet teaching requirement of modern pneumatic major. This system can not only conduct conventional pneumatic basic control circuit experiment, but also conduct application experiment of simulate pneumatic control technology and course design of pneumatic technology, it can make students accomplish design of smart control circuit. In a word, the system is typical experiment equipment with perfect combination of mechanical and electrical. II Technical data 1. DC current: input AC 220V, output: DC 24V/3A 2. Air compressor (basic configuration small machine): power supply: AC 220V±10% 50Hz, power of electrical machine: 1/8HP 3. Rating volume: 6L. Rating output air pressure: 0.85MPa. Noise grade: 66dB 4. Groove interval: 25mm 5. Overall dimension: 470*560*260mm 6. Dimension of base board: 450*480mm III Experiment (can combine different pneumatic circuit and control system by oneself) 1 Pneumatic basic control circuit experiment 1 Single-acting cylinder auto control 1 Double-acting cylinder auto control 1 Other integrated, extended experiment pneumatic circuits. Examples for Pneumatic basic experiment circuit: 1 Single-acting cylinder reversing circuit 1 Double-acting cylinder reversing circuit 1 Single-acting cylinder speed control circuit 1 Double-acting cylinder one-way speed control circuit 1 Double-acting cylinder bothway speed control circuit 1 Speed changeover circuit 1 Buffering circuit 1 Interlock circuit 1 Single cylinder single reciprocating control circuit 1 Single cylinder continuous reciprocating control circuit 1 Multiple-cylinder sequence action circuit 1 Double cylinder synchronization action circuit 1 Unloading circuit 1 Application circuit of or gate type shuttle valve 1 Application circuit of and gate dual pressure valve
