Plate Bearing Test

The Plate Bearing Test is a field test used to determine the load-bearing capacity of soil and pavement by measuring the deformation response of the ground under a known applied load.

The test is typically conducted by placing a rigid plate on the ground, applying a known load, and measuring the resulting vertical deflections at various load increments.

It is commonly used in geotechnical engineering to assess soil strength, support design for foundations, evaluate pavement performance, and for construction site investigations.

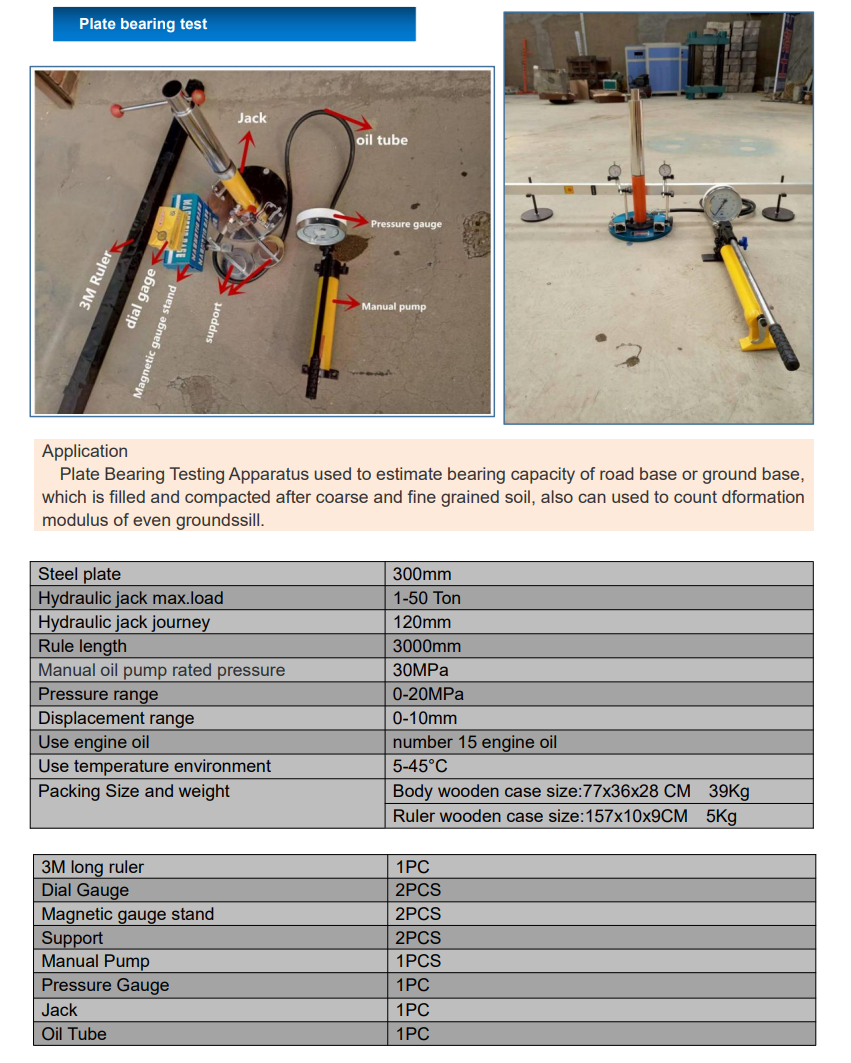

The main equipment includes a plate of specified dimensions, a loading device (like a hydraulic jack), measuring instruments for deflection, and sometimes a data recording system.

The Plate Bearing Test can assess a variety of soil conditions, including cohesive and granular soils, as well as existing pavement structures.

The duration of the test can vary depending on site conditions and equipment used, but it typically takes a few hours to set up, conduct, and analyze the results.

The test is often conducted following standards set by organizations such as ASTM (American Society for Testing and Materials) or AASHTO (American Association of State Highway and Transportation Officials).

The results provide valuable information on the load capacity of the soil or pavement, which is crucial for engineering design and ensuring safety and stability in construction projects.

While it is possible to perform the test in wet conditions, it may affect the accuracy of the results. It’s best to conduct the test when the soil is at a stable moisture content.

Yes, it is suitable for various projects including roads, buildings, bridges, and any construction requiring knowledge of soil bearing capacity.

The test site should be cleared of debris, and the ground should be level and stable. A site assessment may also be conducted to determine the best location for the test.

Results are typically presented as load vs. deflection curves, which help engineers determine the modulus of subgrade reaction and other important parameters.

Yes, the test is frequently used for pavement analysis to evaluate the structural capacity and performance of existing pavement systems.

Factors such as soil moisture content, soil type, plate size, and the method of load application can all influence the results of the Plate Bearing Test.

Yes, safety precautions include ensuring that the area is free from hazards, using proper lifting equipment for heavy loads, and following standard safety protocols during testing.
