Photovoltaic Solar Spiral Pile Rig/screw Photovolataic Pile Driver/Mini Mobile Pile Drilling Rig

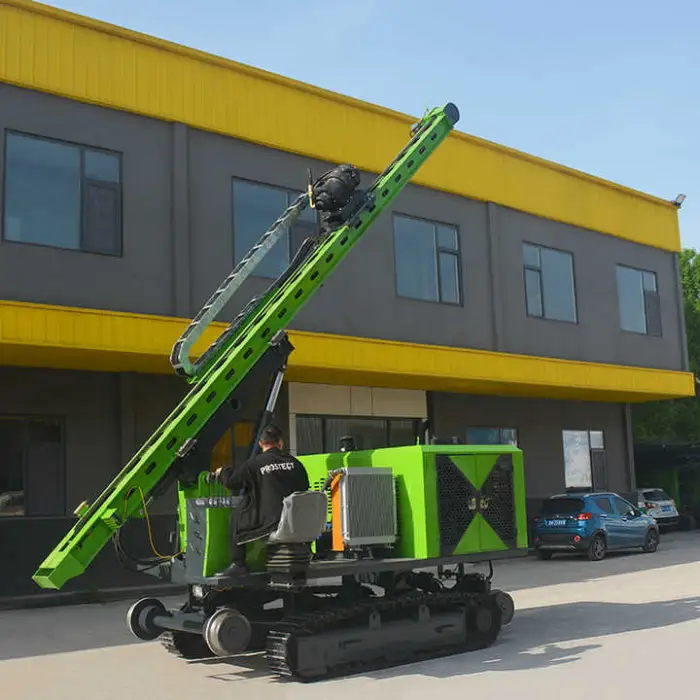

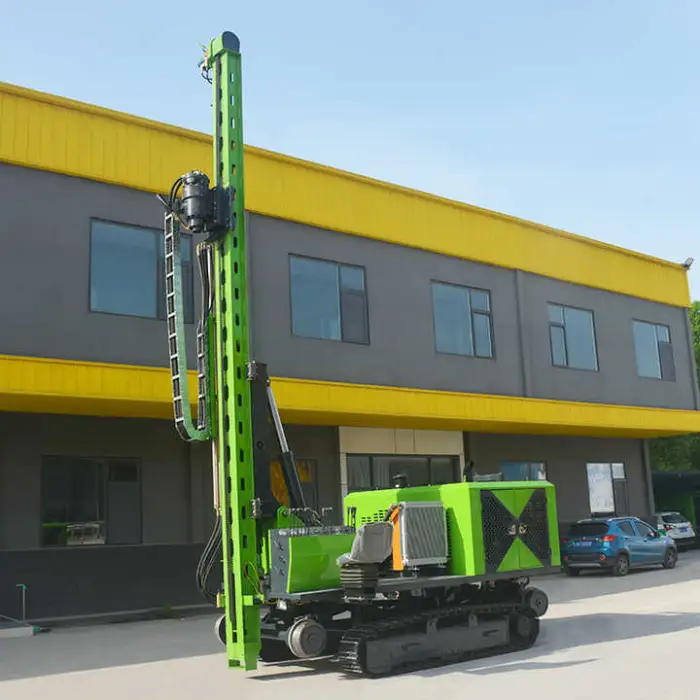

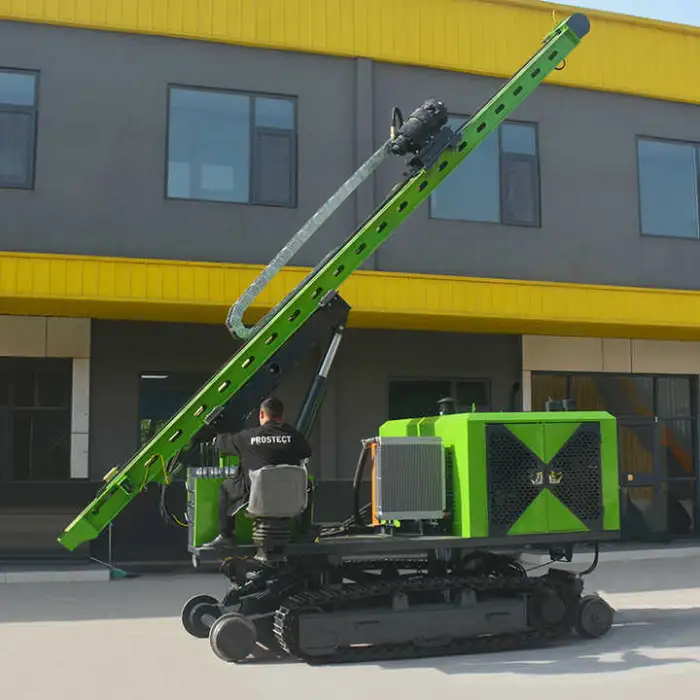

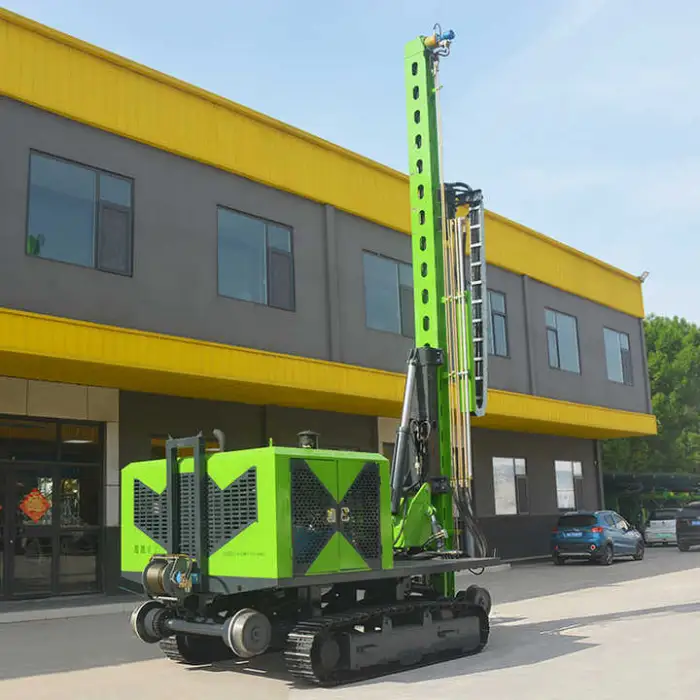

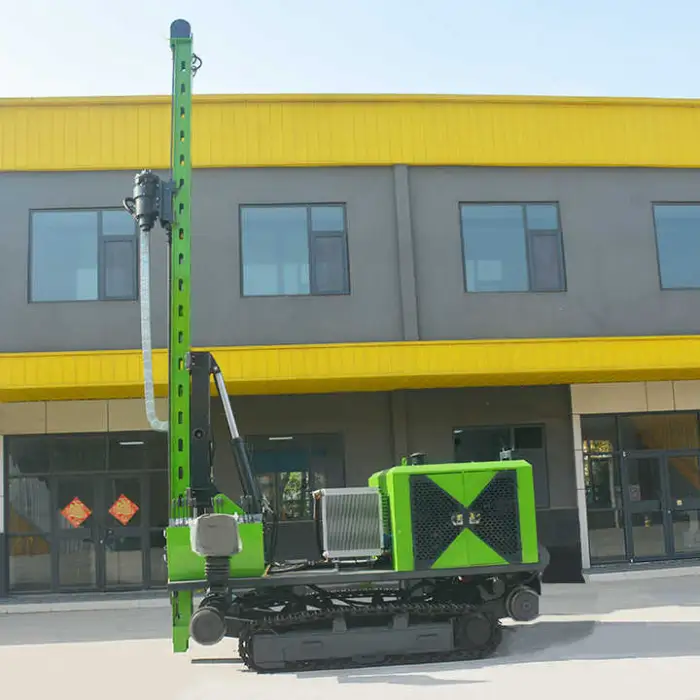

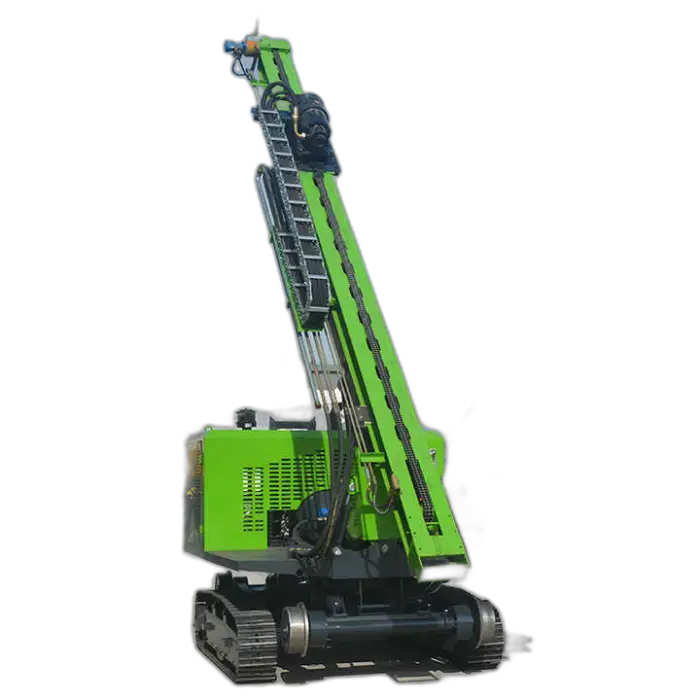

A compact, fully hydraulic pile driving and drilling rig designed primarily for installing spiral/screw piles used in ground-mounted photovoltaic (PV) systems. It is a mini mobile unit optimized for fast, efficient solar mounting and general piling tasks.

Key specifications: weight 6500 kg; dimensions (L*W*H) 4700*2100*2800 mm; type: hydraulic; walking: crawler/hydraulic walking. It is designed for PV applications and offers fast pile driving and multi-function capability.

The rig is built for spiral (screw) piles and common solar mounting piles. Exact compatible pile diameters and lengths depend on the specific configuration and attachments—please provide the pile model and dimensions to the supplier for confirmation.

Driving depth and capacity depend on pile size, soil conditions, and the selected tooling. The rig is intended to achieve depths typical for ground-mounted PV supports; for precise depth and load capacity estimates, supply site soil reports and pile specifications to the manufacturer.

The rig uses a fully hydraulic system. The hydraulic power source (onboard diesel engine, electric motor, or external powerpack) can vary by configuration—confirm the exact powerpack/fuel arrangement with the seller.

The machine is compact and crawler-based for on-site mobility. With a weight of 6500 kg and the listed dimensions, it can be transported on a suitable flatbed trailer or low-bed truck; local transport regulations and securing requirements must be followed.

The rig supports crawler (track) movement and hydraulic walking functions for precise positioning and stable operation on uneven terrain.

The fully hydraulic controls are designed for ease of operation, but safe and efficient use requires a trained operator familiar with pile-driving rigs. Manufacturers or dealers typically provide operation manuals and can arrange operator training.

Regular maintenance includes checking and changing hydraulic oil and filters, greasing bearings and pivot points, inspecting hoses and fittings, tightening fasteners, and routine engine/service maintenance if an onboard engine is present. Follow the manufacturer's maintenance schedule.

Yes. The product description indicates online support is provided for user assistance, troubleshooting, and parts/service inquiries. Check with your supplier for contact methods and hours.

It works in a variety of soils common to PV installations. Extremely hard rock, large boulders, or very dense cobble layers may require pre-drilling, specialized tooling, or a different machine class. Provide a geotechnical report to the supplier for a suitability assessment.

Typical expectations include emergency stop controls, stable crawler base, overload protection for the hydraulic system, clear operator visibility, and safety interlocks. Always use appropriate PPE and follow site safety procedures; verify specific safety features with the manufacturer.

Yes—most suppliers offer spare parts and a range of attachments (different drive heads, extensions, augers, adapters) to support various piling tasks. Confirm availability and lead times for critical spare parts before purchase.

Lead time, warranty terms, and after-sales service vary by manufacturer and order volume. Ask the supplier for expected delivery time, warranty coverage details, service network, and availability of maintenance contracts.

Contact the supplier or dealer with project details: pile type and dimensions, soil/geotechnical data, expected daily production, site access constraints, and preferred power/fuel option. The vendor can propose configurations, optional attachments, and a quotation based on your requirements.
