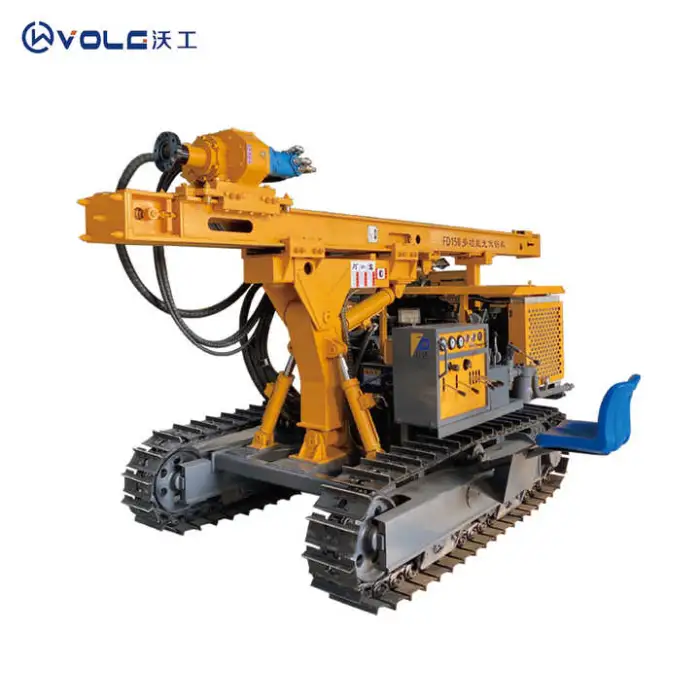

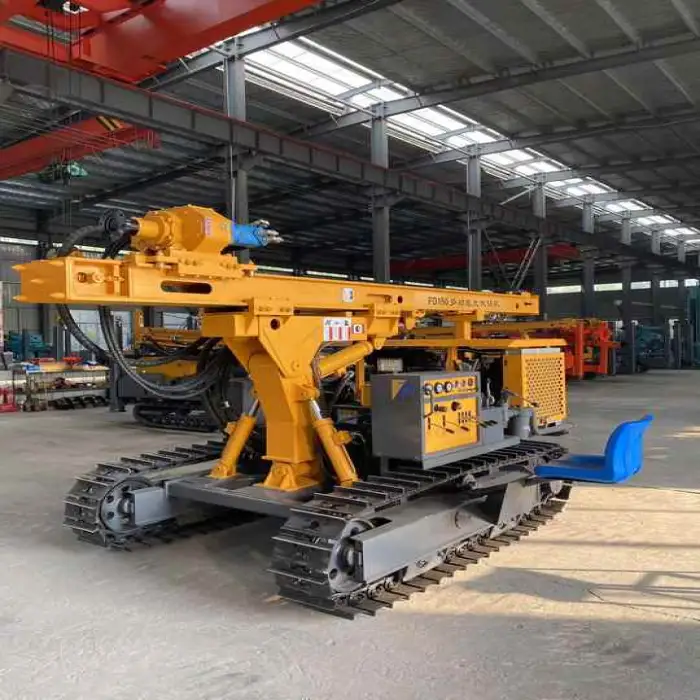

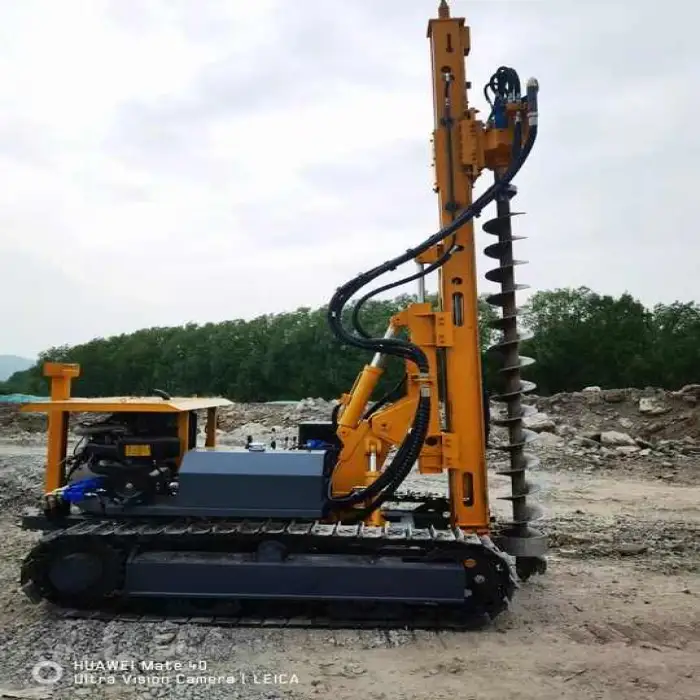

Photovoltaic Solar Drilling Machine/Solar Pile Driver

A solar-powered pile driving and drilling machine designed for efficient foundation work and pile installation. It uses photovoltaic energy for propulsion and operation and is intended for construction, solar-support installation, infrastructure and low-impact environmental projects.

The machine primarily uses solar energy (photovoltaic panels) to operate. Many units incorporate onboard energy storage (batteries) or can be supplied with auxiliary/hybrid power options for extended or low-sunlight operations—confirm power configuration with the supplier.

Piling speed: 3–6 m/min; drilling depth: up to 80 m; maximum torque: 4000 N·m; fastest rotary speed: 80 rpm; advance speed: 0.6 m/min; walking speed: 3 km/h; weight: 5001 kg; dimensions (L×W×H): 5200×2000×2550 mm; chassis ground clearance: 330 mm.

The machine is suitable for many common pile types (steel, concrete, screw piles, helical anchors) when equipped with the appropriate tooling. Supported pile diameters and lengths depend on tooling and model configuration—provide project details to the supplier for exact compatibility.

It can reach drilling depths up to 80 m, but performance in very hard rock or heavily obtrusive ground will depend on tooling and power configuration. Rock drilling or rock-socketed piles may require specialized bits, percussion attachments or a hybrid power setup—consult the manufacturer for recommended solutions.

Solar power availability is affected by sunlight; cloudy or low-light conditions may reduce runtime unless the unit has battery storage or an auxiliary power source. The machine itself is designed for outdoor use, but extreme weather (heavy rain, flooding, extreme cold) can impact safety and performance—follow manufacturer guidance.

With dimensions of 5200×2000×2550 mm and a weight of about 5001 kg, the unit typically requires a low-bed trailer or crane for long-distance transport and site positioning. On-site it can reposition itself at up to 3 km/h for short moves; final setup will include leveling, stabilizing and connecting any battery or auxiliary power systems.

Operation generally requires a trained machine operator familiar with pile-driving rigs and safety protocols; a small crew (operator plus 1–2 assistants) is typical for handling tooling, guiding piles and site setup. Specific certification and crew size depend on local regulations and project scope.

Routine maintenance includes daily visual and functional checks, cleaning solar panels, battery maintenance (if present), regular lubrication of moving parts, hydraulic system inspections, and scheduled servicing per the manufacturer's maintenance manual. Preventive maintenance is recommended to ensure reliability and longevity.

Standard safety features typically include emergency stop controls, overload protection, stabilizers or outriggers, operator cabin/console safeguards, warning alarms and interlocks. Operators should also follow site safety plans, use PPE and adhere to local regulations.

Because the machine is solar-powered it produces minimal onsite exhaust emissions compared with diesel rigs. However, pile driving and drilling inherently generate noise and vibration; noise levels vary with pile type and ground conditions. Use appropriate noise mitigation and community/worker protections as required.

Yes — the machine can typically be fitted with different tooling (augers, hammers, drive heads, adapters) and may be customized for specific pile types, length capacity or power configurations. Discuss project requirements with the manufacturer or dealer for available options.

Certifications (CE, ISO, local compliance) and warranty terms vary by manufacturer and region. Request certification documents and warranty details from the supplier to verify compliance with applicable standards and the length/coverage of warranty and service agreements.

Lead time depends on model, configuration, and current factory backlog; shipping and on-site commissioning timelines vary by region. Many suppliers offer after-sales service, spare parts and field commissioning—contact the manufacturer or dealer for specific lead times and local service options.

Provide project details (pile type and size, required depth, ground conditions, daily production target, site access, and whether continuous operation in low sunlight is needed). The manufacturer or dealer can then recommend the appropriate configuration, tooling and any auxiliary power or storage required to meet those specifications.
