Product Description

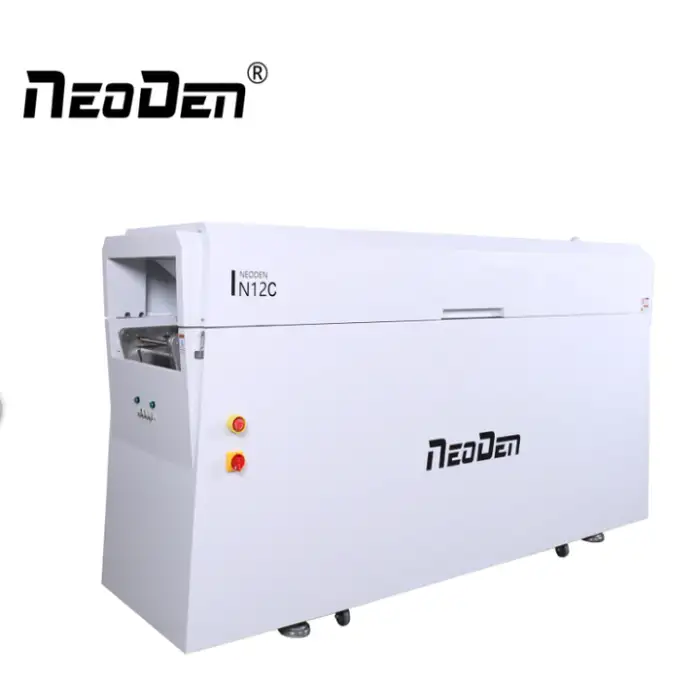

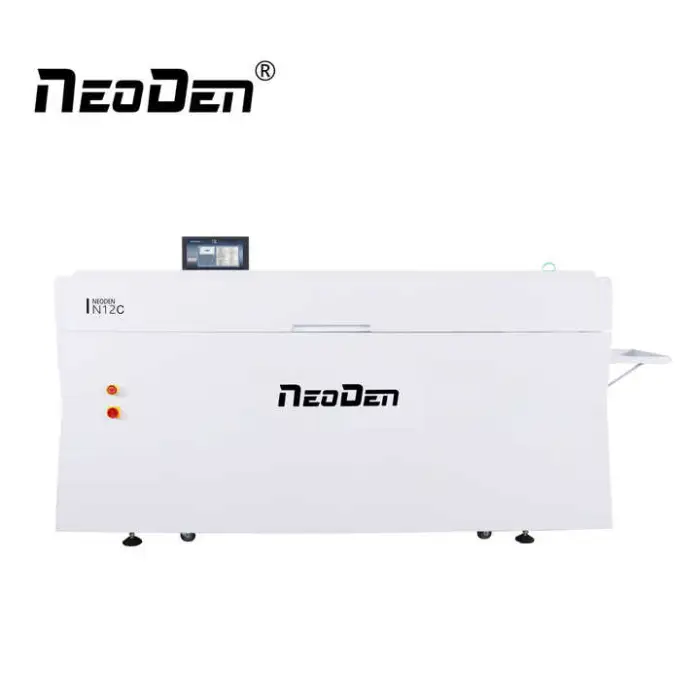

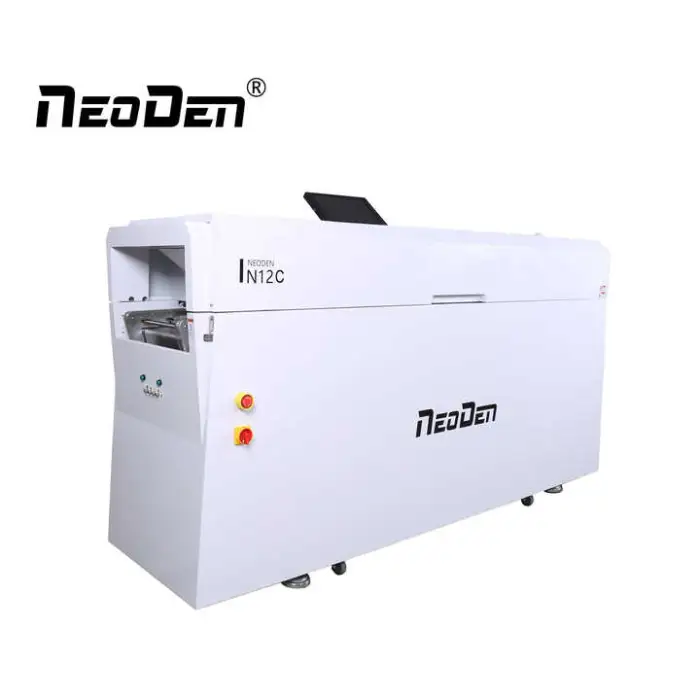

PCB Welding Station SMT Full Automatic Production Assembly Paste Soldering Machine

The PCB Welding Station SMT Full Automatic Production Assembly Paste Soldering Machine is a high-tech solution for your soldering needs. This machine is designed to make the process of PCB soldering easy and efficient. With advanced features and a user-friendly interface, it is perfect for both small and large production runs. This machine ensures precision and reliability in every soldering job.

Specifications

Attribute	Details
Model Number	IN12C
Type	Reflow Solder
Voltage	220 V
Rated Capacity	2.2KW-4.8KW
Condition	New
Usage	PCB Soldering
Dimensions	L2305W612H1230
Weight	300 KG
Max Soldering Width	300mm
Max Soldering Height	Upper 30mm Down 15mm
Heating Zones	Upper 6 / Down 6
Controller	VGUS Microcomputer

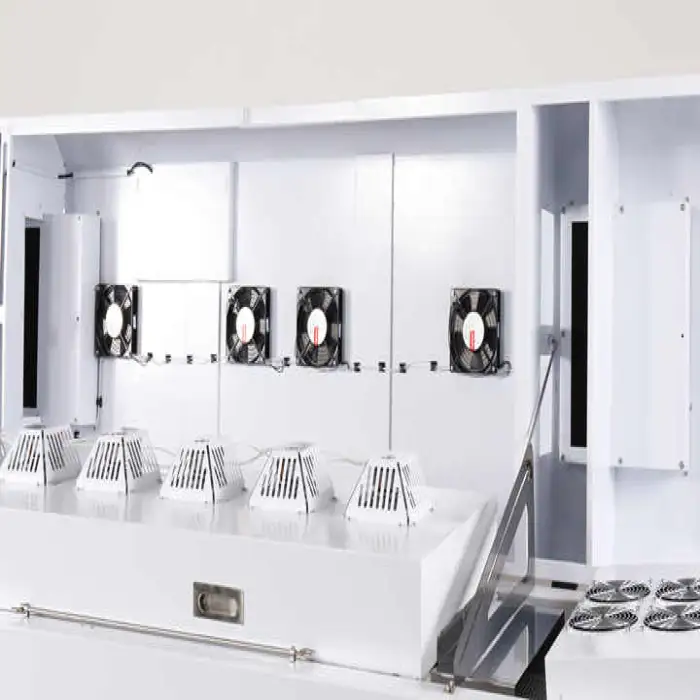

Heating Type	Nichrome wire and aluminum alloy heating
Heat-Up Time	30 min

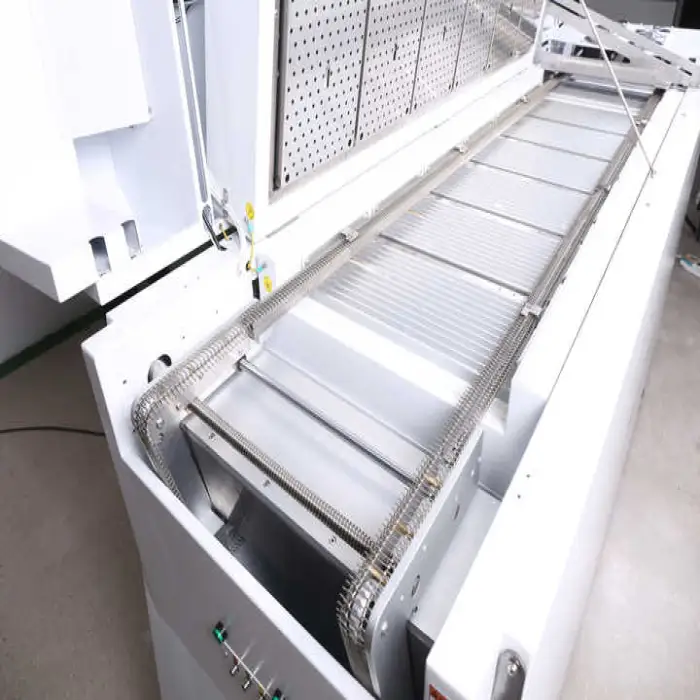

Conveyor Speed	50~600 mm/min
Item	SMT LED Soldering Machine reflow oven IN12C with 12 temperature zones
Selling Units	Single item
Single Package Size	242X73X143 cm
Single Gross Weight	414.000 KG

Key Features

Full automatic operation for easy use.
Fast heating with 12 temperature zones for precise soldering.
Adjustable conveyor speed for different production needs.
Suitable for various PCB sizes up to 300mm wide.
Durable construction for long-lasting performance.

Applications

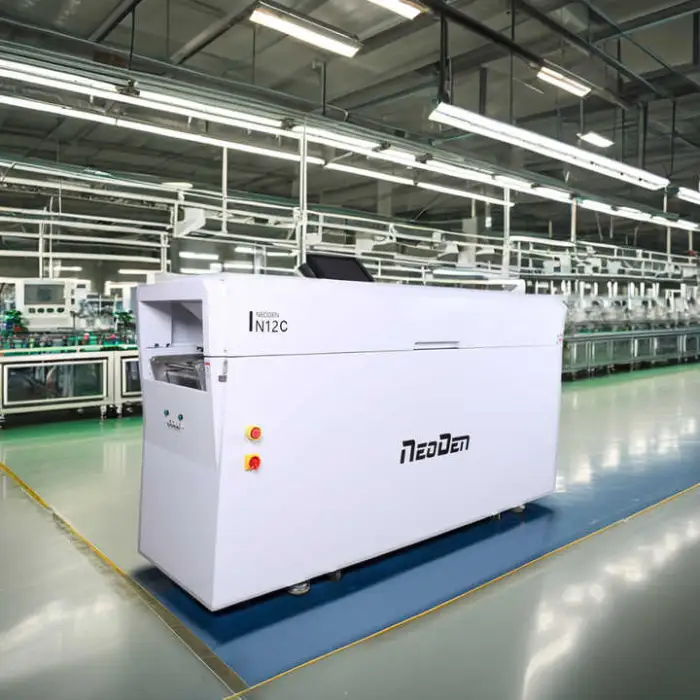

Ideal for electronics manufacturing.
Used in the assembly of LED lighting circuits.
Perfect for prototyping and small batch production.
Applicable for a variety of PCB soldering tasks.
Great for both hobbyists and industrial use.

Product Info Gallery

Frequently Asked Questions

What is the exact model name of this machine?

The model number is IN12C (SMT LED Soldering Machine / Reflow Oven).

What type of soldering process does this machine use?

It is a reflow soldering machine designed for SMT PCB soldering and paste soldering.

What are the electrical and power specifications?

Rated voltage is 220 V and rated power is between 2.2 kW and 4.8 kW. Confirm local power requirements and a dedicated circuit with your supplier/installer.

How large of a PCB can this machine handle?

Maximum soldering width is 300 mm. Maximum component heights are Upper 30 mm and Lower 15 mm.

How many heating zones does the oven have and what heating method is used?

The oven provides 12 temperature zones (Upper 6 and Lower 6). Heating is achieved with nichrome wire and aluminum alloy heating elements.

What controller does the machine use and can I program temperature profiles?

It uses a VGUS microcomputer controller. The controller supports programmable temperature profiles; consult the manual or supplier for details on profile storage and programming.

What is the conveyor speed range?

Conveyor speed is adjustable from 50 to 600 mm/min to suit different process needs.

How long does it take the oven to heat up?

Typical heat-up time is about 30 minutes to reach operating temperature.

What are the machine's physical dimensions and weight?

Machine dimensions are L2305 × W612 × H1230 mm. Net weight is listed as 300 kg; single package (crate) size is 242 × 73 × 143 cm with a gross shipping weight of 414 kg.

What kinds of applications is this machine suitable for?

It is ideal for electronics manufacturing, LED lighting circuit assembly, prototyping, and small- to medium-volume PCB production. Suitable for hobbyists and industrial use.

Can I use lead-free solder with this machine?

Yes — the machine can perform lead-free reflow soldering provided you configure appropriate temperature profiles and process parameters for lead-free alloys. Verify recommended profiles with your solder supplier.

What maintenance is required to keep the machine running reliably?

Regular maintenance includes cleaning the conveyor and chamber, checking/adjusting conveyor alignment, inspecting fans and heating elements, replacing worn belts or Teflon covers, and periodic calibration of temperature profiles. Follow the manufacturer maintenance schedule.

What are the installation and site requirements?

Install on a level, stable surface with adequate ventilation and clearance for operator access. Provide a dedicated 220 V electrical supply sized for 2.2–4.8 kW load and proper grounding. If in doubt, consult a licensed electrician or the supplier for installation guidance.

How do I estimate production throughput (boards per hour)?

Throughput depends on board length, spacing and conveyor speed. As a rule: throughput (boards/hour) = (conveyor speed mm/min) × 60 / (board length + required spacing mm). Higher conveyor speed and shorter board length/spacing increase throughput.

What warranty, spare parts and technical support options are available?

Warranty period, spare parts availability and support services vary by seller. Contact the supplier or manufacturer for details on warranty terms, available spare parts, training, and after-sales support.
